Festo
9582

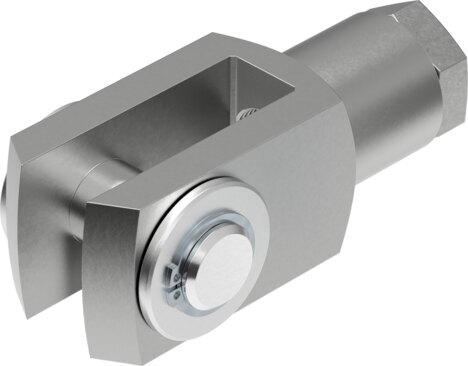

Rod clevis SG-M42X2
The Festo part number 9582 is an industrial component featuring an internal threaded connection of M42x2 and conforming to ISO 8140. Constructed with galvanized steel for the bolt, clevis, and nut, this 7520 g assembly offers a corrosion resistance class of CRC 1 and operates within an ambient temperature range of -40 °C to 150 °C. The materials comply with RoHS and VDMA24364-B2-L LABS conformity, with specific exclusions applied to copper mass and electrical components for Li-ion battery production suitability. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9582
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9582.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M42x2
- Conforms to standard
- ISO 8140
- Threaded connection
- Internal thread M42x2
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 7520 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Clevis material
- Steel | Galvanized
- Nut material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9582. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
