Festo
9583

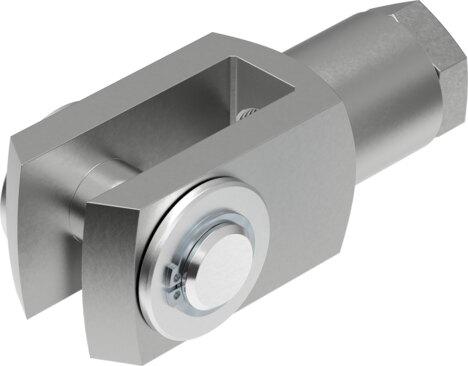

Rod clevis SG-M48X2
The Festo 9583 is an industrial component featuring an internal M48x2 threaded connection conforming to ISO 8140 with a size of M48x2. Constructed with galvanized steel for the bolt, clevis, and nut, this RoHS-compliant part offers a corrosion resistance class of CRC 1 and operates within an ambient temperature range of -40 °C to 150 °C with a product weight of 10029 g. It exhibits VDMA24364-B2-L LABS conformity and excludes materials with more than 1% copper by mass, along with circuit boards, lines, electrical push-in connectors, and coils, for the production of Li-ion batteries. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9583
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9583.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M48x2
- Conforms to standard
- ISO 8140
- Threaded connection
- Internal thread M48x2
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 10029 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Clevis material
- Steel | Galvanized
- Nut material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9583. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
