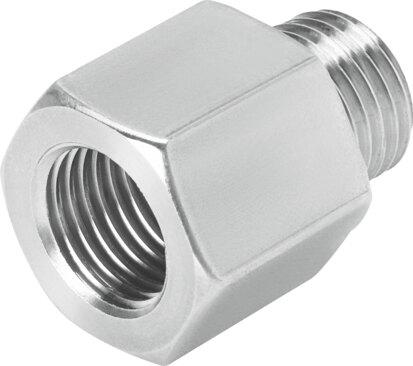

Reference imageConfirm configuration by manufacturer part number.
Festo
9625
Adapter AD-1/4NPT-G1/4-I
The Festo part number 9625 is an industrial component featuring a galvanized steel housing, PVC seals, and a nominal width of 7.95 mm with an external 1/4 NPT pneumatic connection 1 and an internal G1/4 pneumatic connection 2. This RoHS compliant part operates within a temperature range of -10 °C to 60 °C at pressures from -0.95 bar to 10 bar, exhibiting a low corrosion stress CRC rating of 1, VDMA24364-B1/B2-L LABS conformity, and a product weight of 21 g alongside maximum tightening torques of 12 Nm for connection 1 and 11 Nm for connection 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9625
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9625.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.95 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 12 Nm
- Max. tightening torque, pneumatic connection 2
- 11 Nm
- Product weight
- 21 g
- Pneumatic connection 1
- external thread 1/4 NPT
- Pneumatic connection 2
- Internal thread G1/4
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9625. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
