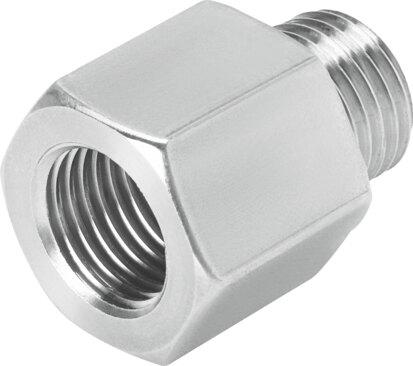

Reference imageConfirm configuration by manufacturer part number.
Festo
9627
Adapter AD-1/2NPT-G1/2-I
The Festo part number 9627 is an industrial component featuring a nominal width of 14.3 mm, an operating pressure range of -0.95 bar to 10 bar across its entire temperature range, and a corrosion resistance class of CRC 1 for low corrosion stress. Constructed with a galvanized steel housing, PVC seals, and RoHS-compliant materials, this unit includes an external thread 1/2 NPT pneumatic connection 1 with a maximum tightening torque of 28 Nm and an internal thread G1/2 pneumatic connection 2 with a maximum tightening torque of 40 Nm. Weighing 48.48 g, the component operates within an ambient temperature range of -10 °C to 60 °C and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9627
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9627.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 14.3 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 28 Nm
- Max. tightening torque, pneumatic connection 2
- 40 Nm
- Product weight
- 48.48 g
- Pneumatic connection 1
- external thread 1/2 NPT
- Pneumatic connection 2
- Internal thread G1/2
- Note on materials
- RoHS compliant
- Seals material
- PVC
- Housing material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9627. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
