Festo
9633

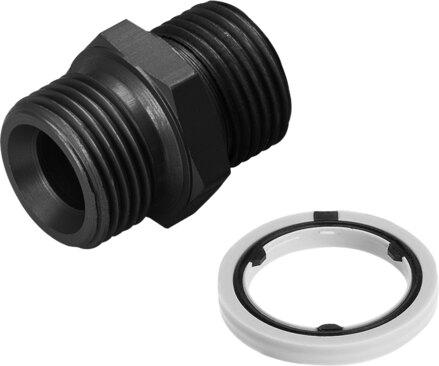

Double nipple E-G1/2-1/2NPT
The Festo 9633 is an industrial component featuring a nominal width of 14.3 mm and a G1/2 pneumatic connection 1 paired with a 1/2 NPT pneumatic connection 2. It operates within a pressure range of -0.95 bar to 10 bar across an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. This RoHS-compliant part weighs 47.68 g, has a corrosion resistance class of CRC 1, and requires a maximum tightening torque of 40 Nm for connection 1, 28 Nm for connection 2, and a nominal tightening torque of 47.9 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9633
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9633.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 14.3 mm
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque, pneumatic connection 1
- 40 Nm
- Max. tightening torque, pneumatic connection 2
- 28 Nm
- Nominal tightening torque
- 47.9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 47.68 g
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- 1/2 NPT
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9633. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
