Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

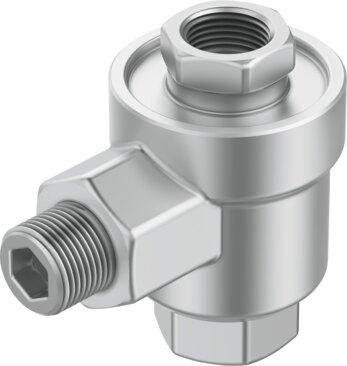

Reference imageConfirm configuration by manufacturer part number.
Festo
9687
Quick exhaust valve SE-3/8-B
The Festo 9687 is a quick exhaust industrial component featuring G3/8 pneumatic connections for ports 1, 2, and 3, along with a die-cast aluminum housing and NBR seals. It delivers a standard nominal flow rate of 2760 l/min for exhaust air and 2880 l/min for pressurization within an operating pressure range of 0.2 bar to 10 bar. Designed for screw-in mounting in any position, this unit operates with compressed air according to ISO 8573-1:2010 [7:-:-] at temperatures between -20 °C and 75 °C and supports oil lubrication. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9687
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9687.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Type of mounting
- Screw-in
- Standard nominal ow rate exhaust air 6->5 bar
- 2760 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 2880 l/min
- Operating pressure
- 0.2 bar...10 bar
- Ambient temperature
- -20 °C...75 °C
- Housing material
- Die-cast aluminum
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Nominal width
- 11 mm
- Mounting position
- Any
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Product weight
- 125 g
- Pneumatic connection 3
- G3/8
- Note on materials
- RoHS compliant
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9687. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
