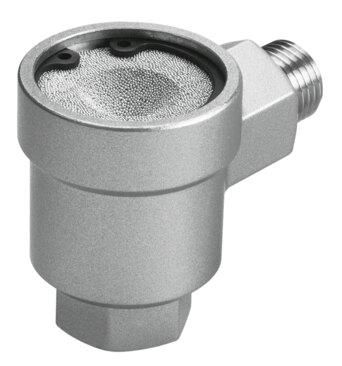

Reference imageConfirm configuration by manufacturer part number.
Festo
9799
Quick exhaust valve SEU-1/4-NPT
The Festo part number 9799 is a quick exhaust industrial component featuring an integrated muffler, 1/4 NPT pneumatic connections for both ports 1 and 2, and a screw-in mounting type. It operates within a pressure range of 0.5 bar to 10 bar across an ambient and medium temperature range of -20 °C to 75 °C, delivering a standard nominal flow rate exhaust air of 1100 l/min at 6 to 5 bar and 2300 l/min at 6 to 0 bar. Designed with a 7 mm nominal width, this RoHS-compliant unit utilizes compressed air as per ISO 8573-1:2010 [7:-:-] with oil lubrication possible and required for further use, while maintaining a noise level of 85 dB(A) and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9799
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9799.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Selection of additional function
- with muffler
- Pneumatic connection 1
- 1/4 NPT
- Pneumatic connection 2
- 1/4 NPT
- Type of mounting
- Screw-in
- Standard nominal ow rate exhaust air 6->5 bar
- 1100 l/min
- Standard ow rate exhaust 6-> 0 bar
- 2300 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 960 l/min
- Operating pressure
- 0.5 bar...10 bar
- Ambient temperature
- -20 °C...75 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Nominal width
- 7 mm
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Noise level
- 85 dB(A)
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9799. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
