Festo
9800

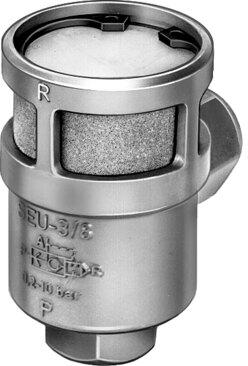

Quick exhaust valve SEU-3/8-NPT
The Festo 9800 is a quick exhaust industrial component featuring an integrated muffler and 3/8 NPT pneumatic connections on both ports for direct screw-in mounting. It delivers a standard nominal flow rate of 2280 l/min for exhaust air from 6 to 5 bar, a standard flow rate of 4680 l/min for exhaust from 6 to 0 bar, and a standard nominal flow rate of 2880 l/min for pressurization from 6 to 5 bar across an operating pressure range of 0.2 bar to 10 bar. Designed with an 11 mm nominal width, an ambient and medium temperature range of -20 °C to 75 °C, and a noise level of 83 dB(A), the unit operates with compressed air as per ISO 8573-1:2010 [7:-:-] and allows oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9800
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9800.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Quick exhaust
- Selection of additional function
- with muffler
- Pneumatic connection 1
- 3/8 NPT
- Pneumatic connection 2
- 3/8 NPT
- Type of mounting
- Screw-in
- Standard nominal ow rate exhaust air 6->5 bar
- 2280 l/min
- Standard ow rate exhaust 6-> 0 bar
- 4680 l/min
- Standard nominal ow rate pressurization 6->5 bar
- 2880 l/min
- Operating pressure
- 0.2 bar...10 bar
- Ambient temperature
- -20 °C...75 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Nominal width
- 11 mm
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Noise level
- 83 dB(A)
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9800. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
