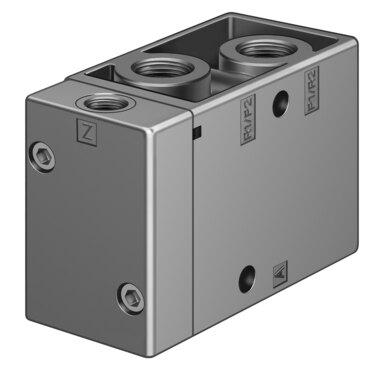

Reference imageConfirm configuration by manufacturer part number.
Festo
9984
Pneumatic valve VL/O-3-1/4
The Festo 9984 is a direct-controlled 3/2 open/closed monostable pneumatic industrial component featuring a plate seat structural design with a soft sealing principle and a negative overlap lap. It delivers a normal nominal flow rate of 800 l/min through G1/4 pneumatic working ports, operating within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar) and an external pilot pressure of 0.1 MPa to 1 MPa (1 bar to 10 bar). Constructed with an IP65 degree of protection, a 30.5 mm width, a 32 mm width dimension, and a 7 mm nominal width, this unit utilizes an adjustable exhaust air function, mechanical spring reset, and reversible flow direction in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 9984
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 9984.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2, open/closed, monostable
- Actuation type
- Pneumatic
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.1 MPa...1 MPa
- Pilot pressure
- 1 bar...10 bar
- Switching time off
- 26 ms
- On switching time
- 7 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 230 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 9984. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
