Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
SKF
KFGX1MX3CCCX99+924

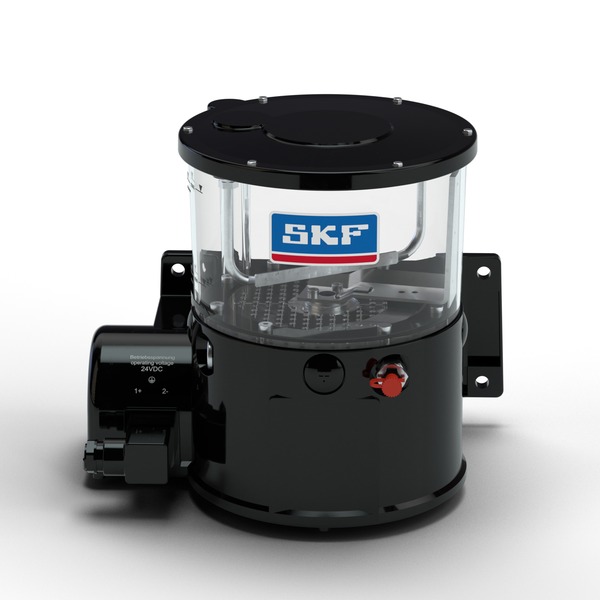

SKF KFGX1MX3CCCX99+924 — Piston Pump
The SKF KOLBENPUMPE 24V KFGX1MX3CCCX99+924 is an electrical industrial piston pump designed for grease dispensing up to a maximum operating pressure of 300 bar, featuring a 2-liter plastic (Kunststoff) reservoir and three outlets with M14x1,5 connection threads. Operating on 24 V DC within a temperature range of -25 to +75 °C, this unit delivers a flow rate of 1.3 cm³/min, accommodates NLGI grade ≤ 1 lubricants, and includes level monitoring with an IP56 ingress protection rating, while omitting integrated control, a pressure gauge, and a pressure switch. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this SKF component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued SKF references — within one business day.
- Manufacturer
- SKF
- Part number
- KFGX1MX3CCCX99+924
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to KFGX1MX3CCCX99+924.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Type
- Piston Pump
- Manufacturer Model
- KOLBENPUMPE 24V KFGX1MX3CCCX99+924 | 358441
- Connection Thread
- M14x1,5
- Number of Outlets
- 3
- Reservoir
- 2 l
- Reservoir Material
- Kunststoff
- Operating Voltage
- 24 V DC
- Operating Temperature
- -25 ... +75°C
- Actuation Type
- elektrisch
- Pressure Switch
- Nein
- Fluid
- Fett
- Flow Rate
- 1,3 cm³/min
- Integrated Control
- Nein
- Pressure Gauge
- Nein
- Maximum Operating Pressure
- 300 bar
- NLGI Grade
- ≤ 1
- Level Monitoring
- Ja
- Ingress Protection Rating
- IP56
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against SKF KFGX1MX3CCCX99+924. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
