SKF Lincoln
644-40550-4

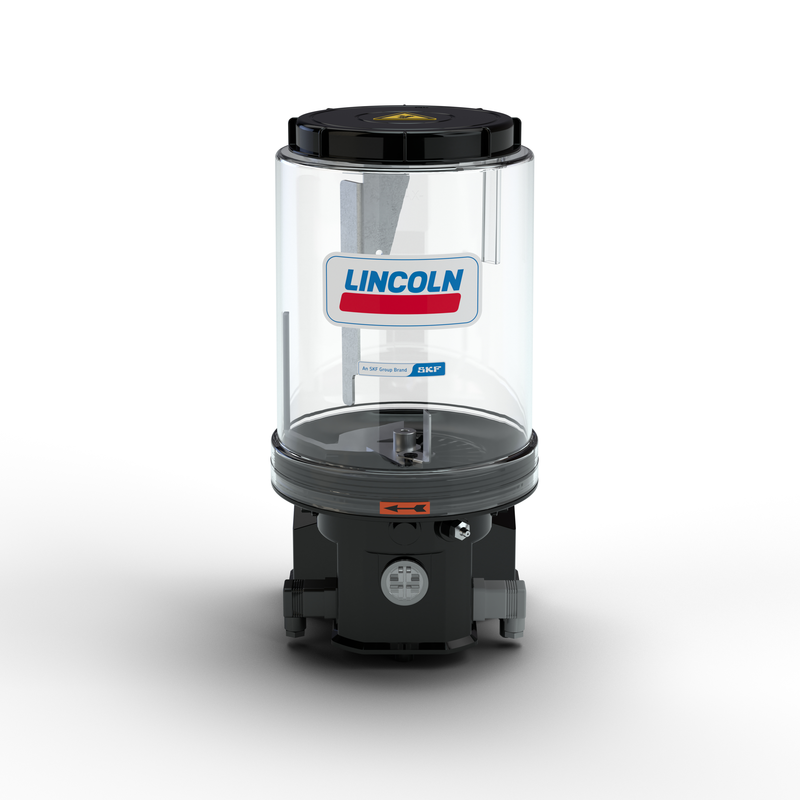

SKF Lincoln 644-40550-4 — Piston Pump
The SKF Lincoln 644-40550-4 is an electrical piston pump from the P203 series featuring a 24 V DC operating voltage, a flow rate of 4,0 cm³/min, and an 8 l plastic reservoir. Designed for grease lubrication up to NLGI Grade ≤ 2, this unit delivers a maximum operating pressure of 350 bar through 1 to 3 outlets with a G 1/4" connection thread. The component operates in S3 mode within a temperature range of -40 to +70°C, includes integrated level monitoring, and provides an IP6K9K ingress protection rating without a pressure switch, pressure gauge, or integrated control. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued SKF Lincoln references — within one business day.
- Manufacturer
- SKF Lincoln
- Part number
- 644-40550-4
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 644-40550-4.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Type
- Piston Pump
- Manufacturer Model
- KOLBENPUMPE P203_E-_8XLBO-700-24-1100G200-___A | 417641
- Connection Thread
- G 1/4"
- Number of Outlets
- 1-3
- Reservoir
- 8 l
- Reservoir Material
- Kunststoff
- Operating Mode
- S3
- Operating Voltage
- 24 V DC
- Operating Temperature
- -40 ... +70°C
- Actuation Type
- elektrisch
- Pressure Switch
- Nein
- Fluid
- Fett
- Flow Rate
- 4,0 cm³/min
- Integrated Control
- Nein
- Pressure Gauge
- Nein
- Maximum Operating Pressure
- 350 bar
- NLGI Grade
- ≤ 2
- Level Monitoring
- Ja
- Ingress Protection Rating
- IP6K9K
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against SKF Lincoln 644-40550-4. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
