SKF Lincoln
644-40717-5

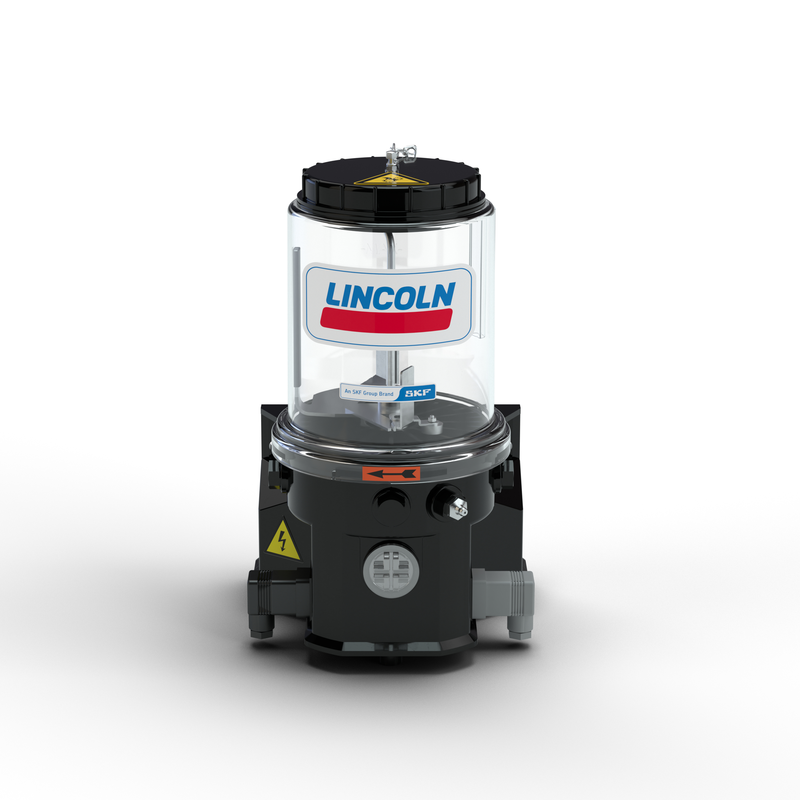

SKF Lincoln 644-40717-5 — Piston Pump
The SKF Lincoln KOLBENPUMPE P203__-_2XNBO-600-AC-D1000000-___A (Part Number 644-40717-5) is an electrically actuated industrial component operating at 230 V AC with an S3 operating mode, delivering a flow rate of approximately 2,8 cm³/min for grease up to NLGI Grade ≤ 2. This unit features a G 1/4" connection thread, 1-3 outlets, a 2 l plastic (Kunststoff) reservoir, an IP6K9K ingress protection rating, and a maximum operating pressure of 350 bar across an operating temperature range of -25 to +70°C, without an integrated control, pressure switch, pressure gauge, or level monitoring. Submit part number 644-40717-5, required quantity, and application specifications to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued SKF Lincoln references — within one business day.
- Manufacturer
- SKF Lincoln
- Part number
- 644-40717-5
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 644-40717-5.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Type
- Piston Pump
- Manufacturer Model
- KOLBENPUMPE P203__-_2XNBO-600-AC-D1000000-___A | 417649
- Connection Thread
- G 1/4"
- Number of Outlets
- 1-3
- Reservoir
- 2 l
- Reservoir Material
- Kunststoff
- Operating Mode
- S3
- Operating Voltage
- 230 V AC
- Operating Temperature
- -25 ... +70°C
- Actuation Type
- elektrisch
- Pressure Switch
- Nein
- Fluid
- Fett
- Flow Rate
- ~2,8 cm³/min
- Integrated Control
- Nein
- Pressure Gauge
- Nein
- Maximum Operating Pressure
- 350 bar
- NLGI Grade
- ≤ 2
- Level Monitoring
- Nein
- Ingress Protection Rating
- IP6K9K
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against SKF Lincoln 644-40717-5. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
