Teledyne FLIR
FLI-E96

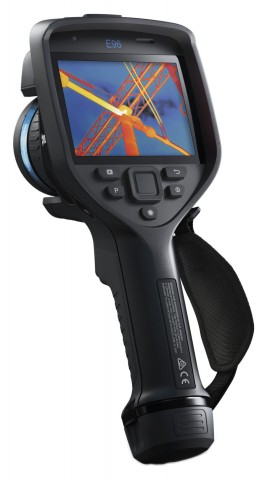

Teledyne FLIR FLI-E96 — Thermal Imaging Camera
The Teledyne FLIR FLI-E96 is an industrial test and maintenance thermal imaging camera featuring a 30 Hz operating frequency and weighing 1 kg, with physical dimensions of 278.4 x 116.1 x 113.1 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Teledyne FLIR references — within one business day.
- Manufacturer
- Teledyne FLIR
- Part number
- FLI-E96
- Product series
- Thermal Imaging Camera
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to FLI-E96.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions
- 278.4 x 116.1 x 113.1 mm
- Batterie/accu
- Batterie Li-ion rechargeable
- Format de fichier
- JPEG standard, données de mesure incluses. Mode infrarouge uniquement
- Mémoire de données
- Carte SD amovible
- Détecteur
- Microbolomètre non refroidi, 12 µm
- Palettes de couleurs
- Fer, gris, arc-en-ciel, arctique, lave, arc-en-ciel HC
- Fréquence
- 30 Hz
- Précision
- ±2 °C ou ±2 % du relevé
- Poids
- 1 kg
- Interface de communication
- USB 2.0, Bluetooth®, Wifi, DisplayPort
- Laser
- Oui
- Écran LCD
- Écran LCD tactile 640 × 480 pixels de 4'' avec rotation automatique
- Autonomie de la batterie
- >2,5 heures à 25 °C (+68 °F) et en utilisation habituelle
- Mise au point
- Continue avec télémètre laser, sur image unique avec appareil de mesure à distance par laser, avec contraste pour image unique, manuelle
- Gamme spectrale
- 7,5 à 14 µm
- Sensibilité thermique
- < 40 mK à 30 ºC
- Ouverture f
- 1,3
- Résolution IR
- 640 × 480 pixels
- Viseur
- Non
- Incrustation d'image
- Redimensionnable et mobile
- Zoom numérique
- Continu de 1 à 8×
- Point de mesure
- 3 chacun en mode direct
- Plage de températures de lobjet
- -20 °C à 120 °C ; 0 °C à 650 °C ; 300 °C à 1 500 °C
- GPS
- Marquage automatique de l'image
- Sortie vidéo
- DisplayPort par USB C
- Product Type
- Thermal Imaging Camera
- Frequency
- 30 Hz
- Weight
- 1 kg
