Festo
8033019
Air solenoid valve VSVA-B-B52-ZTR-A1-1T1L
The Festo 8033019 is an electrically actuated 5/2-way bistable industrial component featuring a 26 mm width, a piston gate valve structural design, and a normal nominal flow rate of 1100 l/min normalized to DIN 1343. Operating at 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted unit incorporates soft sealing principles, a positive overlap lap, and an integrated LED signal status display. It offers IP65 and NEMA 4 degrees of protection, c UL us recognition, and supports internal or external pilot air supply with pilot pressures ranging from 0.3 MPa to 1 MPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8034843
Air solenoid valve VSVA-B-T22C-AZ-D1-1T1L
The Festo part number 8034843 is an electrical industrial component featuring a 2x2/2 closed, monostable valve function and a piston gate valve structural design with a 42 mm width. This piloted component provides a normal nominal flow rate of 1400 l/min, a 24V DC operating voltage, an operating pressure of 0.3 MPa to 1 MPa (3 bar to 10 bar), and a soft sealing principle with an adjustable exhaust air function via individual sub-base. Certified as c UL us - recognized (OL) with an IP65 and NEMA 4 degree of protection, it includes a covered manual override, LED signal status display, and operates in any mounting position with external pilot air supply. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
8033557
Air solenoid valve VUVG-L18-P53E-G14-P1
The Festo 8033557 is an electrical piston gate valve featuring a 5/3 exhausted function and an 18 mm valve size with a nominal width of 6.3 mm. This piloted component provides a normal nominal flow rate of 910 l/min through G1/4 pneumatic working ports, operating within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) utilizing internal pilot air supply and a soft sealing principle. Designed with an adjustable exhaust air function, mechanical spring reset method, and IP65 degree of protection when equipped with the electrical pilot valve and plug socket, the unit carries c UL us recognition alongside CE and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8031320
Stem actuated valve VMEF-SC-M52-M-G18
The Festo 8031320 is a 20 mm wide mechanical 5/2-way monostable industrial component featuring a piston gate valve structural design and soft sealing principle. This piloted valve operates within a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar, 36.25 psi to 145 psi) utilizing an internal pilot air supply port and mechanical spring reset method. It delivers a normal nominal flow rate of 750 l/min through G1/8 pneumatic working ports with a nominal width of 5.2 mm, a maximum switching frequency of 3 Hz, and non-reversible flow direction for mounting in any position. Submit the exact part number, quantity, and application requirements for a quote on this component, noting the application constraint that it must not be used as a mechanical stop.
View product details →
Festo
8033018
Air solenoid valve VSVA-B-T32W-AZTR-A1-1T1L
The Festo 8033018 is a 26 mm wide industrial component featuring a 2x3/2 open/closed monostable valve function and a piston gate valve structural design with a soft sealing principle. Operating at 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this electrically actuated, piloted valve delivers a normal nominal flow rate of 900 l/min and includes IP65 and NEMA 4 degree of protection alongside c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
8034842
Air solenoid valve VSVA-B-P53C-Z-D1-1T1L
The Festo 8034842 is an electrically actuated 5/3-way closed piston gate valve featuring a 42 mm width, a soft sealing principle, and a normal nominal flow rate of 1200 l/min according to DIN 1343. Operating on 24V DC within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted component includes an IP65 and NEMA 4 degree of protection, a covered manual override, and an LED signal status display. Pneumatic connections utilize an ISO 5599-2 size 1 sub-base or G3/8 working port with external pilot air supply requirements between 0.3 MPa and 1 MPa (3 bar to 10 bar) and adjustable exhaust air functions via a throttle plate or individual sub-base. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo industrial component.
View product details →
Festo
8033556
Air solenoid valve VUVG-L18-P53C-G14-P1
The Festo part number 8033556 is an electrical 5/3-way closed piston gate valve featuring an 18 mm valve size, a nominal flow rate of 1200 l/min, and G1/4 pneumatic working ports. Operating within a 3 bar to 8 bar pressure range, this piloted component utilizes internal pilot air supply, a soft sealing principle, a mechanical spring reset, and an adjustable exhaust air function. It carries an IP65 degree of protection when equipped with the electrical pilot valve and plug socket, alongside c UL us recognition, CE marking, and UKCA compliance. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →
Festo
8031319
Stem actuated valve VMEF-SC-M52-M-G14
The Festo 8031319 is a 20 mm wide mechanical industrial component featuring a 5/2-way monostable valve function and a piston gate valve structural design. It delivers a normal nominal flow rate of 1200 l/min through G1/4 pneumatic working ports, operating within a pressure range of 2.5 bar to 10 bar with internal pilot air supply. This non-reversible unit incorporates a soft sealing principle, mechanical spring reset, and positive overlap lap, while supporting a maximum switching frequency of 3 Hz in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8033017
Air solenoid valve VSVA-B-T32H-AZTR-A1-1T1L
The Festo 8033017 is an electrical industrial component featuring a 2x3/2 open/closed monostable valve function and a piston gate valve structural design with a 26 mm width. This piloted component operates at 24V DC with an operating pressure ranging from 0.3 MPa to 1 MPa (3 bar to 10 bar), delivering a normal nominal flow rate of 900 l/min through a G1/4 pneumatic working port. It includes IP65 and NEMA 4 protection degrees, c UL us recognition, LED signal status display, and flexible exhaust air and manual override options. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8034841
Air solenoid valve VSVA-B-P53E-Z-D1-1T1L
The Festo 8034841 is an electrical 42 mm piston gate valve featuring a 5/3 exhausted function, soft sealing principle, and a normal nominal flow rate of 1200 l/min normalized to DIN 1343. Operating on 24V DC with an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 3 bar to 10 bar (0.3 MPa to 1 MPa), this piloted unit includes an external pilot air supply port, adjustable exhaust air function via throttle plate or individual sub-base, covered manual override, and an LED signal status display. It offers IP65 and NEMA 4 degrees of protection, c UL us recognition (OL), G3/8 or ISO 5599-2 size 1 sub-base pneumatic working ports, and supports any mounting position and flow direction. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8033555
Air solenoid valve VUVG-L18-B52-G14-P1
The Festo part number 8033555 is an 18 mm industrial component featuring a 5/2-way bistable valve function with electrical actuation and a piston gate valve structural design. It delivers a normal nominal flow rate of 1380 l/min through G1/4 pneumatic working ports, operating within a pressure range of 0.15 MPa to 0.8 MPa utilizing an internal pilot air supply. This piloted component achieves an IP65 degree of protection when equipped with the electrical pilot valve and plug socket, and carries c UL us recognition along with CE and UKCA markings. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8031314
Stem actuated valve VMEF-S-M52-E-N14
The Festo 8031314 is a 20 mm wide, 5/2-way monostable industrial component utilizing a piston gate valve structural design and direct control. It features a 1/4 NPT pneumatic working port, a normal nominal flow rate of 1200 l/min, and an operating pressure range of -0.95 bar to 10 bar with a pneumatic spring reset. Certified for ATEX Zone 1, 2, 21, and 22 explosion prevention, this unit offers a reversible flow direction, soft sealing principle, and moderate corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8033016
Air solenoid valve VSVA-B-T32F-AZTR-A1-1T1L
The Festo 8033016 is a 26 mm wide industrial component featuring a 2x3/2 open monostable valve function and a piston gate valve structural design with soft sealing. Operating on 24V DC with an electrical actuation type and piloted control, this unit delivers a normal nominal flow rate of 900 l/min across an operating pressure range of -0.9 bar to 10 bar. It includes IP65 and NEMA 4 protection, c UL us recognition, LED signal status display, and flexible port configurations according to ISO 15407-1, VDMA 24563, and G1/4 standards. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →

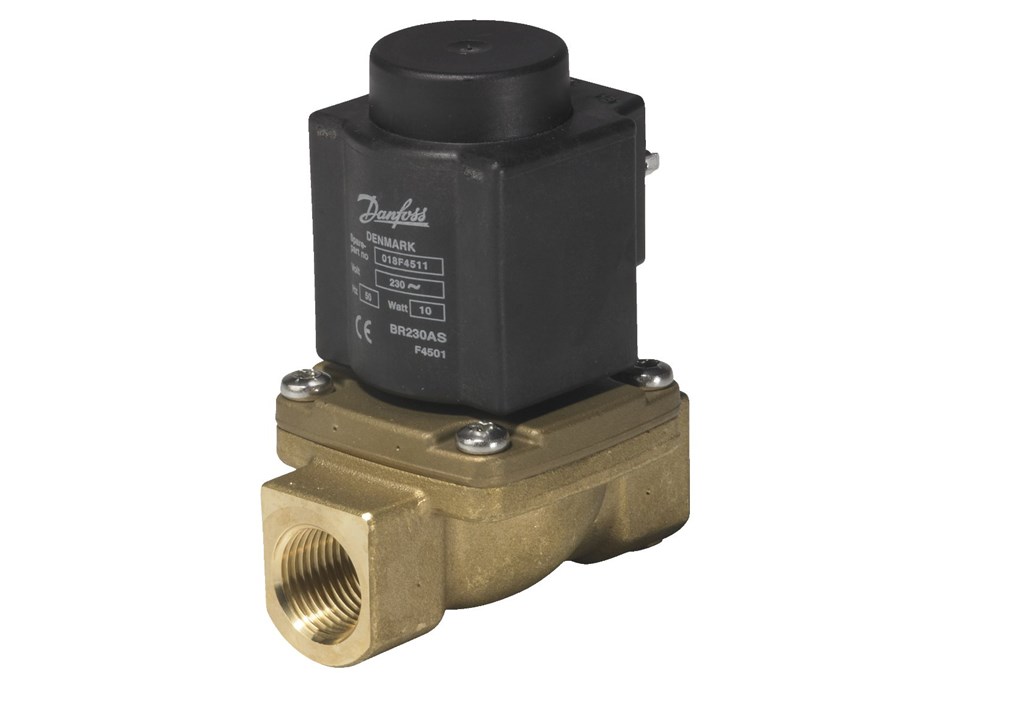

Danfoss Industrieautomatik
032U380631
Danfoss Industrieautomatik 032U380631 — Solenoid Valve
The Danfoss Industrieautomatik 032U380631 is a servo-operated diaphragm solenoid valve featuring a G 3/4 port size and a 20.0 mm nominal size. Constructed with a DZR brass housing and a PTFE seal, this normally closed (NC) component operates within a differential pressure range of 0,2 to 10 bar and accommodates media temperatures from -10 to 185 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
8034840
Air solenoid valve VSVA-B-P53U-Z-D1-1T1L
Engineered by Festo, the part number 8034840 is a 42 mm wide electrical 5/3-way pressurized industrial component featuring a piston gate valve structural design and soft sealing principle. Operating on 24V DC with an operating pressure of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted unit delivers a normal nominal flow rate of 1200 l/min and incorporates an adjustable exhaust air function via a throttle plate or individual sub-base. The component is c UL us-recognized (OL) with an IP65 and NEMA 4 degree of protection, featuring a covered manual override, LED signal status display, and external pilot air supply port operating at 3 bar to 10 bar (0.3 MPa to 1 MPa). Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
8031312
Stem actuated valve VMEF-S-M52-M-N14
The Festo 8031312 is a directly controlled 5/2-way monostable industrial component featuring a 20 mm width, 6 mm nominal width, and a piston gate valve structural design with a soft sealing principle. It delivers a normal nominal flow rate of 1200 l/min through 1/4 NPT pneumatic working ports across an operating pressure range of -0.95 bar to 10 bar. Rated with a CRC 2 moderate corrosion resistance class and ATEX certification for Zones 1, 2, 21, and 22, this mechanical spring reset valve operates on ISO 8573-1:2010 compressed air with reversible flow direction and a maximum switching frequency of 3 Hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8033554
Air solenoid valve VUVG-L18-M52-M-G14-P1
The Festo 8033554 is an 18 mm electrical-actuated industrial component featuring a 5/2-way monostable valve function and a piston gate valve structural design with a soft sealing principle. Operating at a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this piloted unit achieves a normal nominal flow rate of 1300 l/min through G1/4 pneumatic working ports and incorporates an adjustable exhaust air function. It features an internal pilot air supply, a mechanical spring reset method, a 6.9 mm nominal width, an indeterminate overlap lap, and IP65 protection when equipped with the electrical pilot valve and plug socket. This component carries c UL us recognition (UL MH19482) along with CE and UKCA markings compliant with applicable EU and UK directives for EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →
Festo
8033015
Air solenoid valve VSVA-B-T32U-AZTR-A1-1T1L
The Festo 8033015 is an electrical industrial component featuring a 2x3/2 open monostable valve function with a 26 mm width and a piston gate valve structural design. It delivers a normal nominal flow rate of 900 l/min at an operating pressure ranging from 0.3 MPa to 1 MPa (3 bar to 10 bar) and operates on 24V DC. Certified as c UL us - recognized (OL) with an IP65 and NEMA 4 degree of protection, the unit includes an LED signal status display and supports both internal and external pilot air supply. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8034839
Air solenoid valve VSVA-B-M52-MZ-D1-1T1L
The Festo 8034839 is an electrically actuated 5/2-way monostable industrial component featuring a piston gate valve structural design with a soft sealing principle and a 42 mm width. This piloted valve operates on 24V DC with an operating pressure range of -0.09 MPa to 1 MPa, an external pilot air supply port, and a normal nominal flow rate of 1300 l/min normalized to DIN 1343. Additional specifications include an IP65 and NEMA 4 degree of protection, c UL us recognition, a mechanical spring reset method, a covered manual override, and an LED signal status display. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8031310
Stem actuated valve VMEF-ST-M32-M-N14
The Festo 8031310 is a directly controlled 3/2-way closed monostable industrial component featuring a 20 mm width, a plate seat structural design, and 1/4 NPT pneumatic working ports. It provides a normal nominal flow rate of 870 l/min, supports a reversible flow direction with zero overlap, and operates within a pressure range of -0.095 MPa to 1 MPa using compressed air per ISO 8573-1:2010 [7:-:-]. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 environments, this unit incorporates a mechanical spring reset, soft sealing principle, and a moderate corrosion resistance class (CRC 2). Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
