Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 7S is an incremental, singleturn, optical shaft encoder featuring a 1.5 mm shaft diameter and a 7 mm case diameter. Operating on a 5 V supply voltage, this model provides an incremental resolution ranging from 100 to 400 CPR with ABZ incremental signals and an open-collector output. It functions within a temperature range of -10 to +80 °C and is built with an IP50 enclosure rating. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Angst+Pfister Sensors and Power

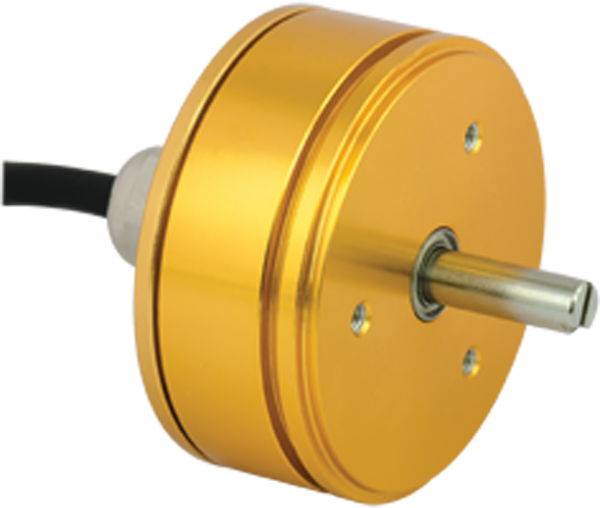

The Angst+Pfister Sensors and Power 50Y PBSL 05SSI is a contactless Hall-effect rotary sensor featuring a 50 mm housing diameter, a 6 mm shaft with ball bearings, and a servo mount size 20 configuration. It operates on a 5 V +/- 10% supply voltage with 30 mA current consumption, delivering a 5 V SSI output signal across a programmable 0 to 360-degree electrical angle with a linearity of plus or minus 0.3 percent of full scale. The unit features solder pin, cable, miniature connector, or terminal block output connections, a maximum torque of 4 mNm, and an IP40 enclosure rating supporting a temperature range of -40 to +85 degrees Celsius. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 50P PBSL 05SPI 2C utilizes contactless Hall technology housed within a 50 mm diameter enclosure featuring an IP40 rating and a servo mount size 20. It operates on a 5 V +/- 10% supply voltage with a 30 mA current consumption, delivering an absolute SPI output signal across two outputs and a programmable electrical angle of 0 to 360 degrees. Integrated with a 6 mm shaft, ball bearing, and solder pin, cable, miniature connector, or terminal block output connection options, the unit achieves a linearity of +/- 0.3 %FS and a maximum torque of 4 mNm across a temperature range of -40 to +85 degrees Celsius. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 50I PBSL S05OC is a contactless Hall technology incremental rotary encoder featuring a 50 mm housing diameter and a 6 mm shaft supported by a ball bearing. Operating on a 5 V +/- 10% supply voltage with a 30 mA current consumption, this unit provides a programmable 0 to 360 degree electrical angle with 0.3 %FS linearity and 4 mNm max torque. It includes a servo mount size 20, IP40 enclosure, and versatile connection options including solder pin, cable, miniature connector, and terminal block across a -40 to +85 °C temperature range. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Angst+Pfister Sensors and Power

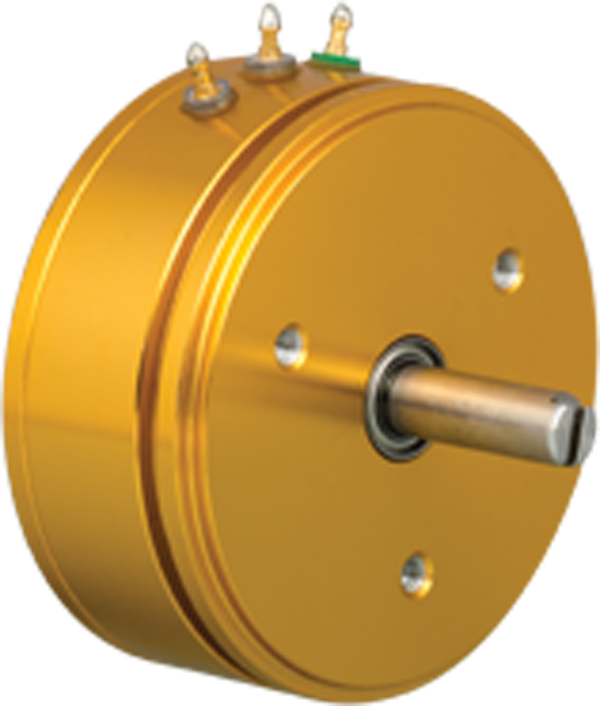

The Angst+Pfister Sensors and Power 50A PBSL S0505 is a contactless Hall-effect analog sensor featuring a 50 mm housing diameter, a servo mount size 20, and a 6 mm shaft supported by ball bearings. Operating on a 5 V +/- 10% supply voltage with a current consumption of 25 mA, this unit provides one 0 to 5 V DC ratiometric output signal across a programmable 0 to 360 degree electrical angle with a linearity of plus or minus 0.3 percent of full scale. It incorporates an IP40-rated enclosure, a maximum torque of 4 mNm, an operating temperature range of -40 to +85 degrees Celsius, and flexible output connections including solder pins, cables, miniature connectors, or terminal blocks. Request a quote for the Angst+Pfister Sensors and Power part number 50A by submitting your required quantity and application parameters.
View product details →
Angst+Pfister Sensors and Power

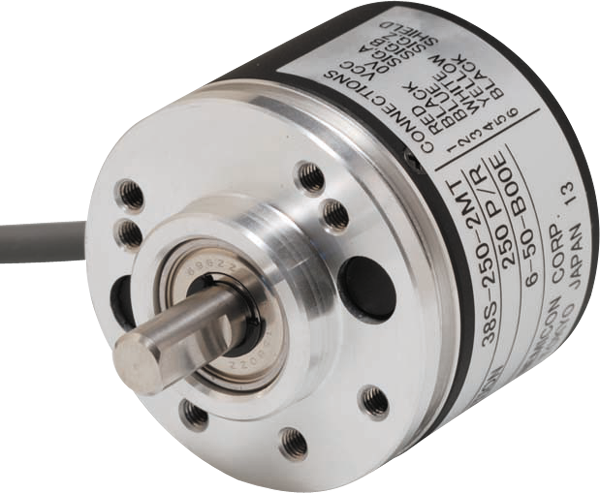

The Angst+Pfister Sensors and Power 38SG is an incremental, singleturn, optical shaft encoder featuring a 38 mm case diameter and a 6 mm shaft diameter. It delivers an incremental resolution ranging from 100 to 2048 CPR with ABZ incremental signals, supporting Open-Collector, Voltage, and Differential outputs across supply voltage options of 3.4 to 5.25 V, 3.4 to 13 V, and 3.4 to 34.5 V. Built with an IP50 enclosure rating, this unit operates within a temperature range of -10 to +85 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 38S is an incremental, singleturn, optical shaft encoder featuring a 38 mm case diameter and a 6 mm shaft diameter. This unit delivers a resolution of 100 to 4096 CPR with ABZ incremental signals, supporting supply voltages of 4.5 to 13 V or 4.5 to 30 V and Open-Collector, Push-Pull, or Differential outputs. Operating within a temperature range of -10 to +85 °C, the device is housed in an IP50-rated enclosure. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Angst+Pfister Sensors and Power

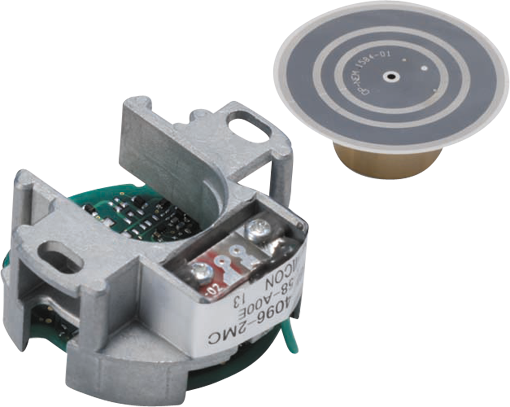

The Angst+Pfister Sensors and Power 38M is an incremental rotary encoder housed in a 38 mm case diameter. Featuring an ABZ output format, this unit offers a programmable resolution ranging from 100 to 4096 and operates on a supply voltage of 5V or 4.5 to 13.2V. It accommodates shaft and bore diameters of 5 mm or 6 mm within an operating temperature range of -10 to +85 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Angst+Pfister Sensors and Power

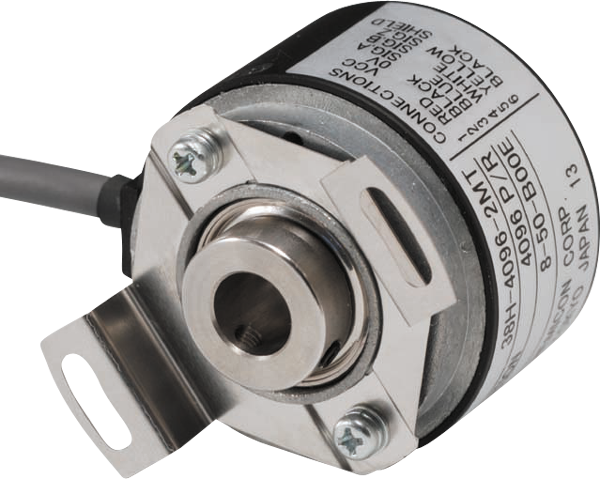

The Angst+Pfister Sensors and Power 38H is an incremental, singleturn, optical encoder featuring a 38 mm case diameter and a hollow shaft with 6 or 8 mm bore options. Operating on a supply voltage of 4.5 to 13 V or 4.5 to 31 V, this unit delivers a resolution of 100 to 4096 CPR with ABZ incremental signals and Open-Collector, Push-Pull, or Differential outputs within an IP50-rated enclosure and a temperature range of -10 to +85 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Angst+Pfister Sensors and Power

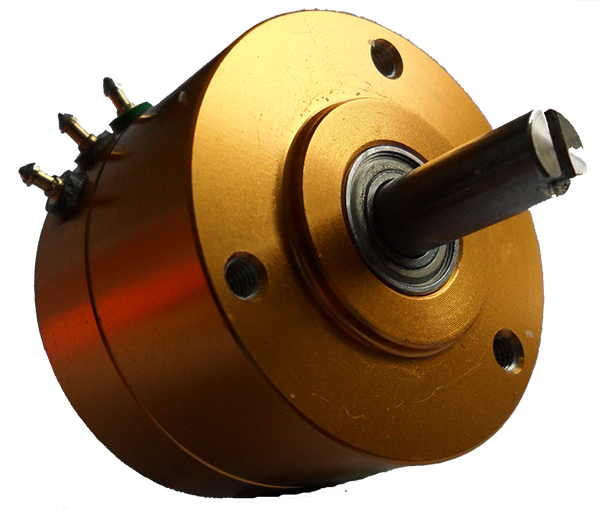

The Angst+Pfister Sensors and Power 36Y PBSL 05SSI is a contactless Hall-effect rotary sensor featuring a 50 mm housing diameter, a 6 mm shaft, and precision ball bearings. Operating on a 5 V +/- 10% supply voltage with a 30 mA current consumption, it delivers a 5 V SSI output signal across a programmable electrical angle of 0 to 360 degrees. This IP40-enclosed unit offers a maximum torque of 4 mNm, a linearity of plus or minus 0.3 percent FS, and a temperature range of -40 to plus 85 degrees Celsius with three mounting screws and flexible output connections including solder pins, cables, miniature connectors, and terminal blocks. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 36P PBSL 05SPI 2 is a contactless Hall sensor featuring a 50 mm housing diameter, a 6 mm shaft with ball bearings, and a maximum torque of 4 mNm. Powered by a 5 V +/- 10% supply voltage with a current consumption of 30 mA, this unit delivers an absolute SPI output signal across two outputs and a 0 to 360 degree programmable electrical angle. It achieves a linearity of plus or minus 0.3 percent of full scale within a temperature range of -40 to +85 degrees Celsius and features an IP40 enclosure rating with 3 mounting screws and flexible output connection options including solder pins, cables, miniature connectors, and terminal blocks. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 36I PBSL S05OC is a contactless Hall effect rotary encoder featuring a 36 mm housing diameter, a 6 mm shaft with ball bearings, and a programmable electrical angle from 0 to 360 degrees. This incremental model operates on a 5 V +/- 10% supply voltage with a current consumption of 30 mA, delivering a 5 V open-collector incremental output signal with 0.3 ± %FS linearity. Built with an IP40-rated enclosure and a maximum torque of 4 mNm, the unit functions within a temperature range of -40 to +85 °C and mounts via three screws with flexible output connection options including solder pin, cable, miniature connector, or terminal block. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Angst+Pfister Sensors and Power

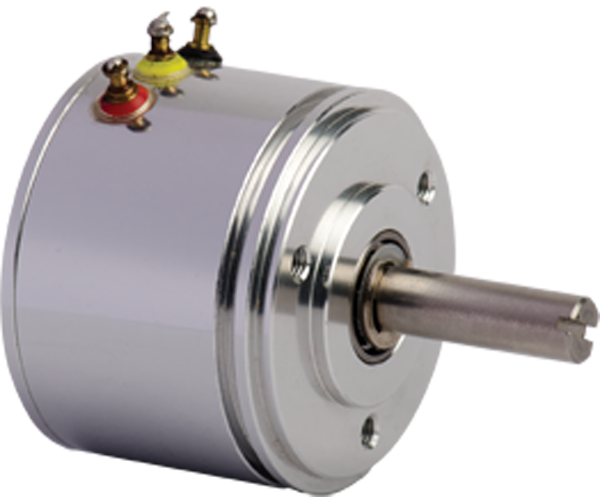

The Angst+Pfister Sensors and Power 36A is a contactless Hall-effect analog rotary sensor featuring a 50 mm housing diameter and a 6 mm shaft supported by a ball bearing. It operates on a 5 V +/- 10% supply voltage with a 16 mA current consumption, delivering a 0 to 5 V DC ratiometric output signal across a programmable 0 to 360 degree electrical angle with 0.3 +/- %FS linearity. Designed with three mounting screws, solder pin output connections, and an IP40 enclosure, this unit functions within a temperature range of -40 to +85 degrees Celsius and a maximum torque of 4 mNm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Angst+Pfister Sensors and Power

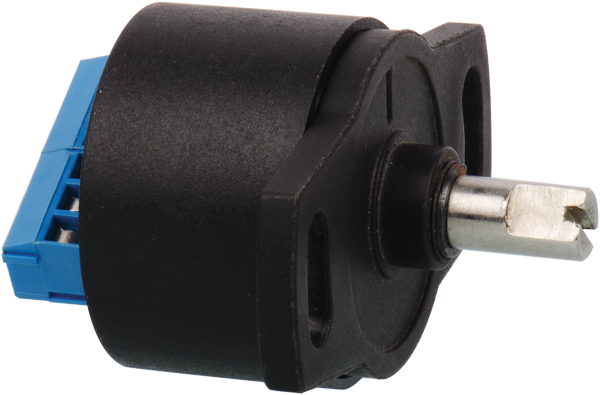

The Angst+Pfister Sensors and Power 25_30Y (25_30Y PP B 05SSI MT) is a contactless Hall sensor featuring a 25 to 30 mm housing diameter and a 5 V +/- 10% supply voltage with 30 mA current consumption. This component provides a 5 V SSI output signal across a programmable 0 to 360 degree electrical angle with 0.3 ± %FS linearity, operating within a temperature range of -40 to +85 °C. It is equipped with a metal sleeve ball bearing, a shaft, and a 2-screw flange mounting supporting cable, miniature connector, or terminal block output connections. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Angst+Pfister Sensors and Power

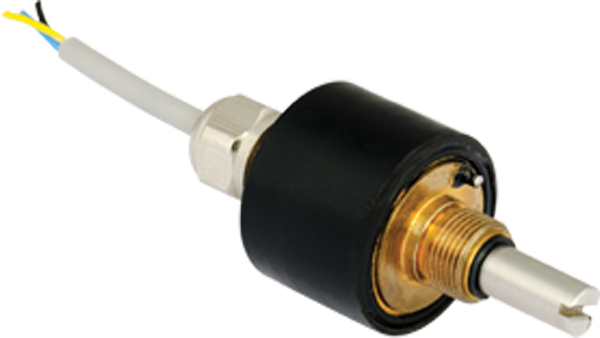

The Angst+Pfister Sensors and Power 25_30P is a contactless Hall-effect rotary sensor featuring a 25 to 30 mm housing diameter and a 5 V +/- 10% supply voltage. It provides a dual-output absolute SPI signal across a programmable 0 to 360 degree electrical angle, utilizing a metal sleeve ball bearing, a standard shaft, and a single-hole bushing mounting. Operating within a temperature range of -40 to +85 degrees Celsius, this component consumes 30 mA of current and delivers a linearity of 0.3 +/- %FS with a maximum torque of 18 mNm via cable, miniature connector, or terminal block output connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 25_30I is a contactless Hall technology incremental rotary encoder housed in a 25 or 30 mm diameter bushing for 1-hole mounting. Operating on a 5 V +/- 10% supply voltage with a 30 mA current consumption, this component features a 0 to 360 degree programmable electrical angle, 1 incremental 5 V open collector output, and a metal sleeve ball bearing supporting a standard shaft. The unit delivers 0.3 +/- %FS linearity, a maximum torque of 18 mNm, and functions across a temperature range of -40 to +85 degrees Celsius with cable, miniature connector, or terminal block output connection options. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 25_30A is a contactless Hall-effect rotary sensor featuring a 25 and 30 mm housing diameter, an 8 mm shaft, and a single ratiometric analog output signal of 0 to 5 V DC. Operating on a 5 V +/- 10% supply voltage with a current consumption of 25 mA, this programmable 0 to 360-degree electrical angle device provides 0.3 +/- %FS linearity and a maximum torque of 18 mNm across a temperature range of -40 to +85 degrees Celsius. It incorporates a metal sleeve ball bearing, a 1-hole bushing mounting configuration, and output connections via cable, miniature connector, or terminal block. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Angst+Pfister Sensors and Power

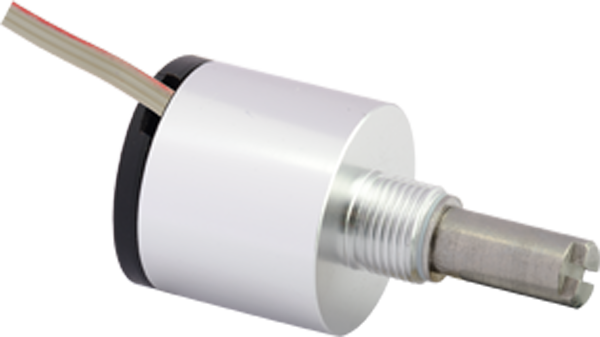

Engineered by Angst+Pfister Sensors and Power, the 22Y part number 22Y PBBL 05SSI is a contactless Hall-effect rotary sensor featuring a 22 mm housing diameter and a 6 mm shaft with ball bearings. This device operates on a 5 V +/- 10% supply voltage with a current consumption of 30 mA, delivering a 5 V SSI output signal across a programmable 0 to 360 degree electrical angle with a linearity of 0.3 plus-minus percent full scale. Built for 1-hole bushing mounting and enclosed to an IP40 rating, the component functions within a temperature range of -40 to +85 degrees Celsius and accepts cable or terminal block output connections with a maximum torque of 5 mNm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Angst+Pfister Sensors and Power
The Angst+Pfister Sensors and Power 22P PBBL 05SPI 2C is a contactless Hall-effect rotary sensor featuring a 22 mm bushing-mounted housing with a 6 mm shaft supported by ball bearings. Operating on a 5 V +/- 10% supply voltage with a 30 mA current consumption, this unit provides an absolute SPI output across a programmable electrical angle of 0 to 360 degrees through two outputs. It achieves a linearity of 0.3 ± %FS, a maximum torque of 5 mNm, an IP40 enclosure rating, and an operating temperature range of -40 to +85 °C with a cable and terminal block connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Angst+Pfister Sensors and Power

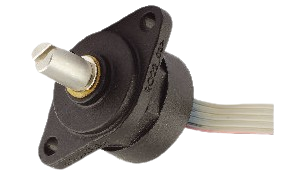

Manufactured by Angst+Pfister Sensors and Power, the 22I EPPF1 S05OC is a contactless Hall technology incremental rotary encoder featuring a 22 mm housing diameter and a 6 mm shaft with a sleeve bearing. It operates on a 5 V +/- 10% supply voltage with a 30 mA current consumption, delivering a single incremental 5 V open collector output across a programmable 0 to 360 degree electrical angle. The unit includes a cable output connection, flange mounting via two screws, a maximum torque of 5 mNm, and an IP40 enclosure rating within a temperature range of -40 to +85 degrees Celsius. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
