Festo
The Festo 8000618 is a planetary gear unit featuring a 60 mm gear unit flange size, a 67 mm motor flange size, and a 16:1 gear unit ratio. It delivers a continuous output torque of 42 Nm, a maximum output torque of 52 Nm, and handles a maximum input speed of 6,000 1/min within a temperature range of -20 to 90 °C. The component weighs 1,200 g, achieves an IP54 protection class, conforms to RoHS materials notes, and complies with VDMA24364 zone III PWIS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8000617 is a planetary gear unit featuring a 60 mm gear unit flange size, a 67 mm motor flange size, and a 12:1 gear unit ratio delivering 36 Nm of continuous output torque and 45 Nm of maximum output torque. This RoHS-conforming component weighs 1,200 g with a mass moment of inertia of 0.34 kgcm2, a 0.67-degree torsional backlash, a torsional resistance of 2.4 Nm/arcmin, and a maximum efficiency of 92%. It operates at a maximum input speed of 6,000 1/min across a temperature range of -20 to 90 °C, providing IP54 protection, VDMA24364 zone III PWIS conformity, and motor interfaces designated by codes 60H and 67A. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8000616 is a planetary gear unit featuring a 10:1 gear unit ratio, a 60 mm gear unit flange size, and a 67 mm motor flange size. This component delivers a continuous output torque of 16 Nm, a maximum output torque of 24 Nm, a maximum input speed of 6,000 1/min, and a max efficiency of 94% within a -20 to 90 °C temperature range. Weighing 900 g, the unit incorporates an IP54 protection class, VDMA24364 zone III PWIS conformity, RoHS-conforming materials, 0.5 deg torsional backlash, and 1.3 Nm/arcmin torsional resistance. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8000615 is a planetary gear unit featuring a 60 mm gear unit flange size, a 67 mm motor flange size, and a 7:1 gear unit ratio. This component delivers a continuous output torque of 26 Nm, a maximum output torque of 44 Nm, and a maximum input speed of 6,000 1/min while operating within a temperature range of -20 to 90 °C. Weighing 900 g, the unit achieves an IP54 protection class, 0.5 deg torsional backlash, 1.7 Nm/arcmin torsional resistance, and 94 % maximum efficiency with VDMA24364 zone III PWIS conformity and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 8000614 is a planetary gear unit featuring a 60 mm gear unit flange size, a 67 mm motor flange size, and a 5:1 gear unit ratio delivering 26 Nm of continuous output torque and 44 Nm of maximum output torque. This component operates at a maximum input speed of 6,000 1/min across a temperature range of -20 to 90 °C, exhibiting 0.5 degrees of torsional backlash, a torsional resistance of 2.4 Nm/arcmin, and a 94% maximum efficiency. Built with a mass moment of inertia of 0.32 kgcm2, a product weight of 900 g, an IP54 protection class, and VDMA24364 zone III PWIS conformity, the RoHS-compliant assembly integrates interface codes 67A for motor-in and 60H for motor-out. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

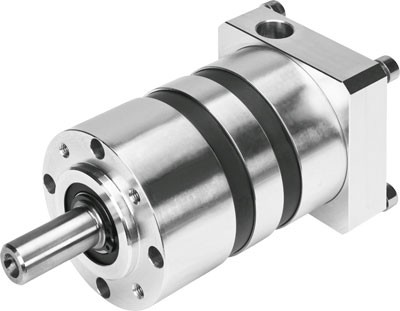

The Festo 8000613 is a planetary gear unit featuring a 60 mm gear unit flange size, a 67 mm motor flange size, and a 4:1 gear ratio. It delivers a continuous output torque of 26 Nm, a maximum output torque of 44 Nm, and a maximum input speed of 6,000 1/min while maintaining a torsional backlash of 0.5 degrees and an efficiency of 94%. Built with an IP54 protection class and VDMA24364 zone III PWIS conformity, the 900 g component operates within a temperature range of -20 to 90 °C and conforms to RoHS standards. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Festo
The Festo 8000612 is a planetary gear unit featuring a 3:1 gear unit ratio, a 60 mm gear unit flange size, and a 67 mm motor flange size. This component delivers a continuous output torque of 20 Nm, a maximum output torque of 36 Nm, and an input speed up to 6,000 1/min within a -20 to 90 °C temperature range. Weighing 900 g, the unit provides IP54 protection, 0.5 degrees of torsional backlash, 2.4 Nm/arcmin torsional resistance, and 0.4 kgcm2 mass moment of inertia while maintaining 94% maximum efficiency and RoHS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
Engineered by Festo, the part number 8000602 is a planetary gear unit featuring a 40 mm gear unit flange size, a 67 mm motor flange size, and a 35:1 gear unit ratio. This component supports a max input speed of 6,000 1/min, a continuous output torque of 14 Nm, a max output torque of 17.5 Nm, and operates within a temperature range of -20 to 90 °C with an IP54 protection class. The unit weighs 550 g, incorporates a 0.04 kgcm2 mass moment of inertia, a 0.67 deg torsional backlash, a torsional resistance of 0.85 Nm/arcmin, a max efficiency of 92%, and materials conforming to RoHS and VDMA24364 zone III PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

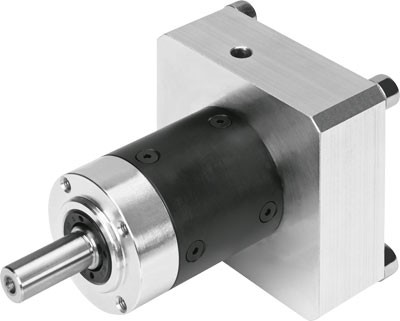

The Festo part number 8000601 is a 550 g planetary gear unit featuring a 40 mm gear unit flange size, a 67 mm motor flange size, and interfaces with motor out code 40G and motor in code 67A. It delivers a 25:1 gear unit ratio, a continuous output torque of 14 Nm, a max output torque of 17.5 Nm, a max input speed of 6,000 1/min, and a max efficiency of 92% across a temperature range of -20 to 90 °C. Featuring 0.67 deg torsional backlash, 0.85 Nm/arcmin torsional resistance, a 0.04 kgcm2 mass moment of inertia, IP54 protection class, VDMA24364 zone III PWIS conformity, and RoHS-conforming materials, this component is built to precise industrial specifications. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 8000600 is a planetary gear unit featuring a 40 mm gear unit flange size, a 67 mm motor flange size, and a 20:1 gear unit ratio. This component delivers a continuous output torque of 14 Nm, a maximum output torque of 17.5 Nm, and a maximum input speed of 6,000 1/min while maintaining a maximum efficiency of 92%. Constructed with a mass moment of inertia of 0.04 kgcm2, a torsional backlash of 0.67 deg, a torsional resistance of 0.85 Nm/arcmin, and a product weight of 550 g, it operates within a temperature range of -20 to 90 °C. The unit features IP54 protection, VDMA24364 zone III PWIS conformity, RoHS-conforming materials, and interface codes 40G for motor out and 67A for motor in. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 8000599 is a planetary gear unit featuring a 40 mm gear unit flange size, a 67 mm motor flange size, and a 16:1 gear unit ratio. It delivers a continuous output torque of 14 Nm, a maximum output torque of 17.5 Nm, a maximum input speed of 6,000 1/min, and achieves a maximum efficiency of 92% across an operating temperature range of -20 to 90 °C. Built with an IP54 protection class, VDMA24364 zone III PWIS conformity, and RoHS-conforming materials, this 550 g unit exhibits a torsional backlash of 0.67 degrees, a torsional resistance of 0.85 Nm/arcmin, and a mass moment of inertia of 0.04 kgcm2 using interface codes 40G and 67A. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 8000598 is a planetary gear unit featuring a 40 mm gear unit flange size, a 67 mm motor flange size, a 12:1 gear unit ratio, and a mass moment of inertia of 0.04 kgcm2. This component delivers a continuous output torque of 10 Nm, a maximum output torque of 12.5 Nm, a maximum input speed of 6,000 1/min, and a maximum efficiency of 92%, operating within a temperature range of -20 to 90 °C. It provides 0.67 degrees of torsional backlash, 0.85 Nm/arcmin of torsional resistance, an IP54 protection class, VDMA24364 zone III PWIS conformity, and RoHS-conforming materials at a product weight of 550 g using motor out interface code 40G and motor in interface code 67A. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 40 mm planetary gear unit, part number 8000597, features a 67 mm motor flange size and a 7:1 gear unit ratio delivering a continuous output torque of 6.5 Nm and a max output torque of 13 Nm. This RoHS-compliant component supports a maximum input speed of 6,000 1/min, a torsional backlash of 0.5 deg, and operates within a temperature range of -20 to 90 °C with IP54 protection. Weighing 450 g, the unit incorporates a mass moment of inertia of 0.04 kgcm2, a torsional resistance of 0.65 Nm/arcmin, and a max efficiency of 94% while maintaining VDMA24364 zone III PWIS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 8000596 is a planetary gear unit featuring a 40 mm gear unit flange size, a 67 mm motor flange size, and a 5:1 gear unit ratio. Weighing 450 g, this component delivers a continuous output torque of 6.5 Nm, a maximum output torque of 13 Nm, and a maximum input speed of 6,000 1/min with an efficiency of up to 94%. Constructed with a 0.5-degree torsional backlash, a torsional resistance of 0.85 Nm/arcmin, and an IP54 protection class, it operates within a temperature range of -20 to 90 °C while conforming to RoHS and VDMA24364 zone III PWIS standards. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 40 mm planetary gear unit, part number 8000595, features a 4:1 gear unit ratio, a 67 mm motor flange size, and an interface code of 67A for the motor input and 40G for the motor output. This RoHS-compliant component delivers a continuous output torque of 6.5 Nm, a maximum output torque of 13 Nm, a mass moment of inertia of 0.04 kgcm2, and a maximum input speed of 6,000 1/min while maintaining a maximum efficiency of 94 percent within a temperature range of -20 to 90 degrees Celsius. Weighing 450 g, the IP54-rated unit exhibits a torsional backlash of 0.5 degrees, a torsional resistance of 0.85 Nm/arcmin, VDMA24364 zone III PWIS conformity, and utilizes materials noted as conforming to RoHS. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →
Festo
The Festo 40 mm planetary gear unit, part number 8000594, features a 3:1 gear unit ratio, a 67 mm motor flange size, and an interface code of 67A for the motor input with 40G for the motor output. This RoHS-compliant component delivers a continuous output torque of 5 Nm, a maximum output torque of 10 Nm, and a maximum input speed of 6,000 1/min while maintaining a torsional backlash of 0.5 deg and a maximum efficiency of 94 %. Weighing 450 g, the assembly operates within a temperature range of -20 to 90 °C, achieves an IP54 protection class, conforms to VDMA24364 zone III PWIS requirements, and possesses a mass moment of inertia of 0.06 kgcm2 alongside a torsional resistance of 0.85 Nm/arcmin. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 8000076 is a piezoresistive pressure sensor with a display that measures relative pressure across a range of 0 to 10 bar with an overload range of 15 bar. It operates with compressed air conforming to ISO8573-1:2010 [7:4:4] under non-lubricated conditions within an ambient temperature range of -10 to 50 °C. The unit features an NPN switch output with a repetition accuracy of 0.2 %FS and a max output current of 100 mA, alongside 4-20 mA and 1-5 V analog outputs. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

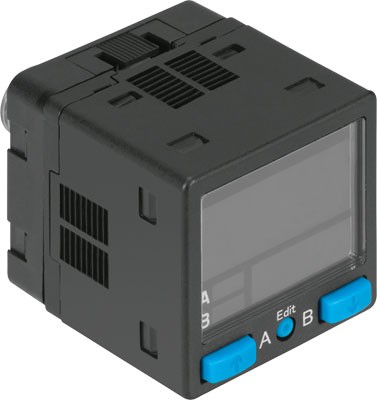

The Festo 8000075 is a piezoresistive pressure sensor with an integrated display measuring relative pressure from 0 bar to 10 bar with a 15 bar overload range, operating on compressed air conforming to ISO8573-1:2010 [7:4:4] without lubricated operation. This component features a freely programmable and switchable PNP switch output with a 100 mA maximum output current and 0.2 %FS repetition accuracy, alongside 4 - 20 mA and 1 - 5 V analog outputs operating within an ambient temperature range of -10 to 50 °C. It carries RCM and c UL us - Recognized authorizations, complies with the EU-EMV guideline for the CE symbol, conforms to RoHS, and contains PWIS substances. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
The Festo part number 8000074 is an industrial piezoresistive pressure sensor with a display, featuring a relative pressure measuring range from 0 to 10 bar and a 15 bar overload range for compressed air operation under ISO8573-1:2010 [7:4:4]. This component incorporates dual NPN switch outputs with freely programmable and switchable switching functions, 0.2 %FS repetition accuracy, and a maximum output current of 100 mA operating on a 12 to 24 V DC voltage range with short circuit strength and reverse polarity protection. Built with materials that contain PWIS substances and conform to RoHS, the unit carries RCM and c UL us Recognized authorizations alongside a CE symbol complying with the EU-EMV guideline for ambient temperatures between -10 and 50 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 8000073 industrial component is a piezoresistive pressure sensor featuring an integrated display designed for measuring relative pressure from 0 to 10 bar with an overload range of 15 bar. Operating on a 12 to 24 V DC voltage range with full polarity protection, it utilizes compressed air conforming to ISO8573-1:2010 [7:4:4] and includes two freely programmable, switchable PNP switch outputs with a 0.2 percent FS repetition accuracy and short-circuit strength. This c UL us Recognized and RCM marked device functions within an ambient temperature range of -10 to 50 °C, complies with RoHS, and carries the CE symbol according to the EU-EMV guideline while containing PWIS substances and prohibiting lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
