Festo

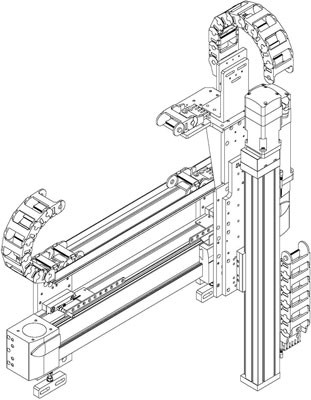

The Festo 574529 is a Linear gantry 10 industrial component featuring an effective load capacity of 0 to 10 kg. The Z axis utilizes an EGC-80-BS electrical drive unit with a spindle, providing a stroke of 0 to 400 mm and a repetition accuracy of ± 0.02 mm in both the end and intermediate positions, which can be set at any point. The Y axis employs an EGC-120-TB electrical toothed belt actuator with a ball bearing guide, delivering a stroke of 0 to 8,500 mm, arbitrary intermediate positions, and a repetition accuracy of ± 0.08 mm for end and intermediate positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

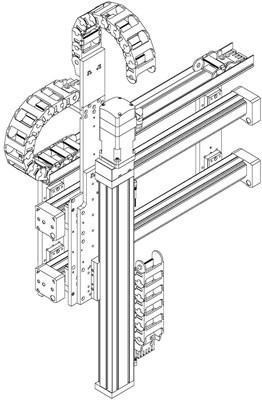

The Festo 574528 is a linear gantry 10 assembly featuring an effective load capacity from 0 to 10 kg. The Z axis utilizes an EGC-80-BS electrical drive unit with a spindle, providing a stroke of 0 to 1,000 mm, an intermediate position capability, and a repetition accuracy of ± 0.02 mm in both end and intermediate positions. The Y axis employs a DGC-32-FA pneumatic drive system with a stroke ranging from 0 to 8,500 mm, one intermediate position, and a repetition accuracy of ± 0.02 mm for the end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

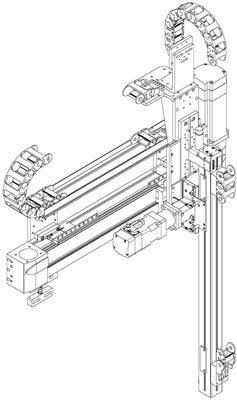

The Festo 574527 is a linear gantry 10 assembly supporting an effective load from 0 to 10 kg. It features an electrical toothed belt actuator drive unit on the Z axis with a stroke of 0 to 400 mm and a repetition accuracy of ± 0,05 mm in both the end and intermediate positions, which can be set anywhere. The Y axis utilizes an electrical toothed belt actuator with a ball bearing guide, providing a stroke from 0 to 8,500 mm, arbitrary intermediate positions, and a repetition accuracy of ± 0,08 mm for both end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

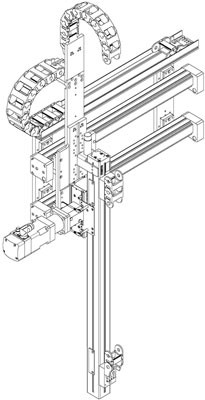

The Festo 574526 linear gantry 10 assembly provides an effective load capacity ranging from 0 to 10 kg. The Z-axis features an electrical toothed belt actuator drive unit (model DGEA-25) with a stroke of 0 to 800 mm, any intermediate position, and an end and intermediate position repetition accuracy of ± 0,05 mm. The Y-axis utilizes a pneumatic drive system (model DGC-32-FA) with one intermediate position, a stroke of 0 to 8,500 mm, and an end and intermediate position repetition accuracy of ± 0,02 mm. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →
Festo

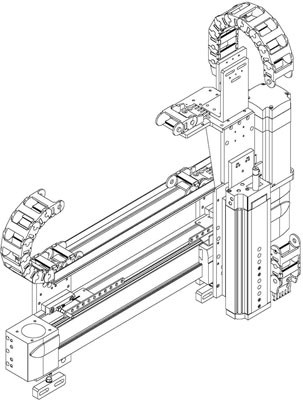

The Festo 574525 is a linear gantry 10 assembly featuring a pneumatic Z-axis drive unit utilizing a DGSL-25 with a stroke of 0 to 200 mm and an end position repetition accuracy of ± 0.01 mm. Its Y-axis incorporates an EGC-120-TB electrical toothed belt actuator with a ball bearing guide, providing a stroke of 0 to 8,500 mm, an intermediate position capability, and a repetition accuracy of ± 0.08 mm for both end and intermediate positions. This configuration accommodates an effective load ranging from 0 to 10 kg. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

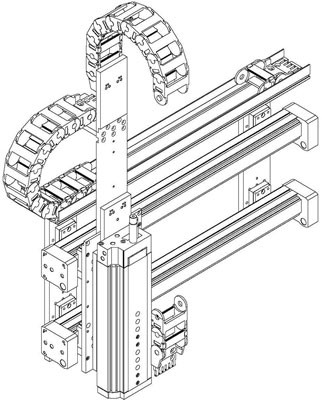

The Festo 574524 is a linear gantry 10 assembly supporting an effective load from 0 to 10 kg. It features a pneumatic Z-axis drive unit type DGSL-25 with a stroke of 0 to 200 mm and a repetition accuracy in the end position of ± 0.01 mm, alongside a pneumatic Y-axis drive system type DGC-32-FA with an intermediate position x1 and a stroke ranging from 0 to 8,500 mm. The Y-axis provides a repetition accuracy of ± 0.02 mm in both the end and intermediate positions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

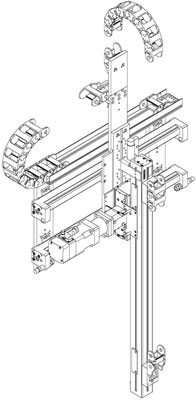

The Festo assembly 574523 is a linear gantry 6 featuring an effective load capacity of 0 to 6 kg. The Z axis utilizes an electrical toothed belt actuator drive unit (DGEA-25) with a stroke of 0 to 800 mm, any intermediate position, and an end and intermediate position repetition accuracy of ± 0,05 mm. The Y axis incorporates a pneumatic drive system (DGC-25-FA) with a stroke of 0 to 8,500 mm, one intermediate position, and an end and intermediate position repetition accuracy of ± 0,02 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

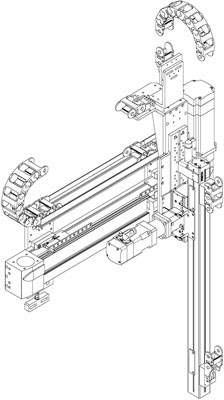

The Festo 574522 is a linear gantry 6 assembly featuring an effective load capacity of 0 to 6 kg. The Z-axis utilizes a DGEA-25 electrical toothed belt actuator providing a stroke of 0 to 600 mm and a repetition accuracy of ± 0.05 mm in both end and intermediate positions, which can be set at any location. The Y-axis incorporates an EGC-120-TB electrical toothed belt actuator with a ball bearing guide, delivering a stroke of 0 to 8,500 mm with a repetition accuracy of ± 0.08 mm for any end and intermediate position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

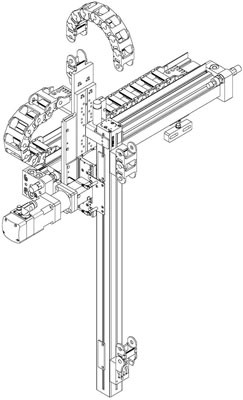

The Festo linear gantry 6 (part number 574521) features an effective load capacity of 0 to 6 kg and incorporates a Z-axis electrical toothed belt actuator providing a stroke of 0 to 200 mm with an end and intermediate position repetition accuracy of ± 0,05 mm. Its Y-axis utilizes a pneumatic drive system supporting a stroke from 0 to 8,500 mm, one intermediate position, and an end and intermediate position repetition accuracy of ± 0,02 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

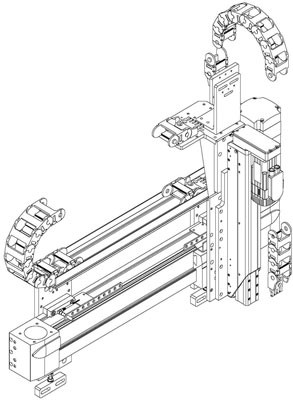

The Festo 574520 is a linear gantry 6 assembly featuring an effective load capacity from 0 to 6 kg. Its Z axis utilizes an EGSA-60 electrical spindle drive unit with any intermediate position, a stroke of 0 to 300 mm, and a repetition accuracy of ± 0.01 mm in both end and intermediate positions. The Y axis incorporates an EGC-120-TB electrical toothed belt actuator with a ball bearing guide, providing any intermediate position, a stroke of 0 to 8,500 mm, and a repetition accuracy of ± 0.08 mm in end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote for this assembly.
View product details →
Festo

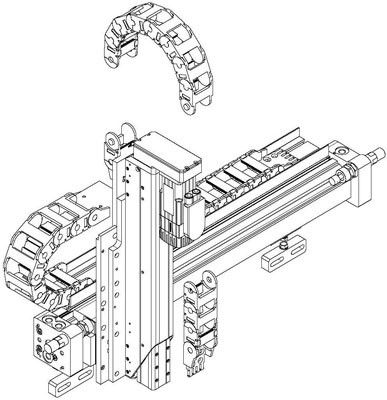

The Festo 574519 is a linear gantry 6 assembly featuring an effective load capacity of 0 to 6 kg. Its Z axis incorporates an EGSA-60 electrical drive system with a spindle, providing a stroke of 0 to 200 mm and a repetition accuracy of ± 0,01 mm in both end and intermediate positions. The Y axis utilizes a DGC-40 pneumatic drive system with one intermediate position, offering a stroke ranging from 0 to 8,500 mm and a repetition accuracy of ± 0,02 mm in end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

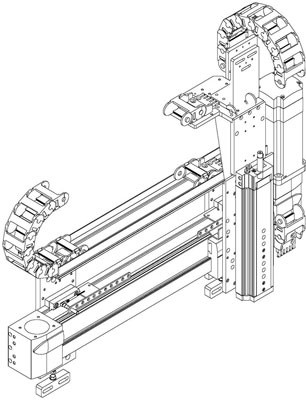

The Festo linear gantry 6 features a pneumatic Z-axis drive unit utilizing the DGSL-20 with a 0 to 200 mm stroke and a repetition accuracy of ±0.01 mm in the end position for an effective load of 0 to 6 kg. Its Y-axis incorporates an EGC-120-TB electrical toothed belt actuator featuring a ball bearing guide, accommodating a 0 to 8,500 mm stroke with any intermediate position and a repetition accuracy of ±0.08 mm in both end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

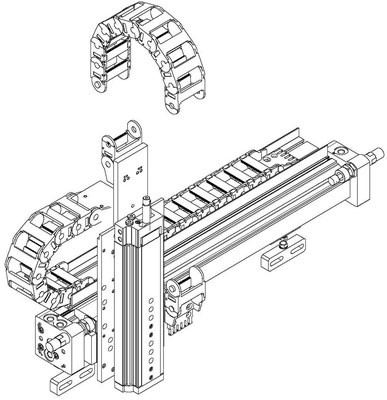

The Festo 574517 is a linear gantry 6 industrial component featuring a pneumatic Z-axis drive unit utilizing the DGSL-20 with a 0 to 200 mm stroke and a repetition accuracy of ± 0.01 mm in the end position for an effective load of 0 to 6 kg. Its pneumatic Y-axis drive system incorporates the DGC-40, providing an intermediate position x1, a stroke ranging from 0 to 8,500 mm, and a repetition accuracy of ± 0.02 mm in both the end and intermediate positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo assembly.
View product details →
Festo

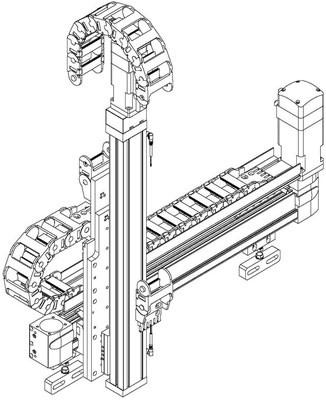

The Festo 574516 is a linear gantry 4 industrial component featuring an effective load capacity of 0 to 4 kg. Its Z axis utilizes an EGC-70-BS electrical spindle drive unit providing a stroke of 0 to 600 mm and a repetition accuracy of ± 0.02 mm in both end and intermediate positions, which can be set at any point. The Y axis employs an EGC-80-TB electrical toothed belt actuator with a ball bearing guide, delivering a stroke of 0 to 8,500 mm and a repetition accuracy of ± 0.08 mm across any intermediate and end position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

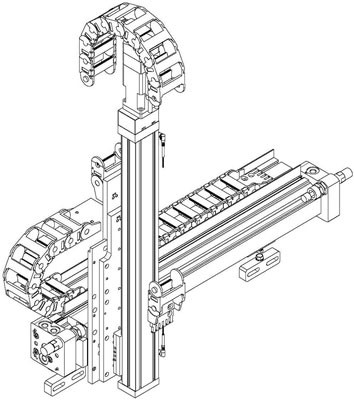

The Festo 574515 is a linear gantry 4 industrial component featuring an effective load capacity from 0 to 4 kg. Its Z axis utilizes an electrical EGC-70-BS drive system with a spindle, providing a stroke of 0 to 400 mm and a repetition accuracy of ± 0.02 mm in any intermediate position and the end position. The Y axis employs a pneumatic DGC-40 drive system with one intermediate position and a stroke ranging from 0 to 8,500 mm, maintaining a repetition accuracy of ± 0.02 mm for both end and intermediate positions. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo

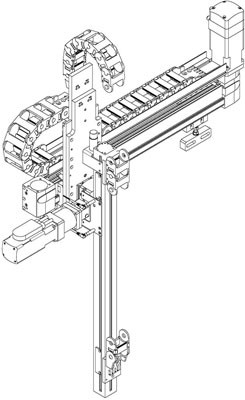

The Festo 574514 is a linear gantry 4 industrial component featuring an electrical toothed belt actuator Z axis and an electrical toothed belt actuator with ball bearing guide Y axis. The Z axis provides an effective load capacity of 0 to 4 kg, a stroke of 0 to 400 mm, and a repetition accuracy of ± 0,05 mm in both end and intermediate positions with any intermediate positioning. The Y axis delivers a stroke ranging from 0 to 8,500 mm with a repetition accuracy of ± 0,08 mm in end and intermediate positions, also accommodating any intermediate position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

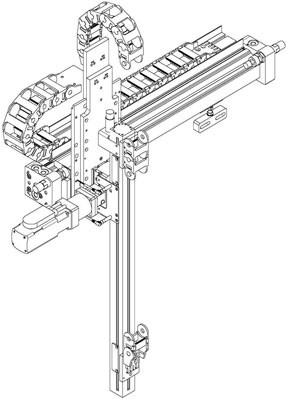

The Festo 574513 is a linear gantry 4 industrial component featuring an effective load capacity from 0 to 4 kg. Its Z axis incorporates a DGEA-18 electrical toothed belt actuator providing a stroke of 0 to 400 mm with an end and intermediate position repetition accuracy of ± 0.05 mm, and any intermediate position capability. The Y axis utilizes a DGC-40 pneumatic drive system with a stroke of 0 to 8,500 mm, one intermediate position, and an end and intermediate position repetition accuracy of ± 0.02 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

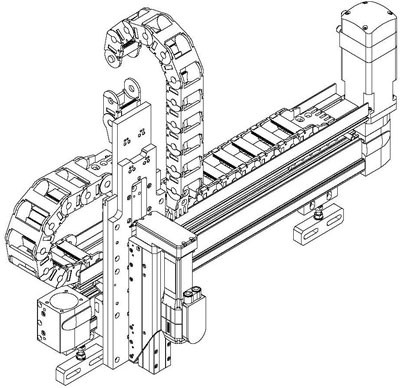

The Festo 574512 is a linear gantry 4 industrial component featuring an electrical Z axis driven by a spindle with an effective load capacity of 0 to 4 kg and a stroke of 0 to 100 mm, achieving a repetition accuracy of ± 0.01 mm in both end and intermediate positions. Its Y axis utilizes an electrical toothed belt actuator with a ball bearing guide, providing a stroke of 0 to 8,500 mm and a repetition accuracy of ± 0.08 mm across any intermediate position and the end position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

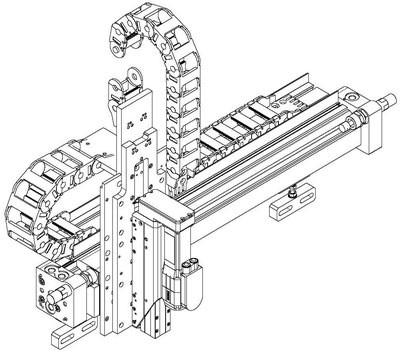

The Festo 574511 is a linear gantry 4 assembly featuring an effective load capacity of 0 to 4 kg. Its Z axis incorporates an EGSA-50 electrical drive system with a spindle, providing a stroke of 0 to 100 mm and a repetition accuracy of ± 0,01 mm in both end and intermediate positions, which can be set anywhere. The Y axis utilizes a DGC-40 pneumatic drive system with one intermediate position and a stroke of 0 to 8,500 mm, achieving a repetition accuracy of ± 0,02 mm in end and intermediate positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

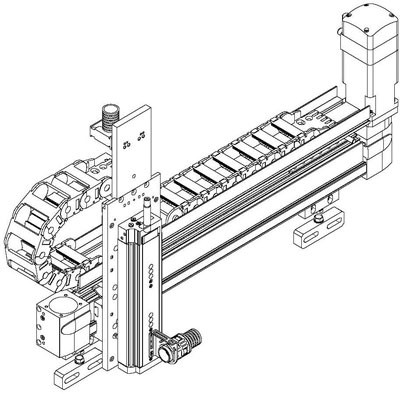

The Festo 574510 is a linear gantry 4 assembly featuring a pneumatic Z-axis drive unit utilizing the DGSL-16 with a 0 to 150 mm stroke and a repetition accuracy of ±0,01 mm in the end position. Its Y-axis utilizes an EGC-80-TB electrical toothed belt actuator with a ball bearing guide, providing a stroke of 0 to 8,500 mm, support for any intermediate position, and a repetition accuracy of ±0,08 mm in both end and intermediate positions. This configuration accommodates an effective load ranging from 0 to 4 kg. Submit the exact part number, quantity, and application requirements for a formal quote.
