Festo
The Festo 567931 is a double-acting industrial component featuring a 100 mm piston diameter, a 160 mm stroke, and an M20x1,5 male piston-rod end configured with a single-ended piston rod and profile barrel design structure. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 0.6 to 12 bar working pressure and -20 to 80 °C ambient temperature range, it delivers a theoretical force of 4,418 N at 6 bar return stroke. This unit conforms to ISO 15552, incorporates adjustable pneumatic cushioning at both ends (PPV) with a 32 mm cushioning length and 1.2 J end-position impact energy, and includes position detection for a proximity sensor, a CRC 2 corrosion resistance classification, Germanischer Lloyd authorization, and any-position assembly capability. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 567930 is a double-acting industrial component featuring a 100 mm piston diameter, a 125 mm stroke, and a profile barrel design with a single-ended piston rod and male M20x1,5 thread conforming to ISO 15552. Operating at a working pressure of 0.6 to 12 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], this unit provides adjustable pneumatic cushioning at both ends with a 32 mm cushioning length, 1.2 J impact energy in end positions, and a theoretical return stroke force of 4,418 N at 6 bar. It functions across an ambient temperature range of -20 to 80 °C in any assembly position, includes position detection for a proximity sensor, holds Germanischer Lloyd authorization, and has a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
This Festo industrial component, part number 567929, is a double-acting profile barrel piston cylinder conforming to ISO 15552 with a 100 mm piston diameter and a 100 mm stroke. Featuring an M20x1,5 male piston rod thread, adjustable pneumatic cushioning at both ends, and position detection for proximity sensors, it operates within a 0.6 to 12 bar pressure range and an ambient temperature of -20 to 80 °C. The unit delivers a theoretical force of 4,418 N at 6 bar on the return stroke and holds a CRC 2 corrosion resistance classification alongside Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

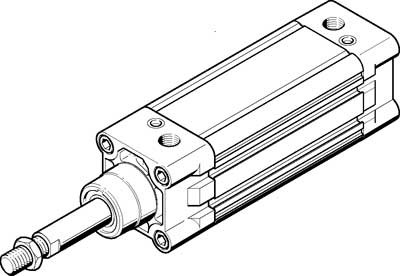

The Festo part number 567928 is a double-acting industrial component featuring a 100 mm piston diameter, an 80 mm stroke, and an M20x1.5 male piston rod thread conforming to ISO 15552. This profile barrel unit operates on compressed air within a 0.6 to 12 bar working pressure range across an ambient temperature span of -20 to 80 °C, incorporating adjustable pneumatic cushioning at both ends and position detection for proximity sensors. It delivers a theoretical return force of 4,418 N at 6 bar and carries Germanischer Lloyd authorization alongside a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 567927, is a double-acting pneumatic cylinder featuring a 100 mm piston diameter and a 50 mm stroke with an M20x1,5 male piston rod thread. Built in accordance with ISO 15552, it utilizes a profile barrel design with adjustable pneumatic cushioning at both ends (PPV) and includes provisions for position detection via proximity sensors. The unit operates within a working pressure range of 0.6 to 12 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical return stroke force of 4,418 N at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 567926 is a double-acting industrial component featuring an 80 mm piston diameter, an M20x1,5 male piston rod thread, and a stroke length ranging from 3 to 2,000 mm within a profile barrel design structure. Conforming to ISO 15552, this unit operates on compressed air matching ISO 8573-1:2010 [7:4:4] standards at working pressures between 0.6 and 12 bar, delivering a theoretical force of 2,721 N on the return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends (PPV), a cushioning length of 32 mm, position detection capability for proximity sensors, and Germanischer Lloyd authorization for ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 567925 is a double-acting industrial component featuring a profile barrel design with an 80 mm piston diameter and a 320 mm stroke. Conforming to ISO 15552, this unit operates within a 0.6 to 12 bar pressure range using compressed air in accordance with ISO 8573-1:2010 [7:4:4] and includes adjustable pneumatic cushioning at both ends. It provides a male M20x1.5 piston rod thread, position detection capability for proximity sensors, a theoretical return force of 2,721 N at 6 bar, and Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 567924, is an ISO 15552 compliant double-acting cylinder featuring an 80 mm piston diameter, a 250 mm stroke, and an M20x1,5 male piston-rod end. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.6 to 12 bar working range, it delivers a theoretical force of 2,721 N at 6 bar on the return stroke. The unit incorporates adjustable pneumatic cushioning at both ends (PPV) with a 32 mm cushioning length, 0.9 J end-position impact energy, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 569798 is a size 70 industrial component featuring tripod kinematics with a 700 mm nominal working space diameter and a 100 mm nominal working space height for horizontal assembly positions. Driven by a servomotor with a 100% duty cycle, this kinematics system delivers a maximum speed of 7 m/s, a maximum acceleration of 110 m/s2, and a maximum picking rate of 150 picks/min in a 12" cycle while supporting a maximum rated load of 5 kg and a rated load with maximum dynamic response of 1 kg. It achieves a positioning and track precision of ±0.5 mm and a repetition accuracy of ±0.1 mm, alongside a maximum process force in the Z direction of 1,000 N and a typical process force of 750 N for working-space diameters up to 175 mm, supported by a base weight of 47.5 kg, a maximum horizontal frame strength of 150 N, and a maximum vertical frame strength of 290 N. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 567923 is a double-acting industrial component featuring an 80 mm piston diameter, a 200 mm stroke, and an M20x1,5 male piston-rod end governed by ISO 15552. Operating within a 0.6 to 12 bar pressure range and an ambient temperature span of -20 to 80 °C, this profile-barrel cylinder utilizes adjustable PPV pneumatic cushioning at both ends and accommodates proximity sensors for position detection. It delivers a theoretical return stroke force of 2,721 N at 6 bar using compressed air meeting ISO 8573-1:2010 [7:4:4] standards and carries Germanischer Lloyd authorization alongside a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

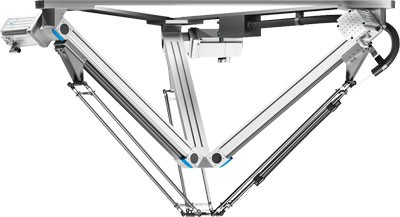

The Festo 569797 industrial component utilizes tripod kinematics in a size 45 format featuring a 450 mm nominal working space diameter and a 100 mm nominal working space height for horizontal assembly positions. Driven by an integrated servomotor with a 100% duty cycle, this kinematics base weighs 45 kg and delivers a maximum speed of 7 m/s, a maximum acceleration of 110 m/s2, and a peak picking rate of 150 picks per minute in a 12-inch cycle. It accommodates a maximum rated load of 5 kg alongside a rated load of 1 kg with maximum dynamic response, while maintaining a repetition accuracy of plus or minus 0.1 mm and a positioning and track precision of plus or minus 0.5 mm. The assembly withstands a maximum process force of 1,300 N in the Z direction, a typical process force in the Z direction of 1,000 N for working-space diameters up to 112.5 mm, and maximum frame strengths of 145 N horizontally and 250 N vertically. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 567922 is a double-acting industrial component featuring an 80 mm piston diameter, a 160 mm stroke, and a male M20x1,5 piston rod thread conforming to ISO 15552 standards. Built with a profile barrel, piston, and single-ended piston rod, this unit operates on compressed air from 0.6 to 12 bar across an ambient temperature range of -20 to 80 °C, delivering a theoretical return force of 2,721 N at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 32 mm cushioning length, position detection for proximity sensors, and Germanischer Lloyd authorization with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 567921 is a double-acting industrial component featuring an 80 mm piston diameter, a 125 mm stroke, and an M20x1,5 male piston rod thread designed to ISO 15552 standards. Operating within a 0.6 to 12 bar pressure range using compressed air meeting ISO 8573-1:2010 [7:4:4], this unit includes adjustable pneumatic cushioning at both ends (PPV) and allows for position detection via proximity sensor across an ambient temperature range of -20 to 80 °C. It yields a theoretical return force of 2,721 N at 6 bar and maintains a CRC 2 corrosion resistance classification with Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 567920 is a double-acting industrial component featuring an 80 mm piston diameter, a 100 mm stroke, and an M20x1,5 male piston rod thread designed to ISO 15552 standards with a profile barrel structure. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 0.6 to 12 bar working pressure range, it delivers 2,721 N of theoretical force on the return stroke at 6 bar and incorporates adjustable pneumatic cushioning at both ends (PPV) with a 32 mm cushioning length. This variant includes position detection for proximity sensors, a CRC 2 corrosion resistance classification, and functions in ambient temperatures from -20 to 80 °C with Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

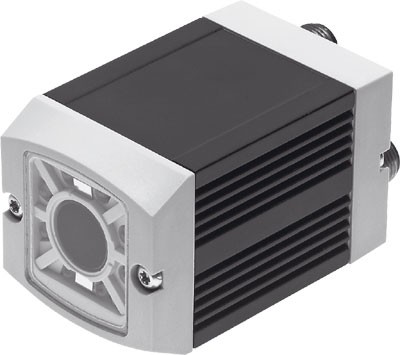

The Festo part number 569776 is an industrial component featuring a VGA sensor resolution of 640 x 480 pixels, built-in optical devices, and a field of vision ranging from 14 x 10 mm to 520 x 390 mm within a 45 x 45 x 83.7 mm housing. It operates on a nominal DC voltage of 24 V with a permissible voltage fluctuation of plus or minus 10 percent, drawing 120 mA with load-free outputs, and provides IP65 and IP67 protection classes along with CE conformity to the EU-EMV guideline. Supporting up to 256 test programs and sorting functions for up to 16 types, the unit includes two configurable outputs and a maximum residual current of 1.5 A on the 24 V outputs. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 567919 is a double-acting industrial component featuring an 80 mm piston diameter, an 80 mm stroke, and a profile barrel design with a single-ended male piston rod thread of M20x1,5. Conforming to ISO 15552, it operates within a pressure range of 0.6 to 12 bar using compressed air meeting ISO 8573-1:2010 [7:4:4] standards and includes adjustable PPV pneumatic cushioning at both ends with a 32 mm cushioning length. Certified by Germanischer Lloyd with a CRC 2 corrosion resistance classification, it supports an ambient temperature range of -20 to 80 °C and features position detection for proximity sensors with a theoretical return force of 2,721 N at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

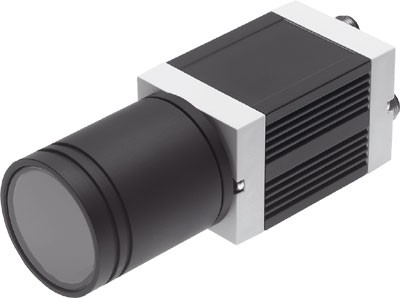

The Festo 569774 is an industrial component featuring a 640 x 480 pixel VGA sensor resolution and a CS mount lens attachment with lens protection tubing, where the field of vision depends on the selected lens. Measuring 45 mm in width, 45 mm in height, and 139.4 mm in length, this unit operates on a 24 V DC nominal voltage with a permissible voltage fluctuation of +/- 10 % and an IP65 and IP67 protection class. It supports up to 256 test programs, features a sorting function for up to 16 types, and includes parameterized outputs alongside dedicated trigger and accept signal inputs. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 567918 is a double-acting industrial component featuring an 80 mm piston diameter, a 50 mm stroke, and an M20x1,5 male piston-rod thread within a profile barrel design structure conforming to ISO 15552. Operating within a 0.6 to 12 bar pressure range on compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit incorporates adjustable pneumatic cushioning at both ends (PPV), a cushioning length of 32 mm, and position detection capabilities for proximity sensors. It delivers a theoretical force of 2,721 N at 6 bar on the return stroke, operates across an ambient temperature range of -20 to 80 °C, and carries Germanischer Lloyd authorization alongside a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →
Festo
The Festo 569773 industrial component is a VGA vision sensor featuring a 640 x 480 pixel resolution, built-in optical devices, and a field of vision ranging from 14 x 10 mm to 520 x 390 mm within a compact 45 x 45 x 83.7 mm housing. Operating on a nominal 24 V DC with a permissible voltage fluctuation of +/- 10 %, this IP65 and IP67 protected unit supports up to 256 test programs, sorting functions for up to 16 types, and configurable inputs and outputs handling a max residual current of 1.5 A. Built to function in ambient temperatures from -10 to 50 °C with RCM and c UL us authorizations, it complies with the EU-EMV guideline for electromagnetic compatibility. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →
Festo
The Festo 567917 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1,5 male piston-rod thread, and a stroke range from 3 to 2,000 mm conforming to ISO 15552. Operating at working pressures between 0.6 and 12 bar, this profile-barrel cylinder incorporates adjustable pneumatic cushioning at both ends (PPV), a cushioning length of 22 mm, and position detection via proximity sensor across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
