Festo

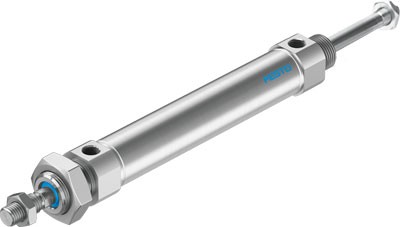

The Festo part number 548547 is a double-acting industrial component featuring a 1" piston diameter, a 3/8-24 UNF-2A male piston rod thread, a through piston rod, and a stroke length ranging from 0.04 to 20". Built on the ISO 6432 standard with flexible cushioning rings or plates at both ends, this unit operates within a pressure range of 0.1 to 1 MPa (1 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 49.48 lbf at 0.6 MPa (6 bar, 87 psi) and operates in ambient temperatures between -4 and 176 °F with a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 548546 is a double-acting industrial component featuring a 3/4" piston diameter, an ISO 6432 standard design structure, and a stroke ranging from 0.04 to 12 inches with a male 5/16-24 UNF-2A piston rod thread. Operating within a pressure range of 1 to 10 bar (0.1 to 1 MPa), this unit utilizes flexible cushioning rings or plates at both ends and accommodates compressed air operating mediums meeting ISO8573-1:2010 [7:4:4] standards. It delivers a theoretical retracting force of 31.66 lbf at 6 bar (0.6 MPa, 87 psi) across an ambient temperature range of -4 to 176 °F while maintaining a CRC 2 moderate corrosion resistance classification and VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 548545 is a double-acting industrial component built on the ISO 6432 standard featuring a 5/8" piston diameter, 0.04 to 8" stroke, and a male 10-32 UNF-2A piston rod thread with through piston rod variants. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and delivers a theoretical retracting force of 20.74 lbf at 0.6 MPa. It functions within an ambient temperature range of -4 to 176 °F, exhibits a CRC 2 moderate corrosion resistance classification, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 548544 is a double-acting industrial component featuring a 1/2" piston diameter, a 10-32 UNF-2A male piston rod thread, and a stroke ranging from 0.04 to 8 inches based on the ISO 6432 standard. Designed with flexible cushioning rings at both ends and a through piston rod, this unit operates on compressed air within a working pressure range of 1 to 10 bar and an ambient temperature range of -4 to 176 °F. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 548543 is a double-acting industrial component featuring a 3/8" piston diameter, a stroke length of 0.04 to 4 inches, and a 6-32 UNC-2A male piston rod thread based on ISO 6432. This model operates on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a pressure range of 0.1 to 1 MPa (1 to 10 bar) and incorporates flexible cushioning rings at both ends with a through piston rod design. It offers a CRC 2 moderate corrosion resistance classification, an ambient temperature range of -4 to 176 °F, and delivers a theoretical retracting force of 7.92 lbf at 0.6 MPa (87 psi). Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 548542 is a double-acting industrial component with a 5/16" piston diameter, 6-32 UNC-2A piston rod thread, and a stroke ranging from 0.04 to 4 inches based on the ISO 6432 standard. Designed with a through piston rod, male thread, and flexible cushioning rings or plates at both ends, this unit operates at pressures between 1 and 10 bar (0.1 to 1 MPa) utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4]. It features a CRC 2 moderate corrosion resistance classification, handles an ambient temperature range of -4 to 176 °F, and delivers a theoretical retracting force of 4.52 lbf at 6 bar (0.6 MPa). Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo

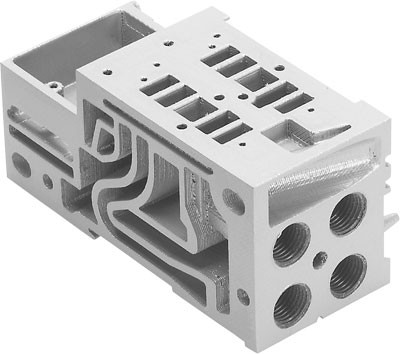

The Festo part number 547505 is an industrial component featuring an aluminum die cast connecting plate with a width of 47.6 mm, a length of 107.3 mm, and a 10.5 mm grid dimension. This unit accommodates a maximum of 2 valve positions and includes four G1/4 pneumatic connection ports while operating within a working pressure range of -0.9 to 10 bar and a pilot pressure of 3 to 8 bar. Constructed with materials conforming to RoHS and a corrosion resistance classification CRC of 0 for no corrosion stress, it functions within an ambient temperature range of -5 to 50 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →Festo

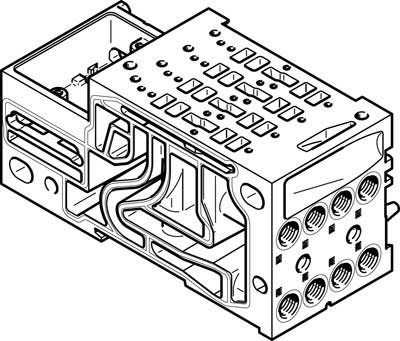

The Festo 547504 is an aluminum die-cast connecting plate featuring a grid dimension of 10.5 mm, a width of 47.6 mm, and a length of 107.3 mm. This component accommodates a maximum of 4 valve positions and includes M7 pneumatic connection ports, operating within a working pressure range of -0.9 to 10 bar and a pilot pressure range of 3 to 8 bar. Built with RoHS-conforming materials and a CRC 0 corrosion resistance classification, it functions within an ambient temperature range of -5 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this part.
View product details →Festo
This Festo industrial component, part number 547497, features a length of 107.3 mm, a width of 47.6 mm, a grid dimension of 10.5 mm, and an aluminum die cast connecting plate. Engineered with a maximum of 2 valve positions and four G1/4 pneumatic connection ports, it operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and an ambient temperature range of -5 to 50 °C. The unit has a CRC corrosion resistance classification of 0 with no corrosion stress and includes materials that conform to RoHS. Request a quote for part number 547497 by specifying your required quantity and application parameters.
View product details →Festo
The Festo part number 547496 is an industrial component featuring an aluminum die-cast connecting plate with a width of 47.6 mm, a length of 107.3 mm, and a 10.5 mm grid dimension. This unit accommodates a maximum of four valve positions, incorporates M7 pneumatic connection ports, and operates within a working pressure range of -0.9 to 10 bar alongside a pilot pressure of 3 to 8 bar. Rated for a CRC corrosion resistance classification of 0 with no corrosion stress, it functions at ambient temperatures between -5 and 50 °C and conforms to RoHS materials requirements. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
Manufactured by Festo, part number 548509 is a double-acting industrial component featuring a 2 1/2" piston diameter, a 5/8-18 UNF-2A male piston rod thread, and a stroke range of 0.04 to 20". Built upon the ISO 6431 standard with a piston and piston rod design structure, this unit includes adjustable pneumatic cushioning at both ends (PPV), a cushioning length of 0.83", and operates within a working pressure of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It accommodates any assembly position, handles an ambient temperature range of -4 to 176 °F, features a through piston rod variant, and provides a corrosion resistance classification of CRC 2 along with VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 547495 is an industrial component featuring an aluminum die-cast connecting plate with a width of 47.6 mm, a length of 107.3 mm, and a 10.5 mm grid dimension. It accommodates a maximum of two valve positions and includes four G1/4 pneumatic connection ports while operating at a working pressure of -0.9 to 10 bar and a pilot pressure of 3 to 8 bar. Classified under CRC 0 for no corrosion stress, this RoHS-conforming assembly functions within an ambient temperature range of -5 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 548508 is a double-acting industrial component with a 2-inch piston diameter and a stroke ranging from 0.04 to 20 inches, designed with a piston and piston rod featuring a male 5/8-18 UNF-2A thread based on ISO 6431. Operating at pressures from 1 to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4], this unit incorporates adjustable pneumatic cushioning at both ends with a 0.79-inch cushioning length and 0.7376 ft-lbf impact energy tolerance in the end positions. It functions in any assembly position across ambient temperatures from -4 to 176 °F, offering CRC 2 moderate corrosion resistance, VDMA24364-B1/B2-L PWIS conformity, and variants featuring a through piston rod. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 547494 is an industrial component featuring an aluminum die cast connecting plate with a width of 47.6 mm, a length of 107.3 mm, and a 10.5 mm grid dimension supporting a maximum of 4 valve positions. This unit operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and an ambient temperature range of -5 to 50 °C, utilizing M7 pneumatic connections for port 4. Constructed with materials conforming to RoHS and classified under CRC 0 for no corrosion stress, it integrates into compatible pneumatic setups. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo
This Festo industrial component, part number 547493, features a width of 47.6 mm, a length of 107.3 mm, and a 10.5 mm grid dimension with a maximum of 2 valve positions. Constructed from aluminum die cast with RoHS-conforming materials and a CRC 0 corrosion resistance classification, the unit operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and an ambient temperature range of -5 to 50 °C utilizing four G1/4 pneumatic connection ports. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

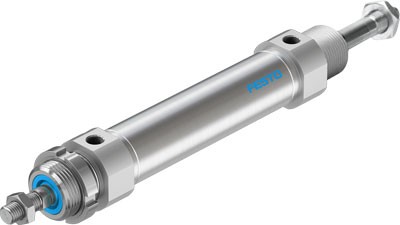

The Festo 548507 is a double-acting industrial component featuring a 1 5/8-inch piston diameter, a 1/2-20 UNF-2A male piston rod thread, and a stroke range of 0.04 to 20 inches based on the ISO 6431 standard. Built with a piston and through piston rod design structure, this unit operates on compressed air meeting ISO 8573-1:2010 [7:4:4] standards at working pressures from 1 to 10 bar and ambient temperatures between -4 and 176 °F. It incorporates adjustable pneumatic cushioning at both ends (PPV) with a 0.71-inch cushioning length, 0.5163 ft-lbf impact energy in end positions, and CRC 2 moderate corrosion stress resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

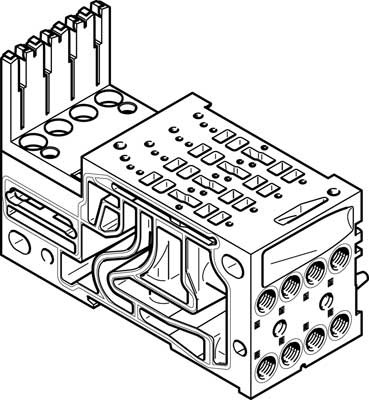

The Festo part number 547492 is an industrial component featuring an aluminum die-cast connecting plate with a width of 47.6 mm, a length of 107.3 mm, and a 10.5 mm grid dimension. This unit accommodates a maximum of four valve positions and includes four M7 pneumatic connection ports, operating within a working pressure range of -0.9 to 10 bar and a pilot pressure of 3 to 8 bar. Designed with a corrosion resistance classification CRC of 0 for no corrosion stress and an ambient temperature tolerance of -5 to 50 °C, the assembly also conforms to RoHS materials standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 548506 is a double-acting industrial component featuring a 1 1/4" piston diameter, a through piston rod design with a 3/8-24 UNF-2A male thread, and an adjustable pneumatic cushioning (PPV) at both ends based on the ISO 6431 standard. It operates within a pressure range of 1 to 10 bar (0.1 to 1 MPa) utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4], and functions in ambient temperatures from -4 to 176 °F with a moderate corrosion resistance classification of CRC 2. This unit accommodates any assembly position, a stroke length between 0.04 and 20 inches, an impact energy of 0.295 ft-lbf in end positions, and a cushioning length of 0.55 inches, with lubricated operation supported. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo

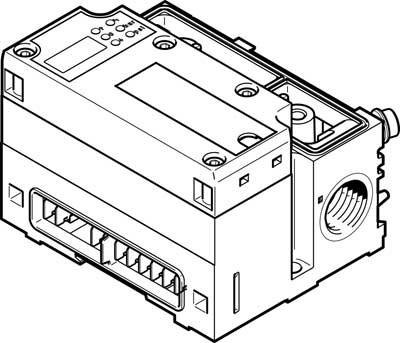

The Festo 547491 is an industrial component featuring a working pressure range of 0 to 10 bar and a full-scale accuracy of 2.5 %FS. Constructed with materials that conform to RoHS, it carries a corrosion resistance classification CRC of 0 for no corrosion stress and an IP65 protection class for ambient temperatures between -5 and 50 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 548505 is a double-acting industrial component featuring a 1-inch piston diameter, a 3/8-24 UNF-2A piston rod thread, and a stroke length ranging from 0.04 to 20 inches based on the ISO 6432 standard. Designed with a piston and piston rod structure that incorporates through piston rod variants and adjustable pneumatic cushioning at both ends, it operates within a pressure range of 0.1 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit functions in any assembly position under ambient temperatures between -4 and 176 °F, offering a corrosion resistance classification of CRC 2 and VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
