Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
This double-acting industrial component from Festo features a 2-inch piston diameter and a 1.5-inch stroke, operating on filtered compressed air within a working pressure range of 11.6 to 145 psi. Constructed with a wrought aluminum alloy cover and TPE-U(PU) and NBR dynamic seals, the unit incorporates flexible cushioning rings at both ends and a male thread piston-rod end. It delivers theoretical forces of 265 lbf for the advance stroke and 238 lbf for the return stroke at 6 bar, with a basic weight of 19.753 oz for a 0 mm stroke and an ambient temperature range of -4 to 176 °F. Submit part number 546351, quantity, and application requirements for a formal quotation.
View product details →Festo

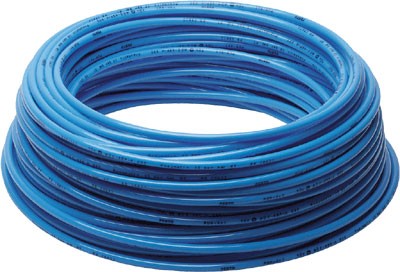

This Festo industrial component, part number 546578, is a blue TPE-U(PU) tubing featuring an outer diameter of 1/8 inch, an inner diameter of 1/16 inch, and a Shore hardness of A 98 +/-3. It weighs 0.077 oz/ft, has a minimum bending radius of 0.2 inches, and operates with filtered compressed air or vacuum at a temperature-dependent working pressure of -14 to 150 Psi and an ambient temperature range of -68 to 140 °F. The materials are free of copper and PTFE. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 546350 is a double-acting industrial component featuring a 2-inch piston diameter, a 0.5-inch stroke, and a female threaded piston-rod end configured for NPT1/8-27 pneumatic connections. Built with a wrought aluminum alloy cover, TPE-U(PU) and NBR dynamic seals, and flexible cushioning rings or plates at both ends, it operates within a working pressure range of 11.6 to 145 psi using filtered compressed air and withstands ambient temperatures from -4 to 176 °F. This unit delivers a theoretical return force of 238 lbf and advance force of 265 lbf at 6 bar, with a basic weight of 19.753 oz for a 0 mm stroke and a CRC rating of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 546577, is a black TPE-U(PU) tubing featuring a 1/8 inch outer diameter and a 1/16 inch inner diameter with a Shore hardness of A 98 +/-3. The material is free of copper and PTFE, yielding a product weight of 0.077 oz/ft and a minimum bending radius of 0.2 inches. It accommodates an operating medium of filtered compressed air or vacuum within a temperature dependent working pressure range of -14 to 150 psi and an ambient temperature range of -68 to 140 °F. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 545215 is an electromechanical cylinder featuring a recirculating ball bearing spindle design based on the ISO 15552 standard. This size 40 component accommodates a working stroke from 1 to 600 mm, a piston rod thread of M12x1,25, and a 100% duty cycle with stepper or servomotor compatibility. Operating at a maximum speed of 0.635 m/s and acceleration up to 6 m/s2, it delivers a repetition accuracy of +/-0.02 mm alongside a plain-bearing guide for torque protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 546349 is a double-acting industrial component featuring a 2-inch piston diameter, a 0.5-inch stroke, and a male thread piston-rod end with NPT1/8-27 pneumatic connections. Operating on filtered compressed air within a working pressure range of 11.6 to 145 psi, it incorporates flexible cushioning rings at both ends and achieves theoretical forces of 265 lbf on advance stroke and 238 lbf on return stroke at 6 bar. Constructed with a wrought aluminum alloy cover and TPE-U(PU) and NBR dynamic seals, the unit has a basic weight of 19.753 oz for a 0 mm stroke and a CRC rating of 2 for corrosion resistance across an ambient temperature range of -4 to 176 °F. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 545214 is an electric cylinder with a recirculating ball bearing spindle conforming to ISO 15552, featuring a size 40 profile and a working stroke of 1 to 600 mm. Designed with a non-rotating piston rod, a plain-bearing guide, an M12x1.25 piston rod thread, and a 12 mm spindle diameter with a 5 mm/U pitch, this unit accommodates stepper and servomotors in any assembly position. It delivers a 100% duty cycle, a maximum speed of 0.25 m/s, a maximum acceleration of 6 m/s2, a repetition accuracy of +/-0.02 mm, a 0.05 mm reversing backlash, and position detection for proximity switches. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

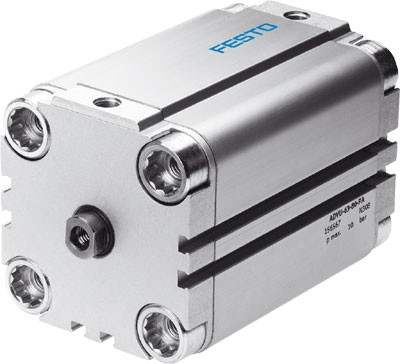

The Festo 546348 is a double-acting industrial component featuring a 2-inch piston diameter and a 1-inch stroke, operating within a working pressure range of 11.6 to 145 psi using filtered compressed air. Constructed with a wrought aluminum alloy cover and TPE-U(PU) and NBR dynamic seals, this unit incorporates flexible cushioning rings at both ends and an NPT1/8-27 pneumatic connection. It delivers a theoretical force of 265 lbf on the advance stroke and 238 lbf on the return stroke at 6 bar, with a basic weight of 19.753 oz for a 0 mm stroke and a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 545213 is an electric cylinder with a plain thread spindle and a size 40 profile built on the ISO 15552 standard. Featuring a working stroke of 1 to 600 mm, a piston rod thread of M12x1.25, and an anti-torque plain-bearing guide, this component operates at a maximum speed of 0.07 m/s with a repetition accuracy of +/-0.07 mm. It accommodates a stepper motor or DC servo motor in any assembly position while providing position detection for proximity switches and a 100% duty cycle. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 546347 is a double-acting industrial component featuring a 2-inch piston diameter, a 1-inch stroke, and a male threaded piston-rod end with NPT1/8-27 pneumatic connections. Operating on filtered compressed air within a working pressure range of 11.6 to 145 psi, this unit delivers a theoretical return force of 238 lbf and an advance force of 265 lbf at 6 bar. Constructed with a wrought aluminum alloy cover, TPE-U(PU) and NBR dynamic seals, and flexible cushioning rings at both ends, it provides a CRC 2 corrosion resistance classification and an ambient temperature range of -4 to 176 °F. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo 545212 is an electric cylinder featuring a ball screw design, a size 32 profile, and a working stroke adjustable from 1 to 400 mm based on the ISO 15552 standard. This component incorporates a ball spindle with a 10 mm diameter and a 10 mm/U pitch, a plain-bearing guide for torque protection, a non-rotating piston rod with an M10x1.25 thread, and provisions for proximity sensor position detection. It achieves a repetition accuracy of +/-0.02 mm, a maximum speed of 0.5 m/s, a maximum acceleration of 6 m/s2, and a 100% duty cycle while operating with either a stepper motor or servomotor in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 546346 is a double-acting industrial component featuring a 2-inch piston diameter and a 1.25-inch stroke, operating on filtered compressed air within a working pressure range of 11.6 to 145 psi. Constructed with a wrought aluminum alloy cover, TPE-U(PU) and NBR dynamic seals, and flexible cushioning rings at both ends, this unit provides NPT1/8-27 pneumatic connections and a CRC 2 corrosion resistance classification. It delivers a theoretical return force of 238 lbf and advance force of 265 lbf at 6 bar, with a basic weight of 19.753 oz for a 0 mm stroke and an ambient temperature range of -4 to 176 °F. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 545211 is an ISO 15552-compliant electric cylinder featuring a ball screw design with a 10 mm spindle diameter, 3 mm/U spindle pitch, and an M10x1,25 piston rod thread. This component incorporates a plain-bearing guide for torque protection, offering a working stroke from 1 to 400 mm, a size 32 profile, a 0.05 mm reversing backlash, and a repetition accuracy of +/-0.02 mm. It operates with either a stepper motor or servomotor at a maximum speed of 0.15 m/s, a maximum acceleration of 6 m/s2, and a 100% duty cycle in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 546345 is a double-acting industrial component featuring a 2-inch piston diameter and a 1.25-inch stroke, operating on filtered compressed air at working pressures ranging from 11.6 to 145 psi. Constructed with wrought aluminum alloy covers, TPE-U(PU) and NBR dynamic seals, and NPT1/8-27 pneumatic connections, it incorporates flexible cushioning rings at both ends and achieves a CRC corrosion resistance classification of 2. This unit delivers a theoretical force of 265 lbf on the advance stroke and 238 lbf on the return stroke at 6 bar, with an ambient temperature operational range of -4 to 176 °F. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

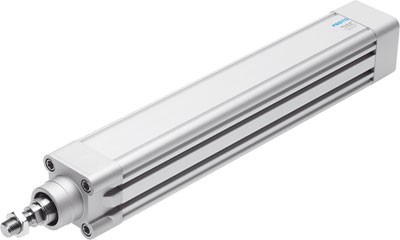

The Festo 545210 is an electric cylinder with a plain thread sliding screw spindle, sized at 32 with a working stroke of 1 to 400 mm and a stroke reserve of 0 mm. Built on the ISO 15552 standard, this component features a plain-bearing guide for torque protection, an M10x1.25 piston rod thread, and a non-rotating piston rod variant supporting a maximum speed of 0.06 m/s and 100% duty cycle. Compatible with stepper motors and DC servo motors as well as proximity switches for position detection, it operates in any assembly position with a repetition accuracy of +/-0.07 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 546344 is a double-acting industrial component featuring a 2-inch piston diameter and a 1.5-inch stroke, operating on filtered compressed air within a working pressure range of 11.6 to 145 psi. Constructed with a wrought aluminum alloy cover, TPE-U(PU) and NBR dynamic seals, and flexible cushioning rings at both ends, this unit provides a theoretical force of 265 lbf for the advance stroke and 238 lbf for the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo part number 546343 is a double-acting industrial component featuring a 1/2-inch piston diameter, a 0.75-inch stroke, and a male thread piston-rod end. It operates with filtered compressed air at a working pressure of 17.4 to 145 psi, utilizing flexible cushioning rings at both ends and TPE-U(PU) and NBR dynamic seals housed in a wrought aluminum alloy cover. The unit delivers a theoretical return force of 11 lbf and advance force of 15 lbf at 6 bar, with a basic weight of 3.069 oz for a 0 mm stroke and a CRC rating of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

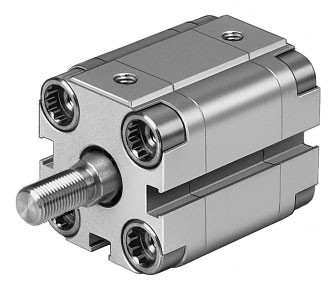

The Festo part number 546342 is a double-acting industrial component featuring a 1/2-inch piston diameter, a 0.25-inch stroke, and a male threaded piston-rod end with a UNF10-32 pneumatic connection. Operating on filtered compressed air within a working pressure range of 17.4 to 145 psi, it incorporates flexible cushioning rings at both ends and achieves theoretical forces of 11 lbf on the return stroke and 15 lbf on the advance stroke at 6 bar. Constructed with a wrought aluminum alloy cover and TPE-U(PU) and NBR dynamic seals, this unit withstands ambient temperatures from -4 to 176 °F and has a CRC corrosion resistance classification of 2, starting at a basic weight of 3.069 oz for a 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 546341 is a double-acting industrial component featuring a 1/2" piston diameter and a 0.5" stroke with flexible cushioning rings or plates at both ends and a male thread piston-rod end. It operates with filtered compressed air at a working pressure of 17.4 to 145 psi, utilizing a wrought aluminum alloy cover alongside TPE-U(PU) and NBR dynamic seals. This unit delivers a theoretical force of 15 lbf for the advance stroke and 11 lbf for the return stroke at 6 bar, with a basic weight of 3.069 oz for a 0 mm stroke and a UNF10-32 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 546340 is a double-acting industrial component featuring a 1-inch stroke and a 1/2-inch piston diameter, operating on filtered compressed air within a working pressure range of 17.4 to 145 psi. Constructed with a wrought aluminum alloy cover and dynamic TPE-U(PU) and NBR seals, this part incorporates flexible cushioning rings at both ends and a male thread piston-rod end. It delivers a theoretical force of 15 lbf on the advance stroke and 11 lbf on the return stroke at 6 bar, operating across an ambient temperature range of -4 to 176 °F. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
