Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 527374 is an electrical industrial component featuring a 2x2/2 closed, monostable valve function and a piston slide design structure. It operates with a working pressure of 3 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 150 l/min with soft sealing and throttleable exhaust-air function. Additional specifications include air spring reset, piloted type, non-reversible flow direction, IP20 protection class, c UL us - Recognized (OL) authorization, detenting and pushing manual override, a switching position indicator, a b value of 0.37, a C value of 0.63 l/sbar, a 10 ms switching time on, a 20 ms switching time off, and any assembly position. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo

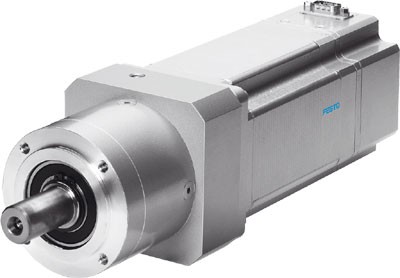

The Festo part number 530067 is an industrial component featuring a planetary gear unit with a 4:1 gear unit ratio, delivering a gear-unit output torque of 23 Nm and a gear unit efficiency of 0.9. It operates on a nominal voltage DC of 48 V and a nominal motor current of 4.7 A, supported by a motor holding torque of 23.29 Nm, a rotor mass moment of inertia of 4 kgcm2, and insulation protection class B. The unit provides a torsional backlash of ≤ 0.25 deg, torsional resistance of ≤ 5.2 Nm/arc, permissible axial shaft load of 1,200 N, and permissible radial shaft load of 950 N within an ambient temperature range of 0 to 50 °C and an IP43 protection class. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 530066 is an industrial component featuring a 48 V nominal DC voltage, a 4.7 A nominal motor current, and a 6.47 Nm motor holding torque alongside a 1.4 Nm brake holding torque powered by 24 V DC at 9 W. Built with IP54 protection class, insulation class B, and an overall mass moment of inertia at the power take-off of 4.05 kgcm2, this 5,000 g unit integrates a plug electrical connector system and adheres to the EU-EMV guideline. It operates within ambient temperatures of 0 to 50 °C, storage temperatures of -25 to 60 °C, relative air humidity of 45 to 80 %, and withstands permissible axial and radial shaft loads of 50 N and 130 N respectively. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 527372 is an electrical piston slide industrial component featuring a 5/3 exhausted valve function, a standard nominal flow rate of 170 l/min, and a working pressure range of -0.9 to 10 bar with a soft sealing principle. Operating on a characteristic coil data of 24V DC at 1W, this piloted unit offers reversible flow direction, throttleable exhaust-air function, and a switching position indicator, supported by c UL us recognition. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 530065 is an industrial component featuring a nominal DC voltage of 48 V and a nominal motor current of 4.7 A, operating with class B insulation protection and an IP54 protection rating. This unit delivers a motor holding torque of 6.47 Nm, a rotor and overall mass moment of inertia of 4 kgcm2 at power take-off, alongside a permissible axial shaft load of 50 N and a radial shaft load of 130 N. Weighing 4,200 g with a plug electrical connector system, the hardware functions within an ambient temperature range of 0 to 50 °C, a storage temperature of -25 to 60 °C, and a relative air humidity of 45 to 80%, while complying with the EU-EMV guideline for the CE symbol. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 527371 is an electrically actuated 5/3 closed industrial component featuring a piston slide design structure and soft sealing principle. This piloted valve operates within a working pressure of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 150 l/min with a reversible flow direction. Equipped with a detenting and pushing manual override, a switching position indicator, throttleable exhaust-air function, and an IP20 protection class, it functions on characteristic coil data of 24V DC at 1W with a 10 ms switch-on time and 25 ms switch-off time. It features an assembly position of any, a c UL us recognized authorization, a C value of 0.63 l/sbar, and a b value of 0.37. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 530062 is an industrial component featuring a nominal motor current of 3.1 A, a nominal DC voltage of 48 V, and a power consumption of 6 W for the brake operating at 24 V DC. This unit provides a motor holding torque of 1.27 Nm, a brake holding torque of 0.4 Nm, and an overall mass moment of inertia at the power take-off of 0.5 kgcm2 with a total product weight of 1,400 g. Constructed for operation within an ambient temperature range of 0 to 50 °C and an IP54 protection class, it accommodates a permissible radial shaft load of 71 N and an axial shaft load of 10 N via an electrical connector plug. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 527370 is an electrically actuated industrial component featuring a 5/3 pressurized valve function and a piston slide design structure with soft sealing. This piloted valve operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 180 l/min with reversible flow direction. Equipped with a detenting and pushing manual override, a switching position indicator, throttleable exhaust-air function, and an IP20 protection class, it runs on 24V DC characteristic coil data at 1W with a C value of 0.725 l/sbar and a b value of 0.36. Submit the exact part number, quantity, and application requirements to request a formal quote for this c UL us recognized component.
View product details →Festo
The Festo 530061 is an industrial component featuring a nominal voltage of 48 V DC, a nominal motor current of 3.1 A, and a motor holding torque of 1.27 Nm. Operating within an ambient temperature range of 0 to 50 °C, this unit provides an IP54 protection class, insulation class B, and a total product weight of 1,200 g with a plug electrical connector system. It includes a mass moment of inertia of rotor and overall mass moment of inertia at power take-off of 0.48 kgcm2, alongside a permissible axial shaft load of 10 N and radial shaft load of 71 N. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo part number 527369 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function with a piston slide design structure and soft sealing principle. It operates at a working pressure of 3 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 150 l/min with a C value of 0.63 l/sbar and a b value of 0.37. This piloted unit utilizes an air spring reset, detenting and pushing manual override, throttleable exhaust-air function, non-reversible flow direction, and a switching position indicator, while achieving an IP20 protection class and c UL us - Recognized (OL) authorization with a switching time on of 10 ms and off of 20 ms in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
Engineered by Festo, this industrial component operates on a nominal voltage DC of 48 V within a DC operating voltage range of 24 to 48 V and draws a nominal motor current of 1.2 A. The unit delivers a motor holding torque of 0.34 Nm alongside a brake holding torque of 0.4 Nm powered by a 24 V DC brake requiring 6 W of power consumption. Featuring a 1.8 degree full step stepper angle with a plus or minus 5 percent tolerance, the assembly is rated to IP54 protection class and complies with the CE symbol according to the EU-EMV guideline with C-Tick authorization. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo part number 527368 is an electrical industrial component featuring a 2x3/2 open, monostable valve function and a piston slide design structure. It operates within a working pressure range of 3 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 180 l/min with soft sealing and throttleable exhaust-air functionality. Equipped with an air spring reset, detenting and pushing manual override, and a switching position indicator, this IP20-rated component achieves a 10 ms switching time on and a 20 ms switching time off under c UL us recognized authorization. Submit the exact part number, quantity, and application requirements to receive a quote for this item.
View product details →Festo
The Festo industrial component, part number 530059, is a 48 V DC nominal motor featuring a 1.8 deg stepper angle with a ±5% tolerance, a nominal motor current of 1.2 A, and a motor holding torque of 0.34 Nm. Constructed with insulation protection class B and an IP54 protection class, this unit operates within a 0 to 50 °C ambient temperature range, supports a permissible axial shaft load of 7 N, and a permissible radial shaft load of 18 N with a product weight of 450 g. It includes an electrical connector system plug, a mass moment of inertia of the rotor at 0.068 kgcm2, and complies with the EU-EMV guideline for the CE symbol alongside C-Tick authorization. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
This Festo 527367 industrial component is a 5/2 bistable electrically actuated piston slide valve featuring a standard nominal flow rate of 180 l/min and a working pressure range of -0.9 to 10 bar. It incorporates soft sealing, a reversible flow direction, throttleable exhaust-air functionality, and a low power consumption of 1W at 24V DC. Certified as c UL us Recognized (OL) with an IP20 protection class, the unit operates within a pilot pressure range of 3 to 8 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo industrial component, part number 530058, operates on a 48 V DC nominal voltage with a nominal motor current of 1.8 A and features an IP54 protection class. This unit includes a 24 V DC brake requiring 6 W of power consumption, delivering a brake holding torque of 0.4 Nm alongside a motor holding torque of 0.34 Nm. With a product weight of 490 g, it supports a permissible axial shaft load of 7 N, a permissible radial shaft load of 18 N, and an overall mass moment of inertia at power take-off of 0.07 kgcm2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 527366 is an electrical 5/2 monostable industrial component featuring a piston slide design structure with a soft sealing principle and reversible flow direction. This piloted unit operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 180 l/min with an air spring reset. Equipped with an IP20 protection class, detenting and pushing manual override, throttleable exhaust-air function, and a switching position indicator, it carries a c UL us recognized authorization. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo

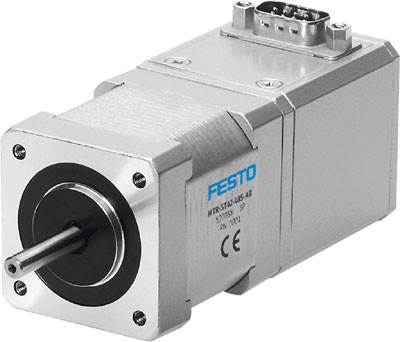

The Festo 530057 is an industrial component operating at a nominal voltage of 48 V DC with a nominal motor current of 1.8 A. This unit features insulation protection class B, IP54 protection, an ambient temperature range of 0 to 50 °C, storage temperatures between -25 and 60 °C, and relative air humidity limits of 45 to 80 %. The CE symbol aligns with the EU-EMV guideline, while the hardware provides a motor holding torque of 0.34 Nm, a rotor and power take-off mass moment of inertia of 0.068 kgcm2, and a product weight of 390 g with an electrical plug connector system, a permissible axial shaft load of 7 N, and a permissible radial shaft load of 18 N. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 527365 is an electrical industrial component featuring a 2x2/2 closed, monostable valve function with a piston slide design structure and soft sealing principle. It delivers a standard nominal flow rate of 130 l/min across a working pressure range of 3 to 10 bar, utilizing piloted actuation with an air spring reset and throttleable exhaust-air function. Additional specifications include an IP20 protection class, c UL us recognized authorization, non-reversible flow direction, detenting and pushing manual override, and a switching position indicator. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 527363 is an electrical industrial component featuring a 5/3 exhausted valve function with a piston slide design structure and soft sealing principle. It operates at a working pressure of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 140 l/min with 24V DC 1W coil data. Additional specifications include an IP20 protection class, c UL us recognition, a reversible flow direction, throttleable exhaust-air function, detenting and pushing manual override, and a switching position indicator. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 527362 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with soft sealing principles. It delivers a standard nominal flow rate of 130 l/min across a working pressure range of -0.9 to 10 bar, utilizing piloted actuation with a pilot pressure of 3 to 8 bar and 24V DC 1W coil characteristics. Additional specifications include an IP20 protection class, c UL us - Recognized (OL) authorization, throttleable exhaust-air function, and reversible flow direction with a switching position indicator. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
