Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 527867 is a micro-sized Series D industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator housed in wrought aluminum alloy. Operating within a working pressure of 1 to 10 bar and a regulation range of 0.5 to 7 bar, this unit delivers a standard nominal flow rate of 160 l/min with a 5 µm grade of filtration and semi-automatic condensate drain. It is designed for vertical assembly within ±5° via line installation or accessories, utilizing G1/8 pneumatic ports and an M5-ready pressure gauge connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

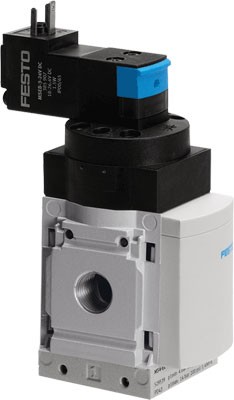

The Festo 529520 is a piloted 2/2 industrial component featuring a piston seat design structure with a throttleable exhaust-air function and electrical actuation powered by 110V AC coil data. It operates within a working pressure range of 4 to 14 bar, delivers a standard nominal flow rate of 2,000 l/min with an external pilot air supply, and includes a mechanical spring reset alongside a detenting and pushing manual override. Featuring a CRC corrosion resistance classification of 2 and a product weight of 263 g, this unit functions across medium and ambient temperatures from -10 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 527324 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function with a piston slide design structure and soft sealing principle. It operates at a working pressure of 3 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 150 l/min with non-reversible flow direction. Additional verified attributes include an air spring reset, throttleable exhaust-air function, piloted type of actuation, IP20 protection class, c UL us - Recognized (OL) authorization, detenting and pushing manual override, a switching position indicator, an on switching time of 10 ms, and an off switching time of 20 ms. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 527866 is a micro-sized Series D industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator housed in wrought aluminum alloy. Operating within a working pressure range of 1 to 10 bar and a pressure regulation range of 0.5 to 7 bar, this unit delivers a standard nominal flow rate of 160 l/min using compressed air according to ISO 8573-1:2010 [-:-:-]. It is equipped with a 5 µm grade of filtration, a manual rotary condensate drain with a maximum condensate volume of 3 cm3, a rotary knob with lock actuator, and two G1/8 pneumatic connection ports for vertical line installation within a temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

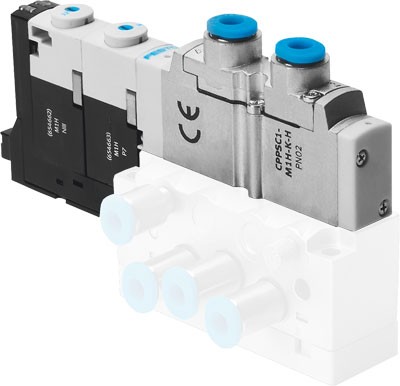

The Festo part number 527323 is an electrical industrial component featuring a 2x3/2 open, monostable valve function with piston slide design structure and soft sealing principle. This piloted unit operates with a working pressure of 3 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 180 l/min with non-reversible flow direction. Additional technical specifications include air spring reset, throttleable exhaust-air function, IP20 protection class, c UL us recognition, detenting and pushing manual override, a switching position indicator, and switching times of 10 ms on and 20 ms off. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

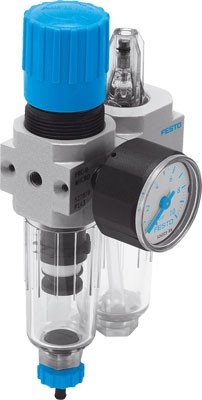

The Festo 527865 is a micro Series D industrial component featuring a filter regulator with pressure gauge and a proportional standard mist lubricator housed in a wrought aluminum alloy body with G1/8 pneumatic connections. Designed for vertical line installation or mounting with accessories within a temperature range of -10 to 60 °C, this unit operates at 1 to 10 bar with a 0.5 to 7 bar regulation range, a 5 µm grade of filtration, and a standard nominal flow rate of 160 l/min using compressed air conforming to ISO8573-1:2010 [-:-:-]. It incorporates a semi-automatic condensate drain with a maximum condensate volume of 3 cm3, a 0.3 bar maximum pressure hysteresis, and an actuator lock via a rotary knob with a lock weighing 149 g total. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 527322 is a 5/2 bistable industrial component featuring electrical actuation and a piston slide design structure operating at a standard nominal flow rate of 180 l/min. This piloted unit operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and utilizes a soft sealing principle with throttleable exhaust-air function. Powered by 24V DC at 1W, it achieves a 10 ms switching time reversal and features a detenting and pushing manual override, a switching position indicator, and an IP20 protection class. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
The Festo 527864 is a micro-sized Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator housed in wrought aluminum alloy. Operating on compressed air in accordance with ISO 8573-1:2010 [-:-:-], this unit provides a working pressure of 1 to 10 bar, a pressure regulation range of 0.5 to 7 bar, a 5 µm grade of filtration, and a standard nominal flow rate of 160 l/min. It includes a manual rotary condensate drain with a maximum condensate volume of 3 cm³, a rotary knob actuator lock, and G1/8 pneumatic connection ports for vertical line installation within a ± 5° tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

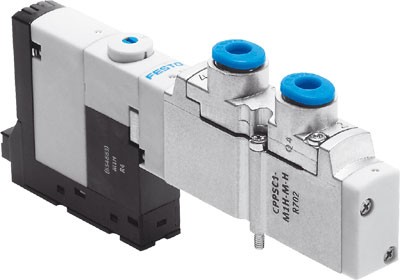

The Festo part number 527321 is a 5/2 monostable industrial component featuring electrical actuation, a piston slide design, and a standard nominal flow rate of 180 l/min across a working pressure range of -0.9 to 10 bar. This piloted valve incorporates an air spring reset, soft sealing principle, throttleable exhaust-air function, and reversible flow direction with a switching position indicator and detenting or pushing manual override. Rated at IP20 protection with c UL us recognition, it operates with a pilot pressure of 3 to 8 bar, a b value of 0.36, a C value of 0.725 l/sbar, and switching times of 10 ms on and 20 ms off in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 527863 is a micro-sized D series industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator in a wrought aluminum alloy housing. It operates within a working pressure of 1 to 10 bar, a pressure regulation range of 0.5 to 7 bar, and a standard nominal flow rate of 80 l/min using compressed air according to ISO8573-1:2010 [-:-:-] at temperatures between -10 and 60 °C. This unit includes a rotary knob with lock, a semi-automatic condensate drain with a maximum volume of 3 cm3, a 5 µm grade of filtration, and two M5 pneumatic connection ports while weighing 103 g. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 527320 is an electrical industrial component featuring a 2x2/2 closed, monostable valve function and a piston slide design structure with soft sealing. Operating within a working pressure range of 3 to 10 bar and a pilot pressure of 3 to 8 bar, this piloted unit delivers a standard nominal flow rate of 150 l/min with non-reversible flow direction, air spring reset, and throttleable exhaust-air function. Additional specifications include an IP20 protection class, c UL us Recognized (OL) authorization, detenting and pushing manual override, a switching position indicator, a C value of 0.63 l/sbar, a b value of 0.37, switch-on time of 10 ms, switch-off time of 20 ms, and any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

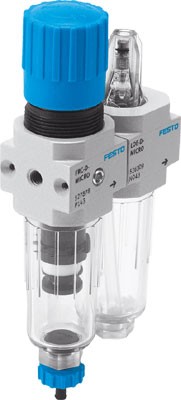

The Festo 527862 is a micro-sized D-series filter regulator featuring a proportional standard mist lubricator and a manual rotary condensate drain with a 3 cm3 maximum volume. Designed for vertical installation within a plus or minus 5-degree tolerance, this unit incorporates a 5 µm filtration grade, an M5-ready pressure gauge port, and two M5 pneumatic connection ports housed in a wrought aluminum alloy body. It operates within a working pressure range of 1 to 10 bar, a pressure regulation range of 0.5 to 7 bar, a maximum pressure hysteresis of 0.3 bar, and a standard nominal flow rate of 80 l/min using compressed air conforming to ISO 8573-1:2010 [-:-:-] at temperatures from -10 to 60 °C. Weighing 103 g, the assembly includes a rotary knob with a lock and is mountable via line installation or with accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 527861 is a micro-sized Series D industrial component featuring a wrought aluminum alloy housing designed with a filter regulator with a pressure gauge and a proportional standard mist lubricator. It operates within a working pressure of 1 to 10 bar, a pressure regulation range of 0.5 to 7 bar, and a standard nominal flow rate of 80 l/min using compressed air in accordance with ISO 8573-1:2010 [-:-:-] at a medium and ambient temperature of -10 to 60 °C. The unit includes a semi-automatic condensate drain with a maximum condensate volume of 3 cm3, a 5 µm grade of filtration, two M5 pneumatic connection ports, and a rotary knob with a lock for the actuator. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 527318 is an electrical industrial component featuring a 5/3 exhausted valve function with a piston slide design structure and soft sealing principle. It delivers a standard nominal flow rate of 170 l/min across a working pressure range of -0.9 to 10 bar, supported by piloted actuation and a reversible flow direction. Additional specifications include an IP20 protection class, c UL us recognition, a 24V DC 1W coil, and a throttleable exhaust-air function with integrated manual override and switching position indicator. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 527860 is a micro-sized Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator housed in wrought aluminum alloy. Operating within a working pressure of 1 to 10 bar and a temperature range of -10 to 60 °C, this unit provides a 5 µm filtration grade, a standard nominal flow rate of 80 l/min, and a manual rotary condensate drain with a maximum volume of 3 cm3. It includes an M5 pneumatic connection for both ports 2, a rotary knob actuator lock with a pressure regulation range of 0.5 to 7 bar, and a vertical assembly position of +/- 5° for line installation or mounting with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 113 g component.
View product details →Festo
The Festo 527317 is an electrical 5/3 closed industrial component featuring a piston slide design structure, soft sealing principle, and reversible flow direction with throttleable exhaust-air function. Operating at a working pressure of -0.9 to 10 bar and a standard nominal flow rate of 150 l/min, this piloted unit includes a detenting and pushing manual override, a switching position indicator, and an IP20 protection class with c UL us recognition. It operates on 24V DC with 1W coil data, delivering a 10 ms switching time on and a 25 ms switching time off within a 3 to 8 bar pilot pressure range in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 527316 is an electrical 5/3 pressurized industrial component featuring a piston slide design structure and soft sealing principle with a standard nominal flow rate of 180 l/min. Operating within a working pressure range of -0.9 to 10 bar and a pilot pressure of 3 to 8 bar, this c UL us recognized unit provides a reversible flow direction, throttleable exhaust-air function, and a 24V DC 1W coil consuming 10 ms to switch on and 25 ms to switch off. It includes a switching position indicator, detenting and pushing manual override, and supports any assembly position with IP20 protection. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 527315 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function and a piston slide design structure. It operates with a working pressure of 3 to 10 bar, a standard nominal flow rate of 150 l/min, and incorporates an air spring reset mechanism with soft sealing. Equipped with IP20 protection class, c UL us recognition, a switching position indicator, and throttleable exhaust-air function, this piloted unit allows for any assembly position and manual override via detenting or pushing. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 527314 is an electrical industrial component featuring a 2x3/2 open, monostable valve function with a piston slide design structure and soft sealing principle. It delivers a standard nominal flow rate of 180 l/min across a working pressure of 3 to 10 bar, utilizing piloted actuation with air spring reset, a throttleable exhaust-air function, and non-reversible flow direction. Additional technical attributes include an IP20 protection class, c UL us Recognized (OL) authorization, detenting and pushing manual override, a switching position indicator, and a pilot pressure range of 3 to 8 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 527313 is an electrical 5/2 bistable industrial component featuring a piston slide design structure with soft sealing and reversible flow direction. This piloted valve operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and provides a standard nominal flow rate of 180 l/min using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Equipped with a detenting and pushing manual override, a switching position indicator, throttleable exhaust-air function, and an IP20 protection class, it runs on 24V DC at 1W coil data with a 10 ms switching time reversal. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this c UL us recognized component.
View product details →
