Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

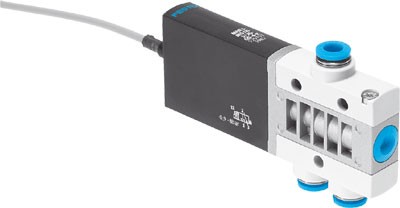

The Festo part number 525172 is a 14 mm wide industrial component featuring a 3/2 open, monostable valve function with electrical actuation and direct piloting. This pressure-relieved poppet valve provides a standard nominal flow rate of 200 l/min, a nominal size of 3 mm, a working pressure of -0.9 to 8 bar, and a maximum switching frequency of 130 Hz with a 4.5 ms off switching time. Built with soft sealing, a mechanical spring reset, throttleable exhaust-air function, and an IP65 protection class, it includes a pushing manual override and c UL us - Recognized (OL) authorization for mounting in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

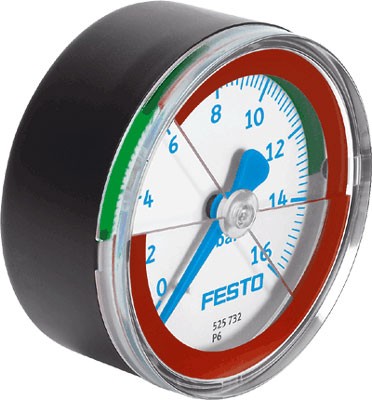

The Festo 525732 is a Bourdon-tube pressure gauge featuring a 63 nominal size and a central rear-side R1/4 pneumatic connection for line installation. Built with a black ABS housing, PMMA viewing window, and brass wetted parts, this instrument operates within a 0 to 16 bar indicating range for inert gases and neutral fluids. It achieves a measurement accuracy class of 2.5 under an alternating load factor of 0.66, conforming to EN 837-1 with an IP43 protection class for temperatures from -20 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 525731 is a Bourdon-tube pressure gauge featuring a nominal size of 63 and a central rear-side R1/4 pneumatic connection for line installation. Built with a black ABS housing, PMMA viewing window, and brass wetted parts, this instrument operates within a 0 to 10 bar indicating range and working pressure for inert gases and neutral fluids. It conforms to EN 837-1, provides an accuracy class of 2.5 with an alternating load factor of 0.66, and maintains an IP43 protection class across medium and ambient temperatures from -20 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 525730 is a Bourdon-tube pressure gauge conforming to EN 837-1 with a nominal size of 63 and an indicating range of 0 to 2.5 bar for inert gases and neutral fluids. Featuring a central rear R1/4 pneumatic connection, brass media-contacting materials and screw-in stud, a black ABS housing, and a PMMA viewing window, this line-installation component operates within a medium and ambient temperature range of -20 to 60 °C. It provides a measurement accuracy class of 2.5, an alternating load factor of 0.66, and IP43 protection while maintaining RoHS compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo part number 526785 is a Bourdon-tube pressure gauge featuring a 63 nominal size and a central rear-side R1/4 pneumatic connection for line installation. The unit provides an indicating and working pressure range of 0 to 1.6 MPa with a measurement accuracy class of 2.5 and an alternating load factor of 0.66, conforming to the EN 837-1 standard. Constructed with a black ABS housing, PMMA viewing window, and brass media-contacting components and screw-in stud, it operates within a medium and ambient temperature range of -20 to 60 °C for inert gases and neutral fluids. Featuring IP43 protection class and RoHS-conforming materials, this component is ready for specification. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 526784 is a Bourdon-tube pressure gauge conforming to EN 837-1 with a nominal size of 63 and a 0 to 1 MPa indicating range and working pressure. This line installation component features a central rear R1/4 pneumatic connection, brass media-contacting materials and screw-in stud, a black ABS housing with a PMMA viewing window, and an IP43 protection class. It operates within medium and ambient temperature ranges of -20 to 60 °C with an alternating load factor of 0.66, a measurement accuracy class of 2.5, and is compatible with inert gases and neutral fluids while conforming to RoHS materials notes. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 526783 is a Bourdon-tube pressure gauge featuring a nominal size of 63, a central rear pneumatic connection with an R1/4 thread, and a line installation mounting type. Operating within an indicating range and working pressure of 0 to 0.25 MPa, this component utilizes brass media-contact and screw-in stud materials housed within a black ABS enclosure and PMMA viewing window. It conforms to EN 837-1 with a measurement accuracy class of 2.5, an IP43 protection class, a 0.66 alternating load factor, and supports a medium and ambient temperature range of -20 to 60 °C for inert gases and neutral fluids while remaining RoHS compliant. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 525165 is an electrical 3/2 open, monostable industrial component featuring a pressure-relieved poppet valve design with a 14 mm width and a 3 mm nominal size. This direct-piloted unit delivers a standard nominal flow rate of 200 l/min across a working pressure of -0.9 to 8 bar, incorporating a mechanical spring reset, soft sealing principle, and throttleable exhaust-air function. Built with IP65 protection, a pushing manual override, and c UL us - Recognized (OL) authorization, it achieves a maximum switching frequency of 280 Hz with a 2.8 ms off switching time. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 525164 is a 14 mm wide electrical industrial component featuring a 3/2 open, monostable valve function and a pressure-relieved poppet valve design structure. It delivers a standard nominal flow rate of 200 l/min across a working pressure range of -0.9 to 8 bar, utilizing direct piloting, a mechanical spring reset, and a soft sealing principle. Certified with an IP65 protection class and c UL us recognition, this unit includes a 3 mm nominal size, 19 mm grid dimension, throttleable exhaust-air function, and a pushing manual override supporting a maximum switching frequency of 130 Hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

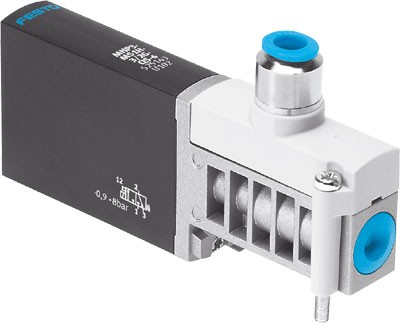

The Festo 525163 is a 14 mm wide electrical industrial component featuring a 3/2 open, monostable valve function and a pressure-relieved poppet design with soft sealing. It delivers a standard nominal flow rate of 200 l/min across a working pressure range of -0.9 to 8 bar, incorporating a mechanical spring reset, direct piloting, and a throttleable exhaust-air function. Offering a 3 mm nominal size, 19 mm grid dimension, IP65 protection class, c UL us recognition, pushing manual override, and a maximum switching frequency of 280 Hz, this unit operates in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 525162 is an electrical 3/2 open, monostable industrial component featuring a pressure-relieved poppet valve design with a 14 mm width and a 3 mm nominal size. It delivers a standard nominal flow rate of 200 l/min across a working pressure range of -0.9 to 8 bar, incorporating soft sealing, a mechanical spring reset, direct piloting, and a throttleable exhaust-air function. Built with an IP65 protection class and c UL us Recognized (OL) authorization, this unit achieves a maximum switching frequency of 130 Hz with a 4.5 ms switching time off. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 525161 is a 14 mm wide electrical industrial component featuring a 3/2 open, monostable valve function with direct piloting and a pressure-relieved poppet valve design structure. It delivers a standard nominal flow rate of 200 l/min across a working pressure range of -0.9 to 8 bar, utilizing a mechanical spring reset, soft sealing principle, and a throttleable exhaust-air function. Built with IP65 protection and c UL us recognition, this unit supports a maximum switching frequency of 280 Hz with a 2.8 ms off switching time, any assembly position, and a pushing manual override. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo

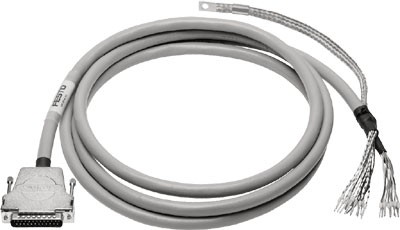

The Festo 525713 is an industrial component featuring a standard cable structure of 5x(2x0,25)+16x(0,25) with wire end ferrules. Connection 1 is a field device side straight, angular Sub-D plug with 25 pins and 25 occupied pins, while connection 2 is a controller side open-end cable with 26 pins and 25 occupied pins. Operating at a DC voltage range of 0 to 24 V, this part maintains an IP20 protection class in an assembled condition within an ambient temperature range of 0 to 50 °C and requires a flexible cable installation bending radius of 220 mm or greater. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
The Festo 525160 is a 14 mm wide electrical industrial component featuring a 3/2 open, monostable valve function and a pressure-relieved poppet design with soft sealing. This direct-piloted unit delivers a standard nominal flow rate of 200 l/min across a working pressure range of -0.9 to 8 bar, featuring a mechanical spring reset, throttleable exhaust-air function, and IP65 protection class. It operates at a maximum switching frequency of 130 Hz with a 4.5 ms switch-off time, includes a pushing manual override, and carries c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo cable kit KSEC-AC-15 is an industrial component featuring a 15 m cable length and an IP54 protection class. This assembly is suitable for chain link trunking and operates within an ambient temperature range of -40 to 125 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo cable kit KSEC-AC-10, part number 526748, is an industrial component featuring a 10 m cable length and IP54 protection class. This assembly is suitable for chain link trunking and operates within an ambient temperature range of -40 to 125 °C. Submit your exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo Cable kit KSEC-AC-5, part number 526747, is an industrial component featuring a 5 m cable length and IP54 protection class. This assembly operates within an ambient temperature range of -40 to 125 °C and is suitable for chain link trunking. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo

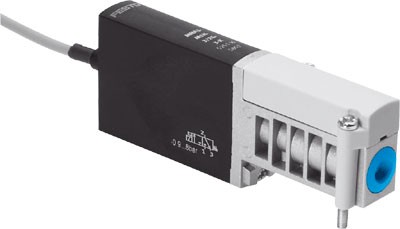

The Festo 525157 is an electrical 3/2 open, monostable industrial component featuring a pressure-relieved poppet valve design structure with a 14 mm width, 19 mm grid dimension, and 3 mm nominal size. It delivers a standard nominal flow rate of 200 l/min across a working pressure range of -0.9 to 8 bar, incorporating a mechanical spring reset, soft sealing principle, throttleable exhaust-air function, and direct piloting with a pushing manual override. Featuring an IP65 protection class, c UL us recognition, reversible flow direction with restrictions, reversible working pressure from -0.9 to 0 bar, a maximum switching frequency of 280 Hz, a 2.8 ms off switching time, and any assembly position, this unit operates reliably in demanding pneumatic systems. Request a formal quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo

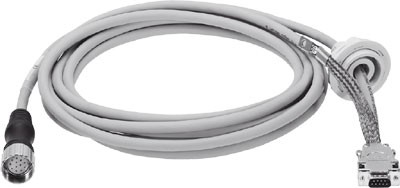

The Festo 526746 industrial component features a shielded cable structure consisting of 3x(2 x 0,14 mm²) plus 2 x 0,5 mm² conductors encased in PUR cable sheaths with a minimum cable bending radius of 100 mm. This part is rated for an IP67 protection class and operates within an ambient temperature range of -20 to 70 °C or -40 to 70 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 525156 is a 3/2 open, monostable industrial component utilizing a direct-piloted, pressure-relieved poppet valve design with a 14 mm width and a 3 mm nominal size. It features an electrical actuation type, mechanical spring reset, soft sealing principle, and a standard nominal flow rate of 200 l/min across a working pressure of -0.9 to 8 bar. Additional specifications include an IP65 protection class, c UL us authorization, throttleable exhaust-air function, pushing manual override, and a maximum switching frequency of 130 Hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
