Festo
The Festo 526306 is a micro-sized Series D industrial component featuring a sintered filter with a centrifugal separator and a 5 µm grade of filtration. Operating within a working pressure range of 1 to 10 bar and a standard nominal flow rate of 170 l/min, this aluminum die-cast unit incorporates a semi-automatic condensate drain with a 3 cm3 maximum condensate volume. It accommodates compressed air to ISO 8573-1:2010 [-:9:-] and inert gases across a temperature range of -10 to 60 °C while maintaining an output air purity class of ISO 8573-1:2010 [6:8:4]. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 525669 is an industrial component featuring a one-way flow control function for exhaust air with a G1/4 pneumatic connection on port 2 and a slotted head screw adjusting element. This pneumatically actuated valve mounts via an external male thread in any assembly position, supporting an operating pressure range of 0.5 to 10 bar and a pilot pressure of 2 to 10 bar across an ambient temperature range of -10 to 60 °C. It delivers a standard nominal flow rate of 280 l/min in the flow control direction, utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4] with provisions for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

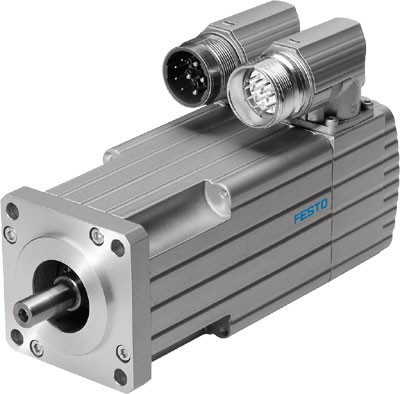

The Festo part number 526723 is an industrial component featuring a rotor position sensor resolver and a PTC resistor for temperature monitoring, operating at a nominal rotary speed of 6,800 1/min with a maximum speed of 8,090 1/min. This unit delivers a nominal motor power of 468 W at a nominal voltage DC of 325 V, providing a nominal torque of 0.66 Nm, a nominal motor current of 1.4 A, and a continuous open-circuit current of 2.15 A alongside a peak current of 6.4 A. Built with insulation protection class F, an IP54 protection class, and an overall mass moment of inertia at power take-off and of the rotor equal to 0.2 kgcm2, it functions within an ambient temperature range of -40 to 40 °C and storage temperatures between -10 and 60 °C at a relative air humidity of max. 90%. It carries the CE symbol according to the EU low voltage guideline, holds c UL us - Recognized (OL) authorization, and features a motor constant of 0.457 Nm/A. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo 526305 is a micro-sized industrial component from Series D featuring a sintered filter with a centrifugal separator, a manual rotary condensate drain, and a 5 µm grade of filtration. Constructed with an aluminum die-cast housing and a PE filter material, this unit operates at a working pressure of 0 to 10 bar with a standard nominal flow rate of 170 l/min for compressed air to ISO 8573-1:2010 [-:9:-] and inert gases. It supports a medium and ambient temperature range of -10 to 60 µC, a vertical +/- 5° assembly position, and line installation with 2 QS-4 pneumatic connection ports at a weight of 64 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 525668 is a pneumatically actuated industrial component featuring a one-way flow control function for exhaust air and a G1/8 pneumatic connection port. It incorporates a slotted head screw adjusting element for threaded mounting with an external male thread, operating within a pilot pressure range of 2 to 10 bar and an operating pressure range of 0.5 to 10 bar across an ambient temperature range of -10 to 60 °C. This unit achieves a standard nominal flow rate of 140 l/min in the flow control direction and utilizes compressed air as an operating medium in accordance with ISO 8573-1:2010 [7:4:4], with lubricated operation possible. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 526302 is a micro-sized D series industrial component featuring a sintered filter with a centrifugal separator and a semi-automatic condensate drain. It operates within a working pressure range of 1 to 10 bar, delivering a standard nominal flow rate of 290 l/min for compressed air to ISO 8573-1:2010 [-:9:-] and inert gases across a temperature range of -10 to 60 °C. Constructed with an aluminum die-cast housing, a PE filter, and 2 NPT1/8-27 pneumatic connection ports, this 64 g unit requires vertical installation within +/- 5° and achieves a 5 µm filtration grade with CRC 2 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

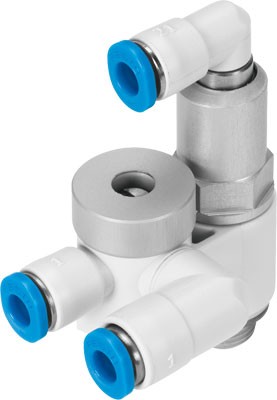

The Festo 525667 is an industrial component featuring a one-way flow control function for exhaust air with a G1/8 pneumatic connection port and a slotted head screw adjusting element. This pneumatically actuated part includes threaded mounting with an external male thread and operates within a pilot pressure range of 2 to 10 bar, an operating pressure of 0.5 to 10 bar, and an ambient temperature range of -10 to 60 °C. It delivers a standard nominal flow rate of 130 l/min in the flow control direction, switching times of 6 ms on and 44 ms off, and functions with compressed air matching ISO8573-1:2010 [7:4:4] standards where lubricated operation is subsequently required for further use. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

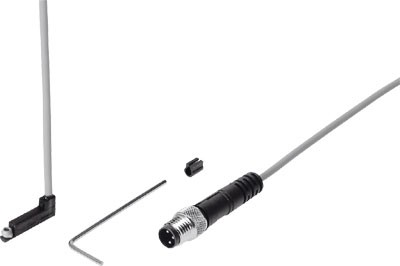

The Festo 526681 is a magnetoresistive industrial component designed for round slots featuring an NPN switch output with a normally open contact function. It operates within a 5 to 30 V DC range, delivers a max output current of 200 mA, and utilizes a lateral M8x1 3-pin cable connection with full polarity protection and short circuit strength. Certified with C-Tick and c UL us - Listed (OL) authorizations alongside CE compliance under the EU-EMV guideline, this copper- and PTFE-free unit functions in ambient temperatures from -5 to 60 °C with 0.5 ms switch-on and switch-off times. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 526301 is a micro Series D industrial component featuring a sintered filter with centrifugal separator and a manual rotary condensate drain designed for vertical +/- 5° assembly positions. Operating at a working pressure of 0 to 10 bar with a standard nominal flow rate of 290 l/min, this unit processes compressed air to ISO 8573-1:2010 [-:9:-] or inert gases within a medium and ambient temperature range of -10 to 60 °C. Constructed with an aluminum die-cast housing, a PE filter element, 2 NPT1/8-27 pneumatic connection ports, and a maximum condensate volume of 3 cm3, it achieves an output air purity class of ISO 8573-1:2010 [6:8:4] with a CRC corrosion resistance of 2 and a product weight of 64 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 525140 is a 14 mm wide electrical industrial component featuring a 3/2 closed, monostable valve function with a direct piloting type and a pressure-relieved poppet valve design structure. It delivers a standard nominal flow rate of 200 l/min across a working pressure of -0.9 to 8 bar, incorporating a mechanical spring reset, soft sealing principle, throttleable exhaust-air function, and a maximum switching frequency of 130 Hz. Equipped with IP65 protection class, a pushing manual override, and c UL us recognition, this unit operates in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
Engineered for round slots, this magnetoresistive industrial component from Festo features an NPN normally open contact switch output with a lateral 3-core cable connection. The unit operates within a DC voltage range of 5 to 30 V, delivering a max output current of 200 mA, a max contact rating DC of 6 W, and rapid 0.5 ms switch-on and switch-off times. Built with copper-free and PTFE-free materials, it includes short circuit strength, complete polarity protection, and a reproducibility of switching value of +/- 0,1 mm under ambient temperatures from -5 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

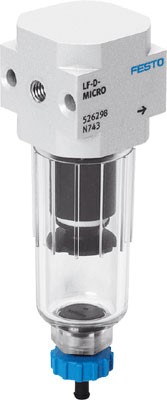

The Festo 526300 is a micro-sized Series D industrial component featuring a sintered filter with a centrifugal separator, a 5 µm filtration grade, and a semi-automatic condensate drain with a maximum condensate volume of 3 cm3. Operating with compressed air to ISO 8573-1:2010 [-:9:-] or inert gases at a working pressure of 1 to 10 bar, this aluminum die-cast unit delivers an output air purity class of ISO 8573-1:2010 [6:8:4] at a standard nominal flow rate of 290 l/min. It weighs 64 g, accommodates a vertical assembly position within +/- 5°, features G1/8 pneumatic ports, and functions within a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component features a magnetoresistive measuring principle designed for round slots with an axial M8x1 3-pin cable plug electrical connection. It operates on a 5 to 30 V DC voltage range utilizing an NPN normally open contact switch output with short-circuit strength and polarity protection for all electrical connections. The unit functions within an ambient temperature range of -5 to 60 °C, delivering a max output current of 200 mA, a max DC contact rating of 6 W, and a switching value reproducibility of +/- 0,1 mm. Built copper-free and PTFE-free, it carries C-Tick and c UL us - Listed (OL) authorizations alongside the CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 526299 is a micro-sized Series D industrial component featuring a sintered filter with a centrifugal separator design structure, a 5 µm grade of filtration, and a manual rotary condensate drain with a max. condensate volume of 3 cm3. Constructed with an aluminum die cast housing and a PE filter material, it operates within a working pressure of 0 to 10 bar and a temperature range of -10 to 60 µC while delivering a standard nominal flow rate of 290 l/min using compressed air or inert gases. Weighing 64 g with a CRC 2 corrosion resistance classification, this unit utilizes G1/8 pneumatic connections and is mountable via line installation or optional accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 526298 is a micro-sized D-series industrial component featuring a sintered filter with a centrifugal separator and a 5 µm filtration grade for compressed air and inert gases. Designed for vertical assembly within plus or minus 5 degrees, this aluminum die-cast unit operates at a working pressure of 1 to 10 bar, a standard nominal flow rate of 170 l/min, and a temperature range of -10 to 60 µC. It incorporates a semi-automatic condensate drain with a maximum volume of 3 cm3, M5 pneumatic ports, and a CRC 2 moderate corrosion resistance classification while weighing 44 g. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 526297 is a micro-sized D-series industrial component featuring a sintered filter with a centrifugal separator, a 5 µm filtration grade, and a manual rotary condensate drain with a maximum volume of 3 cm3. Operating within a working pressure range of 0 to 10 bar and a temperature range of -10 to 60 µC, this 44 g aluminum die-cast unit delivers a standard nominal flow rate of 170 l/min using compressed air or inert gases via two M5 pneumatic connection ports. It is designed for vertical assembly within ± 5° and achieves a CRC 2 moderate corrosion resistance classification while conforming to RoHS standards. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo

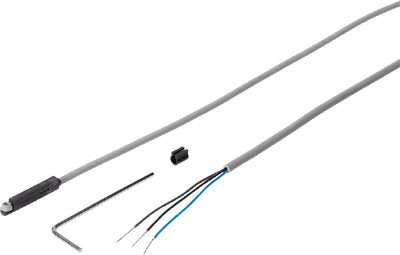

The Festo 526678 is a magnetoresistive industrial component designed for round slots featuring a 3-core cable electrical connection with an axial connector exit direction. Operating on a 5 to 30 V DC voltage range with an NPN normally open contact switch output, this part delivers a max output current of 200 mA, 6 W max contact rating DC, 0.5 ms switch-on and switch-off times, and a switching value reproducibility of +/- 0,1 mm in ambient temperatures from -5 to 60 °C. Certified with C-Tick and c UL us - Listed (OL) authorizations alongside a CE symbol according to the EU-EMV guideline, the copper- and PTFE-free construction incorporates short circuit strength, polarity protection for all electrical connections, a 2 V voltage drop, and 0.01 mA residual current. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 526296 is a micro-sized D-series filter regulator featuring a design structure without a pressure gauge and an M5 ready pressure gauge port. Operating with compressed air to ISO 8573-1:2010 [7:9:-] or inert gases within a 1 to 10 bar working pressure and a 0.5 to 7 bar pressure regulation range, this component delivers a standard nominal flow rate of 280 l/min alongside a 5 µm grade of filtration and semi-automatic condensate drain. Additional attributes include a rotary knob with lock actuator, vertical +/- 5° assembly position, 3 cm3 max condensate volume, 0.3 bar max pressure hysteresis, 114 g product weight, CRC 2 moderate corrosion stress classification, and -10 to 60 °C medium and ambient temperature limits for line installation or mounting with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo industrial component.
View product details →Festo
The Festo part number 526677 is a magnetoresistive industrial component designed for round slots featuring a non-contacting 2-wire normally open contact switch output and a 2-core cable electrical connection. It operates on a 10 to 30 V DC operating voltage range with a maximum output current of 50 mA, a maximum DC contact rating of 1.5 W, and includes short circuit strength alongside overload withstand capability. Authorized by C-Tick and c UL us Listed (OL) with a CE symbol according to the EU-EMV guideline, this copper- and PTFE-free unit functions within an ambient temperature range of -5 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

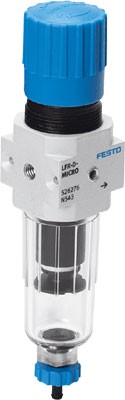

The Festo 526295 is a micro-sized D series filter regulator featuring a 5 µm filtration grade, a manual rotary condensate drain with a 3 cm3 max volume, and an M5 ready pressure gauge connection. Designed with a vertical assembly position within +/- 5°, a working pressure of 1 to 10 bar, a pressure regulation range of 0.5 to 7 bar, and a standard nominal flow rate of 280 l/min, it operates on compressed air to ISO 8573-1:2010 [7:9:-] or inert gases from -10 to 60 °C. This component includes a rotary knob with lock, provides a maximum pressure hysteresis of 0.3 bar, delivers an air purity class at the output of ISO 8573-1:2010 [6:8:4], and weighs 114 g with a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
