Festo
The Festo part number 525107 is an electrical monostable 5/2 industrial component featuring a pressure-relieved poppet valve design structure with a 2 mm nominal size and a 14 mm grid dimension. It provides a standard nominal flow rate of 100 l/min, a reversible flow direction, throttleable exhaust-air function, and an operating pressure range of -0.9 to 8 bar with soft sealing and a mechanical spring reset. This direct-piloted unit achieves a maximum switching frequency of 300 Hz alongside on and off switching times of 1.9 ms and 1.7 ms respectively, and incorporates IP65 protection, c UL us recognition, and a resetting manual override for any assembly position via a 5 sub-base pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

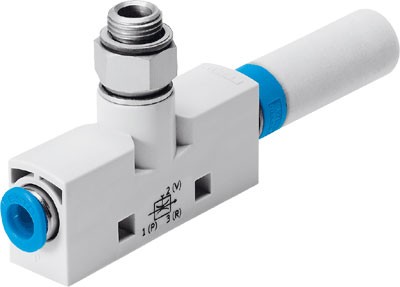

The Festo 526165 is an industrial component featuring a T-shaped design structure with a 0.95 mm Laval nozzle nominal size and an 18 mm grid dimension. It operates at a nominal pressure of 6 bar within an operating pressure range of 1 to 8 bar, delivering a maximum suction rate of 62.7 l/min with an open silencer design. This unit functions with dried, filtered, and unlubricated compressed air across a medium and ambient temperature range of 0 to 60 °C, requiring a maximum tightening torque of 0.5 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

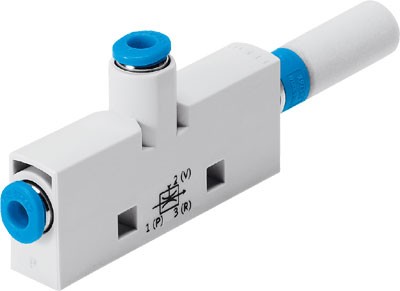

The Festo 526159 is an industrial component featuring a T-shaped design structure with a 0.95 mm Laval nozzle nominal size and an 18 mm grid dimension. It provides an open silencer design, an ejector characteristic optimized for a high suction flow rate, and operates within an air pressure range of 1 to 8 bar with a nominal operating pressure of 6 bar. This unit achieves a maximum suction rate of 62.7 l/min with respect to the atmosphere, functions in medium and ambient temperatures ranging from 0 to 60 °C using dried, filtered, and unlubricated compressed air, and features a corrosion resistance classification of CRC 1 with a maximum tightening torque of 0.5 Nm. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 526155 is an industrial component featuring a T-shaped design structure with an 18 mm grid dimension and a 0.95 mm Laval nozzle nominal size. This unit operates within a pressure range of 1 to 8 bar, delivering a maximum vacuum of 89% at an operating pressure of 4.5 bar and a maximum suction rate of 25 l/min with respect to the atmosphere at a 3.1 bar operating pressure for max suction rate. Built for any assembly position, it functions with dried, filtered, and unlubricated compressed air at temperatures between 0 and 60 °C and requires a maximum tightening torque of 0.5 Nm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 526149 is an industrial component featuring a T-shaped design structure with a 0.95 mm Laval nozzle nominal size and an 18 mm grid dimension. It operates at a pressure range of 1 to 8 bar, delivering a nominal operating pressure of 6 bar, a maximum suction rate of 25 l/min with respect to the atmosphere, and a maximum vacuum of 89%. This unit incorporates an open silencer design, a CRC corrosion resistance classification of 1, and operates within a medium and ambient temperature range of 0 to 60 °C using dried, filtered, and unlubricated compressed air. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
Manufactured by Festo, this brown industrial component features an outside diameter of 14 mm, an inside diameter of 9 mm, and a product weight of 0.133 kg/m, constructed from Polyamide 12 and PVC-P with a casing meeting UL94 V-0 material fire test standards and RoHS conformity. The tubing accommodates a pneumatic connection for push-in connectors with a 12 mm outside diameter, operating within an ambient temperature range of -30 to 90 °C and a temperature-dependent working pressure of -0.95 to 12 bar using compressed air in accordance with ISO8573-1:2010 [7:-:-], water as per manufacturer's declaration, or mineral oil. It exhibits a shore hardness of A 72 +/-4 and D 57 +/-3, featuring a minimum bending radius of 43 mm and a bending radius relevant for flow rate of 65 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 525488 is an industrial component featuring a 12 mm outside diameter, a 7.5 mm inside diameter, and a brown Polyamide 12 and PVC-P tubing material construction with a weight of 0.088 kg/m. This component operates at a temperature-dependent working pressure of -0.95 to 12 bar, an ambient temperature range of -30 to 90 °C, and accommodates pneumatic connections for push-in connectors with a 10 mm outside diameter. It maintains a shore hardness of A 72 +/-4 and D 57 +/-3, a UL94 V-0 casing fire test rating, RoHS conformity, and functions with compressed air, water, and mineral oil operating mediums. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 525487 is a brown industrial component featuring a 10 mm outside diameter, a 6 mm inside diameter, and a product weight of 0.065 kg/m, constructed from polyamide 12 and PVC-P with a casing meeting UL94 V-0 material fire test standards and RoHS compliance. It operates with a temperature-dependent working pressure of -0.95 to 12 bar, an ambient temperature range of -30 to 90 °C, a shore hardness of A 72 +/-4 and D 57 +/-3, a minimum bending radius of 24 mm, and a bending radius relevant for flow rate of 45 mm. The tubing accommodates compressed air conforming to ISO8573-1:2010 [7:-:-], water as per manufacturer's declaration at www.festo.com, and mineral oil, utilizing a pneumatic connection for a push-in connector with an outside diameter of 8 mm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

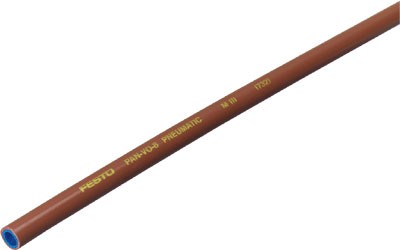

The Festo 525486 is a brown industrial component featuring a Polyamide 12 and PVC-P tubing material construction with a UL94 V-0 casing fire test rating and RoHS conformity. It operates within a temperature dependent working pressure of -0.95 to 12 bar and an ambient temperature range of -30 to 90 °C, utilizing compressed air, water, or mineral oil as the operating medium. Designed with an 8 mm outside diameter, 4 mm inside diameter, 13 mm minimum bending radius, and 30 mm bending radius relevant for flow rate, this component weighs 0.049 kg/m and incorporates a pneumatic connection for a 6 mm outside diameter push-in connector alongside a Shore hardness of A 72 +/-4 and D 57 +/-3. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 525468 is a blue industrial component constructed from polyamide 12 and PVC-P tubing with a UL94 V-0 casing material fire test rating, featuring a 12 mm outside diameter, a 7.5 mm inside diameter, and a product weight of 0.088 kg/m. Designed with a shore hardness of A 72 +/-4 and D 57 +/-3, it operates at a temperature-dependent working pressure of -0.95 to 12 bar within an ambient temperature range of -30 to 90 °C, utilizing a minimum bending radius of 34 mm and a bending radius relevant for flow rate of 56 mm for compressed air per ISO8573-1:2010 [7:-:-], water per manufacturer declaration, and mineral oil via a pneumatic connection for push-in connectors of 10 mm outside diameter. This RoHS-conforming component is available by submitting the exact part number, quantity, and application requirements for a quote.
View product details →Festo
Engineered with a blue Polyamide 12 and PVC-P casing featuring a UL94 V-0 fire test rating, this Festo industrial component part number 525467 accommodates compressed air conforming to ISO8573-1:2010 [7:-:-], water, and mineral oil. The tubing operates across a temperature-dependent working pressure of -0.95 to 12 bar and an ambient temperature range of -30 to 90 °C, utilizing a 10 mm outside diameter, 6 mm inside diameter, and 8 mm push-in connector pneumatic connection. It exhibits a Shore hardness of A 72 +/-4 and D 57 +/-3, a weight of 0.065 kg/m, a minimum bending radius of 24 mm, and a flow-rate bending radius of 45 mm while conforming to RoHS materials notes. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 525466 is a blue industrial component featuring an 8 mm outside diameter, a 4 mm inside diameter, and a material weight of 0.049 kg/m constructed from Polyamide 12 and PVC-P with a shore hardness of A 72 +/-4 and D 57 +/-3. Operating with compressed air in accordance with ISO8573-1:2010 [7:-:-], water per manufacturer declaration, and mineral oil, it handles a temperature-dependent working pressure of -0.95 to 12 bar across an ambient temperature range of -30 to 90 °C. The tubing accommodates a 6 mm outside diameter push-in connector, incorporates a UL94 V-0 casing fire test rating, and features a 13 mm minimum bending radius alongside a 30 mm bending radius relevant for flow rate while conforming to RoHS standards. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 525465 is a brown industrial tubing component manufactured from TPE-U(PU) with a Shore hardness of D 54 +/-3, featuring an outside diameter of 12 mm, an inside diameter of 8 mm, and a product weight of 0.08 kg/m. Designed with copper- and PTFE-free materials, this part operates with filtered compressed air or vacuum at a temperature-dependent working pressure of -0.95 to 10 bar within an ambient temperature range of -35 to 60 °C. It possesses a TÜV authorization, a UL 94 V0-V2 fire class with color deviation resulting from flame protection, a minimum bending radius of 21 mm, and a bending radius relevant for flow rate of 62 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo swivel flange SN-100 is a size 100 industrial component featuring a corrosion resistance classification of CRC 2 and a product weight of 1,280 g. Its mounting material is constructed from aluminum die cast. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 525461 is a yellow industrial component made of TPE-U(PU) tubing with an outside diameter of 12 mm, an inside diameter of 8 mm, and a Shore hardness of D 54 +/-3. It operates with filtered compressed air or vacuum at a temperature dependent working pressure of -0.95 to 10 bar, an ambient temperature range of -35 to 60 °C, and features a minimum bending radius of 21 mm alongside a bending radius relevant for flow rate of 62 mm. This copper- and PTFE-free component weighs 0.08 kg/m, complies with UL 94 fire class V0-V2 with a deviation from standard color due to flame protection, and carries a TÜV authorization. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo swivel flange SN-80 is an industrial component featuring size 80 dimensions and a product weight of 700 g. Manufactured with an aluminum die cast mounting material, this part includes a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo swivel flange SN-63 is an industrial component featuring a size 63 designation and a corrosion resistance classification CRC of 2. Weighing 460 g, this mounting part is constructed from aluminum die cast material information. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo

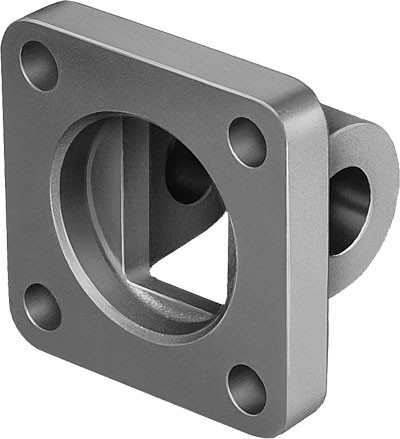

The Festo swivel flange SN-50, part number 5155, is an industrial component featuring a size 50 designation and a product weight of 260 g. Constructed with an aluminum die-cast mounting material, this component provides a corrosion resistance classification CRC of 2. Request a formal quote for this Festo part by submitting your exact part number, required quantity, and application requirements.
View product details →Festo
The Festo part number 525457 is a white TPE-U(PU) industrial component with a Shore hardness of D 54 +/-3, featuring an outside diameter of 12 mm, an inside diameter of 8 mm, and a weight of 0.08 kg/m. This copper- and PTFE-free tubing operates with filtered compressed air or vacuum at a temperature-dependent working pressure ranging from -0.95 to 10 bar within an ambient temperature span of -35 to 60 °C, achieving a minimum bending radius of 21 mm and a bending radius relevant for flow rate of 62 mm. It complies with UL 94 V0-V2 fire class ratings, includes TÜV authorization, and exhibits a color deviation from standard hues resulting from its flame protection properties. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 525453 is a red industrial component manufactured from TPE-U(PU) with a D 54 +/-3 Shore hardness, featuring an 8 mm inside diameter, a 12 mm outside diameter, and a product weight of 0.08 kg/m. This component operates with filtered compressed air or vacuum at a temperature dependent working pressure of -0.95 to 10 bar within an ambient temperature range of -35 to 60 °C, demonstrating a 21 mm minimum bending radius, a 62 mm bending radius relevant for flow rate, a UL 94 V0-V2 fire class due to flame protection color deviation, copper- and PTFE-free materials, and TÜV authorization. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
