Festo
525203

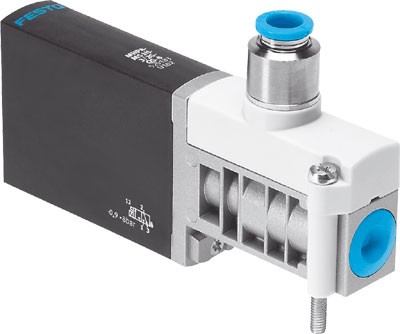

Solenoid valve MHP4-MS1H-3/2O-QS-8
The Festo 525203 is an electrical 3/2 open, monostable industrial component featuring a pressure-relieved poppet valve design with a soft sealing principle and a 4 mm nominal size. This direct-piloted unit has an 18 mm width, a 24 mm grid dimension, an IP65 protection class, and supports any assembly position while delivering a standard nominal flow rate of 400 l/min across a working pressure range of -0.9 to 8 bar. Additional specifications include mechanical spring reset, a throttleable exhaust-air function, pushing manual override, reversible flow direction with restrictions, reversible working pressure from -0.9 to 0 bar, a 3.5 ms off switching time, a maximum switching frequency of 210 Hz, and c UL us - Recognized (OL) authorization. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
