Festo
The Festo part number 5103 is a single-acting industrial pneumatic cylinder featuring a 25 mm piston diameter, a 50 mm stroke, and a pushing action operating mode designed for a working pressure range of 1.2 to 10 bar. Built with a single-ended male M10x1,25 piston rod thread and flexible cushioning rings at both ends, this unit conforms to CETOP RP 52 P and ISO 6432 standards for any assembly position using ISO8573-1:2010 [7:4:4] compressed air. It delivers a theoretical force of 270 N at 6 bar advance stroke, a moving mass of 238 g at 0 mm stroke with an additional 10.9 g per 10 mm stroke, and a CRC 2 moderate corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 5102 is a single-acting industrial component with a 25 mm piston diameter, a 25 mm stroke, and a pushing action mode of operation driven by compressed air in accordance with ISO 8573-1:2010 [7:4:4]. Conforming to CETOP RP 52 P and ISO 6432 standards, this single-ended piston rod design features an M10x1,25 male thread, flexible cushioning rings at both ends, and a working pressure range of 1.2 to 10 bar. It delivers a theoretical force of 270 N at 6 bar advance stroke within an ambient temperature range of -20 to 80 °C, and achieves a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 5101 is a single-acting industrial component featuring a 25 mm piston diameter, a 10 mm stroke, and a pushing action mode of operation designed in accordance with CETOP RP 52 P and ISO 6432 standards. Operating within a working pressure range of 1.2 to 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], this unit provides a theoretical force of 270 N at 6 bar during the advance stroke and incorporates flexible cushioning rings at both ends. It operates across an ambient temperature range of -20 to 80 °C, utilizes a male M10x1,25 piston rod thread, and features a CRC 2 moderate corrosion resistance classification with any assembly position. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo

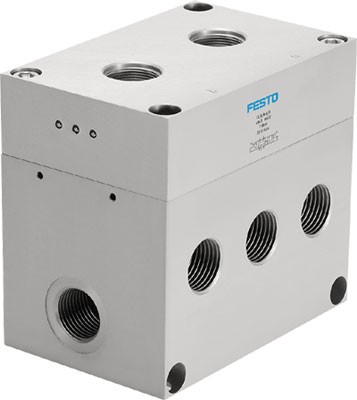

The Festo part number 4690 is an industrial component featuring a G1/4 pneumatic connection port and a product weight of 810 g. This unit operates within a pressure range of 0.2 to 0.8 MPa, corresponding to a working pressure of 2 to 8 bar. It is designed to function within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 5100 is a single-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and a pushing action operating mode designed for compressed air in accordance with ISO 8573-1:2010 [7:4:4]. Conforming to CETOP RP 52 P and ISO 6432 standards, this single-ended piston rod design incorporates an M8 male thread, flexible cushioning rings or plates at both ends, and operates within a working pressure range of 1.2 to 10 bar and an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 4680 is a double-acting industrial component featuring a 40 mm piston diameter and a 100 mm stroke with a single-ended piston rod. It operates within a working pressure range of 0.6 to 10 bar and an ambient temperature range of -20 to 80 °C, utilizing a G1/4 pneumatic connection without cushioning or position detection. At 6 bar, this unit delivers a theoretical return stroke force of 633 N and an advance stroke force of 754 N. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 5099 is a single-acting industrial component featuring a 20 mm piston diameter, a 25 mm stroke, and an M8 male piston rod thread designed for pushing action. Conforming to CETOP RP 52 P and ISO 6432 standards, this unit operates on compressed air within a working pressure range of 1.2 to 10 bar and delivers a theoretical force of 169 N at 6 bar during the advance stroke. Flexible cushioning rings at both ends manage a 0.2 J impact energy while accommodating an ambient temperature range of -20 to 80 °C and a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

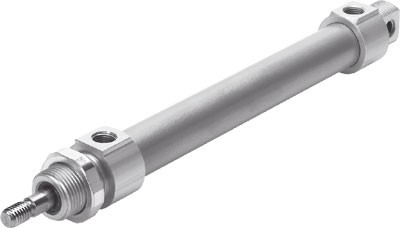

The Festo part number 4676 is a double-acting industrial component featuring a 25 mm piston diameter and a 100 mm stroke with a single-ended piston rod, operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 12 bar and an ambient temperature range of -20 to 80 °C. This unit operates without cushioning or position detection, providing a G1/8 pneumatic connection and delivering a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar, with lubricated operation possible when subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 5098 is a single-acting industrial component featuring a 20 mm piston diameter, a 10 mm stroke, and a male M8 piston rod thread operating via a pushing action. This unit functions with compressed air conforming to ISO8573-1:2010 [7:4:4] across a working pressure range of 1.2 to 10 bar and accommodates lubricated operation. Conforming to CETOP RP 52 P and ISO 6432 standards, the assembly incorporates flexible cushioning rings at both ends and delivers a theoretical advance force of 169 N at 6 bar within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 5097 is a single-acting industrial component featuring a 16 mm piston diameter, a 50 mm stroke, and a pushing action operating mode conforming to CETOP RP 52 P and ISO 6432 standards. Designed with a single-ended male piston rod thread of M6, this unit operates within a working pressure range of 1.2 to 10 bar and an ambient temperature span of -20 to 80 °C using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It includes flexible cushioning rings or plates at both ends, a moderate corrosion resistance classification CRC of 2, and delivers a theoretical force of 107 N at 6 bar during the advance stroke. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →Festo
The Festo 5096 is a single-acting industrial component featuring a 16 mm piston diameter, a 25 mm stroke, and a pushing action operating mode conforming to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a pressure range of 1.2 to 10 bar and temperatures from -20 to 80 °C, this unit delivers a theoretical force of 107 N at 6 bar advance stroke. It includes flexible cushioning rings at both ends, a male M6 piston rod thread, and a single-ended piston rod design with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 5095 is a single-acting industrial component featuring a 16 mm piston diameter, a 10 mm stroke, and a male M6 piston rod thread operating via pushing action within a 1.2 to 10 bar working pressure range. Conforming to ISO 6432 and CETOP RP 52 P standards, this single-ended piston rod unit incorporates flexible cushioning rings at both ends and functions with compressed air under ISO8573-1:2010 [7:4:4] specifications across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Festo

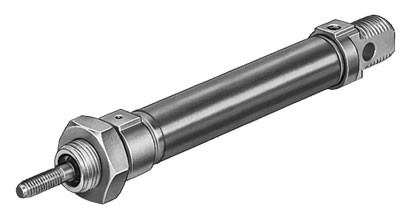

The Festo 5094 is a single-acting industrial pneumatic cylinder featuring a 12 mm piston diameter, a 50 mm stroke, and a male M6 piston rod thread designed for pushing action. Conforming to ISO 6432 and CETOP RP 52 P standards, this unit operates within a pressure range of 1.5 to 10 bar and delivers a theoretical force of 61 N at 6 bar during the advance stroke. It incorporates flexible cushioning rings at both ends, a CRC 2 moderate corrosion resistance classification, and an ambient temperature operating range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

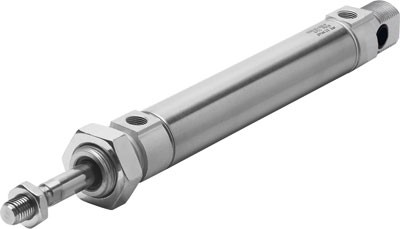

The Festo part number 5074 is a double-acting industrial component featuring a 25 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and an M10x1,25 male piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working range and -20 to 80 °C ambient temperature, this single-ended piston rod cylinder utilizes flexible cushioning rings at both ends and achieves theoretical forces of 294.5 N on advance and 247.4 N on return at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 5093 is a single-acting industrial component featuring a 12 mm piston diameter, a 25 mm stroke, and a male M6 piston rod thread designed for pushing action. This unit operates within a 1.5 to 10 bar working pressure range using compressed air in accordance with ISO 8573-1:2010 [7:4:4], while incorporating flexible cushioning rings at both ends to absorb 0.07 J of impact energy. Conforming to CETOP RP 52 P and ISO 6432 standards with a CRC 2 moderate corrosion resistance classification, the cylinder functions in any assembly position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 5073 is a double-acting industrial component featuring a 300 mm stroke, a 20 mm piston diameter, and an M8 male piston rod thread adhering to CETOP RP 52 P and ISO 6432 standards. Configured with a single-ended piston rod and flexible cushioning rings at both ends, this piston-rod-cylinder assembly operates within a 1 to 10 bar pressure range using ISO8573-1:2010 [7:4:4] compressed air. It delivers a theoretical advance force of 188.5 N and a return force of 158.3 N at 6 bar while withstanding ambient temperatures from -20 to 80 °C with moderate corrosion stress resistance (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 5092 is a single-acting industrial component featuring a 12 mm piston diameter, a 10 mm stroke, and a male M6 piston rod thread designed for pushing action. Conforming to ISO 6432 and CETOP RP 52 P standards, this piston-rod cylinder operates on compressed air within a 1.5 to 10 bar working pressure range and features flexible cushioning rings at both ends. It delivers a theoretical force of 61 N at 6 bar with an ambient temperature range of -20 to 80 °C and a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

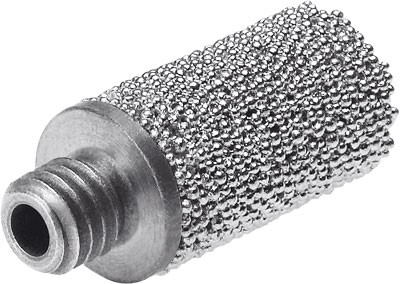

The Festo part number 4645 is an industrial component featuring an M5 pneumatic connection and any assembly position, with a working pressure range of 0 to 10 bar and a flow rate to atmosphere of 320 l/min. Constructed with a bronze silencer insert, a brass screw-in stud, and materials free of copper and PTFE that conform to RoHS, this component operates with compressed air according to ISO8573-1:2010 [7:-:-] at a sound pressure level of 70 dB(A) within an ambient temperature range of -10 to 70 °C. Lubricated operation is possible provided it is subsequently required for further operation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 5091 is a single-acting industrial component featuring a 10 mm piston diameter, a 50 mm stroke, and a male M4 piston rod thread that conforms to CETOP RP 52 P and ISO 6432 standards. Operating via pushing action with compressed air under 1.5 to 10 bar, this unit delivers a theoretical force of 41 N at 6 bar and incorporates flexible cushioning rings at both ends. It operates within an ambient temperature range of -20 to 80 °C and has a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 4642, is a black PE tubing featuring an outside diameter of 8.4 mm, an inside diameter of 6 mm, and a shore hardness of D 42 +/-3. It operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] at a temperature-dependent working pressure of -0.95 to 9 bar and an ambient temperature range of -30 to 60 °C. The tubing has a bending radius relevant for flow rate of 39 mm, weighs 0.025 kg/m, holds TÜV authorization, conforms to RoHS, and is free of copper and PTFE. Submit the exact part number, quantity, and application requirements to request a quote.
