Festo
The Festo part number 5045 is a double-acting industrial component featuring a 100 mm stroke, a 10 mm piston diameter, and an M4 piston rod thread with a male end. Built to CETOP RP 52 P and ISO 6432 standards, this piston-rod cylinder operates on compressed air within a 1.5 to 10 bar pressure range and incorporates flexible cushioning rings at both ends. It delivers a theoretical force of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar, while functioning within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 5044 is a double-acting industrial component featuring a 10 mm piston diameter, an 80 mm stroke, and an M4 male piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating within a pressure range of 1.5 to 10 bar and an ambient temperature range of -20 to 80 °C, this single-ended piston rod unit incorporates flexible cushioning rings at both ends with a 0.05 J end-position impact energy rating. It delivers a theoretical force of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar using compressed air meeting ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

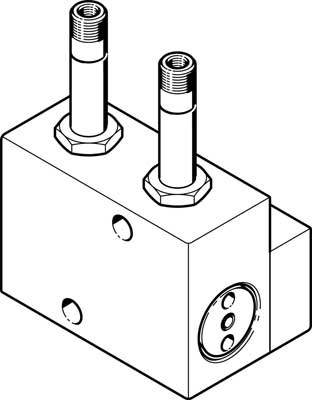

The Festo 4556 is an electrical-actuated, piloted 4/2 bistable industrial component featuring a non-reversible flow direction and NBR seal material. Operating within a working pressure range of 2 to 8 bar, this pneumatic valve is equipped with 5 G1/8 ports. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 5043 is a double-acting industrial component featuring a 10 mm piston diameter, a 50 mm stroke, and an M4 male piston rod thread designed with a single-ended piston rod structure. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 1.5 to 10 bar working pressure range, this unit incorporates flexible cushioning rings at both ends and achieves theoretical forces of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar. It conforms to CETOP RP 52 P and ISO 6432 standards, features a moderate corrosion resistance classification of CRC 2, and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

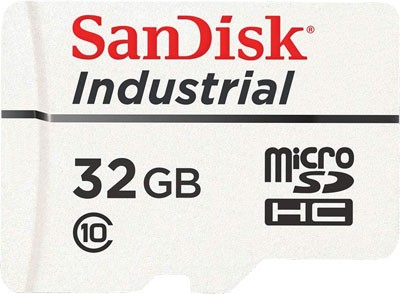

This Festo industrial component, part number 4553880, is a microSDHC memory card featuring MLC multi-level cells and a 32-gigabyte capacity built exclusively for industrial and commercial use. It achieves a Class 10 speed rating with maximum read and write speeds of 20 MB/s, operates within an ambient temperature range of -25 to 85 °C, and supports 64 TBW of write and delete cycles while conforming to RoHS materials standards. Please submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →Festo
The Festo 5042 is a double-acting industrial component featuring a 10 mm piston diameter, a 40 mm stroke, and an M4 male piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating within a pressure range of 1.5 to 10 bar and temperatures from -20 to 80 °C, this unit utilizes flexible cushioning rings at both ends and delivers theoretical forces of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar. It offers a moderate corrosion resistance classification of CRC 2 and supports lubricated compressed air operation according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 5041 is a double-acting industrial component featuring a 10 mm piston diameter, a 25 mm stroke, and an M4 male piston rod thread conforming to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1.5 to 10 bar pressure range and -20 to 80 °C ambient temperature, this single-ended piston rod unit incorporates flexible cushioning rings at both ends and achieves theoretical forces of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 5040 is a double-acting industrial component featuring a 10 mm piston diameter and a 10 mm stroke, conforming to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1.5 to 10 bar pressure range and -20 to 80 °C ambient temperature, this single-ended piston rod model incorporates flexible cushioning rings at both ends and an M4 male piston rod thread. It delivers a theoretical force of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar, with a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 5039 is a double-acting industrial component featuring a 10 mm piston diameter, an adjustable stroke from 1 to 100 mm, and an M4 male piston rod thread conforming to CETOP RP 52 P and ISO 6432 standards. Operating within a pressure range of 1.5 to 10 bar utilizing ISO8573-1:2010 [7:4:4] compressed air, this single-ended piston rod design incorporates flexible cushioning rings at both ends and achieves a theoretical force of 47.1 N on the advance stroke at 6 bar. It operates in ambient temperatures from -20 to 80 °C, maintains a CRC 2 moderate corrosion resistance classification, and weighs 8.5 g in moving mass at 0 mm stroke. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 5038 is a double-acting industrial component featuring an 8 mm piston diameter, a 100 mm stroke, and an M4 male piston rod thread with a single-ended piston rod design. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 1.5 to 10 bar working pressure range, this unit includes flexible cushioning rings at both ends and conforms to CETOP RP 52 P and ISO 6432 standards. It delivers a theoretical force of 30.2 N on the advance stroke and 22.6 N on the return stroke at 6 bar, with an ambient temperature tolerance of -20 to 80 °C and a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 5037 is a double-acting industrial component featuring an 8 mm piston diameter and an 80 mm stroke with a male M4 piston rod thread. Built in accordance with ISO 6432 and CETOP RP 52 P standards, this unit operates within a pressure range of 1.5 to 10 bar utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4]. It incorporates flexible cushioning rings at both ends, achieves a moderate corrosion resistance classification of CRC 2, and functions across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 5036 is a double-acting industrial component featuring an 8 mm piston diameter, a 50 mm stroke, and a male M4 piston rod thread built with a piston, piston rod, and cylinder barrel design structure. This unit operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a working pressure range of 1.5 to 10 bar, delivering a theoretical advance force of 30.2 N and a return force of 22.6 N at 6 bar. Conforming to CETOP RP 52 P and ISO 6432 standards, the assembly incorporates flexible cushioning rings at both ends, a moving mass of 7.5 g at 0 mm stroke, and a CRC 2 moderate corrosion resistance rating for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 5035 is a double-acting industrial component featuring an 8 mm piston diameter, a 40 mm stroke, and an M4 male piston rod thread in a single-ended piston rod design structure. Conforming to CETOP RP 52 P and ISO 6432 standards, this unit operates on compressed air within a 1.5 to 10 bar working pressure range and -20 to 80 °C ambient temperature limits, utilizing flexible cushioning rings at both ends. It delivers theoretical forces of 30.2 N on the advance stroke and 22.6 N on the return stroke at 6 bar, featuring a moving mass of 7.5 g at 0 mm stroke with CRC 2 moderate corrosion resistance and any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

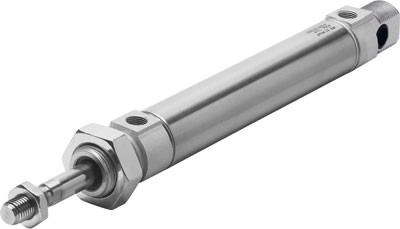

The Festo 5034 is a double-acting industrial component featuring an 8 mm piston diameter, a 25 mm stroke, and an M4 male piston rod thread designed to ISO 6432 and CETOP RP 52 P standards. Operating on compressed air within a 1.5 to 10 bar pressure range, this unit utilizes flexible cushioning rings at both ends and delivers a theoretical force of 30.2 N on the advance stroke at 6 bar. It operates across an ambient temperature range of -20 to 80 °C and includes a single-ended piston rod with a moving mass of 7.5 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 5033 is a double-acting industrial component featuring an 8 mm piston diameter, a 10 mm stroke, and a male M4 piston rod thread. Designed with flexible cushioning rings or plates at both ends and a single-ended piston rod, this unit operates within a working pressure range of 1.5 to 10 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical force of 30.2 N on the advance stroke and 22.6 N on the return stroke at 6 bar, while maintaining a moderate corrosion resistance classification of CRC 2 across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo part number 5032 is a double-acting industrial component featuring an 8 mm piston diameter, an M4 male piston rod thread, and an adjustable stroke length from 1 to 100 mm. Operating within a pressure range of 1.5 to 10 bar, this unit incorporates flexible cushioning rings at both ends and conforms to CETOP RP 52 P and ISO 6432 standards. It operates on compressed air meeting ISO 8573-1:2010 [7:4:4] standards across an ambient temperature range of -20 to 80 °C, delivering a theoretical force of 30.2 N on the advance stroke and 22.6 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo 5031 industrial component is a blue PVC-P tubing featuring a 15 mm outside diameter, a 9 mm inside diameter, and a weight of 0.136 kg/m. The tubing operates with filtered compressed air at a temperature-dependent working pressure of 0 to 10 bar across an ambient temperature range of -10 to 35 °C, while incorporating a bending radius relevant for flow rate of 47.5 mm. Constructed free of copper and PTFE in conformance with RoHS, this material specification meets precise integration needs. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 5030 is a blue PVC-P industrial component with an outside diameter of 12 mm, an inside diameter of 6 mm, and a product weight of 0.105 kg/m. This component operates with filtered compressed air at a temperature-dependent working pressure of 0 to 10 bar, an ambient temperature range of -10 to 35 °C, and features a bending radius relevant for flow rate of 32.5 mm. Constructed free of copper and PTFE while conforming to RoHS, the materials information for tubing is PVC-P. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

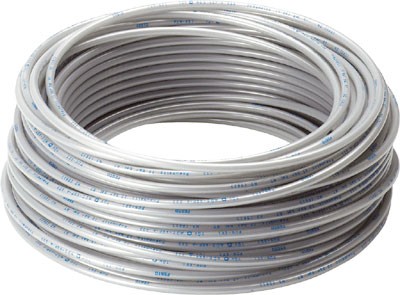

The Festo part number 4231 is a neutral TPE-A industrial component featuring a 6 mm outside diameter, a 4 mm inside diameter, and a Shore hardness of D 55 +/-3. Operating within a temperature-dependent working pressure range of -0.95 to 19 bar and an ambient temperature range of -30 to 80 °C, this copper- and PTFE-free tubing handles filtered compressed air and vacuum media with a product weight of 0.0163 kg/m, a minimum bending radius of 14 mm, and a flow-relevant bending radius of 32 mm under Germanischer Lloyd and TÜV authorizations. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

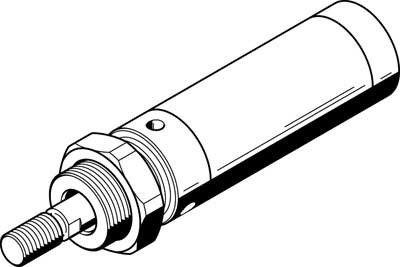

The Festo part number 4214 is a single-acting industrial component featuring a 25 mm piston diameter and an 80 mm stroke with a single-ended piston rod. Operating with compressed air conforming to ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 8 bar, this pushing-action cylinder delivers a theoretical force of 215 N at 6 bar during the advance stroke. It operates within an ambient temperature range of -20 to 80 °C via a G1/8 pneumatic connection, excludes position detection and cushioning, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
