Festo
The Festo 197284 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke from 1 to 150 mm, and a profile barrel design structure with flexible cushioning rings or plates at both ends. Constructed with smooth anodized wrought aluminum alloy housing and covers, FPM seals, and S6 heat-resistant seals supporting temperatures up to 120 °C, this unit operates within a 1.1 to 10 bar working pressure range using dried compressed air. It delivers a theoretical force of 1,387 N on the advance stroke and 633 N on the return stroke at 6 bar through M5 pneumatic connections. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

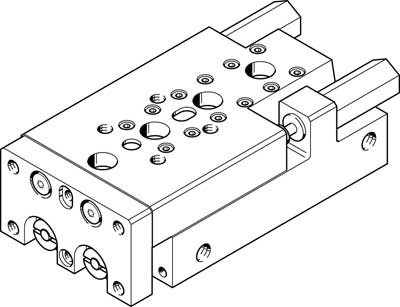

The Festo 197893 is a double-acting industrial component featuring a 10 mm piston diameter, a 50 mm stroke, and yoke kinematics driven by a yoke operating mode. It operates within a working pressure range of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4] and includes ball bearing cage guides, a 4 mm adjustable end-position range, and shock absorber cushioning at both ends with a 5 mm cushioning length. This unit supports any assembly position, position detection via proximity sensor, lubricated operation, a repetition accuracy of 0.02 mm, maximum Fy and Fz forces of 390 N, an ambient temperature range of -20 to 60 °C, and a CRC corrosion resistance classification of 0 with 1 Nm impact energy in end positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

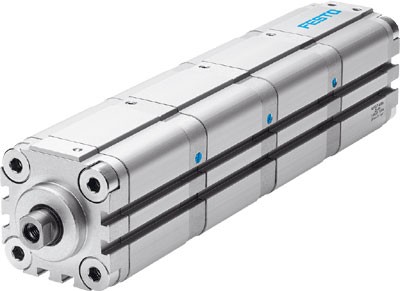

The Festo 197283 is a double-acting industrial component featuring a 25 mm piston diameter, an adjustable stroke from 1 to 150 mm, and flexible cushioning rings or plates at both ends. Constructed with an anodized wrought aluminum alloy housing and cover alongside FPM heat-resistant seals, this unit operates within a working pressure range of 1.7 to 10 bar and an ambient temperature range of 0 to 120 °C using dried compressed air. It delivers a theoretical force of 1,037 N on the advance stroke and 247 N on the return stroke at 6 bar through an M5 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

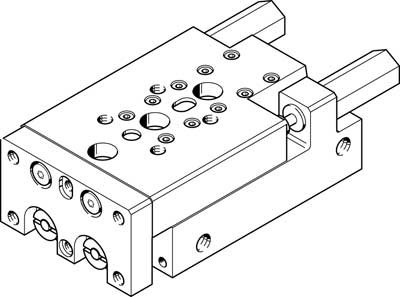

Engineered with yoke kinematics and a ball bearing cage guide, this double-acting Festo industrial component features a 10 mm piston diameter, a 40 mm stroke, and an operating pressure of 1 to 10 bar. The unit incorporates shock absorber cushioning at both ends with a 4 mm adjustable end-position range, a 5 mm cushioning length, 1 Nm impact energy in end positions, and a repetition accuracy of 0.02 mm, supporting a maximum force Fy and Fz of 350 N across an ambient temperature range of -20 to 60 °C. It utilizes compressed air operating medium in accordance with ISO8573-1:2010 [7:4:4] with optional lubricated operation, features a CRC 0 corrosion resistance classification, and includes provisions for position detection via proximity sensor in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

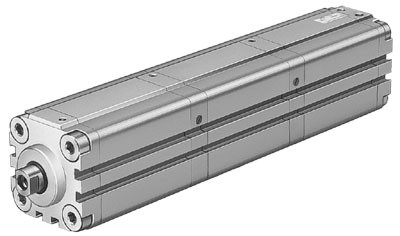

The Festo 197282 is a double-acting industrial component featuring a 25 mm piston diameter, a variable stroke from 1 to 150 mm, and an M5 pneumatic connection with a profile barrel design structure. Constructed with anodized wrought aluminum alloy housing and covers, FPM seals, and S6 heat-resistant seals supporting ambient temperatures up to 120 °C, it operates within a 1.4 to 10 bar working pressure range using dried compressed air. This unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, and delivers a theoretical force of 789 N on the advance stroke and 247 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

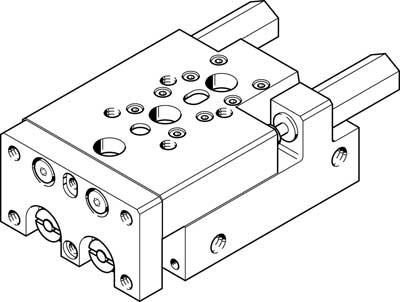

The Festo part number 197891 is a double-acting industrial component featuring a 10 mm piston diameter, a 30 mm stroke, and yoke kinematics with a ball bearing cage guide. This drive unit operates with compressed air according to ISO 8573-1:2010 [7:4:4] at a working pressure of 1 to 10 bar, an ambient temperature range of -20 to 60 °C, and includes shock absorber cushioning at both ends with a 4 mm adjustable end-position range. It achieves a repetition accuracy of 0.02 mm, maximum forces Fy and Fz of 390 N each, and is equipped for position detection via proximity sensor with CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

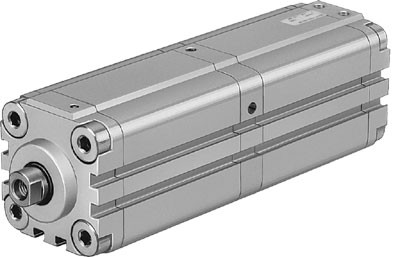

The Festo part number 197281 is a double-acting industrial component featuring a 25 mm piston diameter, an adjustable stroke ranging from 1 to 150 mm, and a profile barrel design with a female thread piston-rod end. Built with wrought aluminum alloy housing and covers, FPM seals, and heat-resistant S6 seals rated up to 120 °C, this unit operates within a working pressure of 1.1 to 10 bar using dried compressed air. It incorporates flexible cushioning rings at both ends, M5 pneumatic connections, and position detection capabilities for proximity sensors while delivering a theoretical force of 542 N on the advance stroke and 247 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

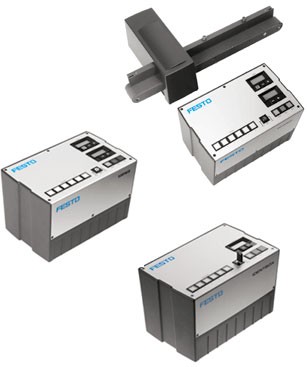

Engineered by Festo, part number 197890 is an industrial component featuring an IP54 protection class, RS 485 encoder connection, and an integrated counting function with Software CheckOpti quantity pre-selection. It processes minimum part dimensions of 0.5 mm in diameter and 3 mm in length up to a maximum diameter of 80 mm, while maximum part length is determined by conveyor belt speed and required resolution. The unit accommodates 48 type memories with a maximum of 8 different orientations per type memory, incorporating multiple designated inputs such as external start and Type Select, alongside extensive outputs including conveyor controls, error and warning statuses, and specific part classification lines. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 197280 is a double-acting industrial component featuring a 100 mm piston diameter, a stroke range of 1 to 2,000 mm, and flexible cushioning rings or plates at both ends (P). This profile barrel piston rod design operates with dried compressed air, either lubricated or unlubricated, across a working pressure range of 0.9 to 10 bar and an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 4,712 N on the advance stroke and 4,418 N on the return stroke at 6 bar, incorporating position detection for proximity sensors, a male thread piston-rod end, and a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

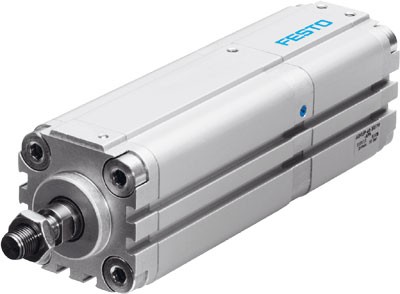

The Festo 197279 is a double-acting industrial component featuring a 63 mm piston diameter, profile barrel design structure, and a stroke range of 1 to 2,000 mm. Operating on dried compressed air at working pressures from 0.9 to 10 bar, this unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a male thread piston-rod end, and position detection capabilities for proximity sensors across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 197278 is a double-acting industrial component featuring a 40 mm piston diameter, a profile barrel design with piston and piston rod, and a male thread piston-rod end that supports an adjustable stroke from 1 to 2,000 mm. Operating within a 1.1 to 10 bar working pressure range, this unit utilizes flexible cushioning rings or plates at both ends, accommodates position detection via proximity sensor, and delivers a theoretical force of 754 N on advance and 633 N on return strokes at 6 bar. It functions with dried compressed air across an ambient temperature range of -20 to 80 °C and includes optional mounting configurations with internal female thread or accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 197277 is a double-acting industrial component featuring a 25 mm piston diameter, a stroke range of 1 to 1,000 mm, and a profile barrel design with a male piston-rod end. It operates within a working pressure of 1.1 to 10 bar using dried compressed air, delivering a theoretical force of 295 N on the advance stroke and 247 N on the return stroke at 6 bar. Equipped with flexible cushioning rings at both ends and position detection for proximity sensors, this unit supports any assembly position, optional mounting configurations, and features S6 heat-resistant seals up to 120 °C alongside a pulling variant (Z). Submit your required quantity, exact part number, and application requirements to receive a formal quotation.
View product details →Festo

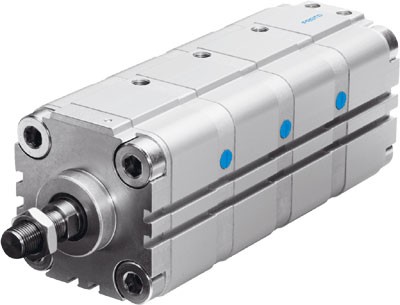

The Festo part number 197276 is a double-acting industrial component featuring a 100 mm piston diameter and an adjustable stroke length from 1 to 150 mm. Built with a profile barrel design utilizing smooth anodized wrought aluminum alloy housing and covers, an anodized wrought aluminum alloy piston rod, NBR and TPE-U(PU) seals, and a high alloy steel piston rod, it operates on dried compressed air within a working pressure range of 1.5 to 10 bar and ambient temperatures from -20 to 80 °C. This unit incorporates flexible cushioning rings at both ends, position detection for proximity sensors, a male thread piston-rod end, a G1/4 pneumatic connection, and a CRC 2 corrosion resistance classification, delivering theoretical forces of 17,966 N on advance and 4,418 N on return strokes at 6 bar. Submit your required quantity and application specifications for an RFQ.
View product details →Festo
The Festo 197275 is a double-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke from 1 to 150 mm, and flexible cushioning rings or plates at both ends. Constructed with a smooth anodized wrought aluminum alloy profile barrel, a high alloy steel piston rod, and NBR and TPE-U seals, this unit operates on dried compressed air at working pressures between 1.2 and 10 bar within an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 4,418 N on the return stroke and 13,548 N on the advance stroke at 6 bar, utilizing a G1/4 pneumatic connection and a male thread piston-rod end. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 197274 is a double-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke from 1 to 150 mm, and flexible cushioning rings or plates at both ends. Constructed with an anodized wrought aluminum alloy profile barrel, smooth anodized cover, high alloy steel piston rod, and NBR and TPE-U seals, this unit operates on dried compressed air within a working pressure range of 0.9 to 10 bar and ambient temperatures from -20 to 80 °C. It delivers a theoretical force of 9,130 N on the advance stroke and 4,418 N on the return stroke at 6 bar, utilizes a male thread piston-rod end, features G1/4 pneumatic connections, and accommodates position detection via proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 197273 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke ranging from 1 to 150 mm within a profile barrel design structure housing a high alloy steel piston rod and anodized wrought aluminum alloy covers. It operates on dried compressed air, lubricated or unlubricated, across a working pressure of 1.5 to 10 bar, delivering theoretical forces of 1,682 N on the return stroke and 6,916 N on the advance stroke at 6 bar. Equipped with flexible cushioning rings at both ends and position detection for proximity sensors, this unit has a CRC 2 corrosion resistance classification and functions in ambient temperatures from -20 to 80 °C with optional mounting configurations via internal thread or accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

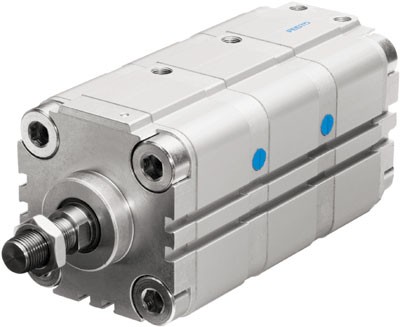

The Festo 197272 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 150 mm, and a male threaded piston rod constructed from high-alloy steel. Operating on dried compressed air between 1.2 and 10 bar, this unit utilizes flexible cushioning rings at both ends, smooth anodized wrought aluminum alloy housing, and NBR and TPE-U seals yielding a CRC 2 corrosion resistance rating. It delivers a theoretical force of 5,234 N for the advance stroke and 1,682 N for the return stroke at 6 bar, with an ambient temperature range of -20 to 80 °C and support for proximity sensor position detection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This double-acting Festo industrial component features a 63 mm piston diameter, an adjustable stroke ranging from 1 to 150 mm, and a profile barrel design incorporating flexible cushioning rings at both ends. Operating on dried compressed air between 0.9 and 10 bar, the unit delivers theoretical forces of 1,682 N on the return stroke and 3,552 N on the advance stroke at 6 bar. Constructed with an anodized wrought aluminum alloy housing and cover, a high-alloy steel piston rod, and NBR and TPE-U seals, it accommodates any assembly position and supports position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 197270 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke of 1 to 150 mm, and a male thread piston-rod end constructed from high alloy steel. Operating on dried compressed air within a working pressure range of 1.7 to 10 bar, this unit delivers theoretical forces of 633 N on the return stroke and 2,653 N on the advance stroke at 6 bar. The assembly utilizes a profile barrel design with smooth anodized wrought aluminum alloy housing, flexible cushioning rings at both ends, NBR and TPE-U seals, and an M5 pneumatic connection for any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 197269 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke from 1 to 150 mm, and a profile barrel design with flexible cushioning rings at both ends. Constructed with anodized wrought aluminum alloy housing and cover, a high alloy steel piston rod, and TPE-U seals, this unit operates on dried compressed air between 1.4 and 10 bar within an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 2,126 N on the advance stroke and 633 N on the return stroke at 6 bar, utilizing an M5 pneumatic connection and position detection for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
