Festo
The Festo part number 192855 is a guide axis without an actuator featuring a size 63 designation and an adjustable stroke ranging from 1 to 4,500 mm. This industrial component utilizes a recirculating ball bearing guide with steel guide components, a wrought aluminum alloy anodized housing, and materials free of copper and PTFE. It accommodates any assembly position, operates at a maximum speed of 3 m/s within an ambient temperature range of -10 to 60 °C, and maintains a corrosion resistance classification CRC of 0 for environments with no corrosion stress. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 191360 is a 26 mm wide industrial component featuring a 2x3/2 open, single solenoid valve function with electrical actuation and internal pilot air supply. Built with a piston slide design, soft sealing principle, and air spring reset, this unit delivers a standard nominal flow rate of 900 l/min across a working pressure range of 2 to 10 bar. It includes an 8 mm nominal size, 27 mm grid dimension, throttleable exhaust-air function, non-reversible flow direction, IP65 protection class, and Germanischer Lloyd authorization while conforming to ISO 15407-1 and VDMA 24563 standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 192854 is a guide axis without an actuator featuring a size 50 design and a stroke range of 10 to 3,000 mm. Built with a wrought aluminum alloy anodized housing, a steel recirculating ball bearing guide, and components free of copper and PTFE, this unit supports any assembly position and a maximum speed of 3 m/s within an ambient temperature range of -10 to 60 °C under CRC 0 no corrosion stress conditions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 192853 is a guide axis without an actuator featuring a size 40 and a stroke capacity ranging from 1 to 4,000 mm. Built with a wrought aluminum alloy anodized housing and a steel recirculating ball bearing guide, this component operates at a maximum speed of 3 m/s within an ambient temperature range of -10 to 60 °C. The unit accommodates any assembly position, possesses a corrosion resistance classification CRC of 0 with no corrosion stress, and incorporates materials free of copper and PTFE. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 192852 is a guide axis without an actuator featuring a size 32 and a stroke range of 10 to 3,000 mm. Built with an anodized wrought aluminum alloy housing and a steel recirculating ball bearing guide, this component operates at a maximum speed of 3 m/s within an ambient temperature range of -10 to 60 °C. The unit accommodates any assembly position, possesses a corrosion resistance classification CRC of 0 with no corrosion stress, and incorporates materials free of copper and PTFE. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 191359 is an electrical industrial component featuring a 2x3/2 open, single solenoid valve function with a piston slide design structure and a 26 mm width. It operates at a working pressure range of 2 to 10 bar, a standard nominal flow rate of 900 l/min, and incorporates an air spring reset mechanism with soft sealing. Conforming to ISO 15407-1 and VDMA 24563 standards, this IP65-rated unit utilizes piloted actuation with external pilot air supply and a throttleable exhaust-air function. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 192851 is a guide axis without an actuator featuring a size 25 format and an adjustable stroke ranging from 1 to 3,000 mm. Built with a wrought aluminum alloy anodized housing, a steel recirculating ball bearing guide component, and copper- and PTFE-free materials, this assembly supports any mounting position and operates at a maximum speed of 3 m/s within an ambient temperature range of -10 to 60 °C under a CRC 0 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 191358 is an electrical industrial component featuring a 2x3/2 open, single solenoid valve function with a piston slide design structure and an 8 mm nominal size. Built with a 26 mm width, a 27 mm grid dimension, and soft sealing, this piloted unit operates at a working pressure of 2 to 10 bar, delivering a standard nominal flow rate of 900 l/min alongside a C value of 3.8 l/sbar and a b value of 0.27. It incorporates an air spring reset, internal pilot air supply, non-reversible flow direction, throttleable exhaust-air function, detenting manual override with accessories, and IP65 protection while conforming to ISO 15407-1 and VDMA 24563 standards for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 192850 is a guide axis without an actuator featuring a size 18 and an adjustable stroke ranging from 1 to 1,800 mm. Built with an anodized wrought aluminum alloy housing and a steel recirculating ball bearing guide, this component supports an assembly position in any orientation at a maximum speed of 3 m/s. The unit operates within an ambient temperature range of -10 to 60 °C and features materials that are free of copper and PTFE with a corrosion resistance classification CRC of 0. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 191357 is a 26 mm wide industrial component featuring a 2x3/2 open, single solenoid valve function with an electrical actuation type and a piston slide design structure. It delivers a standard nominal flow rate of 900 l/min across a working pressure range of 2 to 10 bar, utilizing an air spring reset, soft sealing principle, and an IP65 protection class. Additional technical characteristics include a 9 mm nominal size, 27 mm grid dimension, throttleable exhaust-air function, external pilot air supply with 0.9 to 10 bar pilot pressure, and conformity to VDMA 24563 standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 191356 is an electrical industrial component featuring a 2x3/2 open, single solenoid valve function with a piston slide design structure and soft sealing principle. It delivers a standard nominal flow rate of 900 l/min across a working pressure range of 2 to 10 bar within a 26 mm width and 27 mm grid dimension. Constructed with internal pilot air supply, air spring reset, and throttleable exhaust-air function, this IP65-rated unit conforms to VDMA 24563 standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 191355 is an electrical 2x3/2 open single solenoid industrial component featuring a 26 mm width, a 900 l/min standard nominal flow rate, and a 2 ... 10 bar working pressure. Conforming to ISO 15407-1 and VDMA 24563 standards, this piston slide design incorporates an air spring reset, soft sealing principle, throttleable exhaust-air function, and IP65 protection class. External pilot air supply operates at a pilot pressure of 0.9 ... 10 bar across a nominal size of 8 mm, 27 mm grid dimension, and non-reversible flow direction with a b value of 0.27. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 191354 is an electrical industrial component featuring a 2x3/2 open, single solenoid valve function with a piston slide design structure and soft sealing principle. Conforming to ISO 15407-1 and VDMA 24563 standards, this 26 mm wide unit provides a standard nominal flow rate of 900 l/min across a working pressure range of 2 to 10 bar using internal pilot air supply. It incorporates an air spring reset, IP65 protection class, 8 mm nominal size, 27 mm grid dimension, throttleable exhaust-air function, and detenting manual override via accessories in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 192816 is a standard industrial component featuring a nominal size of 3.2 mm with a push/pull design structure and an NPT1/16-27 male thread to 1/4" outer diameter tubing connection. Operating within a temperature-dependent working pressure range of -0.95 to 10 bar and ambient temperatures from -10 to 60 °C, this unit handles filtered compressed air or vacuum media using a PBT housing, POM release ring, NBR tubing seal, and non-corrosive high-alloy steel clamping segment. It includes a coated screw-in stud seal, weighs 21.5 g, features a grey release ring, conforms to RoHS, and holds Germanischer Lloyd authorization with a CRC of 1. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 191353 is an electrical industrial component featuring a 2x3/2 open, single solenoid valve function with a piston slide design structure and soft sealing principle. Conforming to ISO 15407-1 and VDMA 24563 standards with an IP65 protection class and Germanischer Lloyd authorization, this 26 mm wide unit delivers a standard nominal flow rate of 900 l/min across a working pressure range of 2 to 10 bar. It utilizes piloted external pilot air supply with a pilot pressure of 0.9 to 10 bar, an air spring reset, throttleable exhaust-air function, and detenting manual override available via accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo

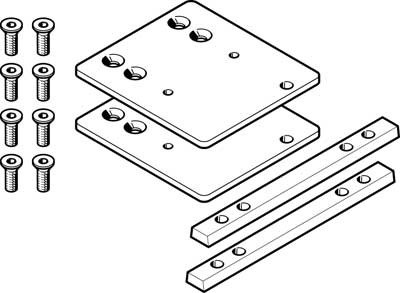

The Festo part number 192062 is an industrial component featuring a steel slot nut, a wrought aluminum alloy plate, and non-corrosive high alloy steel screws. This assembly provides a corrosion resistance classification CRC rating of 2 for moderate corrosion stress alongside VDMA24364 zone III PWIS conformity. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 192815 is a mini industrial component featuring a 2.4 mm nominal size and a push/pull design structure with a coated screw-in stud seal. Operating within a working pressure and temperature-dependent working pressure range of -0.95 to 10 bar, this assembly accommodates filtered compressed air or vacuum via an NPT1/16-27 pneumatic connection for 3/16" outside diameter tubing. Constructed with a PBT housing, POM grey release ring, NBR tubing seal, and high alloy non-corrosive steel hose clamping segment, the 20 g unit achieves CRC 1 corrosion resistance and holds Germanischer Lloyd authorization while conforming to RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 191352 is an electrical industrial component featuring a 2x3/2 open, single solenoid valve function with a piston slide design structure and an 8 mm nominal size. Built with a 26 mm width, a 27 mm grid dimension, an internal pilot air supply, and a soft sealing principle, this piloted unit delivers a standard nominal flow rate of 900 l/min across a working pressure range of 2 to 10 bar. It incorporates an air spring reset, throttleable exhaust-air function, detenting manual override via accessories, non-reversible flow direction, and an IP65 protection class while conforming to ISO 15407-1 and VDMA 24563 standards with Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo Subbase DLP-VSE-OBEN, designated by part number 192061, features a wrought aluminum alloy plate construction paired with steel screws. This industrial component has a corrosion resistance classification of CRC 3 and contains PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 192814 is a mini industrial component featuring a 1.6 mm nominal size and a push/pull design structure with a grey release ring. It operates within a working pressure and temperature-dependent working pressure of -0.95 to 10 bar, supporting filtered compressed air and vacuum media across an ambient temperature range of -10 to 60 °C. Constructed with a PBT housing, POM release ring, NBR tubing seal, and high alloy non-corrosive steel hose clamping segment, this component weighs 15 g and utilizes an NPT1/16-27 pneumatic connection for 5/32" outside diameter tubing with a coated screw-in stud seal. Submit the exact part number, quantity, and application requirements to request a formal quote for this Germanischer Lloyd authorized and RoHS compliant item.
