Festo
The Festo 192408 is a Series D Maxi industrial component featuring a filter regulator with pressure gauge and a proportional standard mist lubricator designed for line installation with a vertical position tolerance of +/- 5°. This unit operates with compressed air per ISO 8573-1:2010 [-:-:-] within a working pressure range of 1 to 16 bar, a regulation range of 0.5 to 7 bar, a maximum pressure hysteresis of 0.4 bar, and a standard nominal flow rate of 4,500 l/min across an ambient and medium temperature range of -10 to 60 °C. Features include a 40 µm grade of filtration, a 43 cm3 maximum condensate volume with a manual rotary condensate drain, a metal bowl guard, an actuator lock utilizing a rotary knob with a lock, a built-in pressure gauge, and a total product weight of 2,600 g with maritime classification detailed in the certificate. Submit the exact part number, quantity, and application requirements to receive an official quote.
View product details →Festo
The Festo 191323 is a 5/2 single solenoid industrial component featuring an electrical actuation design and a piston slide structure with an 18 mm width. Operating within a working pressure range of 2 to 10 bar, this unit delivers a standard nominal flow rate of 500 l/min utilizing internal pilot air supply and an air spring reset type. Built with a nominal size of 6 mm, a 19 mm grid dimension, a soft sealing principle, and IP65 protection class, it conforms to VDMA 24563 standards and includes throttleable exhaust-air functions. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 192407 is a Maxi size Series D industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a manual rotary condensate drain with a maximum condensate volume of 43 cm3. Designed for line installation with a vertical +/- 5° assembly position, this unit operates within a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, and a standard nominal flow rate of 3,000 l/min using compressed air conforming to ISO8573-1:2010 [-:-:-]. It incorporates a 5 µm grade of filtration, a metal bowl guard, an actuator lock with a rotary knob with lock, and a pressure gauge prepared for G1/4 while supporting medium and ambient temperatures from -10 to 60 °C with a product weight of 2,600 g. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 191322 is a 26 mm wide electrical industrial component featuring a 5/2 bistable-dominant valve function and a piston slide design structure. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 16 bar, conforming to ISO 15407-1 and VDMA 24563 standards. Built with IP65 protection, an 8 mm nominal size, and a soft sealing principle, this piloted unit utilizes external pilot air supply with a pilot pressure of 2 to 10 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 192406 is a D series Maxi size industrial component functioning as a filter regulator with pressure gauge and proportional standard mist lubricator, featuring a 5 µm grade of filtration, manual rotary condensate drain, 43 cm3 maximum condensate volume, and a rotary knob with lock actuator lock. Designed for line installation with a vertical +/- 5° assembly position, it delivers a standard nominal flow rate of 3,000 l/min across a 1 to 16 bar working pressure and 0.5 to 12 bar pressure regulation range, incorporating a metal bowl guard, pressure gauge, and maximum pressure hysteresis of 0.4 bar. Operating within a medium and ambient temperature range of -10 to 60 °C, this 2,670 g unit processes compressed air in accordance with ISO8573-1:2010 [-:-:-] and includes maritime classification per certificate. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 191321 is an electrical 5/2 bistable-dominant industrial component featuring a piston slide design structure with a 26 mm width, an 8 mm nominal size, and a 27 mm grid dimension. Built with a soft sealing principle and internal pilot air supply, this piloted valve operates at a working pressure of 2 to 10 bar, delivers a standard nominal flow rate of 1,000 l/min, and functions with 24V DC 1.5W characteristic coil data. It conforms to ISO 15407-1 and VDMA 24563 standards, includes an IP65 protection class, features throttleable exhaust-air function, and provides a switching time reversal of 18 ms alongside a dominating switching time reversal of 16 ms in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo D-series Maxi industrial component functions as a filter regulator without a pressure gauge, paired with a proportional standard mist lubricator and a manual rotary condensate drain with a 43 cm3 maximum volume. The unit operates within a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, a maximum pressure hysteresis of 0.4 bar, and a standard nominal flow rate of 3,300 l/min utilizing ISO8573-1:2010 [-:-:-] compressed air. Featuring a 40 µm grade of filtration, a metal bowl guard, and a rotary knob actuator lock, the 2,600 g assembly is designed for vertical +/- 5° line installation within a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 191320 is a 26 mm wide electrical industrial component featuring a 5/2 bistable valve function and a piston slide design structure. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 16 bar, operating with an external pilot air supply at 2 to 10 bar and a 24V DC 1.5W coil. Conforming to ISO 15407-1 and VDMA 24563 standards with IP65 protection, this reversible unit includes a soft sealing principle, throttleable exhaust-air function, and an 8 mm nominal size. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 192404 is a Maxi size Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator in a vertical +/- 5° assembly position. This unit operates within a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, and delivers a standard nominal flow rate of 3,300 l/min using compressed air in accordance with ISO 8573-1:2010 [-:-:-]. Equipped with a 40 µm grade of filtration, a manual rotary condensate drain, a 43 cm3 max condensate volume, a metal bowl guard, and a rotary knob with lock actuator, the 2,600 g assembly functions at medium and ambient temperatures ranging from -10 to 60 µC. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 191319 is an electrical 5/2 bistable industrial component featuring a 26 mm width, a 27 mm grid dimension, and an 8 mm nominal size built with a piston slide design structure. Operating at a working pressure of 2 to 10 bar with a standard nominal flow rate of 1,000 l/min, this piloted valve utilizes internal pilot air supply, a soft sealing principle, and a non-reversible flow direction with a throttleable exhaust-air function. It conforms to ISO 15407-1 and VDMA 24563 standards, features an IP65 protection class, runs on 24V DC characteristic coil data at 1.5W, and accepts filtered compressed air with a filtration grade of 40 µm that may be lubricated or unlubricated. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

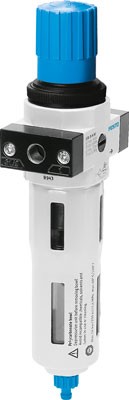

The Festo part number 192403 is a Maxi size Series D filter regulator featuring a design structure without a pressure gauge, a fully automatic condensate drain, a 40 µm filtration grade, and a rotary knob with lock actuator. It operates within a working pressure of 2 to 12 bar, a pressure regulation range of 0.5 to 7 bar, and delivers a standard nominal flow rate of 7,800 l/min using compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Built with a metal bowl guard and a maximum condensate volume of 43 cm3, the unit accommodates vertical ± 5° assembly and includes preparation for a G1/4 pressure gauge. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 191318 is an electrical 5/3 pressurized industrial component featuring a piston slide design structure, a 26 mm width, and an 8 mm nominal size adhering to ISO 15407-1 and VDMA 24563 standards. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 16 bar, utilizing an external pilot air supply with a 3 to 10 bar pilot pressure and a mechanical spring reset. Additional attributes include a soft sealing principle, IP65 protection class, throttleable exhaust-air function, reversible flow direction, and a 52 ms switching time off with detenting manual override accessories for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component, part number 191317, is a 5/3 pressurized valve featuring electrical actuation and a piston slide design structure. The unit provides a standard nominal flow rate of 1,000 l/min across a working pressure range of 3 to 10 bar, utilizing an 8 mm nominal size and a 26 mm width that conforms to ISO 15407-1 and VDMA 24563 standards. Equipped with internal pilot air supply, mechanical spring reset, and throttleable exhaust-air function, it achieves a switching time on of 23 ms and off of 52 ms within an IP65 protection class enclosure. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 191316 is a 26 mm wide industrial component featuring a 5/3 exhausted valve function and a piston slide design structure with a soft sealing principle. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 16 bar, utilizing electrical actuation with a mechanical spring reset and external pilot air supply. Conforming to ISO 15407-1 and VDMA 24563 standards, this IP65-rated unit includes a throttleable exhaust-air function, reversible flow direction, and an 8 mm nominal size with a 27 mm grid dimension. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo 191315 is an electrical 5/3 exhausted industrial component utilizing a piston slide design structure with a soft sealing principle and internal pilot air supply. Featuring a width of 26 mm, a standard nominal flow rate of 1,000 l/min, and a working pressure range of 3 to 10 bar, this unit conforms to ISO 15407-1 and VDMA 24563 standards with an IP65 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 191314 is an electrical 5/3 closed industrial component featuring a piston slide design structure, a 26 mm width, an 8 mm nominal size, and a 27 mm grid dimension conforming to ISO 15407-1 and VDMA 24563 standards. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 16 bar, utilizing an external pilot air supply with a 3 to 10 bar pilot pressure, a soft sealing principle, a mechanical spring reset, and a throttleable exhaust-air function with a 52 ms switching time off. The unit includes IP65 protection, any assembly position, reversible flow direction, detenting manual override functionality via accessories, and piloted actuation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 191313 is an electrical 5/3 closed industrial component featuring a piston slide design structure with a 26 mm width, 8 mm nominal size, and 27 mm grid dimension. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of 3 to 10 bar, utilizing internal pilot air supply, soft sealing principle, and mechanical spring reset. Conforming to ISO 15407-1 and VDMA 24563 standards with an IP65 protection class, this piloted unit includes a throttleable exhaust-air function, detenting manual override accessories, and non-reversible flow direction with switching times of 23 ms on and 52 ms off for any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 191312 is a 26 mm wide industrial component featuring a 5/2 single solenoid valve function with electrical actuation and a piston slide design. Conforming to ISO 15407-1 and VDMA 24563 standards, this unit provides a standard nominal flow rate of 1,000 l/min, a working pressure range of -0.9 to 16 bar, and an IP65 protection class. It operates with an 8 mm nominal size, external pilot air supply, reversible flow direction, and mechanical spring reset. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 191311 is a 26 mm wide industrial component featuring a 5/2 single solenoid valve function, electrical actuation, and a piston slide design structure. Operating at a working pressure of 3 to 10 bar, this piloted unit delivers a standard nominal flow rate of 1,000 l/min through an 8 mm nominal size and a soft sealing principle. Built with IP65 protection class, internal pilot air supply, mechanical spring reset, and throttleable exhaust-air function, it conforms to ISO 15407-1 and VDMA 24563 standards with any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 191310 is a 26 mm wide industrial component featuring a 5/2 single solenoid valve function with electrical actuation and a piston slide design structure. It delivers a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 16 bar, utilizing an air spring reset, soft sealing principle, and throttleable exhaust-air function. Conforming to ISO 15407-1 and VDMA 24563 standards with an IP65 protection class, this unit operates with external pilot air supply and a pilot pressure of 2 to 10 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
