Festo
The Festo 183978 is a 44.5 mm wide electrical industrial component featuring a 5/2 monostable valve function, piston slide design structure, and soft sealing principle with an 8 mm nominal size. It delivers a standard nominal flow rate of 400 l/min across a working pressure range of 2 to 8 bar, utilizing mechanical spring reset, piloted piloting, and a throttleable exhaust-air function conforming to VDI/VDE 3845 (NAMUR). Additional specifications include an IP65 protection class to IEC 60529, a pilot pressure of 2 to 10 bar, reversible flow direction, detenting manual override, and any assembly position with a b value of 0.25 and C value of 3 l/sbar. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

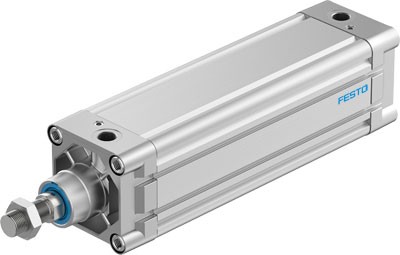

The Festo 178137 is a double-acting industrial component featuring a 5-inch piston diameter and a 16-inch stroke, designed with a profile barrel, piston, and single-ended male piston rod threaded at 1-12 UNF-2A. Built in accordance with ISO 15552, this unit operates on compressed air within a 0.06 to 1 MPa pressure range and incorporates adjustable pneumatic cushioning at both ends with a 42 mm cushioning length. It accommodates ambient temperatures from -20 to 80 °C, provides position detection for proximity sensors, and exhibits a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 18319 is an industrial component featuring a 72-pin plug socket electrical connection, a Pg29 cable gland connection, and a permissible cable diameter of 18 to 27 mm with a 1.5 mm2 terminal cross-section. Constructed with a housing of plastic and die-cast light alloy alongside silver-plated copper alloy crimp connectors, this assembly supports an operating voltage range up to 300 V AC and 250 V DC, an IP65 protection class, an ambient temperature range of -40 to 125 °C, and a product weight of 401 g with mounting via a clamp strap in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 183977 is an electrical 5/2 monostable industrial component featuring a piston slide design structure and an 8 mm nominal size. This piloted valve offers a standard nominal flow rate of 1,000 l/min across a working and pilot pressure range of 2 to 10 bar, incorporating a soft sealing principle, throttleable exhaust-air function, and mechanical spring reset. Conforming to the VDI/VDE 3845 (NAMUR) standard with an IP65 protection class to IEC 60529, the unit measures 44.5 mm in width, supports any assembly position, and includes a detenting manual override alongside reversible flow direction. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 178136 is a double-acting industrial component featuring a 5-inch piston diameter, a 12-inch stroke, and a 1-12 UNF-2A male piston-rod thread based on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates on compressed air within a 0.06 to 1 MPa range across ambient temperatures from -20 to 80 °C. It includes adjustable pneumatic cushioning at both ends with a 42 mm cushioning length, position detection capabilities for proximity sensors, and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo part number 183974 is a 44.5 mm wide industrial component featuring a 5/2 monostable valve function, electrical actuation, and a piston slide design structure with a mechanical spring reset. This piloted valve operates within a working and pilot pressure range of 2 to 10 bar, delivering a standard nominal flow rate of 1,000 l/min through an 8 mm nominal size. Built with a soft sealing principle, reversible flow direction, and throttleable exhaust-air function, the unit includes a detenting manual override and conforms to VDI/VDE 3845 (NAMUR) standards with an IP65 protection class per IEC 60529 and Germanischer Lloyd authorization for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
Engineered by Festo, the part number 178135 is a double-acting industrial component featuring a 5-inch piston diameter, a 10-inch stroke, and a 1-12 UNF-2A male piston rod thread based on ISO 15552. This profile barrel design operates at pressures from 0.06 to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4] and incorporates adjustable pneumatic cushioning at both ends with a 42 mm cushioning length. The unit functions in ambient temperatures from -20 to 80 °C, supports position detection via proximity sensors, and offers moderate corrosion resistance classification CRC 2 with VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 183973 is an electrical 5/2 monostable industrial component featuring a piston slide design structure with a soft sealing principle and mechanical spring reset. Engineered with a 44.5 mm width, an 8 mm nominal size, and a standard nominal flow rate of 1,000 l/min, this piloted valve operates within a working and pilot pressure range of 2 to 10 bar. It includes an IP65 protection class to IEC 60529, a detenting manual override, throttleable exhaust-air function, reversible flow direction, and conforms to VDI/VDE 3845 (NAMUR) standards for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 178134 is a double-acting industrial component featuring an 8-inch stroke, a 5-inch piston diameter, and a 1-12 UNF-2A male piston rod thread designed on the ISO 15552 standard. Operating at pressures from 0.06 to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4], this profile barrel unit incorporates adjustable pneumatic cushioning at both ends with a 42 mm cushioning length and 5 J end-position impact energy. It is configured for any assembly position with a single-ended piston rod, position detection via proximity sensor, and a moderate corrosion resistance classification of CRC 2 for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo
The Festo 178534 is a cold-regeneratable adsorption dryer featuring a zinc die-casting housing and a product weight of 41,200 g, designed for a vertical assembly position within +/- 5°. Operating with filtered, unlubricated compressed air at an inlet pressure of 4 to 10.5 bar, this unit delivers an air purity class of 2.2.1 per DIN ISO 8573-1 and a pressure dew point of -40 °C. It includes 2 G1/2 pneumatic connections, through-hole mounting, and compliance with EU-EMV and EU low voltage guidelines alongside Germanischer Lloyd authorisation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 183909 is a Bourdon-tube pressure gauge featuring a nominal size of 40 and a central rear-side NPT1/4-18 pneumatic connection for line installation. Built with a black ABS housing, a PS viewing window, and brass media-contacting components and screw-in stud, this instrument conforms to EN 837-1 and operates within an indicating and working pressure range of 0 to 25 bar for neutral fluids and inert gases. It provides measurement accuracy class 2,5 with an alternating load factor of 0.66, carries an IP43 protection class, and functions within medium and ambient temperatures from -20 to 60 °C while complying with RoHS standards. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 178133 is a double-acting industrial component featuring a 5-inch piston diameter, a 6-inch stroke, and a 1-12 UNF-2A male piston-rod end thread built on a profile barrel design structure with a single-ended piston rod. Engineered in accordance with ISO 15552, it operates within a pressure range of 0.06 to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes adjustable pneumatic cushioning at both ends with a 42 mm cushioning length. This unit supports any assembly position, features position detection for proximity sensors, and withstands ambient temperatures from -20 to 80 °C under moderate corrosion stress (CRC 2). Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 178531 is a cold-regeneratable adsorption dryer featuring a zinc die-casting housing and a product weight of 35,700 g with vertical +/- 5° assembly positioning via through-hole mounting. Operating with filtered, unlubricated compressed air at an inlet pressure of 4 to 10.5 bar, a medium temperature of 2 to 50 °C, and an ambient temperature of 2 to 50 °C, this unit delivers an air purity class at output of 2.2.1 per DIN ISO 8573-1 with a -40 °C pressure dew point. It includes 2 G1/2 pneumatic connection ports, a CRC corrosion resistance classification of 1, storage temperature limits of -20 to 60 °C, Germanischer Lloyd authorisation, and CE certification according to EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 183908 is a Bourdon-tube pressure gauge featuring an indicating and working pressure range of 0 to 16 bar conforming to EN 837-1. This device utilizes a nominal size of 40 with a central rear-side NPT1/4-18 pneumatic connection for line installation, operating within a medium and ambient temperature range of -20 to 60 °C with neutral fluids and inert gases. Constructed with a black ABS housing, PS viewing window, and brass media-contacting components and screw-in stud, it achieves measurement accuracy class 2,5 alongside an IP43 protection class and RoHS compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
View product details →Festo
The Festo 178132 is a double-acting industrial component featuring a 5-inch stroke, a 5-inch piston diameter, and a 1-12 UNF-2A male piston rod thread designed according to ISO 15552. Built with a profile barrel and single-ended piston rod for any assembly position, it operates on compressed air within a 0.06 to 1 MPa pressure range and incorporates adjustable pneumatic cushioning at both ends with a 42 mm cushioning length. This unit supports position detection via proximity sensors, functions in ambient temperatures from -20 to 80 °C, and maintains a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 178528 is a cold-regeneratable adsorption dryer utilizing a zinc die-casting housing with a product weight of 30,200 g and an assembly position of vertical +/- 5°. It operates with an inlet pressure of 4 to 10.5 bar, a medium and ambient temperature range of 2 to 50 °C, and a storage temperature of -20 to 60 °C using filtered, unlubricated compressed air via 2 G1/2 pneumatic connection ports. This component achieves a pressure dew point of -40 °C and delivers an air purity class at output of 2.2.1 per DIN ISO 8573-1, featuring CRC 1 corrosion resistance, mounting with a through hole, Germanischer Lloyd authorisation, and CE symbols conforming to the EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 183907 is a Bourdon-tube pressure gauge conforming to standard EN 837-1 with a nominal size of 40 and a central rear-side NPT1/4-18 pneumatic connection for line installation. Featuring a black ABS housing, a polystyrene viewing window, and brass wetted materials, this component operates within a 0 to 10 bar indicating and working pressure range across neutral fluids and inert gases. It operates in medium and ambient temperatures from -20 to 60 °C, achieves an IP43 protection class with a measurement accuracy class of 2,5, and incorporates RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo
The Festo 178131 is a double-acting industrial component featuring a 5-inch piston diameter and a 4-inch stroke, built on a profile barrel design with a single-ended piston rod having a 1-12 UNF-2A male thread. Adhering to ISO 15552 standards, this unit operates within a pressure range of 0.06 to 1 MPa (0.6 to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes adjustable pneumatic cushioning at both ends (PPV) with a 42 mm cushioning length. It is designed for any assembly position across an ambient temperature range of -20 to 80 °C, incorporates position detection for proximity sensors, and features a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo
The Festo 178525 is a cold-regeneratable adsorption dryer featuring a zinc die-casting housing and a product weight of 24,700 g, designed for a vertical assembly position within plus or minus 5 degrees. It operates with filtered, unlubricated compressed air at an inlet pressure of 4 to 10.5 bar, delivering an air purity class of 2.2.1 per DIN ISO 8573-1 and a pressure dew point of -40 degrees C through 2 G1/2 pneumatic connection ports. This unit complies with the CE symbol according to the EU-EMV guideline and EU low voltage guideline, carries Germanischer Lloyd authorization, and features a CRC corrosion resistance classification of 1 with through-hole mounting. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 183906 is a Bourdon-tube pressure gauge featuring a 40 nominal size, an indicating range of 0 to 6 bar, and an NPT1/4-18 pneumatic connection positioned at the rear side central. Conforming to EN 837-1, this component operates with inert gases and neutral fluids within a medium and ambient temperature range of -20 to 60 °C, utilizing a brass screw-in stud, a black ABS housing, and a PS viewing window. It delivers a measurement accuracy class of 2.5 with an IP43 protection class, an alternating load factor of 0.66, and RoHS-conforming materials in contact with media. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
