Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo adapter kit HMSV-13 is an industrial component featuring an any assembly position and a CRC 2 moderate corrosion stress classification. This official Festo part is manufactured free of copper and PTFE according to standard material specifications. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component (Part Number: 177913) is a double-acting pneumatic cylinder featuring a 2" piston diameter, an 8" stroke, and a 5/8-18 UNF-2A male piston rod thread based on ISO 15552. Operating within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], the unit incorporates adjustable pneumatic cushioning at both ends (PPV) with a 22 mm cushioning length and supports an ambient temperature range of -20 to 80 °C. The profile barrel design includes a single-ended piston rod, features a corrosion resistance classification of CRC 2, and allows for lubricated operation subsequent to initial use. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 178073, is a double-acting profile barrel actuator featuring a 4-inch piston diameter and a 20-inch stroke based on the ISO 15552 standard. The unit includes a male 3/4-16 UNF-2A piston rod thread, adjustable pneumatic cushioning at both ends, and operates within a pressure range of 0.06 to 1.2 MPa across an ambient temperature of -20 to 80 °C. It is constructed for compressed air operation in accordance with ISO 8573-1:2010 [7:4:4] with a CRC 2 moderate corrosion resistance classification and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
Engineered with a rotary vane design structure featuring a 25 mm piston diameter, a 40 mm stroke, and a ball-bearing guide for torque and guide protection, this double-acting Festo industrial component operates at a pressure range of 2.5 to 8 bar. The unit delivers a torque of 5 Nm at 6 bar with a swivel angle of 272 degrees, a rotation angle adjustment range of 270 degrees, a 1.9-degree cushioning angle, and flexible cushioning rings or plates at both ends. It functions within an ambient temperature of -10 to 60 °C utilizing dried compressed air, accommodates position detection via inductive or proximity sensors, and includes a through, hollow piston rod variant. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 177912 is a double-acting industrial component featuring a 2-inch piston diameter and a 6-inch stroke, designed with a male 5/8-18 UNF-2A piston-rod thread based on the ISO 15552 standard. This profile barrel design operates within a pressure range of 0.06 to 1.2 MPa using compressed air per ISO 8573-1:2010 [7:4:4] and incorporates adjustable pneumatic cushioning at both ends with a 22 mm cushioning length. Rated for an ambient temperature range of -20 to 80 °C, the unit includes a single-ended piston rod and exhibits a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 178072 is a double-acting industrial component featuring a 4-inch piston diameter, a 16-inch stroke, and a 3/4-16 UNF-2A male piston rod thread based on the ISO 15552 standard. Built with a profile barrel design and adjustable pneumatic cushioning at both ends, this unit operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It functions across an ambient temperature range of -20 to 80 °C and exhibits a CRC 2 moderate corrosion resistance classification with VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 177657 adapter kit HMSV-11 features an assembly position of any with a corrosion resistance classification CRC of 2 for moderate corrosion stress. Its construction is free of copper and PTFE. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 177212 is a double-acting rotary vane industrial component featuring a 25 mm piston diameter, a 40 mm stroke, and a 5 Nm torque output at 6 bar. It offers a 246 deg swivel angle with a 270 deg rotation angle adjustment range, a 10 deg cushioning angle, and shock absorber cushioning at both ends combined with flexible cushioning rings. Operating within a pressure range of 2.5 to 8 bar and temperatures from -10 to 60 °C, this unit includes a ball-bearing guide and supports position detection via inductive or proximity sensors using dried compressed air. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 177911 is a double-acting industrial component featuring a 2-inch piston diameter and a 5-inch stroke with a male 5/8-18 UNF-2A piston-rod thread. Built on a profile barrel design structure with adjustable pneumatic cushioning at both ends, this unit operates within a pressure range of 0.06 to 1.2 MPa and an ambient temperature range of -20 to 80 °C. It supports lubricated compressed air operation in accordance with ISO 8573-1:2010 [7:4:4] and complies with ISO 15552 standards with a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 178071 is a double-acting industrial component featuring a 4-inch piston diameter, a 12-inch stroke, and a 3/4-16 UNF-2A male piston-rod thread based on the ISO 15552 standard. It operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], with adjustable pneumatic cushioning at both ends (PPV) and a moderate corrosion resistance classification of CRC 2. Designed with a profile barrel structure and single-ended piston rod for any assembly position, this unit functions across an ambient temperature range of -20 to 80 °C without position detection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 177910 is a double-acting industrial component featuring a 2-inch piston diameter, a 4-inch stroke, and a male 5/8-18 UNF-2A piston rod thread based on ISO 15552. It operates at pressures from 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -20 to 80 °C. This profile barrel design incorporates adjustable pneumatic cushioning at both ends, a 22 mm cushioning length, and a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 177211 is a double-acting industrial component featuring a rotary vane design structure with a 25 mm piston diameter, a 40 mm stroke, and a ball-bearing guide for torque and guide protection. Operating efficiently on dried compressed air between 2.5 and 8 bar, this unit delivers a 5 Nm torque at 6 bar with a maximum swivel frequency of 2 Hz, a 272 deg swivel angle, and a 270 deg rotation angle adjustment range utilizing flexible cushioning rings or plates at both ends. It accommodates position detection through inductive or proximity sensors across any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo adapter kit HMSV-9 is an industrial component featuring an assembly position of any and a corrosion resistance classification CRC of 2. This manufacturer-certified assembly is constructed free of copper and PTFE according to official technical specifications. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 178070 is a double-acting industrial component featuring a 4-inch piston diameter and a 10-inch stroke based on the ISO 15552 standard. This profile barrel design incorporates a single-ended piston rod with a 3/4-16 UNF-2A male thread, adjustable pneumatic cushioning at both ends, and an operating pressure range of 0.06 to 1.2 MPa. Rated for ambient temperatures from -20 to 80 °C, it operates with compressed air per ISO 8573-1:2010 [7:4:4] and permits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 177210 is a double-acting rotary vane industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and a ball-bearing guide for torque protection and guidance. Operating at pressures from 2.5 to 8 bar with a torque output of 5 Nm at 6 bar, this unit delivers a 246 deg swivel angle within a 270 deg rotation angle adjustment range, and incorporates dual-end shock absorbers alongside flexible cushioning rings. It accommodates inductive and proximity sensors for position detection and functions within an ambient temperature range of -10 to 60 °C using dried compressed air. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 177909 is a double-acting industrial component featuring a 2-inch piston diameter and a 3-inch stroke, designed with a profile barrel, piston, and single-ended male piston rod thread of 5/8-18 UNF-2A. Built to ISO 15552 standards, this unit operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4] and includes adjustable pneumatic cushioning at both ends (PPV) with a 22 mm cushioning length. It functions in ambient temperatures from -20 to 80 °C, supports lubricated operation, and maintains a CRC 2 moderate corrosion resistance classification with VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo adapter kit HMSV-8 is an industrial component featuring an assembly position of any and a corrosion resistance classification CRC of 2. Its materials note specifies that the construction is free of copper and PTFE. Submit the exact part number, quantity, and application requirements to request a quote for this adapter kit.
View product details →Festo

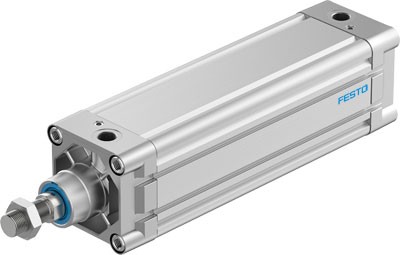

The Festo part number 178069 is a double-acting industrial component featuring a 4" piston diameter, an 8" stroke, and a 3/4-16 UNF-2A male piston-rod thread based on the ISO 15552 standard. Operating within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar), this profile-barrel cylinder incorporates adjustable pneumatic cushioning at both ends (PPV) with a 32 mm cushioning length and 1.2 J impact energy capacity. Designed for any assembly position, it functions with compressed air meeting ISO 8573-1:2010 [7:4:4] standards and supports lubricated operation when subsequently required. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

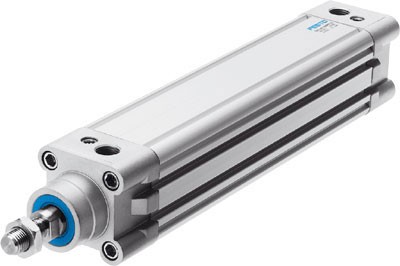

The Festo 177908 is a double-acting industrial component featuring a 2-inch stroke, 2-inch piston diameter, and a 5/8-18 UNF-2A male piston rod thread based on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this part incorporates adjustable pneumatic cushioning at both ends (PPV) with a 22 mm cushioning length and 0.2 J impact energy capacity in the end positions. It operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], supporting lubricated operation and functioning across an ambient temperature range of -20 to 80 °C with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 177209 is a double-acting rotary vane industrial component featuring a 25 mm piston diameter, a 25 mm stroke, and a ball-bearing guide for torque and guide protection. Operating within a pressure range of 2.5 to 8 bar, this variant includes a through, hollow piston rod (S20), a 272-degree swivel angle with a 270-degree rotation angle adjustment range, and flexible cushioning rings or plates at both ends. It operates at an ambient temperature of -10 to 60 °C using dried compressed air and accommodates position detection via inductive or proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
