Festo
The Festo 174480 relay plate CPV14-RP2 is an industrial component with a product weight of 78 g. This hardware features VDMA24364-B1/B2-L PWIS conformity and includes a materials note indicating it conforms to RoHS. Request a quote for this Festo part by submitting your exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 175883 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and an S20 through, hollow piston rod with a plain-bearing guide. This unit operates within a 2.5 to 8 bar pressure range using dried compressed air, delivering 20 Nm of torque at 6 bar with a maximum impact speed of 500 mm/s and a maximum swivel frequency of 2 Hz at 6 bar. It provides a 272 deg swivel angle, a 270 deg rotation angle adjustment range with 5 deg fine adjustment, 2.1 deg cushioning angle, 12 mm cushioning length, and flexible cushioning rings or plates at both ends for any assembly position across an ambient temperature range of -10 to 60 °C, including position detection capabilities for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo part number 176491 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating at pressures between 1 and 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4] standards. Built with a high alloy steel non-corrosive housing, wrought aluminum alloy cover, high alloy steel piston rod, and FPM seals, this unit incorporates flexible cushioning rings at both ends and achieves theoretical forces of 633 N on the return stroke and 754 N on the advance stroke at 6 bar. It functions within an ambient temperature range of -20 to 120 °C and supports lubricated operation once subsequently required. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

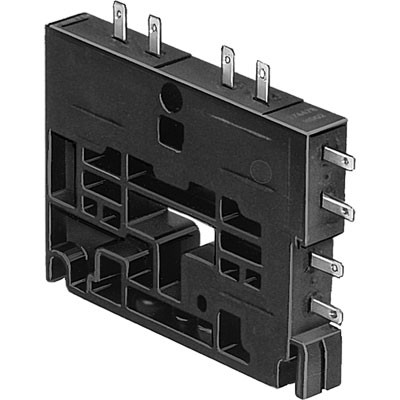

The Festo 174478 relay plate CPV10-RP2 is an industrial component with a product weight of 51 g and PWIS conformity to VDMA24364-B1/B2-L. This unit conforms to RoHS materials requirements as documented in the official data sheet. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 175882 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and a 240 deg swivel angle within a 270 deg rotation angle adjustment range. Operating at 2.5 to 8 bar with dried compressed air, this part delivers 20 Nm of torque at 6 bar and incorporates a plain-bearing guide, shock absorbers at both ends, and flexible cushioning rings. Position detection is supported for inductive and proximity sensors across an ambient temperature range of -10 to 60 °C. Request a quote for part number 175882 by specifying your required quantity and application parameters.
View product details →
Festo
The Festo 176490 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke ranging from 1 to 500 mm, operating within a pressure range of 1 to 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Constructed with a wrought aluminum alloy cover, high alloy steel housing and piston rod, and FPM seals, this unit provides flexible cushioning rings at both ends and achieves a theoretical force of 754 N on the advance stroke at 6 bar. It operates across an ambient temperature range of -20 to 120 °C and features an M6 pneumatic connection alongside CRC 2 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 175881 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and a 240 degree swivel angle with a 270 degree rotation angle adjustment range. Operating at a pressure of 2.5 to 8 bar, this unit delivers 20 Nm of torque at 6 bar and incorporates shock absorber cushioning on the right alongside flexible cushioning rings or plates at both ends. Designed with a plain-bearing guide, 15 degree cushioning angle, and 1.5 degree fine adjustment, it accommodates dried compressed air in ambient temperatures from -10 to 60 degrees Celsius and includes provisions for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176489 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a pressure range of 1 to 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Built with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy covers, and FPM seals, this unit delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a CRC 2 corrosion resistance classification, and an ambient temperature range of -20 to 120 °C, supporting lubricated operation when subsequently required. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 175880 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and a 240 deg swivel angle with a 270 deg rotation angle adjustment range. Operating at 2.5 to 8 bar with dried compressed air, this part delivers 20 Nm of torque at 6 bar and incorporates a plain-bearing guide, left-side shock absorber cushioning, and flexible cushioning rings at both ends. It operates within an ambient temperature range of -10 to 60 °C and supports position detection via inductive and proximity sensors. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 176488 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy cover, and FPM seals, it functions in ambient temperatures between -20 and 120 °C with CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 175879 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and a 272-deg swivel angle with a 270-deg rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar with dried compressed air, this unit delivers 20 Nm of torque at 6 bar and supports a maximum swivel frequency of 2 Hz alongside a max impact speed of 500 mm/s. It includes a plain-bearing guide for torque protection, a through piston rod variant (S2), flexible cushioning rings or plates at both ends with a 2.1-deg cushioning angle, and position detection capabilities for proximity and inductive sensors across any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 176487 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a working pressure range of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. Constructed with a high alloy steel housing and piston rod, wrought aluminum alloy covers, and FPM seals, this unit delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a corrosion resistance classification of CRC 2, and functions across an ambient temperature range of -20 to 120 °C with optional lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 175878 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 40 mm stroke, and a 240 deg swivel angle within a 270 deg rotation angle adjustment range. Operating at 2.5 to 8 bar with dried compressed air, this S20 variant includes a through, hollow piston rod, a plain-bearing guide, and dual-end cushioning combining CC shock absorbers and P flexible cushioning rings. It delivers 20 Nm of torque at 6 bar, a max impact speed of 500 mm/s, a max swivel frequency of 0.7 Hz at 6 bar, an ambient temperature range of -10 to 60 °C, and supports position detection via inductive or proximity sensors with any assembly position. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
The Festo part number 176486 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy cover, and FPM seals, it operates within a working pressure range of 1 to 10 bar and ambient temperatures between -20 and 120 °C using compressed air in accordance with ISO8573-1:2010 [7:4:4]. This unit delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar, while maintaining a corrosion resistance classification CRC of 2 and permitting lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 175877 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 40 mm stroke, and a 240 deg swivel angle with a 270 deg rotation angle adjustment range. This unit operates within a pressure range of 2.5 to 8 bar, delivering 20 Nm of torque at 6 bar and accommodating a maximum swivel frequency of 0.7 Hz alongside a 500 mm/s maximum impact speed. Configured with a through, hollow piston rod variant and a plain-bearing guide, it includes right-side shock absorber cushioning paired with flexible cushioning rings or plates at both ends. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 176485 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and an M12x1,25 piston rod thread with a male end. Built with wrought aluminum alloy covers and a CRC 2 corrosion resistance classification, it operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a pressure range of 1 to 10 bar and temperatures from -20 to 80 °C. This unit incorporates PPV pneumatic cushioning adjustable at both ends over a 22 mm cushioning length, delivering a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 176484 is a double-acting industrial component featuring a 40 mm piston diameter, an M12x1,25 piston rod thread with a male thread end, and a variable stroke ranging from 1 to 500 mm. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar, this unit incorporates adjustable pneumatic cushioning at both ends (PPV) with a 22 mm cushioning length and a corrosion resistance classification of CRC 2. It delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar, utilizing wrought aluminum alloy covers and featuring an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 175876 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 40 mm stroke, and a 240 deg swivel angle within a 270 deg rotation angle adjustment range. Operating at a pressure of 2.5 to 8 bar with dried compressed air, this unit delivers 20 Nm of torque at 6 bar and incorporates a plain-bearing guide, a hollow through piston rod, flexible cushioning rings at both ends, and a left-side shock absorber. Position detection is supported for inductive and proximity sensors, while the assembly operates in any position across an ambient temperature range of -10 to 60 °C. Request a formal quotation by submitting the exact part number, required quantity, and application parameters.
View product details →
Festo
The Festo 176341 is a double-acting industrial component featuring a 20 mm piston diameter and a variable stroke ranging from 1 to 320 mm. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit utilizes flexible cushioning rings or plates at both ends and incorporates a high alloy steel housing, piston rod, and wrought aluminum alloy cover with FPM seals. It delivers theoretical forces of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, while functioning across an ambient temperature range of -20 to 120 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 176483 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm with an M12x1,25 piston rod thread. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, it incorporates flexible cushioning rings at both ends and delivers theoretical forces of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover, NBR and TPE-U seals, and a CRC 2 corrosion resistance rating, this unit functions in ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
