Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 175728 is an industrial component featuring a container size of 10 and a 15mm outside diameter pneumatic connection for port 1. Designed for any assembly position, this unit operates within an ambient temperature range of -25 to 70 °C and maintains a CRC 2 moderate corrosion stress classification with VDMA24364 zone III PWIS conformity. Its materials conform to RoHS, and food-safe status can be verified through the supplementary material information. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176254 is a double-acting industrial component featuring a 16 mm piston diameter, an adjustable stroke from 1 to 250 mm, and flexible cushioning rings or plates at both ends designated as type P. Built with a square guide for torque protection, a high alloy steel non-corrosive housing, and wrought aluminum alloy covers, it operates on compressed air matching ISO8573-1:2010 [7:4:4] standards across a pressure range of 1 to 10 bar and temperatures from -20 to 80 °C. At 6 bar, it delivers a theoretical force of 120.6 N on the advance stroke and 103.7 N on the return stroke, utilizing M5 pneumatic connections and NBR and TPE-U(PU) seals with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

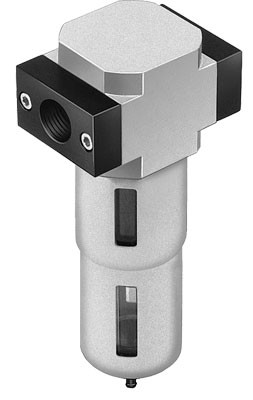

The Festo part number 173735 is an industrial component from Series D in a Midi size featuring a 0.01 µm grade of filtration and a fully automatic condensate drain. Constructed with a zinc die-casting housing and a metal bowl guard, this unit operates within a working pressure range of 2 to 12 bar and accommodates compressed air or inert gases via 3/4 NPT pneumatic connection ports. It delivers an air purity class output in accordance with ISO8573-1:2010 [1:7:2] with a maximum standard flow rate of 1,110 l/min and a minimum standard flow rate of 300 l/min. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 175727 is an industrial component featuring a 12 mm outside diameter pneumatic connection for port 1 and a container size of 10. This lightweight part weighs 1 g, supports any assembly position, and operates within an ambient temperature range of -25 to 70 °C. It offers a CRC of 2 for moderate corrosion stress, VDMA24364 zone III PWIS conformity, RoHS material compliance, and food-safe properties detailed in the supplementary material. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 176246 is a double-acting industrial component featuring a 6 mm piston diameter and an adjustable stroke from 1 to 50 mm with a male M3 piston rod thread. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperatures, it utilizes flexible cushioning rings at both ends and wrought aluminum alloy covers with NBR and TPE-U seals. It delivers a theoretical force of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar, with a base weight of 14 g for a 0 mm stroke. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 173734 is a Series D Midi industrial component featuring a zinc die-casting housing and a metal bowl guard designed for vertical line installation or optional mounting with a bracket. Operating within a working pressure range of 1 to 16 bar and a medium temperature of 1.5 to 60 °C, this unit delivers a 0.01 µm grade of filtration with a 99.9999% filter efficiency, achieving an output air purity class of ISO8573-1:2010 [1:7:2] for compressed air and inert gases. It incorporates a manual momentary-contact condensate drain, a 3/4 NPT pneumatic connection port, and maintains a maximum standard flow rate of 1,110 l/min alongside a residual oil content of 0.01 mg/m3 under moderate corrosion stress (CRC 2). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176245 is a double-acting industrial component featuring a 6 mm piston diameter, an adjustable stroke length from 1 to 50 mm, and an M3 male piston-rod thread. Operating within a pressure range of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends and achieves theoretical forces of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and an M5 pneumatic connection, the assembly exhibits a CRC 2 corrosion resistance classification and operates across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo
The Festo part number 176244 is a double-acting industrial component featuring a 6 mm piston diameter and an adjustable stroke from 1 to 50 mm. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit incorporates flexible cushioning rings at both ends and features a high alloy steel housing, piston rod, wrought aluminum alloy cover, and NBR and TPE-U seals with CRC 2 corrosion resistance. At 6 bar, it delivers a theoretical return force of 12.7 N and an advance force of 16.9 N across an ambient temperature range of -20 to 80 °C via an M5 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176235 is a double-acting industrial component featuring a 6 mm piston diameter, an adjustable stroke ranging from 1 to 50 mm, and M3 pneumatic connections. Constructed with a high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, this unit delivers theoretical forces of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar working pressure. It incorporates flexible cushioning rings at both ends, operates within a temperature range of -20 to 80 °C using compressed air meeting ISO8573-1:2010 [7:4:4], and permits lubricated operation. Submit your exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 176226 is a double-acting industrial component featuring a 6 mm piston diameter and an adjustable stroke length from 1 to 50 mm. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit incorporates flexible cushioning rings at both ends and an M5 pneumatic connection. Constructed with a high alloy steel housing and piston rod, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, it delivers a theoretical force of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
Engineered with a 6 mm piston diameter and an adjustable stroke ranging from 1 to 50 mm, this double-acting industrial component from Festo operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range. The unit features a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and flexible cushioning rings or plates at both ends designated as cushioning P. It delivers a theoretical force of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar, while maintaining an ambient temperature range of -20 to 80 °C and a CRC corrosion resistance classification of 2. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

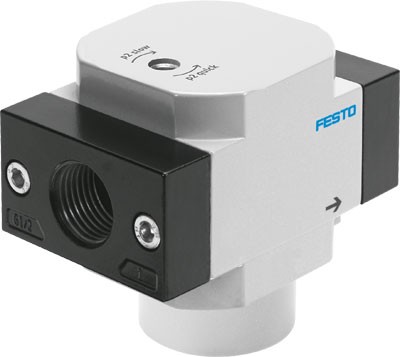

The Festo 173916 is a pneumatic 2/2 closed, monostable piston slide industrial component featuring a 40 mm grid dimension, direct piloting, and a mechanical spring reset. This valve operates at a working pressure of 3 to 16 bar, delivering a standard nominal flow rate of 1,000 l/min with a throttleable exhaust-air function, soft sealing principle, and non-reversible flow direction. It accommodates compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases, permits lubricated operation, and maintains a CRC 2 moderate corrosion resistance classification with VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176208 is a double-acting industrial component featuring a 6 mm piston diameter, an adjustable stroke length from 1 to 50 mm, and flexible cushioning rings or plates at both ends (P). Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, it delivers a theoretical force of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar. Constructed with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, the unit functions within an ambient temperature range of -20 to 80 °C and possesses a corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 173728 is a mini series D industrial component featuring a zinc die-casting housing and a metal bowl guard, designed for vertical line installation or with an optional mounting bracket. Operating with compressed air in accordance with ISO8573-1:2010 [6:8:4] or inert gases at a working pressure of 1 to 16 bar, this unit delivers an air purity output meeting ISO8573-1:2010 [1:7:2] with a 0.01 µm filtration grade and 99.9999% filter efficiency. It maintains a maximum standard flow rate of 450 l/min and a minimum standard flow rate of 100 l/min while achieving a residual oil content of 0.01 mg/m3 across a medium temperature range of 1.5 to 60 °C and ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote for this component.
View product details →
Festo
The Festo 176199 is a double-acting industrial component featuring a 6 mm piston diameter, an adjustable stroke length from 1 to 50 mm, and flexible cushioning rings or plates at both ends. Constructed with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy cover, and NBR and TPE-U seals, this unit operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a pressure range of 1 to 10 bar and temperatures from -20 to 80 °C. It delivers a theoretical force of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar, utilizing an M5 pneumatic connection and permitting lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 176190 is a double-acting industrial component featuring a 6 mm piston diameter, an adjustable stroke length from 1 to 50 mm, and flexible cushioning rings or plates at both ends. Operating within a pressure range of 1 to 10 bar utilizing compressed air that complies with ISO8573-1:2010 [7:4:4], it delivers theoretical forces of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar. Constructed with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, this unit handles ambient temperatures from -20 to 80 °C with an M3 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 176181 is a double-acting industrial component featuring a 6 mm piston diameter and an adjustable stroke ranging from 1 to 50 mm. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, it incorporates flexible cushioning rings at both ends and delivers theoretical forces of 16.9 N on advance stroke and 12.7 N on return stroke at 6 bar. Constructed with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, this unit operates in ambient temperatures from -20 to 80 °C and utilizes an M5 pneumatic connection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 175709 is an industrial component featuring an NPN switch output and a 24 V DC operating voltage range within an IP53 protection class housing made of wrought aluminum alloy. Built with copper-free and PTFE-free materials, this unit operates in ambient temperatures from 5 to 60 °C and includes a green LED ready status display alongside a yellow LED operating status display. It mounts via a through hole in any assembly position, carrying a C-Tick authorization and a CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 176172 is a double-acting industrial component featuring a 6 mm piston diameter and an adjustable stroke ranging from 1 to 50 mm. Built with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, it operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards across a pressure range of 1 to 10 bar. This unit incorporates flexible cushioning rings at both ends, delivers a theoretical force of 16.9 N on the advance stroke and 12.7 N on the return stroke at 6 bar, and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 173725 is a Series D mini industrial component designed for compressed air in accordance with ISO 8573-1:2010 [6:8:4] or inert gases, operating within a working pressure range of 2 to 12 bar. Featuring a fully automatic condensate drain, a zinc die-casting housing, and a metal bowl guard, this unit delivers an output air purity class of ISO 8573-1:2010 [1:7:2] with a 0.01 µm filtration grade and 99.9999% filter efficiency. It accommodates a standard flow rate between 80 and 360 l/min, a medium temperature of 1.5 to 60 µC, and utilizes 1/8 NPT pneumatic connection ports with vertical assembly positioning via line installation or an optional mounting bracket. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
