Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 170567 is a double-acting industrial component featuring a 20 mm piston diameter, a 10 mm stroke, and yoke kinematics driven via a yoke operating mode with an adjustable end-position range of 12 mm. Built with a ball bearing cage guide and flexible cushioning rings or plates at both ends, this unit operates on compressed air matching ISO8573-1:2010 [7:4:4] standards across a working pressure of 1 to 10 bar and ambient temperatures from -20 to 60 °C. It supports position detection for proximity sensors, allows for lubricated operation, and maintains a CRC corrosion resistance of 0 while delivering a maximum impact energy of 0.4 Nm in end positions, maximum forces Fy and Fz of 1,600 N, and maximum torques Mx and My of 16 Nm in any assembly position. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →

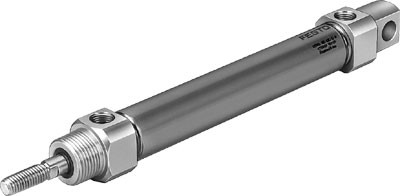

Festo
The Festo 171243 is a double-acting industrial component featuring a 10 mm piston diameter and a variable stroke length from 1 to 160 mm, operating within a 1 to 10 bar pressure range using compressed air conforming to ISO8573-1:2010 [7:4:4]. This unit integrates flexible cushioning rings at both ends, an M8x1 pneumatic connection, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and a non-corrosive high alloy steel housing rated for CRC 2 moderate corrosion stress and temperatures between -20 and 80 °C. At 0.6 MPa, it delivers a theoretical retracting force of 39.6 N and an advancing force of 47.1 N, with a basic weight of 19 g and a moving mass of 11.1 g at zero stroke. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo plug connectors NEKM-C-13 are industrial components cataloged under part number 1680832. This official data sheet specifies a corrosion resistance classification of CRC 0, conformity to RoHS, and the presence of PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 170566 is a double-acting industrial component featuring a 16 mm piston diameter, 100 mm stroke, and yoke kinematics driven operating mode with an adjustable end-position range of 12 mm. Designed with a ball bearing cage guide and flexible cushioning rings or plates at both ends, this unit operates on compressed air matching ISO 8573-1:2010 [7:4:4] standards across a working pressure range of 1 to 10 bar and ambient temperatures from -20 to 60 °C. It accommodates position detection via a proximity sensor and supports lubricated operation, while delivering maximum forces of 600 N for Fy and Fz alongside maximum torques of 9.1 Nm for Mx and My with a 0.3 Nm impact energy in end positions and CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
This Festo industrial component, part number 1680831, features a 2-meter shielded cable with a structure of 4x(2 x 0,14 mm²) and TPE-U(PU) cable sheaths conforming to RoHS materials notes. The assembly provides an IP20 protection class, a minimum cable bending radius of 51 mm, and operates within an ambient temperature range of -40 to 70 °C for both standard and flexible cable installations. It is explicitly suitable for chain link trunking applications. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
Engineered with a 10 mm piston diameter and an adjustable stroke from 1 to 160 mm, this double-acting Festo industrial component operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range. The unit features flexible cushioning rings and plates at both ends (P), a high-alloy non-corrosive steel housing, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals providing a CRC 2 moderate corrosion resistance classification. It delivers a theoretical retraction force of 39.6 N and advance force of 47.1 N at 0.6 MPa (6 bar, 87 psi) across an ambient temperature range of -20 to 80 °C utilizing M5 pneumatic connections. Submit part number 171235 with your required quantity and application details for an immediate quote.
View product details →
Festo
The Festo 170565 is a double-acting industrial component featuring a 16 mm piston diameter, an 80 mm stroke, and yoke kinematics driven via a ball bearing cage guide. It operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a 1 to 10 bar working pressure range, incorporating flexible cushioning rings at both ends with a 0.3 Nm end-position impact energy. The unit accommodates proximity sensors for position detection, handles a 12 mm adjustable end-position range, functions in any assembly position across an ambient temperature range of -20 to 60 °C, and withstands maximum forces of 520 N (Fy and Fz) alongside maximum torques of 6 Nm (Mx and My). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 1680830 is an industrial component featuring a shielded cable structure of 4x(2 x 0,14 mm²) with a 0.5 m cable length and TPE-U(PU) cable sheaths that conform to RoHS materials notes. This component offers an IP20 protection class, supports chain link trunking, operates within an ambient temperature range of -40 to 70 °C both generally and with flexible cable installation, and maintains a minimum cable bending radius of 51 mm. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
View product details →
Festo
The Festo 171227 is a double-acting industrial component featuring a 10 mm piston diameter and an adjustable stroke length from 1 to 160 mm, operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range. Constructed with a high alloy steel non-corrosive housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, this unit delivers theoretical forces of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, operates in ambient temperatures from -20 to 80 °C, and features an M4 pneumatic connection with a corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo 170564 is a double-acting industrial component featuring a 16 mm piston diameter, a 50 mm stroke, and yoke kinematics driven in any assembly position. It operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar, incorporating flexible cushioning rings at both ends and a ball bearing cage guide. The unit accommodates an adjustable end-position range of 12 mm, withstands ambient temperatures from -20 to 60 °C, and supports maximum forces of 510 N alongside maximum torques of 4.6 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 1680829 is an industrial component featuring a 24 V nominal DC operating and logic power supply voltage with a logic input working range of 20.4 to 28.8 V and a logic supply nominal current of 2 A or less. This DeviceNet fieldbus coupled unit integrates DIP switches, a rotary coding switch, and an LED display within a 22.5 mm x 115 mm x 100 mm IP20-rated housing weighing 110 g for vertical top-hat rail mounting. Operating within an ambient temperature range of 0 to 50 °C, it consumes 2.4 W or less at 24 V, supports a maximum fieldbus transmission speed of 0.5 Mbit/s via a 5-pin bus connection, and conforms to RoHS while containing PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

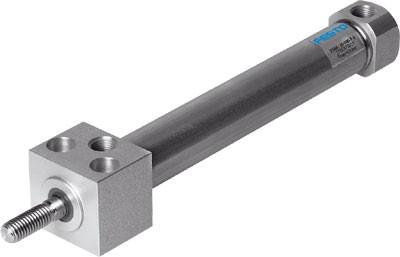

Festo
The Festo 171219 is a double-acting industrial component featuring a 10 mm piston diameter and an adjustable stroke length from 1 to 160 mm, operating within a pressure range of 1 to 10 bar. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, this unit delivers a theoretical retracting force of 39.6 N and an advancing force of 47.1 N at 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. It incorporates flexible cushioning rings at both ends, features a CRC rating of 2 for moderate corrosion stress, and operates in ambient temperatures between -20 and 80 °C with an M4 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 170563 is a double-acting industrial component featuring a 16 mm piston diameter, a 40 mm stroke, and yoke kinematics with a yoke drive unit operating mode. Designed with a ball bearing cage guide and flexible cushioning rings or plates at both ends, it operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure and an ambient temperature range of -20 to 60 °C. This unit provides position detection for proximity sensors, an adjustable end-position range of 12 mm, a CRC corrosion resistance classification of 0, a 0.3 Nm impact energy in end positions, and maximum forces and torques of Fy 490 N, Fz 490 N, Mx 3.8 Nm, and My 3.8 Nm in any assembly position. Lubricated operation is possible and subsequently required for further operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 1680828 industrial component operates on a nominal DC voltage of 24 V with a logic input working range of 20.4 to 28.8 V and a logic supply current of 2 A or less. Weighing 110 g with dimensions of 22.5 mm by 115 mm by 100 mm, this unit features an IP20 protection class, an LED display, DIP switches, a rotary coding switch, and a 9-pin Sub-D CANopen fieldbus coupling supporting transmission speeds up to 1 Mbit/s. It is designed for vertical top-hat rail mounting with free convection, operating within an ambient temperature range of 0 to 50 °C, while containing PWIS substances and conforming to RoHS standards. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
View product details →
Festo
The Festo 171211 is a double-acting industrial component featuring a 10 mm piston diameter and an adjustable stroke length from 1 to 160 mm, operating on compressed air according to ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar. This unit incorporates flexible cushioning rings at both ends, a wrought aluminum alloy cover, and a non-corrosive high alloy steel housing and piston rod rated at corrosion resistance classification CRC 2. It delivers a theoretical force of 47.1 N on the advance stroke and 39.6 N on the return stroke at 6 bar, utilizing an M5 pneumatic connection and functioning across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 170562 is a double-acting industrial component featuring a 16 mm piston diameter and a 30 mm stroke, utilizing yoke kinematics and a ball bearing cage guide. This drive unit operates with a working pressure of 1 to 10 bar on compressed air meeting ISO8573-1:2010 [7:4:4] standards, accommodating lubricated operation and ambient temperatures from -20 to 60 °C. It includes flexible cushioning rings at both ends with a 12 mm adjustable end-position range, a 0.3 Nm impact energy rating, and withstands maximum forces of 530 N alongside maximum torques of 4.2 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 1680827 is an industrial component featuring a 24 V nominal DC voltage for both the operating voltage and logic power supply, with a logic input working range of 20.4 to 28.8 V and a logic supply current of 2 A or less. This unit integrates Profibus DP fieldbus coupling via a 9-pin Sub-D bus connection supporting a maximum transmission speed of 12 Mbit/s, alongside an LED display, DIP switches, and a rotary coding switch for device configuration. Measuring 22.5 mm by 115 mm by 100 mm with a product weight of 110 g, the IP20-rated assembly mounts onto a top-hat rail in a vertical position with free convection for ambient temperatures between 0 and 50 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →

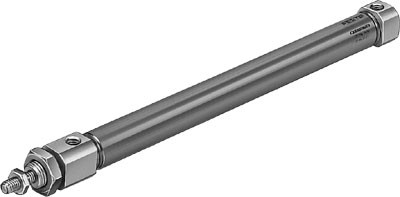

Festo
This Festo industrial component (part number 171203) is a double-acting pneumatic cylinder featuring a 10 mm piston diameter, an adjustable stroke length from 1 to 160 mm, and flexible cushioning rings or plates at both ends. Operating on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a 1 to 10 bar pressure range, the unit delivers a theoretical retracting force of 39.6 N and an advancing force of 47.1 N at 0.6 MPa (6 bar, 87 psi). Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, the assembly maintains a CRC 2 moderate corrosion resistance classification and operates across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 170561 is a double-acting industrial component featuring a 16 mm piston diameter, a 20 mm stroke, and yoke kinematics with a ball bearing cage guide. It operates on compressed air compliant with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar and an ambient temperature range of -20 to 60 °C, incorporating flexible cushioning rings at both ends with an adjustable end-position range of 12 mm. This drive unit accommodates position detection via proximity sensors, allows lubricated operation, and withstands maximum forces of 650 N for both Fy and Fz alongside maximum torques of 4.7 Nm for Mx and My under zero corrosion stress conditions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 1680826 is an industrial component featuring 12 digital logic inputs, 6 digital inputs, and 8 OSSD-compatible digital inputs operating at a nominal 24 V DC with a 20 mA nominal current based on IEC 61131-2 within a 20.4 to 28.8 V working range. It provides a performance level up to Category 4, Performance Level e, and SIL 3 certified by TÜV Rheinland, exhibiting a Probability of Failure per Hour of 2.6E-09 and a 20 a proof test interval alongside a 24 V nominal DC logic power supply. The design includes 10 safe digital inputs or outputs rated at 250 mA, 2 signal outputs at 100 mA, and 2 pulse outputs at 250 mA max current. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
