Gewiss
The Gewiss GW27833 is a watertight enclosure complete with a 1P 16 AX two-way switch rated at 250 V ac. This IP55-rated Class II assembly features a Grey RAL 7035 housing measuring 66x82x65 mm, a transparent door with a membrane, and stainless steel lid screws tightened to 0.8 NM. It includes three removable knockout holes on the sides, one on the bottom, and one hole with a cable gland, operating within a temperature range of -25 to +60 °C according to EN 60669-1. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Gewiss

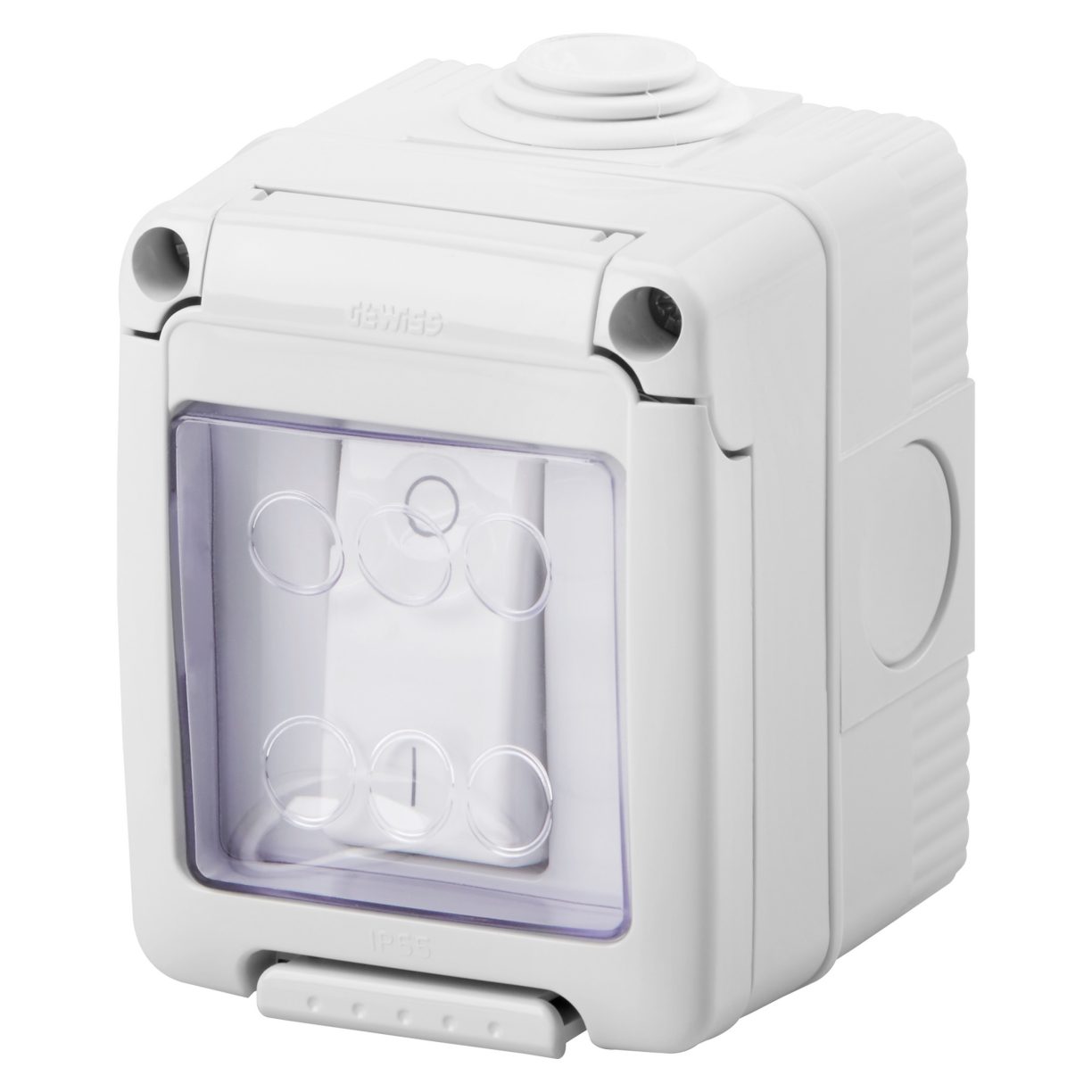

The Gewiss GW27832 is a watertight enclosure complete with a 2P 16 AX one-way switch rated at 250 V ac, featuring a grey RAL 7035 body, a transparent membrane door, and an IP55 protection degree. Measuring 66x82x65 mm, the Class II insulated unit includes stainless steel lid screws tightened to 0.8 NM, three side and one bottom removable knockout holes of Ø23 mm, and one Ø 23 mm hole with a cable gland. Built to EN 60669-1 standards with an Electrocod of 0130, it operates in temperatures from -25 to +60 °C, supports a 650 °C Glow Wire Test, and withstands 70 °C thermo-pressure with a ball. Submit the exact part number, quantity, and application requirements to request a quote for this warehouse item (85371098).
View product details →Gewiss
The Gewiss GW27831 is a watertight enclosure complete with a 1P 16 AX one-way switch rated at 250 V ac, featuring a grey RAL 7035 body, a transparent membrane door, and outer dimensions of 66x82x65 mm. Built to IP55 and insulation class II standards with stainless steel lid screws requiring a 0.8 NM tightening torque, this unit includes three side knockouts, one bottom knockout, and one Ø 23 hole with a cable gland. It complies with EN 60669-1 and operates within an installation temperature range of -25 to +60 °C, exhibiting a 650 °C glow wire test rating and 70 °C ball thermo-pressure performance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

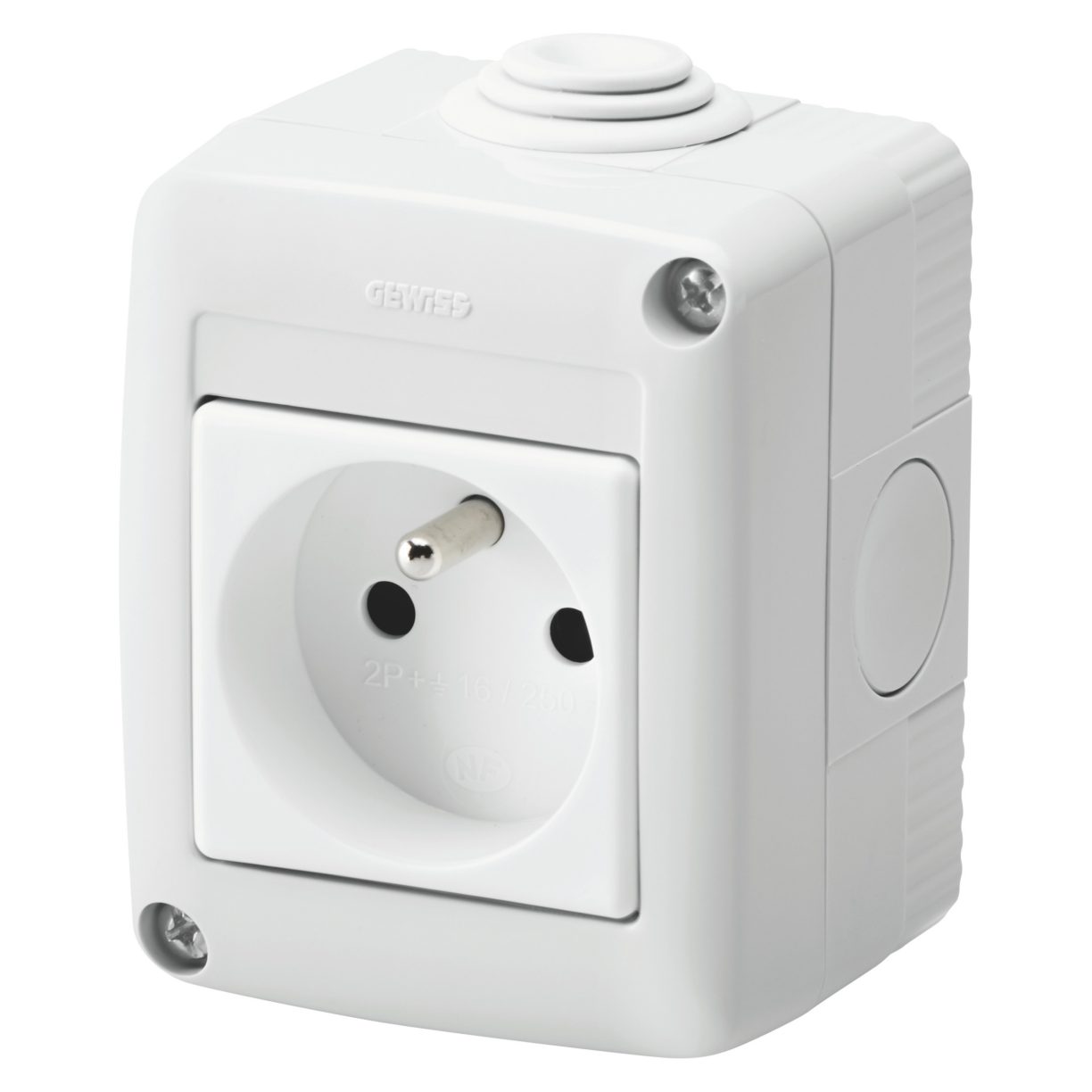

The Gewiss GW27815 is a protected enclosure complete with a 2P+E 16 A socket-outlet rated for 250 V ac, featuring a French standard configuration and an IP40 degree of protection in RAL 7035 grey. Measuring 66x82x55 mm with Class II insulation, it includes three side and one bottom removable knockout holes alongside one Ø 23 hole with a cable gland, secured by corrosion-resistant steel lid screws tightened to 0.8 NM. The unit operates within a temperature range of -25 to +60 °C, withstands a 650 °C glow wire test, and complies with IEC 60884-1 standards. Submit your exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

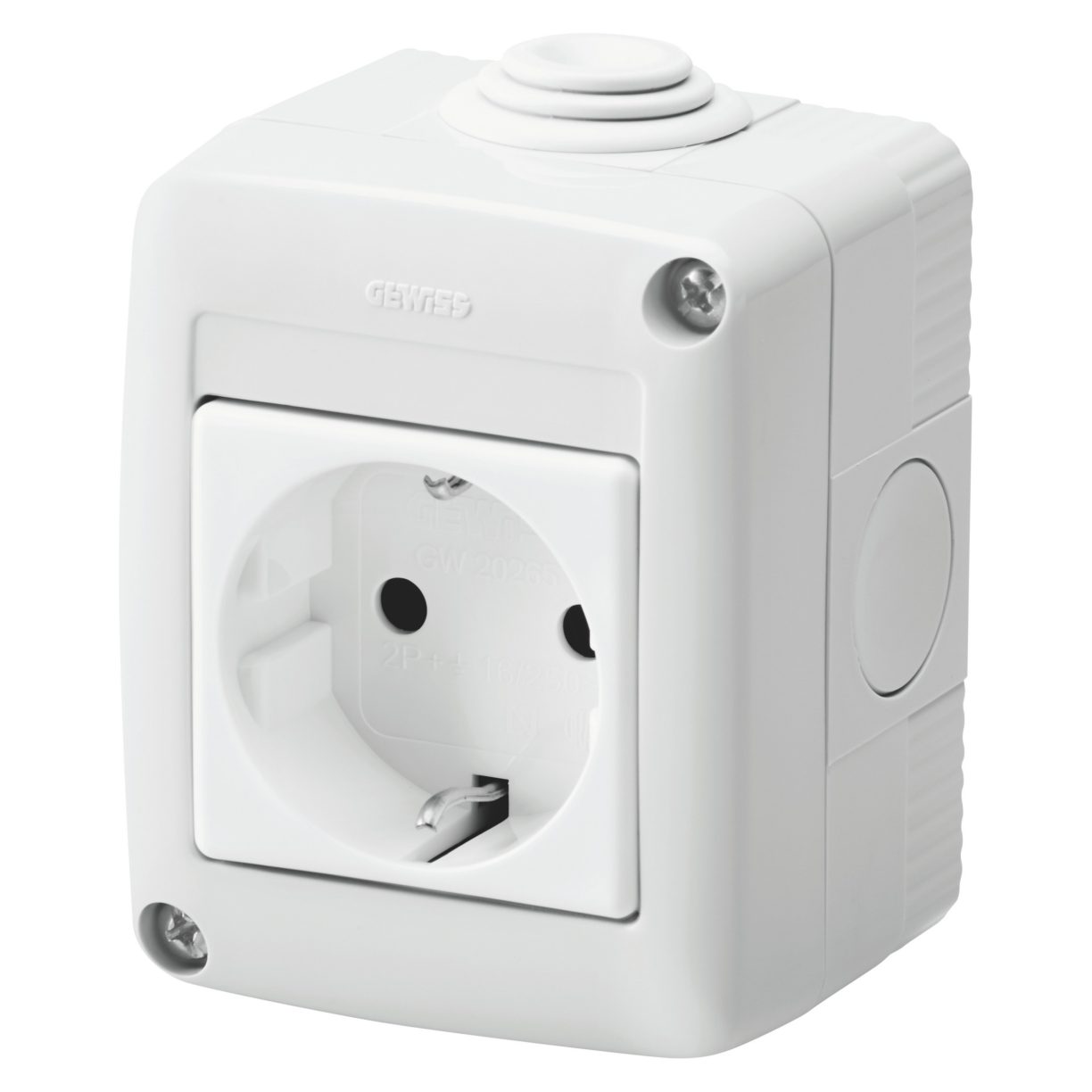

The Gewiss GW27814 is a protected enclosure complete with a 2P+E, 16 A socket-outlet rated for 250 V ac in a grey RAL 7035 finish. Measuring 66x82x55 mm with an IP40 degree of protection and insulation class II, this German standard unit features corrosion-resistant steel lid screws and three side knockout holes plus one bottom knockout hole of Ø23 mm. It includes one Ø 23 hole with a cable gland, is built for an installation temperature range of -25 to +60 °C, and complies with IEC 60884-1 standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

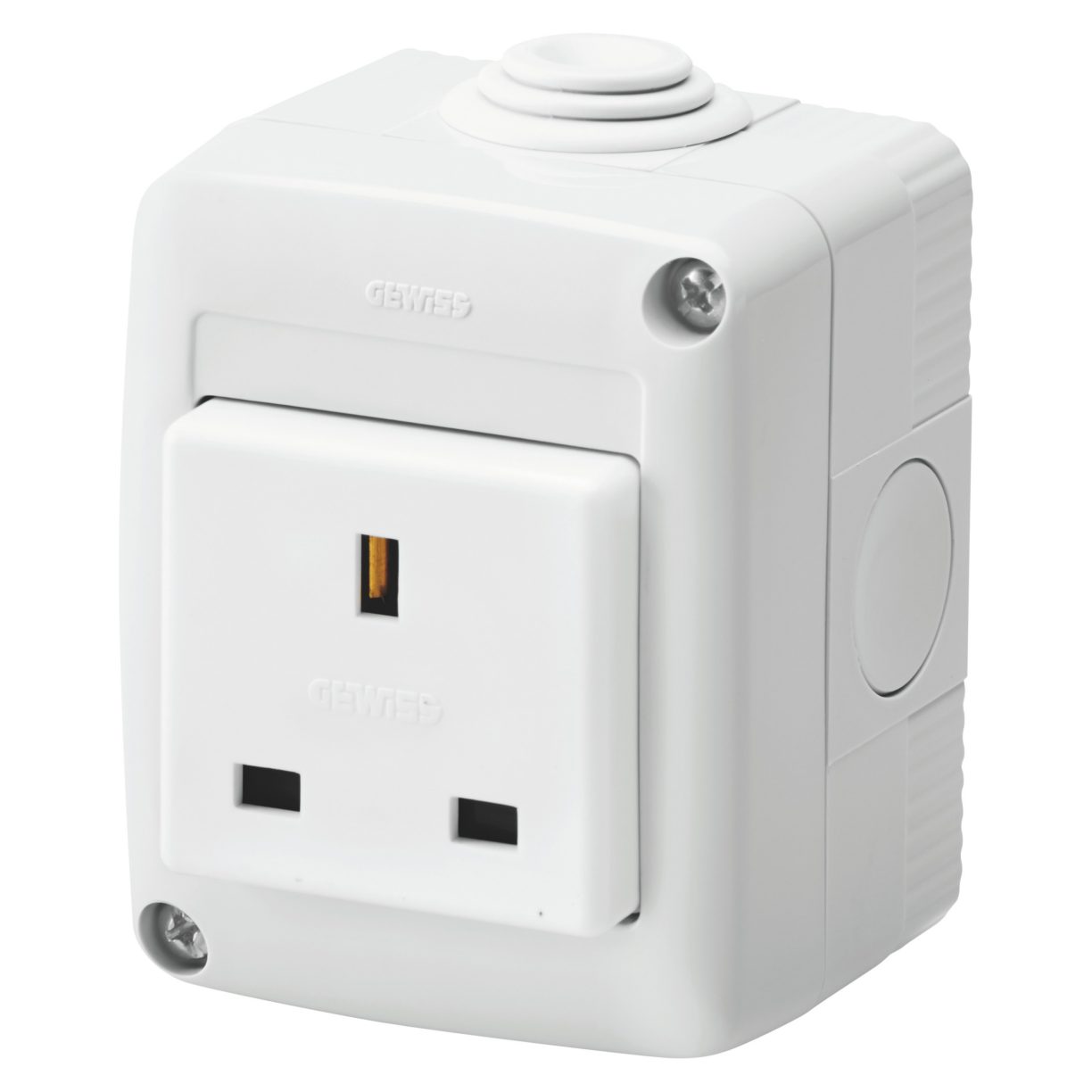

The Gewiss GW27813 protected enclosure comes complete with a 2P+E 13 A socket-outlet rated for 250 V ac and built to British Standard specifications. Measuring 66x82x55 mm in RAL 7035 grey, this Class II insulated unit features an IP40 rating, corrosion-resistant steel lid screws, and four total Ø23 knockout holes with one included cable gland. It operates across an installation temperature range of -25 to +60 °C, supports a screw tightening torque of 0.8 NM, and complies with IEC 60884-1 standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

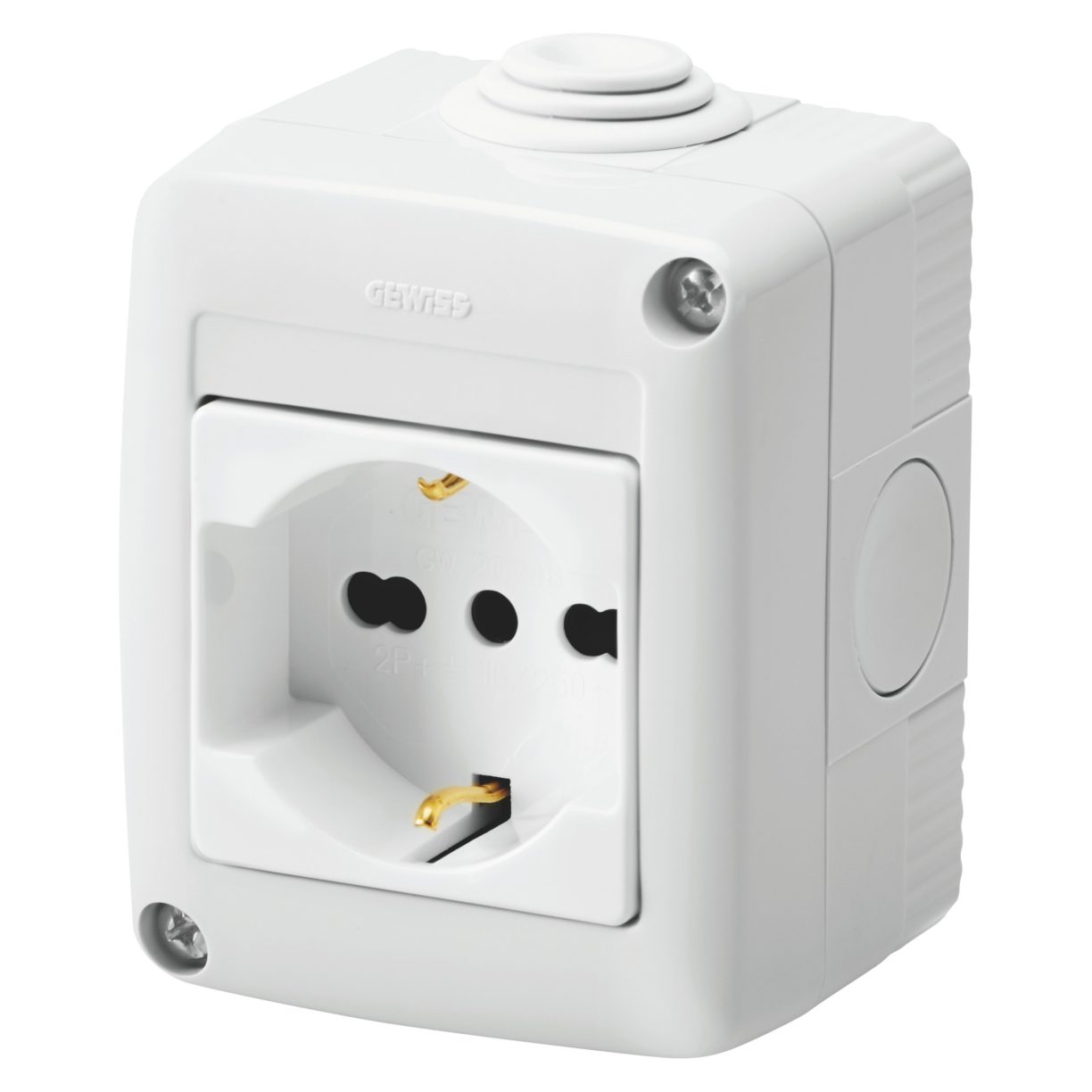

The Gewiss GW27812 is a protected enclosure complete with a dual amp 16 A, 2P+E socket adhering to Italian and German standards, operating at 250 V ac. Measuring 66x82x55 mm in grey RAL 7035, the unit features an IP40 degree, insulation class II, and three side and one bottom tool-removable knockout holes of Ø23 alongside one Ø23 hole with a cable gland. Constructed with corrosion-resistant steel lid screws requiring a 0.8 NM tightening torque, the housing withstands a 650 °C Glow Wire Test and 70 °C ball thermo-pressure within an installation temperature range of -25 to +60 °C in compliance with IEC 60884-1. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Gewiss

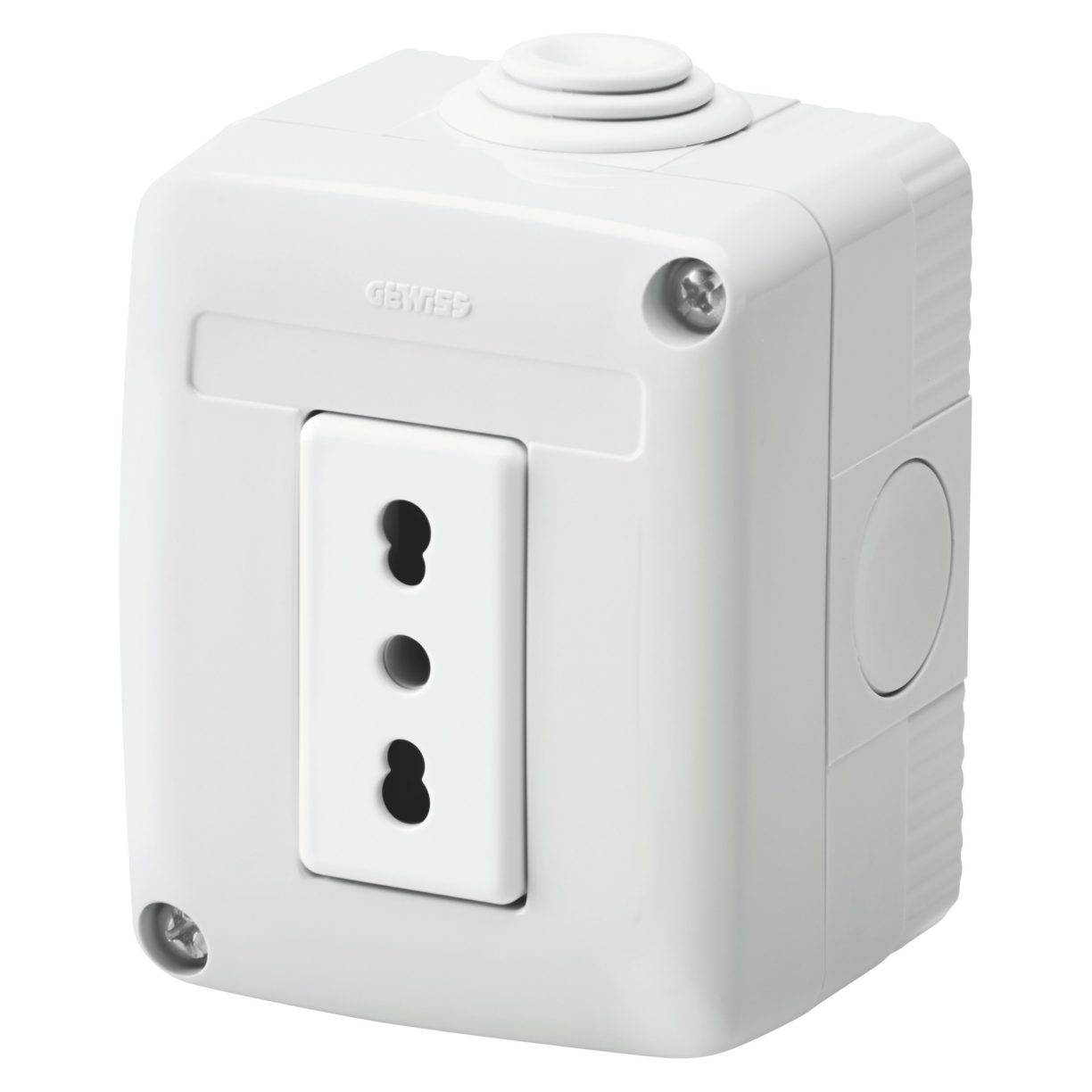

The Gewiss GW27811 is a protected enclosure featuring an integrated Italian standard 2P+E 16 A dual amp socket rated for 250 V ac. Measuring 66x82x55 mm with a grey RAL 7035 finish, this Class II insulated unit provides IP40 protection and incorporates three side and one bottom tool-removable knockout holes along with one cable gland aperture of 23 mm diameter. Constructed in accordance with IEC 60884-1, the housing operates within a temperature range of -25 to +60 °C and utilizes corrosion-resistant steel lid screws torqued to 0.8 NM. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

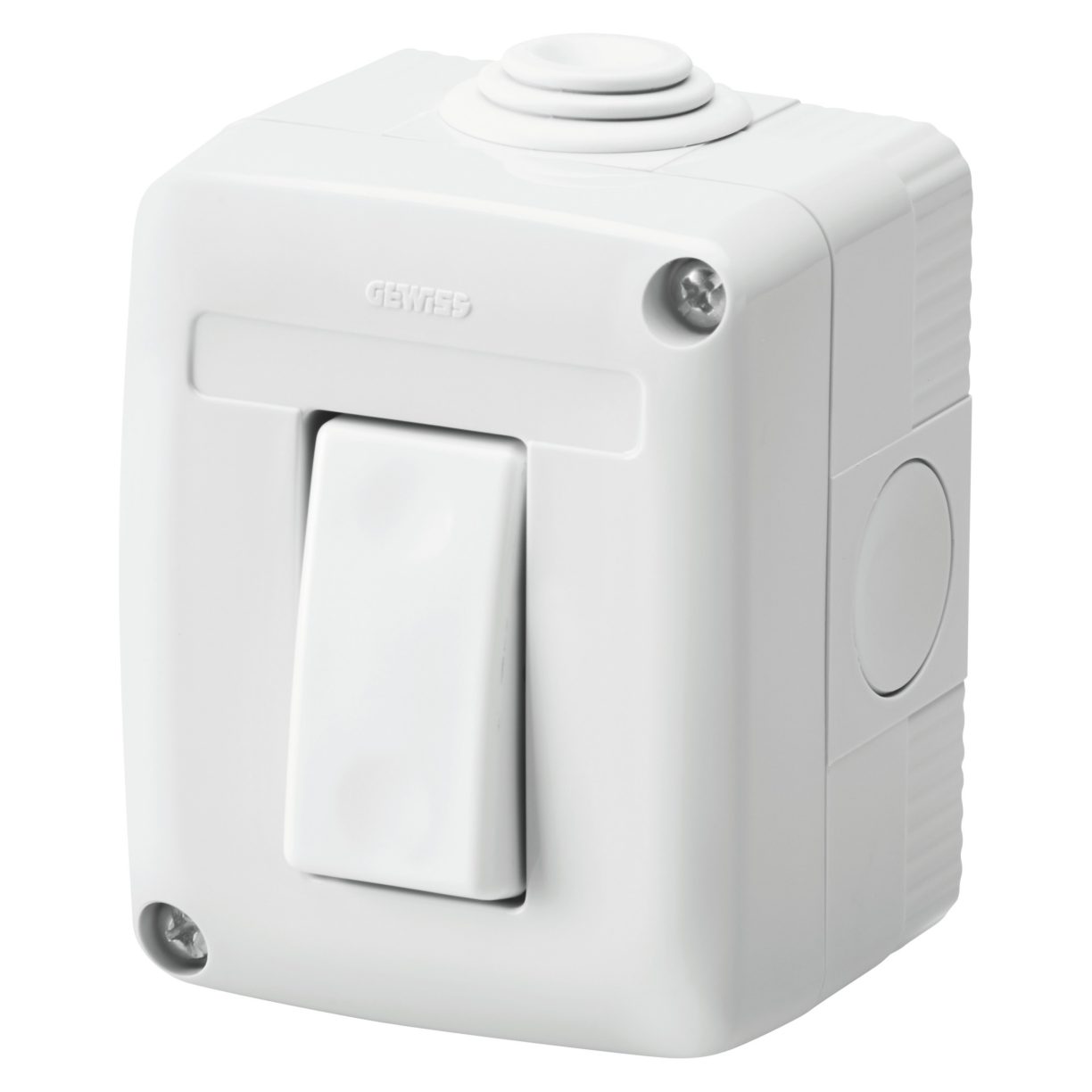

The Gewiss GW27805 is a protected enclosure complete with a 1P NO 10 A push-button rated for 250 V ac, supplied in a grey RAL 7035 finish with outer dimensions of 66x82x55 mm. Built to EN 60669-1 standards with IP40 protection and Insulation Class II, this unit features corrosion-resistant steel lid screws, three side knockout holes and one bottom knockout hole of Ø23 mm, plus one Ø 23 mm hole with a cable gland. It operates across an installation temperature range of -25 to +60 °C, exhibits a 650 °C Glow Wire Test rating, and is classified under Electrocod 0130 and Ware Number 85365080. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this item.
View product details →
Gewiss

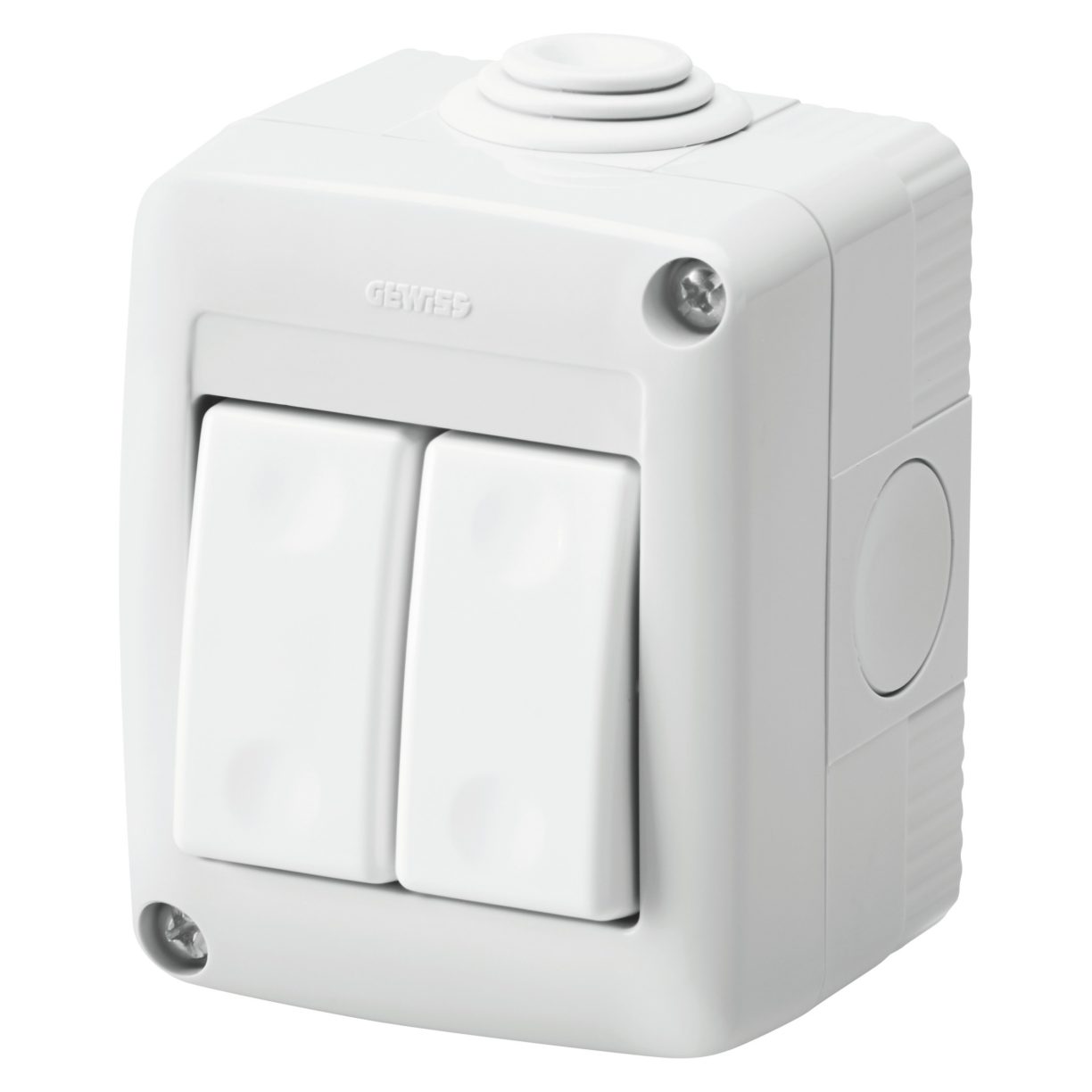

The Gewiss GW27804 is a protected enclosure complete with two 1P 16 AX two-way switches rated for 250 V ac, supplied in a RAL 7035 grey color with outer dimensions of 66x82x55 mm. Built to EN 60669-1 standards with Insulation Class II and an IP40 degree of protection, the unit features corrosion-resistant steel lid screws, three side knockout holes, one bottom knockout hole, and one Ø 23 hole with a cable gland. Operating within an installation temperature range of -25 to +60 °C, this hardware incorporates a 650 °C glow wire test rating and 70 °C thermo-pressure ball test specification. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Gewiss
The Gewiss GW27803 is a protected enclosure complete with system devices featuring a 1P 16 AX two-way switch rated for 250 V ac. Built in grey RAL 7035 with outer dimensions of 66x82x55 mm, this IP40 insulation class II unit includes corrosion-resistant steel lid screws, a 0.8 NM screw tightening torque, and four Ø23 knockout holes with one pre-fitted cable gland. It operates within an installation temperature range of -25 to +60 °C, complies with EN 60669-1, and features a 650 °C glow wire test rating alongside a 70 °C thermo-pressure ball test. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Gewiss
The Gewiss GW27802 is a protected enclosure complete with a 2P 16 AX one-way switch rated for 250 V ac, supplied in a grey RAL 7035 housing with outer dimensions of 66x82x55 mm. Built to EN 60669-1 standards with an IP40 degree of protection and Insulation Class II, it features corrosion-resistant steel lid screws, three side and one bottom removable knockout holes of Ø23, and one Ø 23 hole with a cable gland. This unit operates within a temperature range of -25 to +60 °C, undergoing a 650 °C glow wire test and 70 °C thermo-pressure ball test with a 0.8 NM screw tightening torque. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Gewiss
The Gewiss GW27801 is a protected enclosure housing a 1P 16 AX one-way switch rated for 250 V ac, supplied in a Grey RAL 7035 finish with outer dimensions of 66x82x55 mm. Built to EN 60669-1 standards with an IP40 degree of protection and Insulation Class II, the unit features corrosion-resistant steel lid screws, three side knockout holes, one bottom knockout hole, and one Ø 23 hole with a cable gland. It operates within a temperature range of -25 to +60 °C, supports a screw tightening torque of 0.8 Nm, and exhibits a 650 °C glow wire test rating alongside a 70 °C ball thermo-pressure rating. Submit part number GW27801, required quantities, and application specifications to request a formal quote.
View product details →
Gewiss

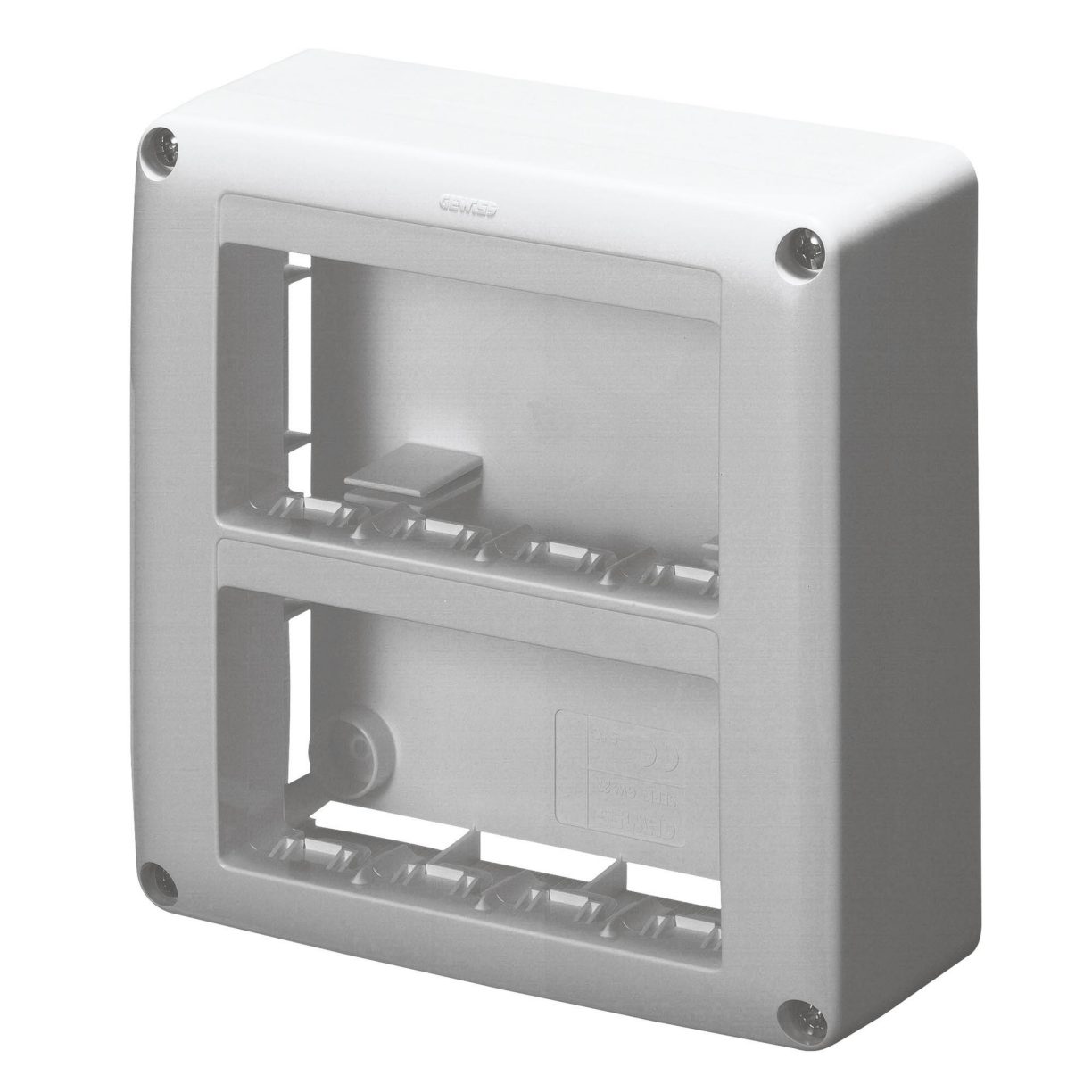

The Gewiss GW27628 is an 8-module self-supporting device box featuring two compartments, an anthracite RAL 7021 finish, and outer dimensions of 132x132x54 mm. Constructed with halogen-free materials providing IP40 ingress protection, IK07 mechanical resistance, and Insulation Class II, this unit includes two tool-removable 23 mm bottom knockout holes and corrosion-resistant steel lid screws tightened at 0.8 NM. It complies with EN 50085-2-1 standards, operates at installation temperatures between -5 and +60 °C, and undergoes the Glow Wire Test at 650 °C and thermo-pressure ball testing at 70 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

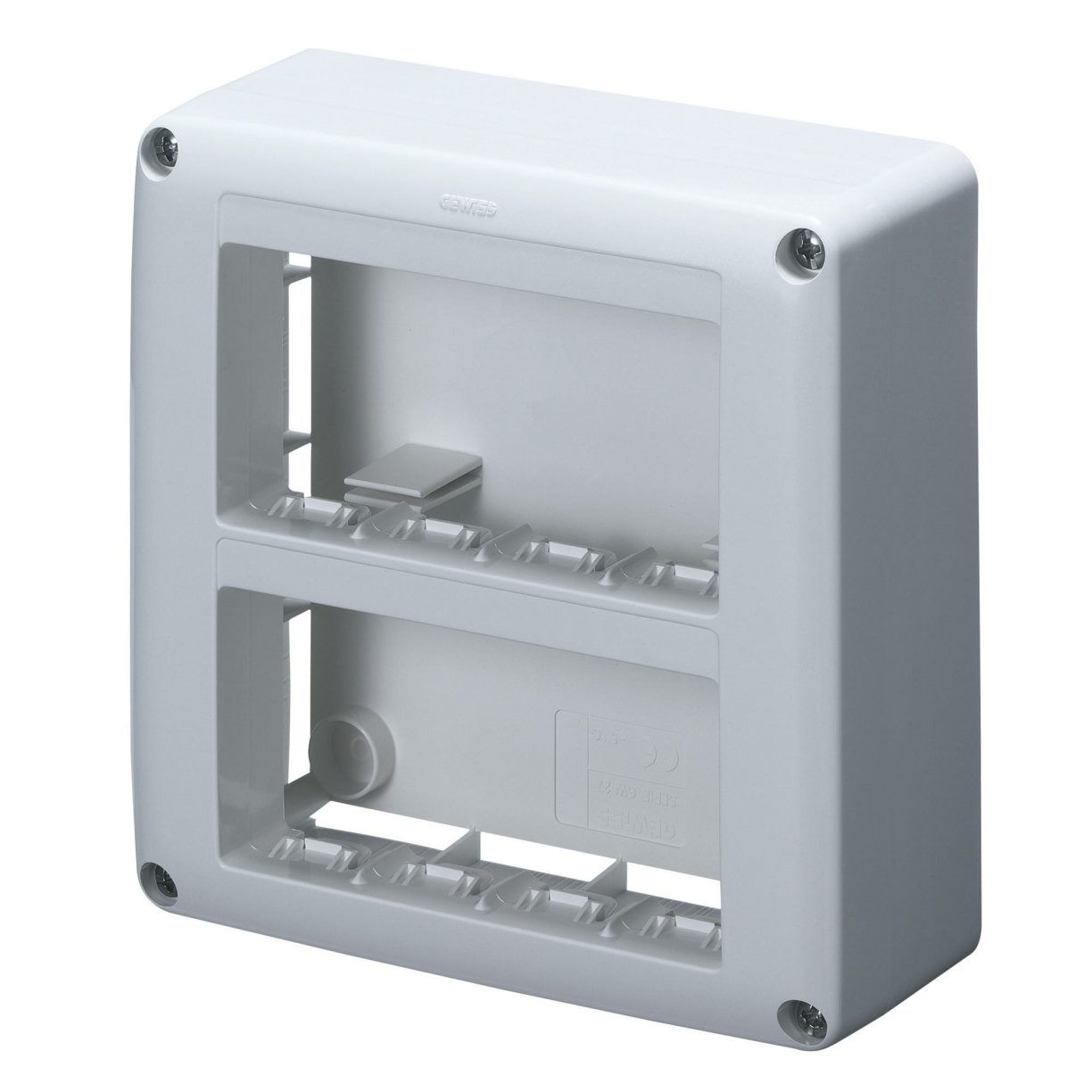

The Gewiss GW27627 is an 8-module self-supporting device box with a white RAL 9010 skirt and frame, measuring 132x132x54 mm with an IP40 rating and IK07 mechanical resistance. This halogen-free Class II enclosure features two tool-removable 23 mm bottom knockout holes, two compartment pre-arrangements, corrosion-resistant steel lid screws with a 0.8 Nm tightening torque, and complies with EN 50085-2-1 standards. It operates within an installation temperature range of -5 to +60 °C, sustaining a 650 °C Glow Wire Test and 70 °C ball thermo-pressure. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

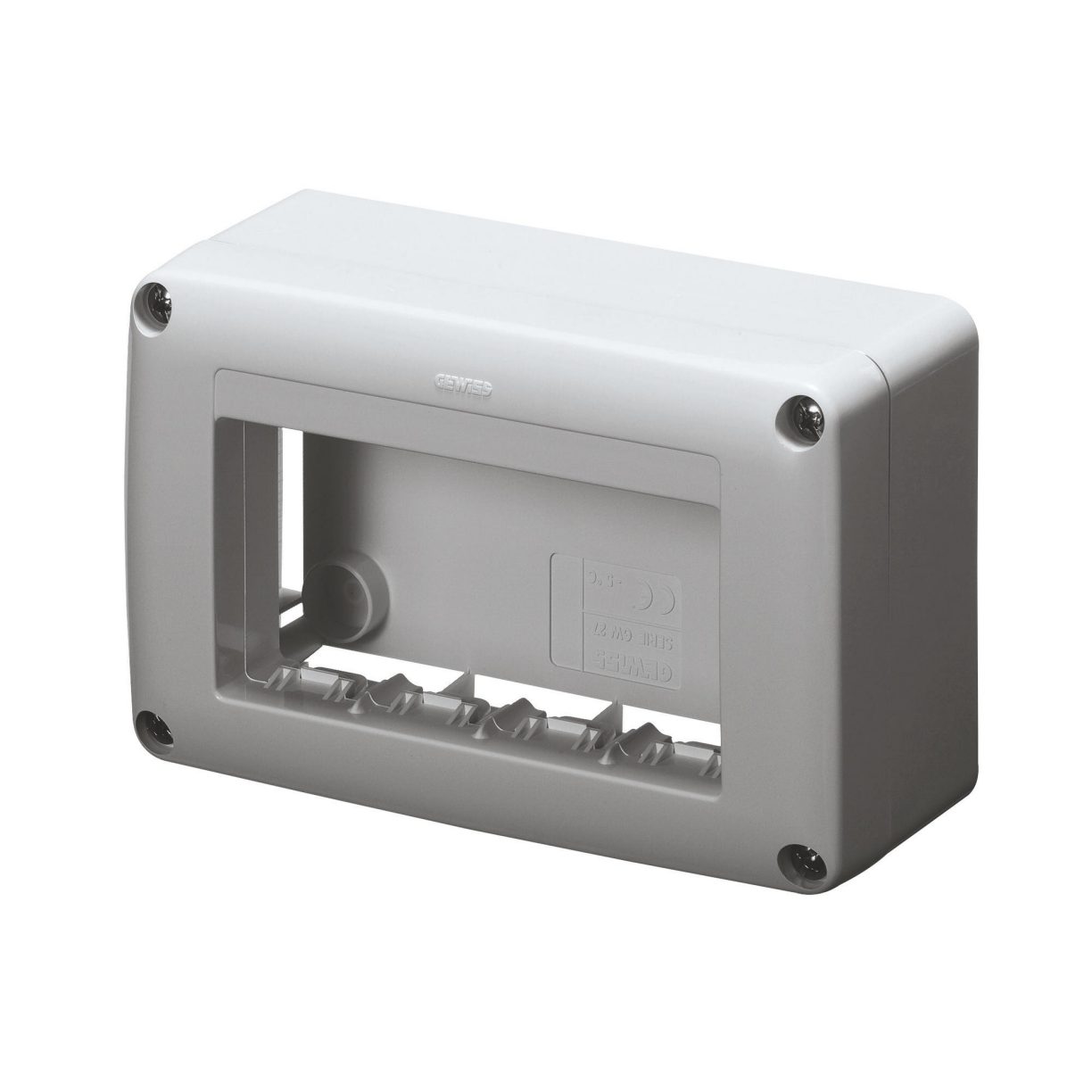

The Gewiss GW27622 is a self-supporting device box for system devices featuring a 4-module capacity, 4 gangs, and outer dimensions of 132x82x54 mm in anthracite RAL 7021. Constructed with halogen-free materials, it provides an IP40 degree of protection, Class II insulation, and IK07 mechanical resistance alongside one removable tool-type knockout hole of Ø23 on the bottom. The unit complies with EN 50085-2-1 standards, operates at installation temperatures between -5 and +60 °C, and incorporates corrosion-resistant steel lid screws requiring a 0.8 NM tightening torque. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss

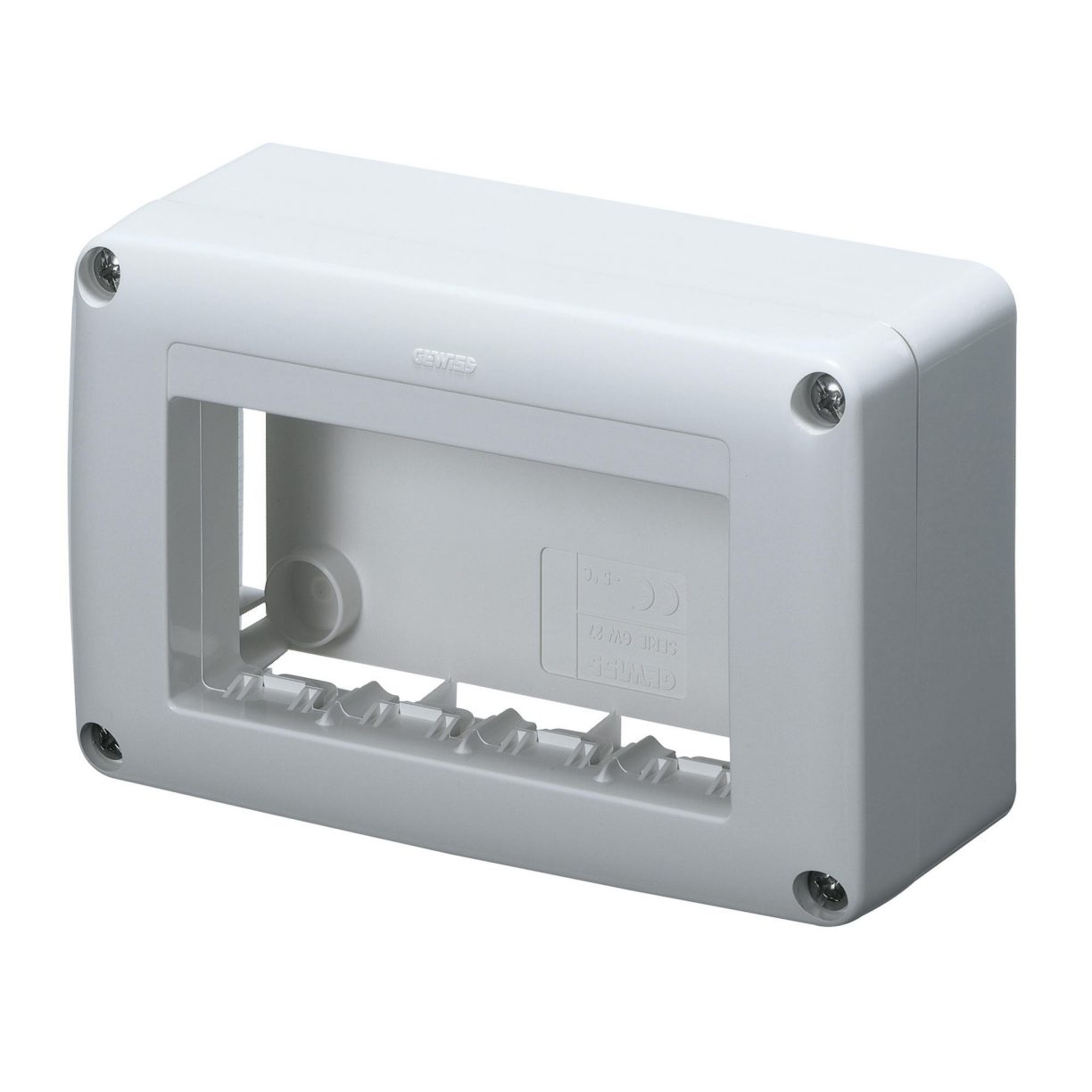

The Gewiss GW27621 is a 4-gang, 4-module self-supporting device box measuring 132x82x54 mm with an IP40 degree of protection and IK07 mechanical resistance. Built with halogen-free materials and finished in white RAL 9010, this Class II insulated enclosure features one removable bottom knockout hole with a 23 mm diameter, corrosion-resistant steel lid screws requiring 0.8 Nm tightening torque, and one compartment pre-arrangement. It complies with EN 50085-2-1 standards, supporting an installation temperature range of -5 to +60 °C, a Glow Wire Test rating of 650 °C, and a ball thermo-pressure threshold of 70 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

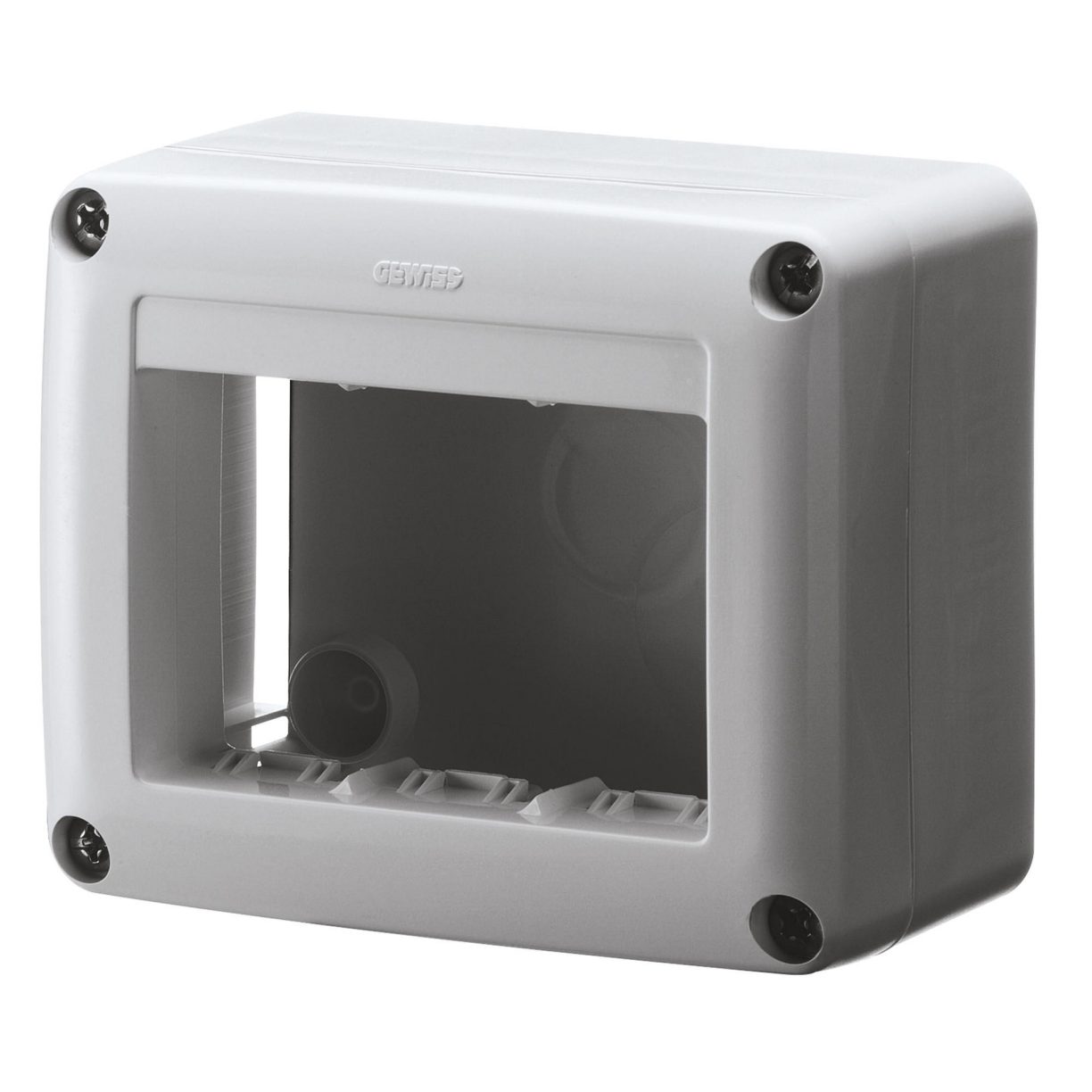

The Gewiss GW27616 is a 3-gang, 3-module self-supporting device box measuring 99x82x54 mm with an IP40 degree of protection and IK07 mechanical resistance. Built in anthracite RAL 7021 halogen-free material, it features a single tool-removable bottom knockout hole of 23 mm diameter, corrosion-resistant steel lid screws requiring a 0.8 NM tightening torque, and compliance with EN 50085-2-1. This Class II component operates at installation temperatures between -5 and +60 °C, supports a 650 °C Glow Wire Test, and withstands 70 °C thermo-pressure with ball testing. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

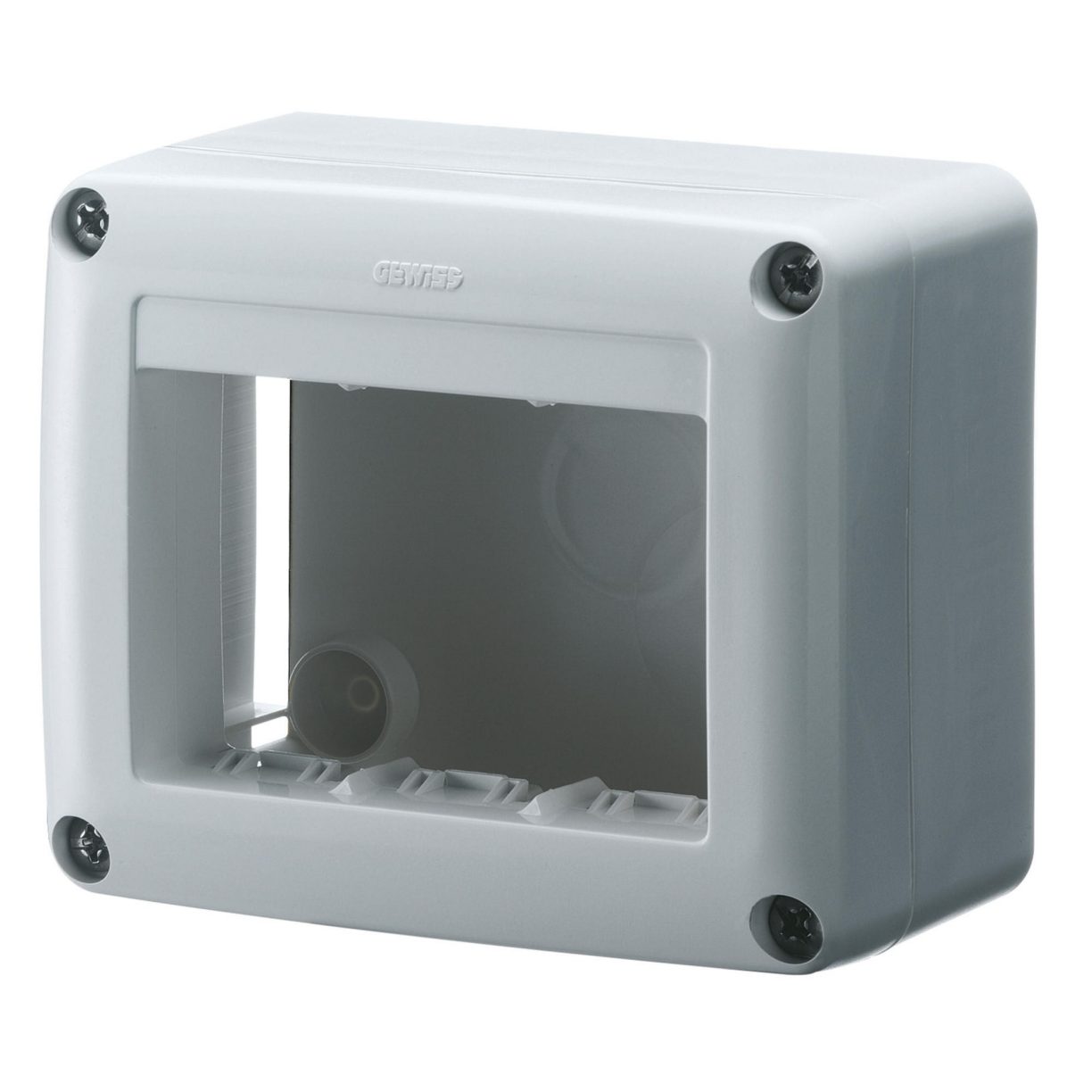

The Gewiss GW27615 is a white RAL 9010 self-supporting device box measuring 99x82x54 mm, featuring 3 modules, 3 gangs, and 1 bottom knockout hole of Ø23 mm that is removable with a tool. This halogen-free component achieves an IP40 degree of protection, Class II insulation, IK07 mechanical resistance, and complies with standard EN 50085-2-1 with corrosion-resistant steel lid screws tightened at 0.8 NM. It operates at installation temperatures from -5 to +60 °C, with a Glow Wire Test rating of 650 °C and thermo-pressure ball rating of 70 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

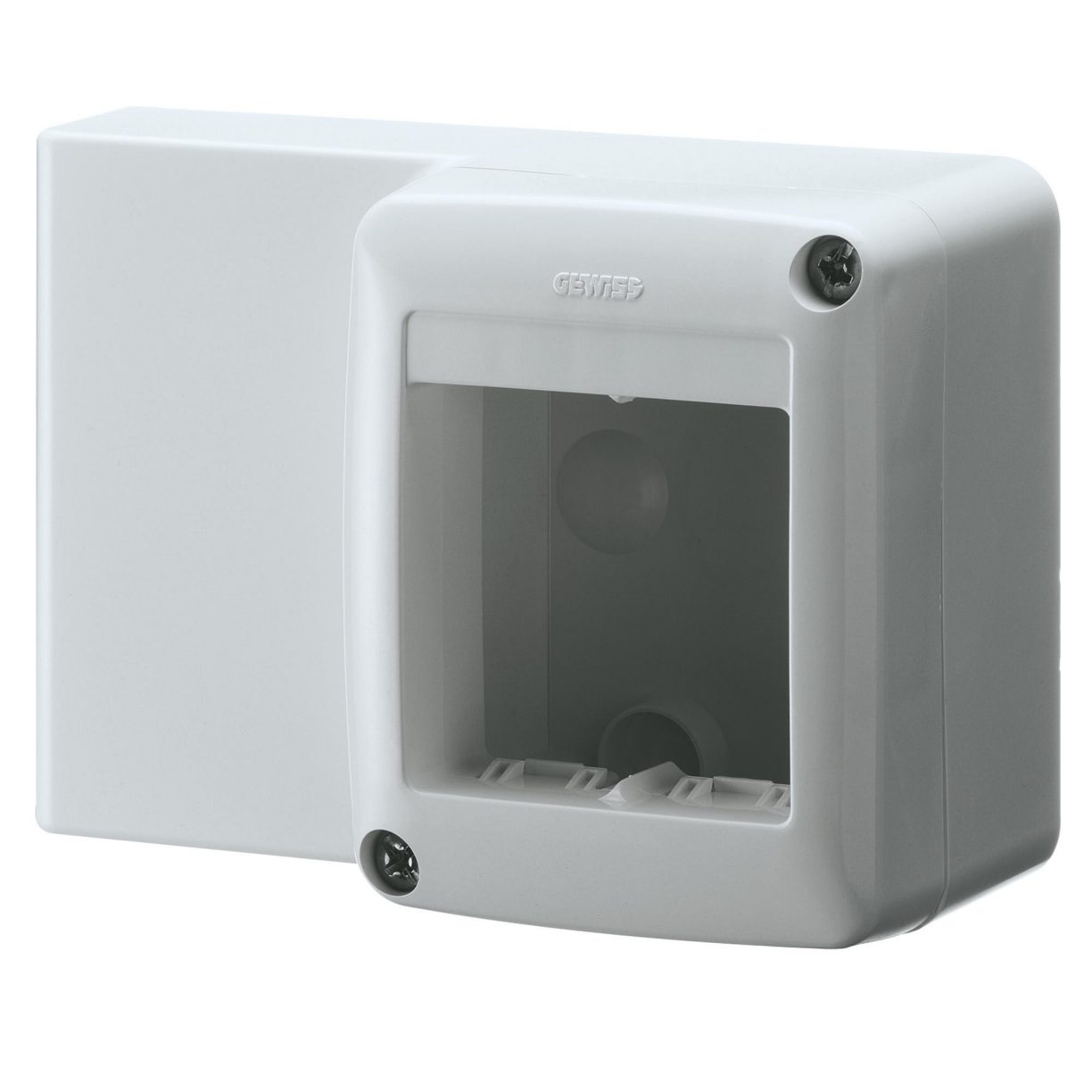

The Gewiss GW27609 is a self-supporting device box for system devices designed for mini trunking, featuring a 2-module capacity and 2 gangs in a white RAL 9010 finish. This halogen-free enclosure measures 120x82x54 mm and incorporates one bottom knockout hole of Ø23 that is removable with a tool, corrosion-resistant steel lid screws requiring a 0.8 NM tightening torque, an IP40 degree of protection, Class II insulation, and IK07 mechanical resistance. Built to EN 50085-2-1 standards with a Glow Wire Test rating of 650 °C, ball thermo-pressure rating of 70 °C, and installation temperature range of -5 to +60 °C, it carries Electrocod 0212 and HS code 85381000. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
