Gewiss

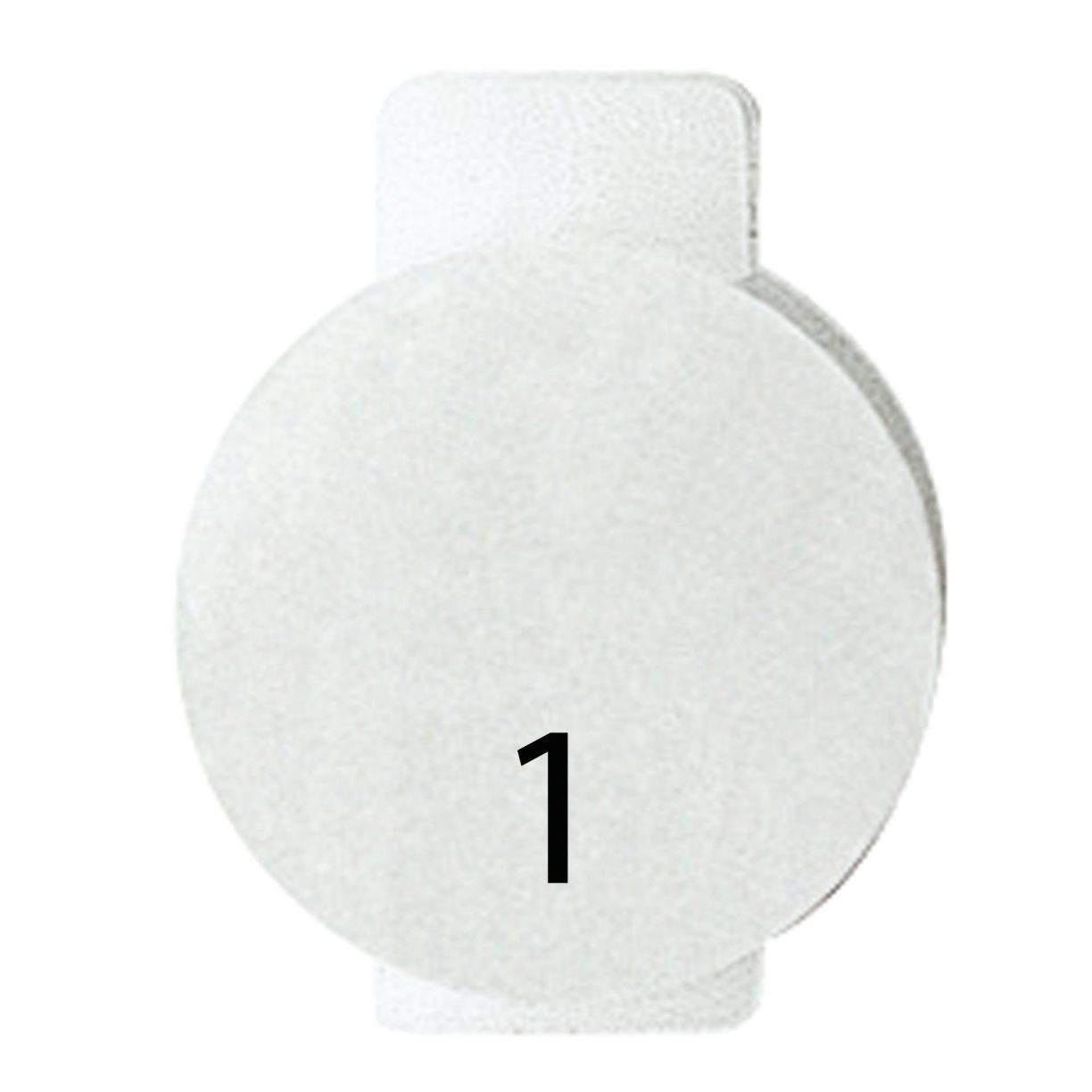

The Gewiss GW20561 is a lens with an illuminated symbol for command devices, featuring the symbol '1' suitable for numerical services. This component carries the HS code 85389099 and corresponds to the description 'One'. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

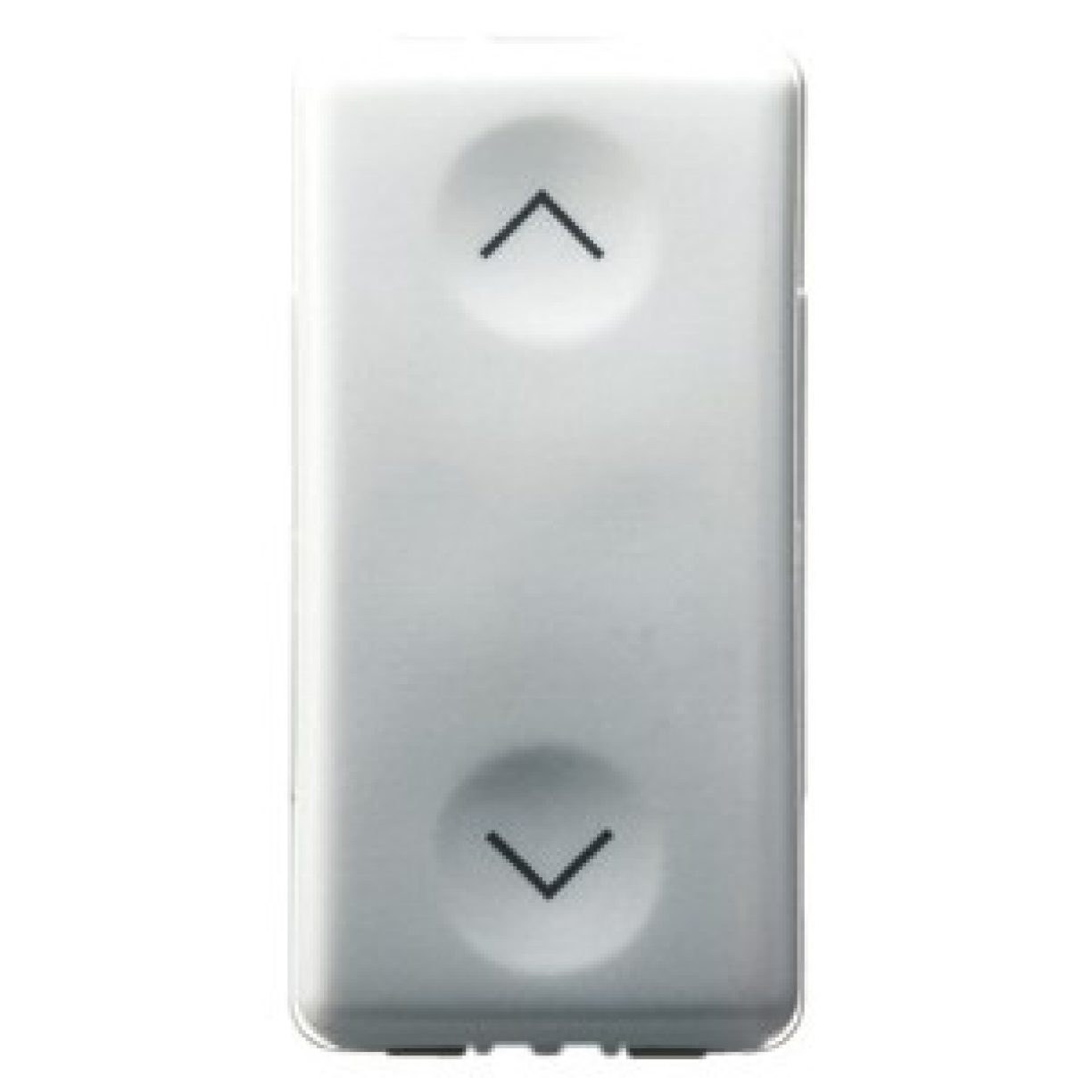

The Gewiss GW20560 is a 2P 10AX three-way switch rated at 250 V ac, featuring a neutral button key with an up-down symbol in a white technopolymer finish that occupies one system module. Constructed in accordance with EN 60669-1, this component delivers a dielectric strength of 2000 V at 50 Hz for 1 minute, an insulation resistance exceeding 5 MOhm, and a rated power capacity of 100 W for 230V LED lamps. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², while supporting 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Gewiss
The Gewiss GW20559 is a 1P 250 V ac 10 AX three-way switch featuring a neutral button key with an UP-DOWN symbol and a white technopolymer finish occupying one SYSTEM module. Built in accordance with EN 60669-1, it delivers a rated power of 100 W for 230 V LED lamps and is rated for 40,000 position changes at In 250 V ac cosφ=0.6. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a terminal grip exceeding 50 N on cable traction. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

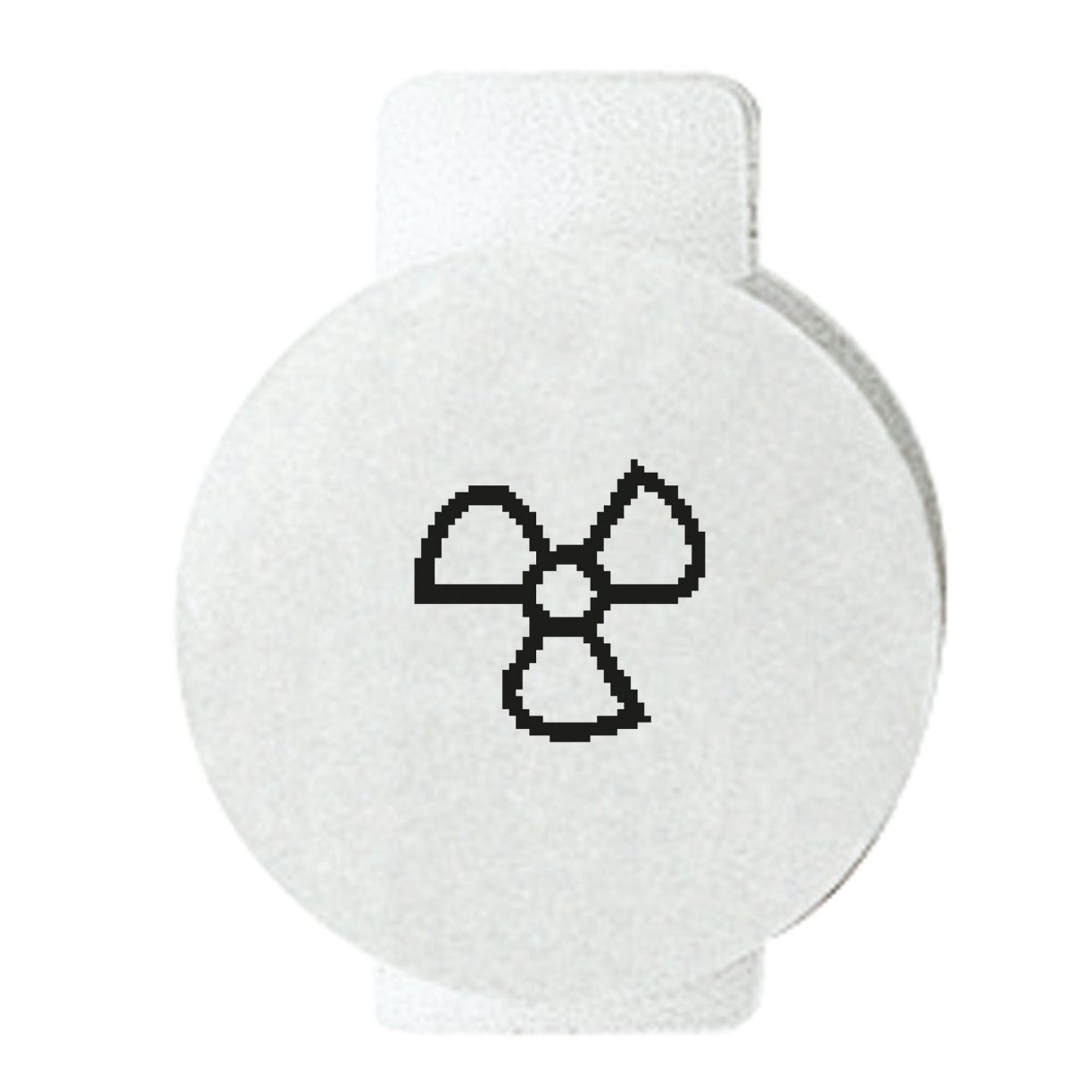

The Gewiss part number GW20550 is a lens with an illuminated symbol designated for command devices used in technical services and ventilation or extraction operations, classified under HS code 85389099. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

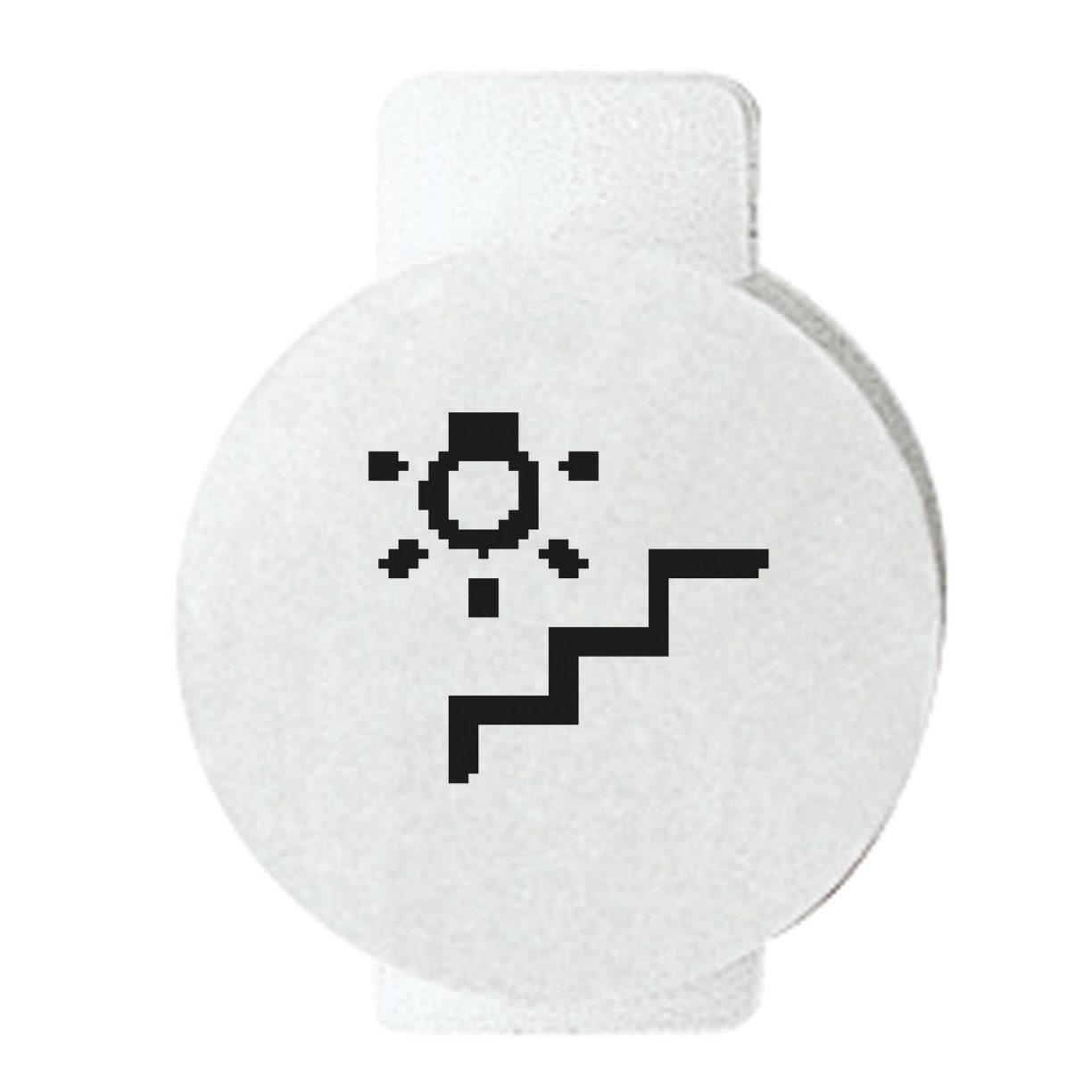

The Gewiss GW20540 lens with illuminated symbol is designed for command devices in general services applications. This component features an integrated stair light symbol for clear identification. The part corresponds to HS code 85389099. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

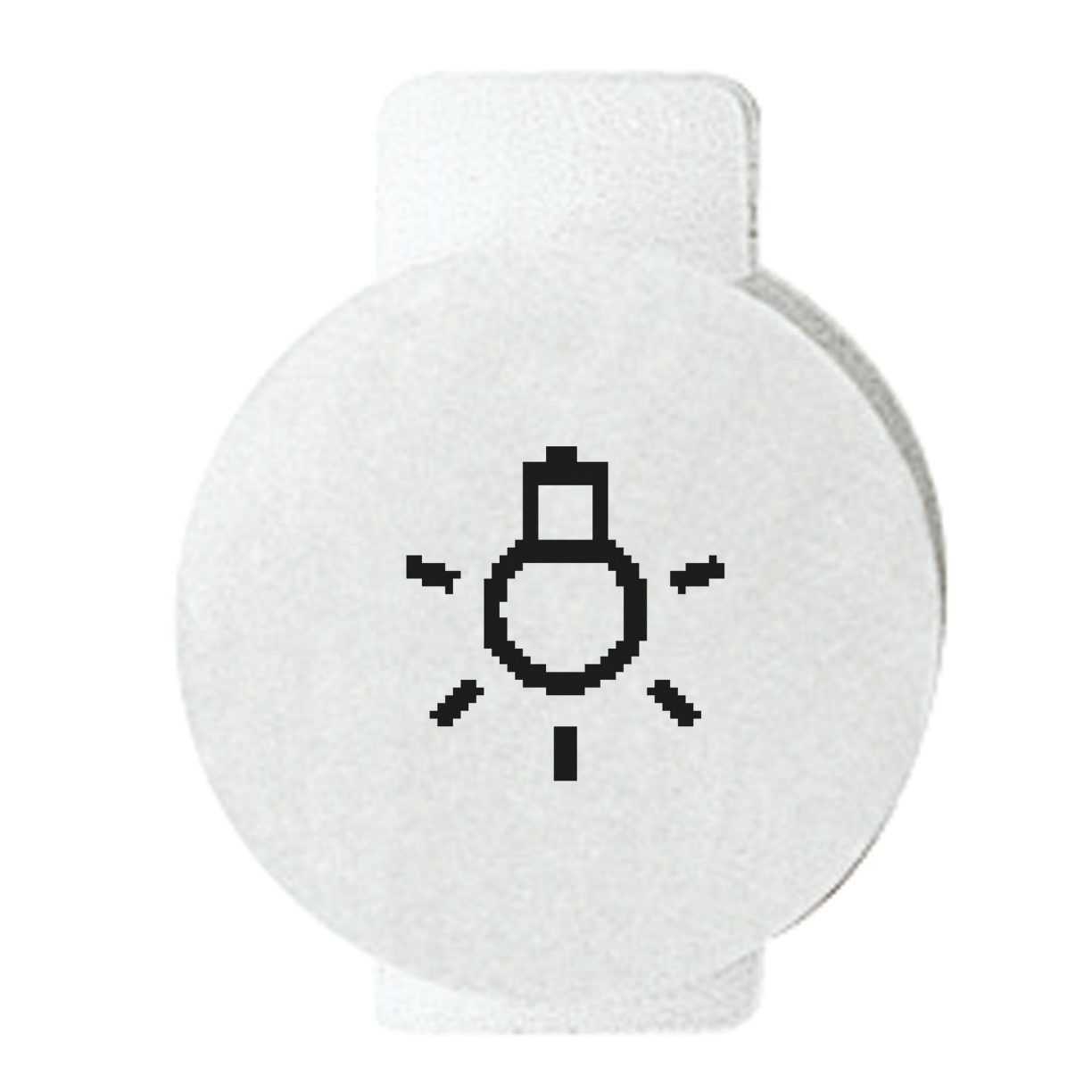

The Gewiss GW20539 is a lens with an illuminated symbol for command devices, featuring a light description and a light symbol. This component is suitable for general services under HS code 85389099. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Gewiss

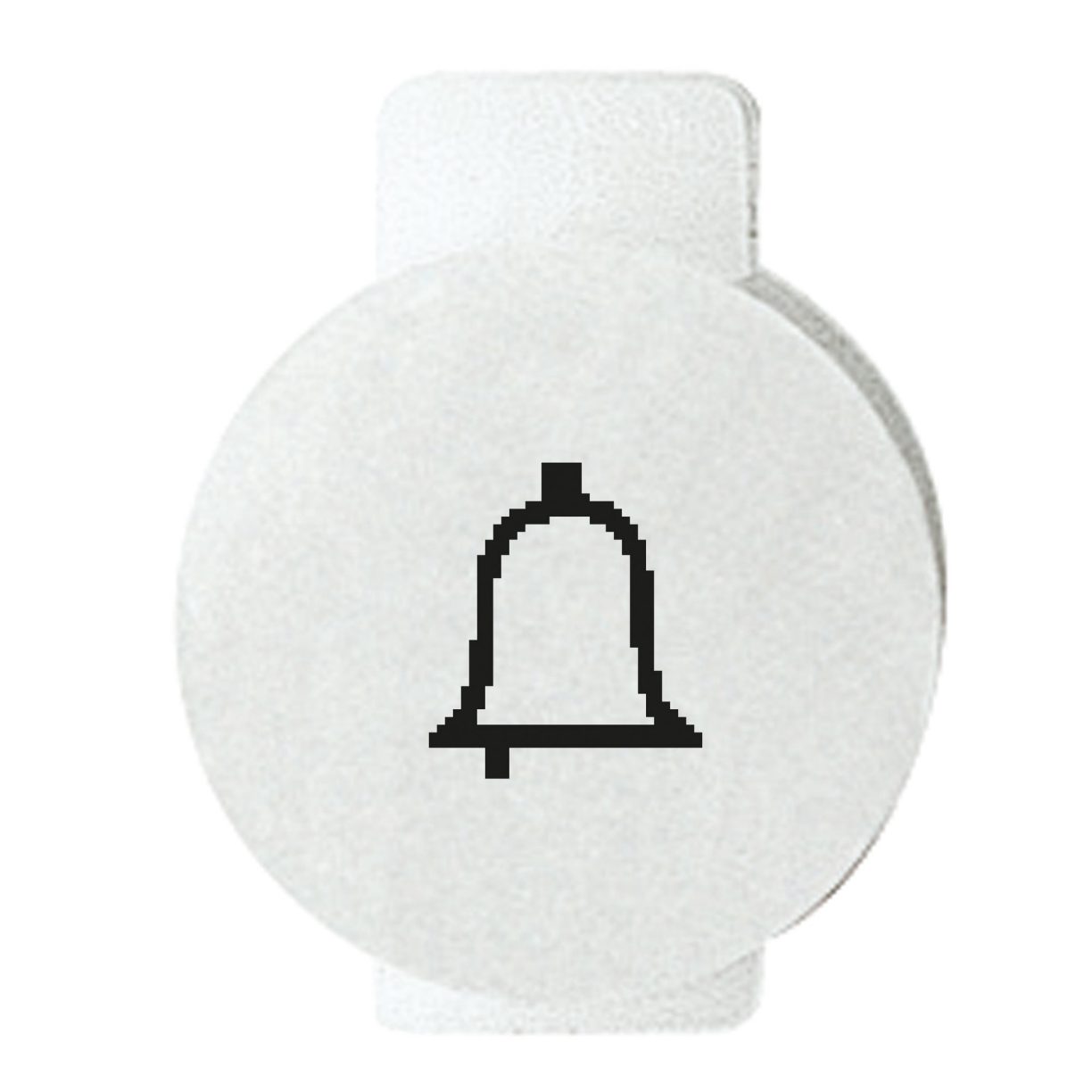

The Gewiss GW20538 is a lens with an illuminated symbol for command devices, featuring a bell description and a bell symbol suitable for general services. This component corresponds to HS code 85389099. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

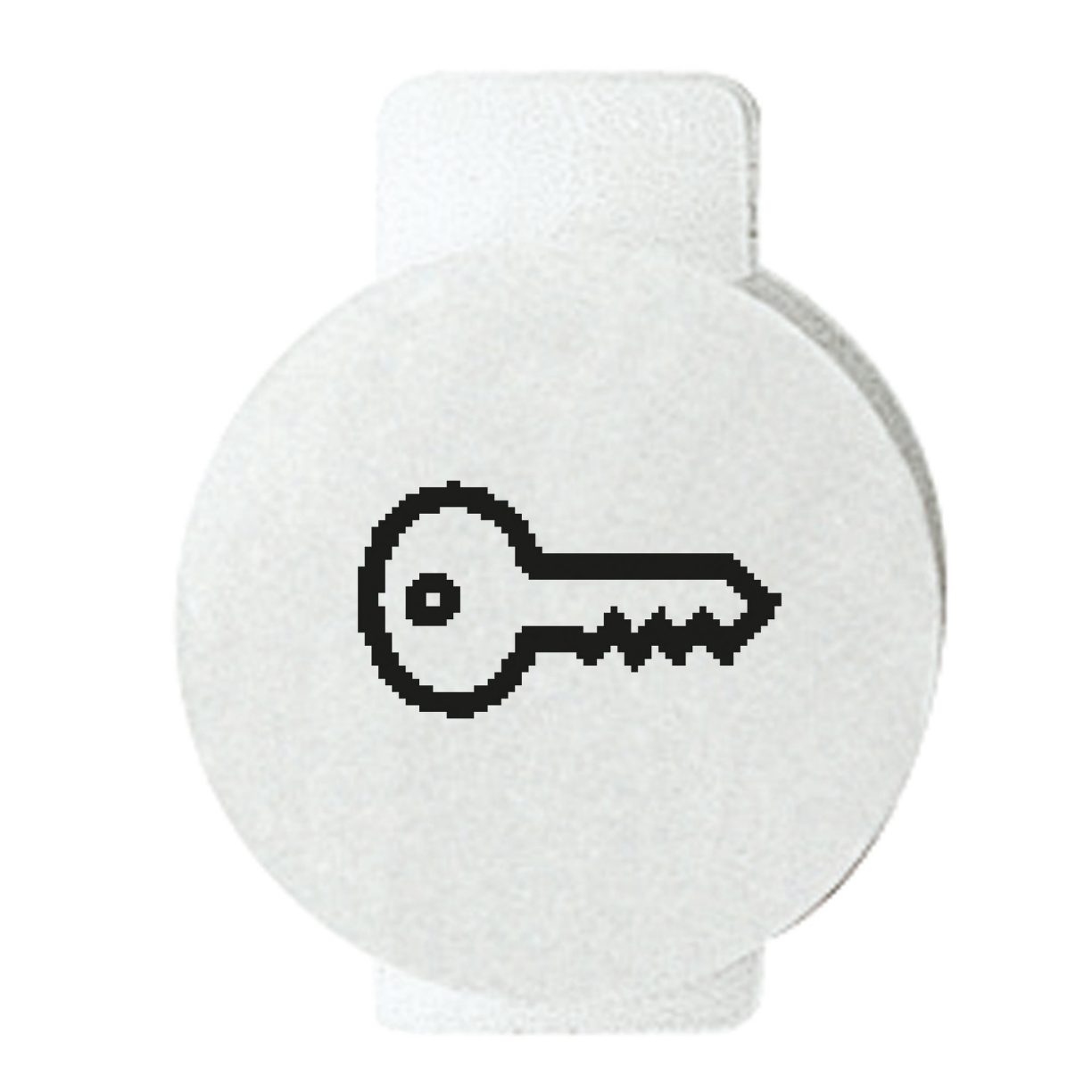

The Gewiss GW20537 is a lens with an illuminated symbol for command devices, featuring an open door description and a key symbol suitable for general services under HS code 85389099. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

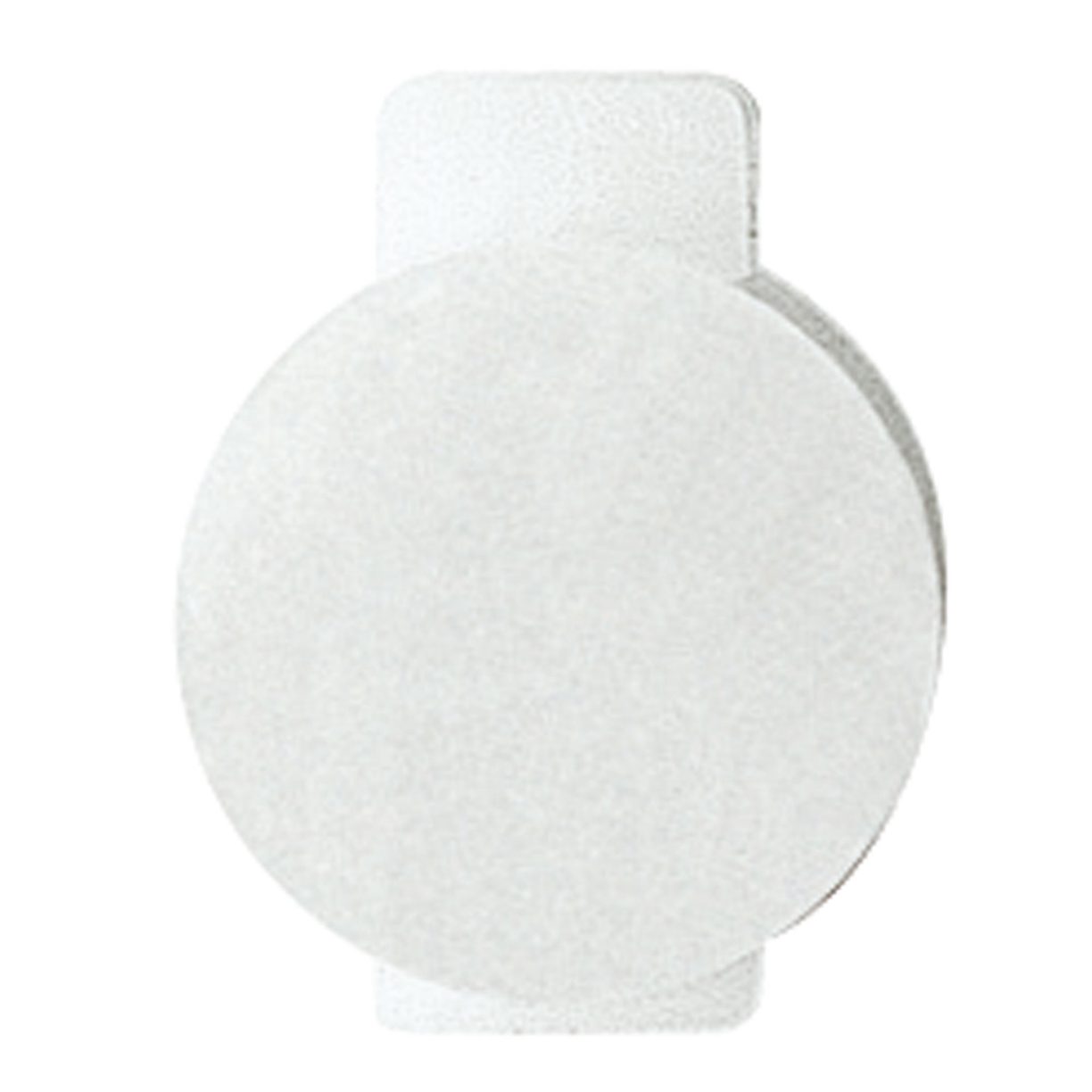

The Gewiss GW20533 is a neutral lens with an illuminated symbol for command devices, cataloged under HS code 85389099. This component is suitable for general services applications. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss
The Gewiss GW20531 is a 1P NC 10 A illuminable push-button rated for 250 V ac, featuring a white technopolymer construction with a replaceable neutral lens taking up 1 SYSTEM module. Built in accordance with EN 60669-1, this component delivers a dielectric strength of 2000 V at 50 Hz for 1 minute, an insulation resistance exceeding 5 MOhm, and a mechanical endurance of 40,000 position changes at In 250 V ac cosφ=0.6. Secure wire termination is accomplished via screw terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², exhibiting a cable traction terminal grip above 50 N. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Gewiss

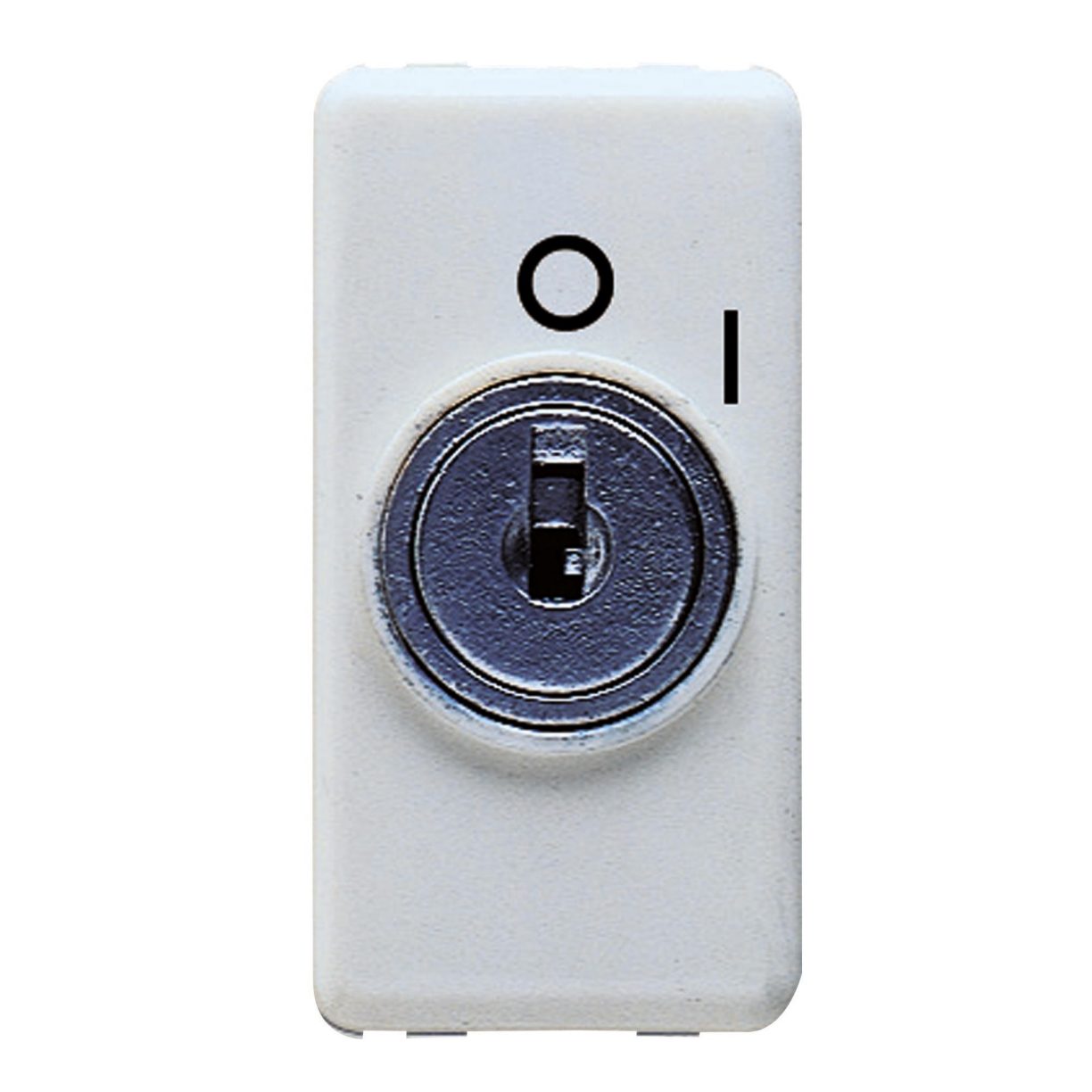

The Gewiss GW20530 is a white, 1-module technopolymer push-button switch featuring a key mechanism and 0/1 symbol markings, rated for 2P NO 10A at 250 V ac in accordance with EN 60669-1. This component incorporates screw wiring terminals that accept solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a prolonged operation rating of 40,000 position changes at In 250 V ac cosφ=0.6. Built to withstand an 850 °C glow wire test and 125 °C ball thermo-pressure, the unit provides 2000 V test voltage resistance and an insulation resistance greater than 5 MOhm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Gewiss
The Gewiss GW20529 is a 1P NO 10 A illuminable push-button rated for 250 V ac, featuring a white technopolymer construction with a replaceable neutral lens taking up 1 SYSTEM module. Built in accordance with EN 60669-1, it withstands a test voltage of 2000 V at 50 Hz for 1 minute and provides an insulation resistance greater than 5 MOhm. Equipped with screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², the switch endures 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Gewiss

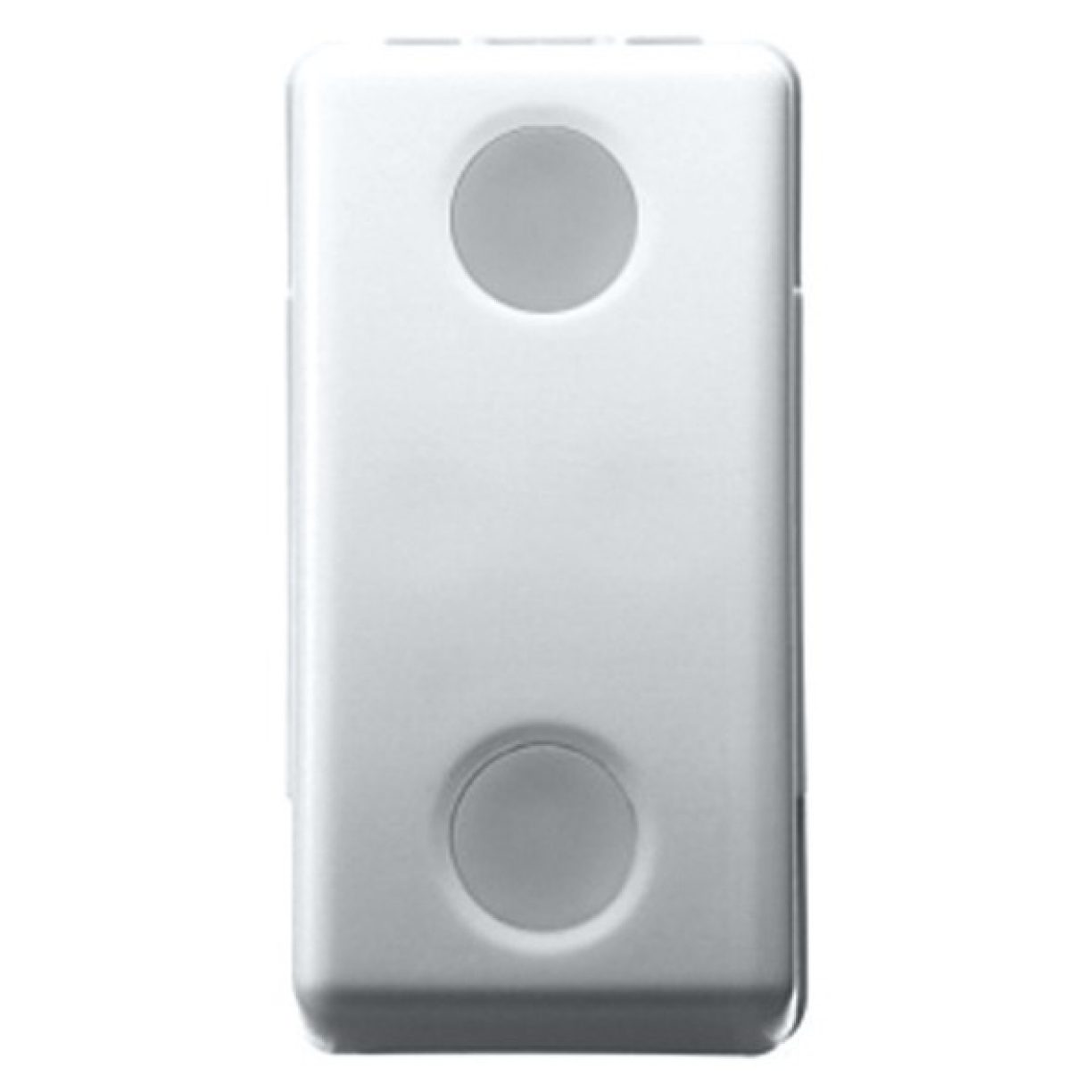

Engineered by Gewiss, the GW20528 is a 1P 10 AX three-way switch rated at 250 V ac featuring a replaceable neutral lens and white technopolymer construction. Complying with EN 60669-1, this 1-system module incorporates screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a rated power of 230V LED lamps at 100 W. The component endures 40,000 position changes at In 250 V ac cosφ=0.6, withstands a 2000 V test voltage for 1 minute, and maintains an insulation resistance greater than 5 MOhm alongside a ball thermo-pressure rating of 125 °C and Glow Wire Test of 850 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →
Gewiss
The Gewiss GW20527 is a 2-module, single-pole push-button rated for 250 V ac and 10 A featuring a normally open contact and an illuminable white button with a diffuser. Constructed from technopolymer with screw wiring terminals supporting solid and stranded cables, it complies with EN 60669-1 and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Submit part number GW20527, quantity, and application requirements to request a quote.
View product details →
Gewiss

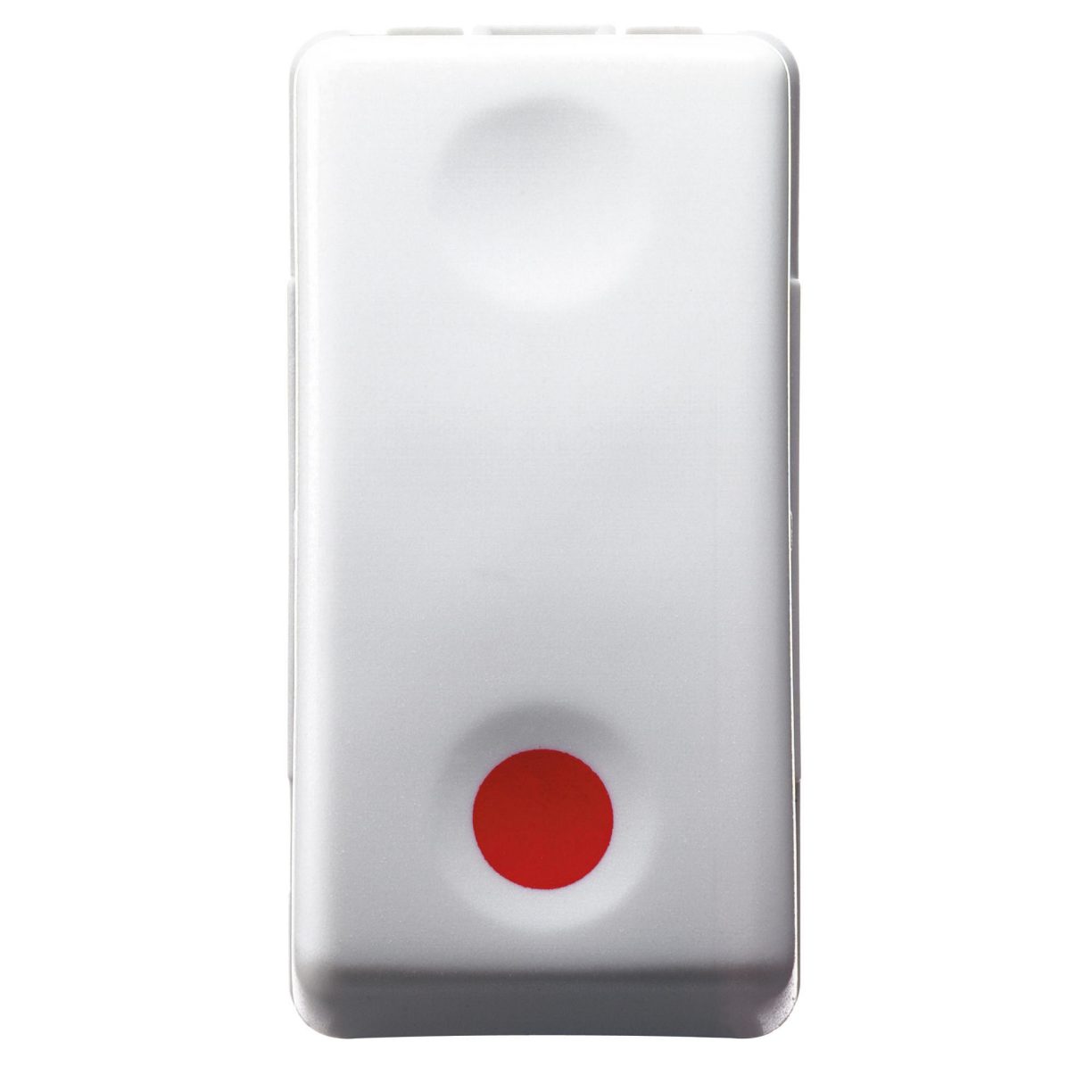

The Gewiss GW20523 is a 1-pole push-button switch rated at 250 V ac and 10 A, featuring a red Stop symbol on a white technopolymer body with one normally closed contact and one auxiliary normally open contact. Built to EN 60669-1 standards, this single-module device utilizes screw wiring terminals accommodating solid cables from 0.5 to 2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a durability rating of 40,000 position changes at In 250 V ac cosφ=0.6. Additional safety characteristics include an 850 °C Glow Wire Test rating, 125 °C ball thermo-pressure resistance, 2000 V dielectric strength at 50 Hz for one minute, insulation resistance greater than 5 MOhm, and terminal grip cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Gewiss

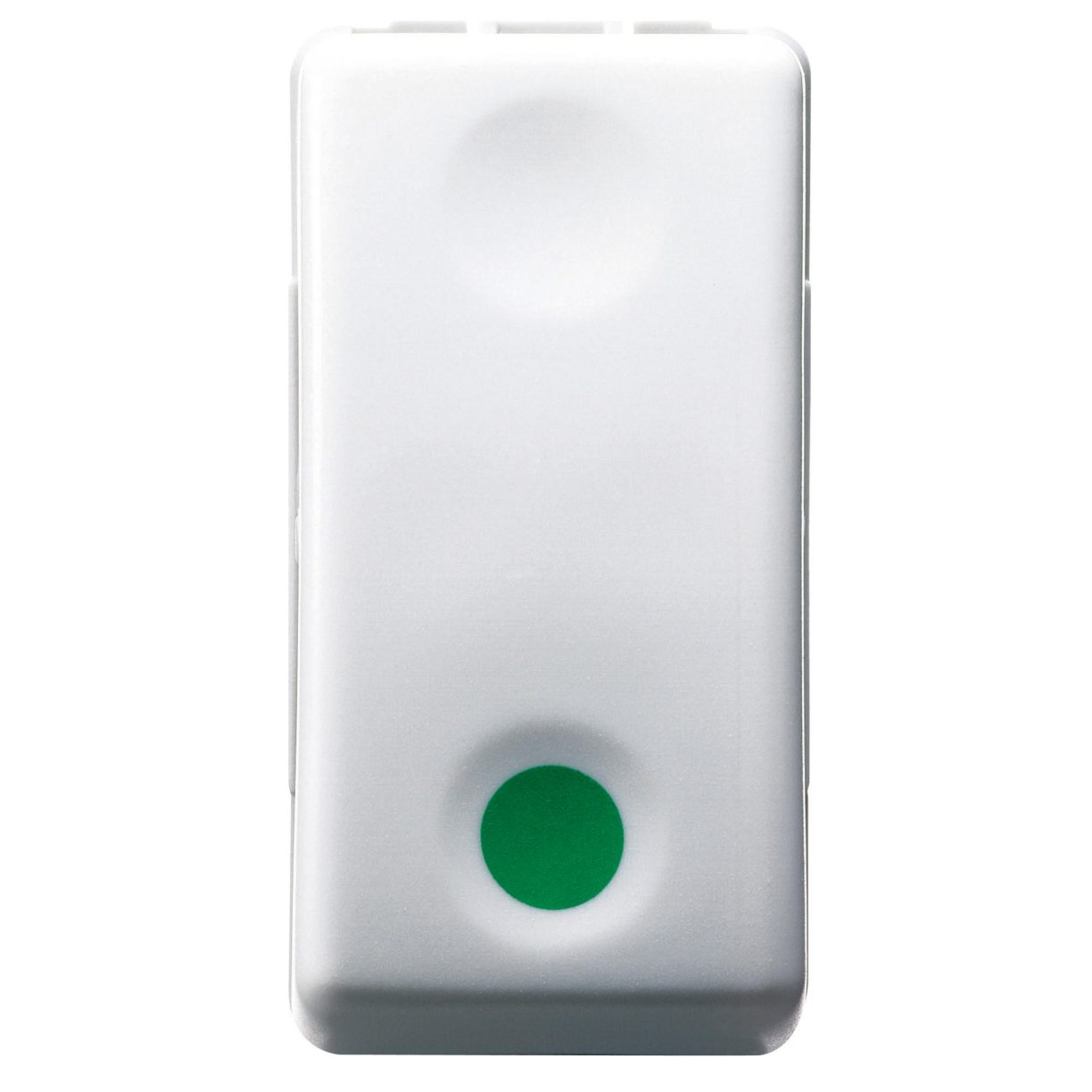

The Gewiss GW20522 is a 1-pole push-button switch rated at 250 V ac and 10 A, featuring a normally open contact alongside an auxiliary normally closed contact. Built from technopolymer occupying 1 SYSTEM module, this white component displays a green "Start" symbol and utilizes screw wiring terminals supporting solid cables from 0.5 to 2.5 mm² and stranded cables from 0.75 to 2x4 mm². It complies with EN 60669-1, offering 40,000 prolonged operations at In 250 V ac cosφ=0.6, a test voltage resistance of 2000 V at 50 Hz for 1 minute, and insulation resistance exceeding 5 MOhm. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

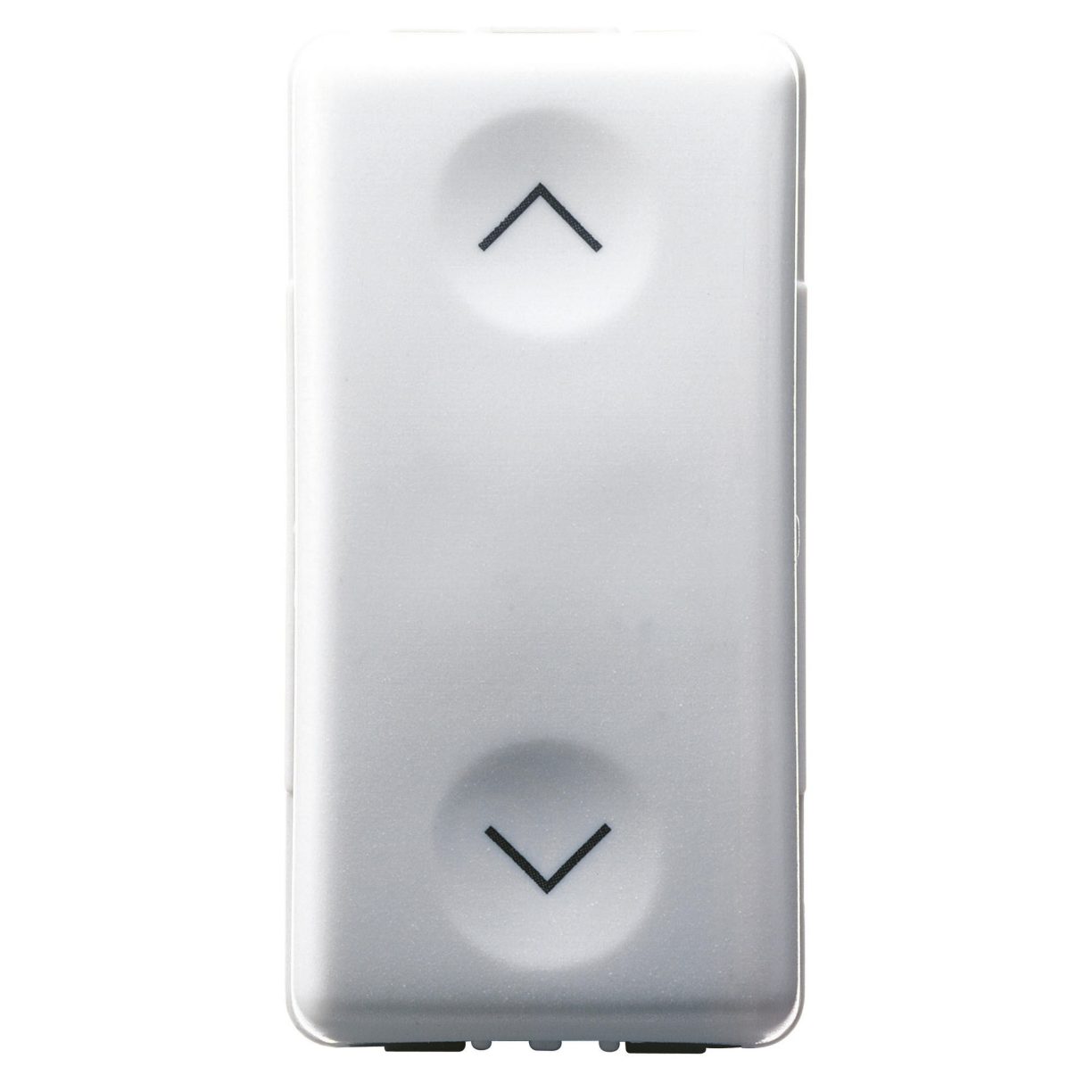

The Gewiss GW20521 is a 1P 250 V ac push-button featuring two normally open contacts, an interlock mechanism, and UP - DOWN symbols on a white technopolymer body occupying one system module. Built with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this component complies with EN 60669-1 and delivers a rated current of 10 A with a prolonged operation endurance of 40,000 position changes at In 250 V ac cosφ=0.6. Additional verified properties include a ball thermo-pressure rating of 125 °C, a glow wire test rating of 850 °C, an insulation resistance greater than 5 MOhm, and a test voltage resistance of 2000 V at 50 Hz for 1 minute. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

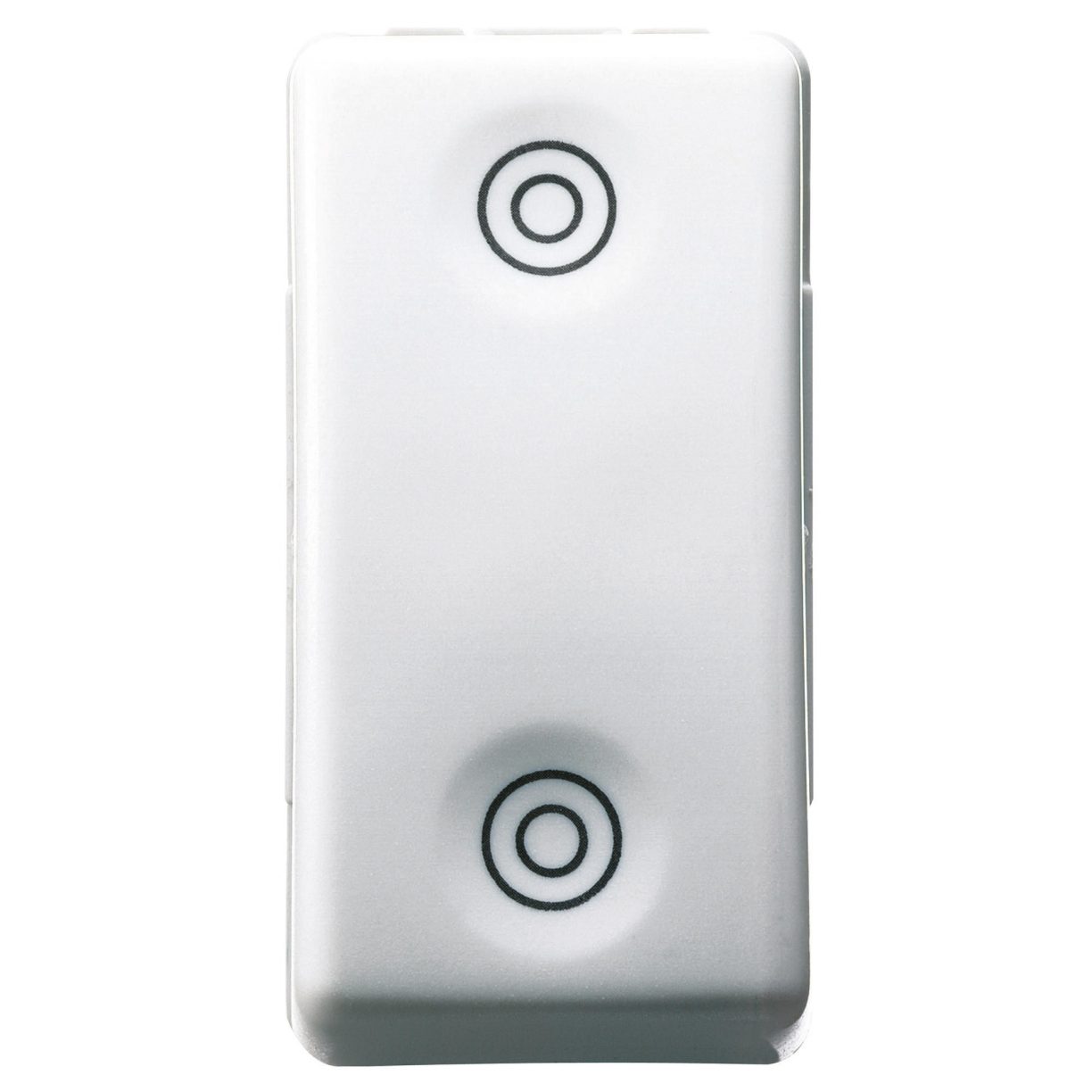

The Gewiss GW20520 is a 1P 250 V ac push-button featuring a 10 A rating, two normally open contacts, and an integrated mechanical interlock. Constructed from technopolymer with a white finish and double circles symbol, this single-module device utilizes screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Certified to EN 60669-1, the unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates insulation resistance greater than 5 MOhm, and delivers a rated operational lifespan of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss

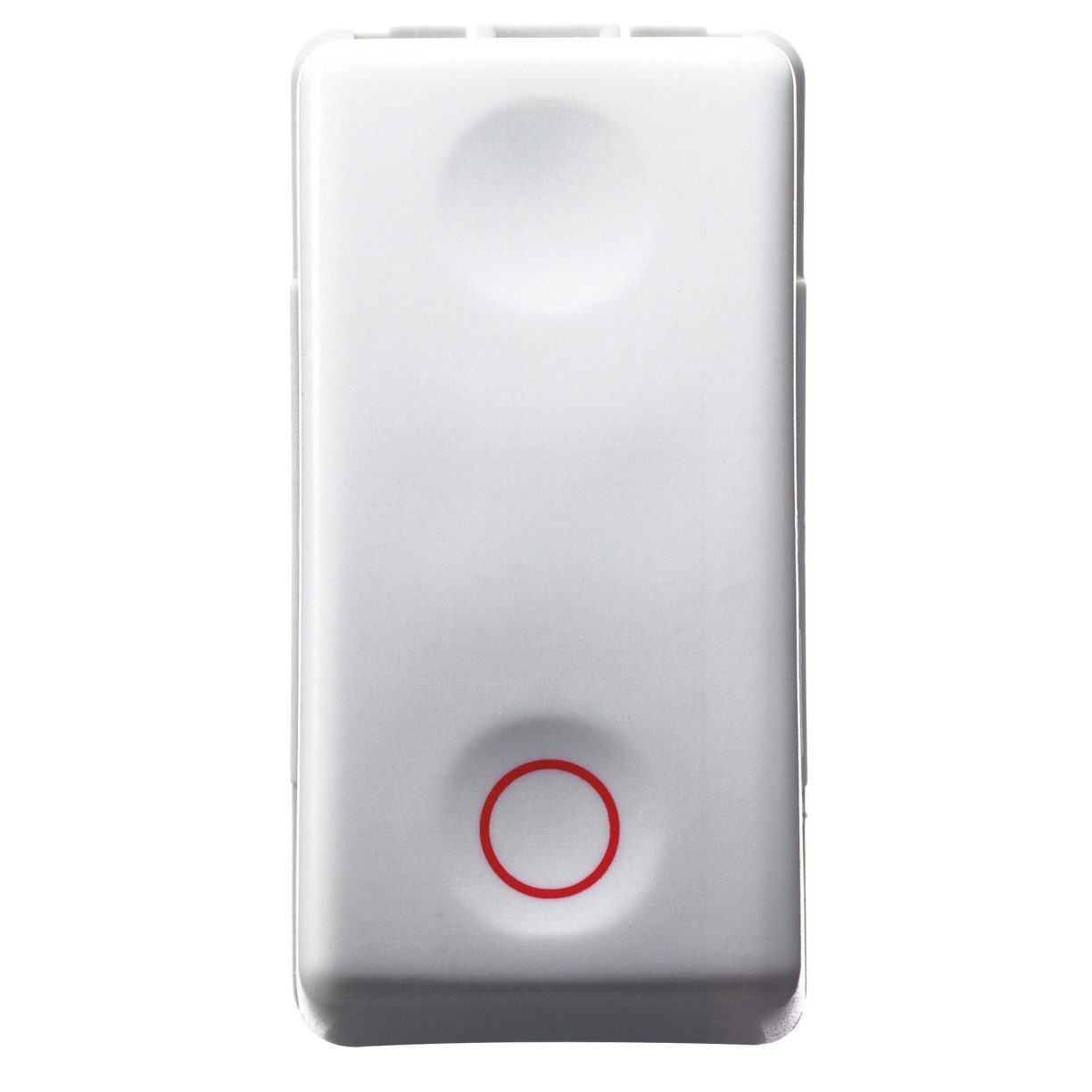

The Gewiss GW20519 is a 1P NC push-button rated for 250 V ac and 10 A, featuring a neutral white design with a circle symbol occupying 1 SYSTEM module. Constructed from technopolymer and compliant with EN 60669-1, this component utilizes screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz for 1 minute, exhibits an insulation resistance greater than 5 MOhm, and delivers a prolonged operation of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

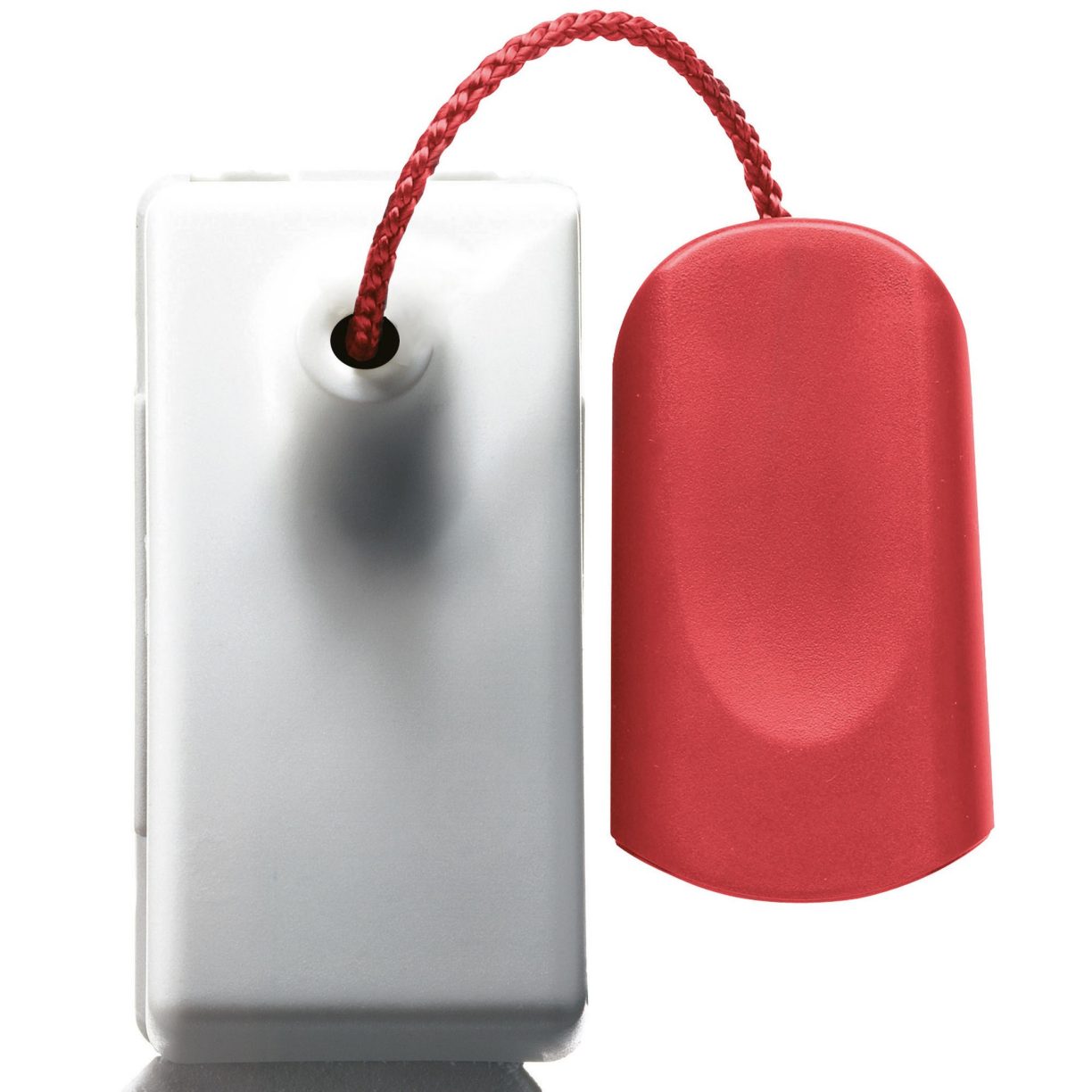

The Gewiss GW20518 is a 1-module white technopolymer push-button featuring a pull-cord mechanism and a 2P NO 10A 250V ac rating. Built to EN 60669-1 standards, this component includes screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It withstands 40,000 position changes at In 250 V ac cosφ=0.6, a test voltage of 2000 V at 50 Hz for 1 minute, and an insulation resistance greater than 5 MOhm. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
