Gewiss

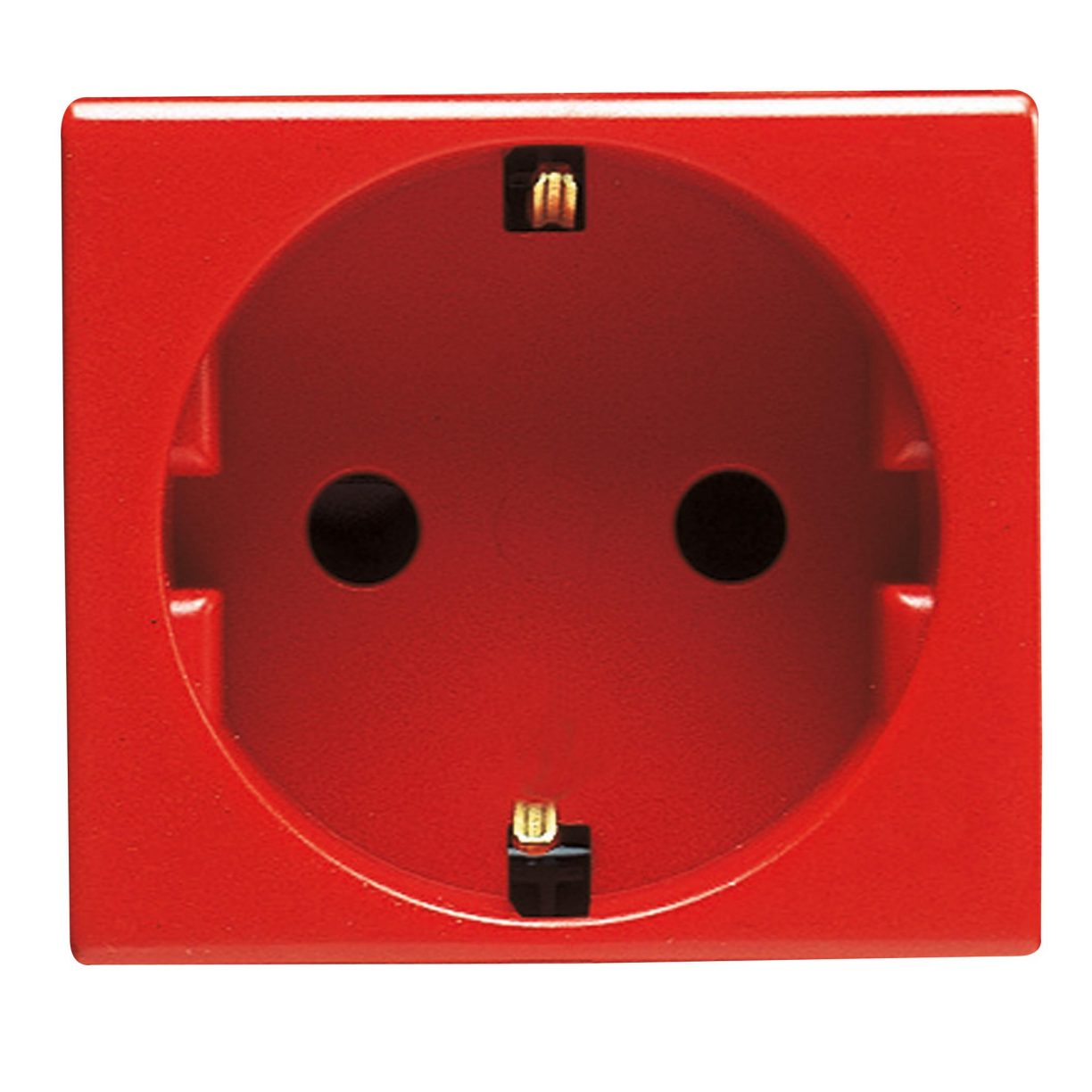

The Gewiss GW20297 is a 2P+E 16 A German standard socket-outlet rated for 250 V ac, configured in red for dedicated lines across 2 SYSTEM modules. Constructed from technopolymer with integrated safety shields, the unit accommodates Ø 4.8 mm plug pins and utilizes screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It complies with IEC 60884-1 and DIN VDE 0620-1 standards, featuring a glow wire test rating of 850 °C, ball thermo-pressure resistance at 125 °C, and an operational endurance of 10,000 position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss

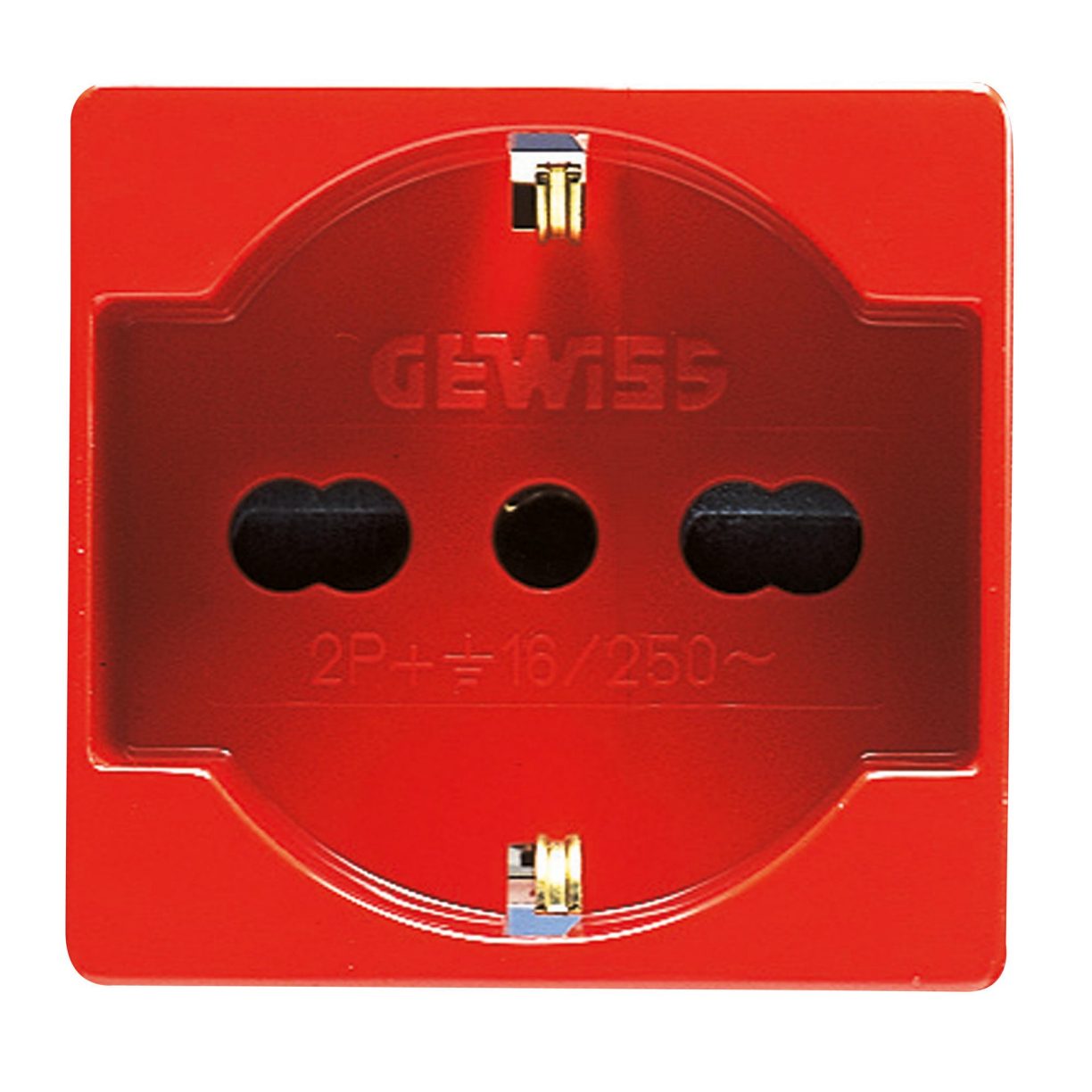

The Gewiss GW20296 is a 2-module technopolymer socket-outlet in red designed for dedicated lines operating at 250 V ac. This 2P+E 16 A dual amperage device features side and central earth pins, integrated safety shields, screw wiring terminals, and a P40 configuration compliant with CEI 23-50 and IEC 60884-1 standards. It accommodates plug pins of Ø 4, 4.8, and 5 mm, while supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

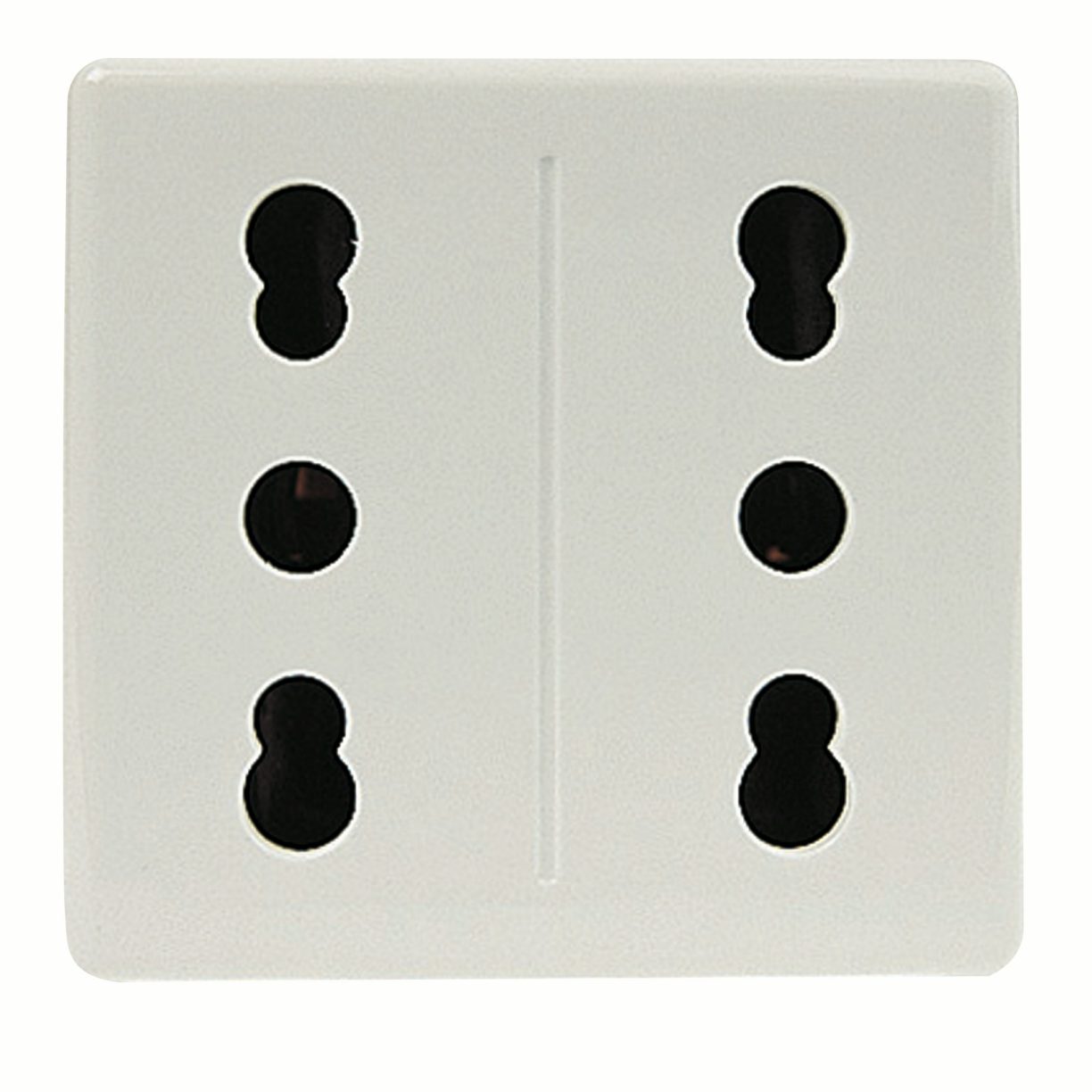

The Gewiss GW20291 is a 250 V ac Italian standard double socket-outlet featuring a 2x2P+E 16 A dual amp configuration in white technopolymer requiring 2 SYSTEM modules. This P17-11 device includes safety shields, screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², and is rated for 10,000 prolonged operation position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

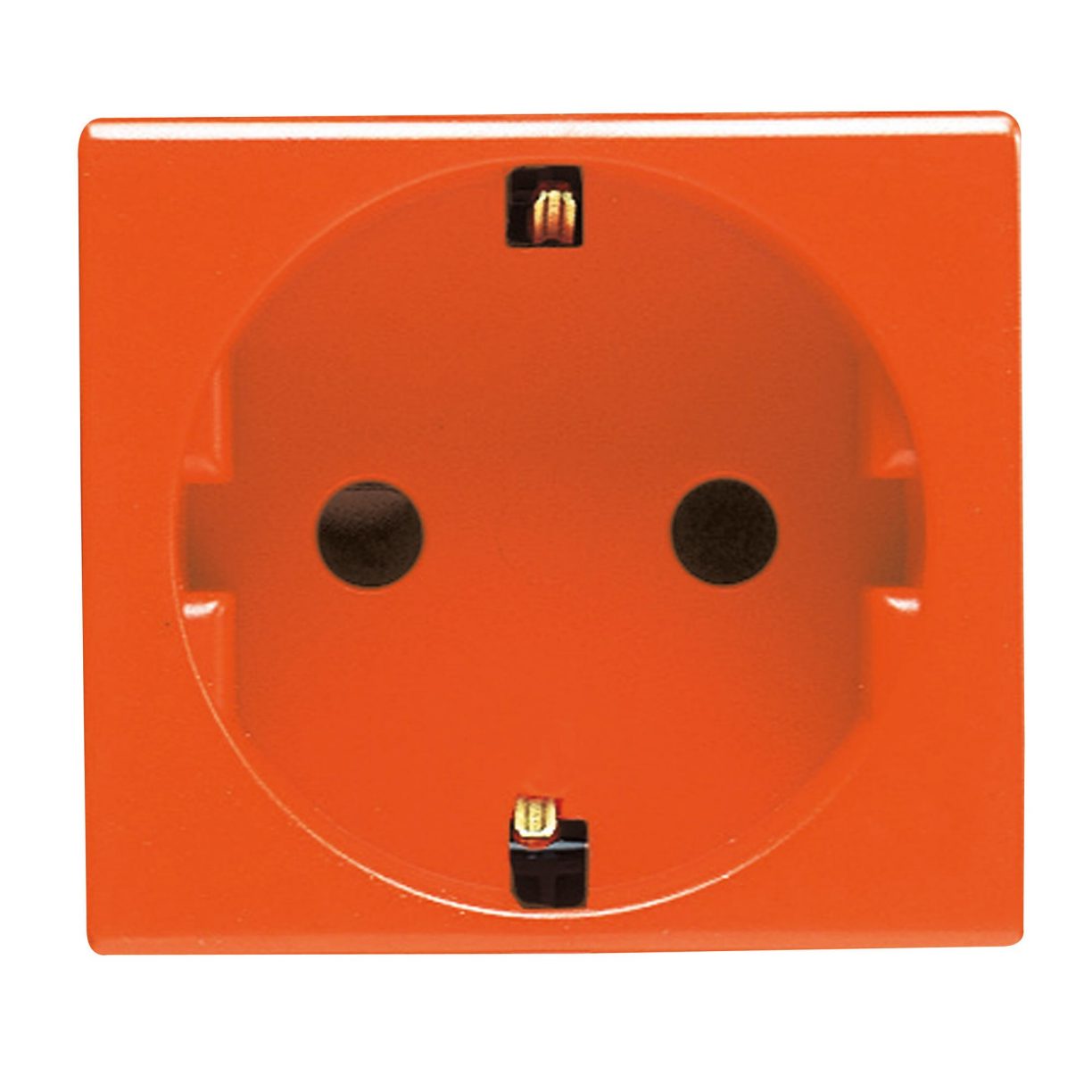

The Gewiss GW20288 is a 2P+E 16 A German standard socket-outlet rated for 250 V ac, configured in an orange technopolymer housing occupying 2 SYSTEM modules for dedicated lines. It features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from min. 0.75 to max. 2x4 mm², built with safety shields and designed for Ø 4.8 mm plug pins in accordance with IEC 60884-1 and DIN VDE 0620-1. Operational parameters include a test voltage resistance of 2000 V at 50 Hz for 1 minute, insulation resistance greater than 5 MOhm, ball thermo-pressure at 125 °C, and a Glow Wire Test rating of 850 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

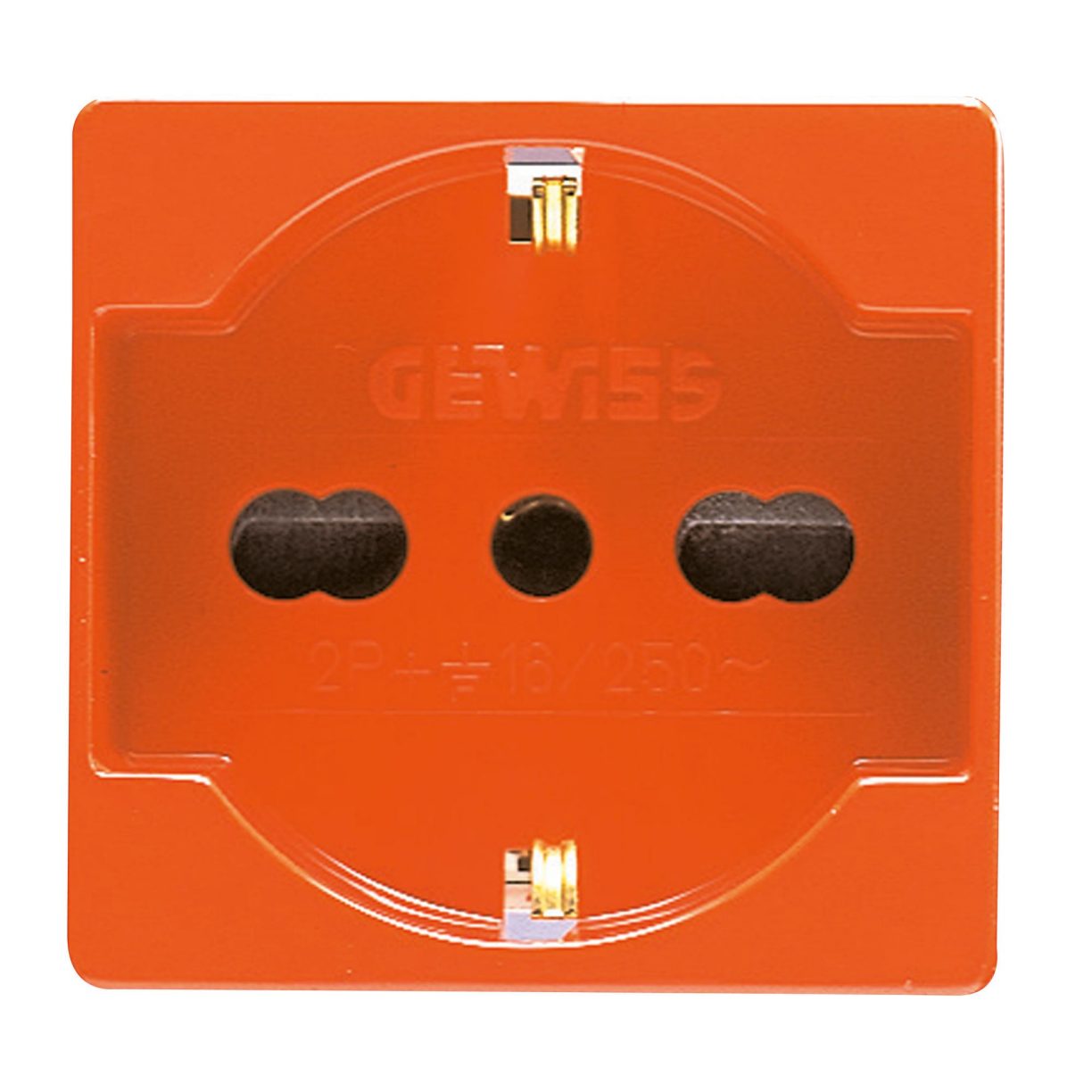

The Gewiss GW20287 is an orange 2P+E 16 A dual amperage socket-outlet designed for dedicated lines, featuring an Italian and German standard P40 type configuration in a 2 SYSTEM module technopolymer body. Rated for 250 V ac, it incorporates safety shields, side and central earth pits, screw wiring terminals, and accommodates plug pins of Ø 4, 4.8, and 5 mm while complying with CEI 23-50 and IEC 60884-1 standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

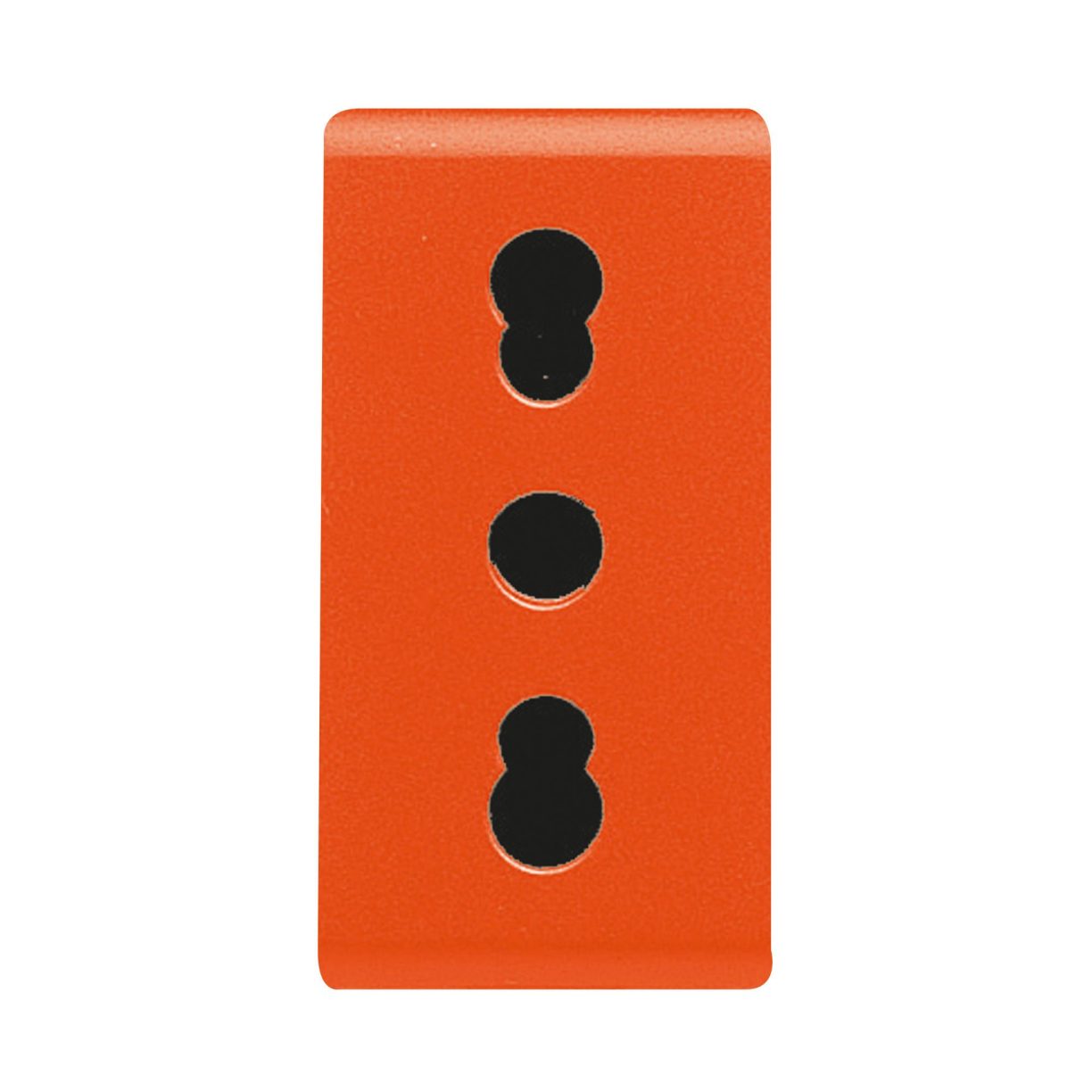

The Gewiss GW20286 is an orange 2P+E 16 A dual amperage Italian standard socket-outlet designed for dedicated lines in accordance with CEI 23-50. This 1-module technopolymer device features integrated safety shields, screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², and accommodates plug pins of Ø 4 or 5 mm. It operates at 250 V ac with a tested insulation resistance greater than 5 MOhm and withstands a test voltage of 2000 V at 50 Hz for 1 minute. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

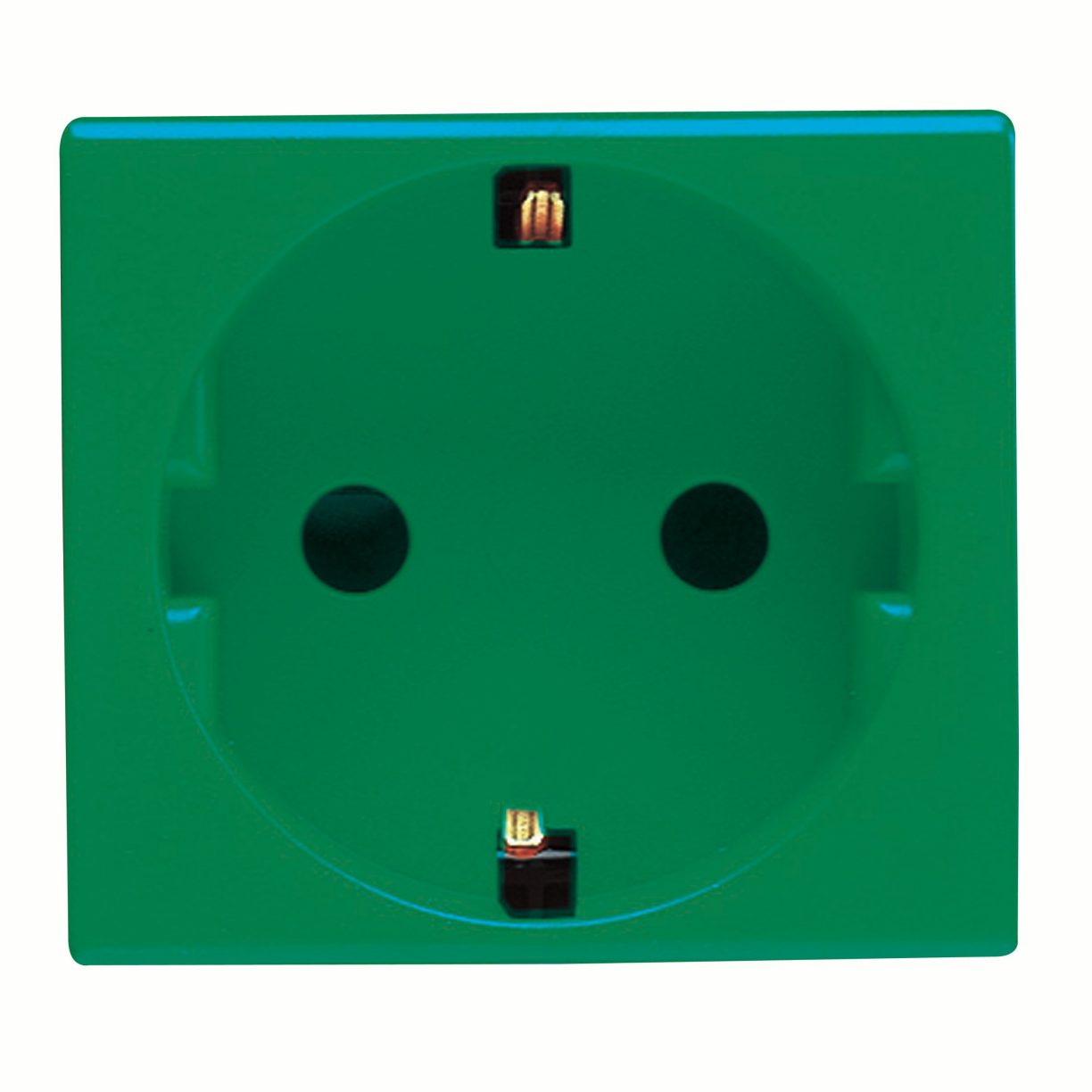

The Gewiss GW20283 is a 2P+E 16 A German standard socket-outlet rated at 250 V ac, configured in green for dedicated lines and occupying 2 SYSTEM modules. Constructed from technopolymer with integrated safety shields, it accommodates plug pins of Ø 4.8 mm and features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². This component complies with IEC 60884-1 and DIN VDE 0620-1 standards, demonstrating a test voltage resistance of 2000 V at 50 Hz for 1 minute, an insulation resistance greater than 5 MOhm, and a ball thermo-pressure rating of 125 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

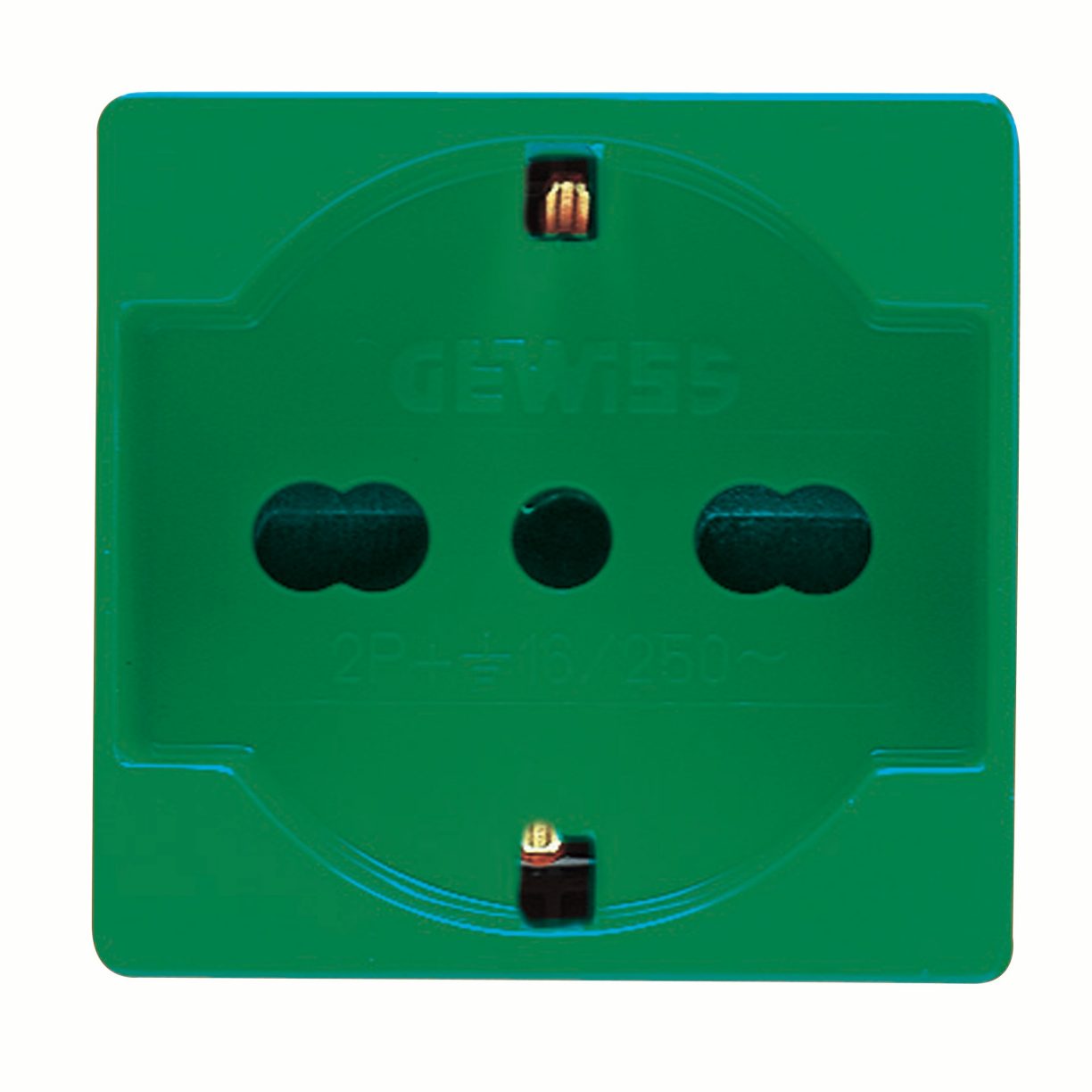

The Gewiss GW20282 is a green, 2P+E 16 A dual amperage socket-outlet for dedicated lines, configured with side and central earth pits for CEI 23-50 and IEC 60884-1 standards. Built from technopolymer taking up 2 SYSTEM modules, this P40 type features integrated safety shields, screw wiring terminals, and compatibility with Ø 4, 4.8, and 5 mm plug pins at 250 V ac. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

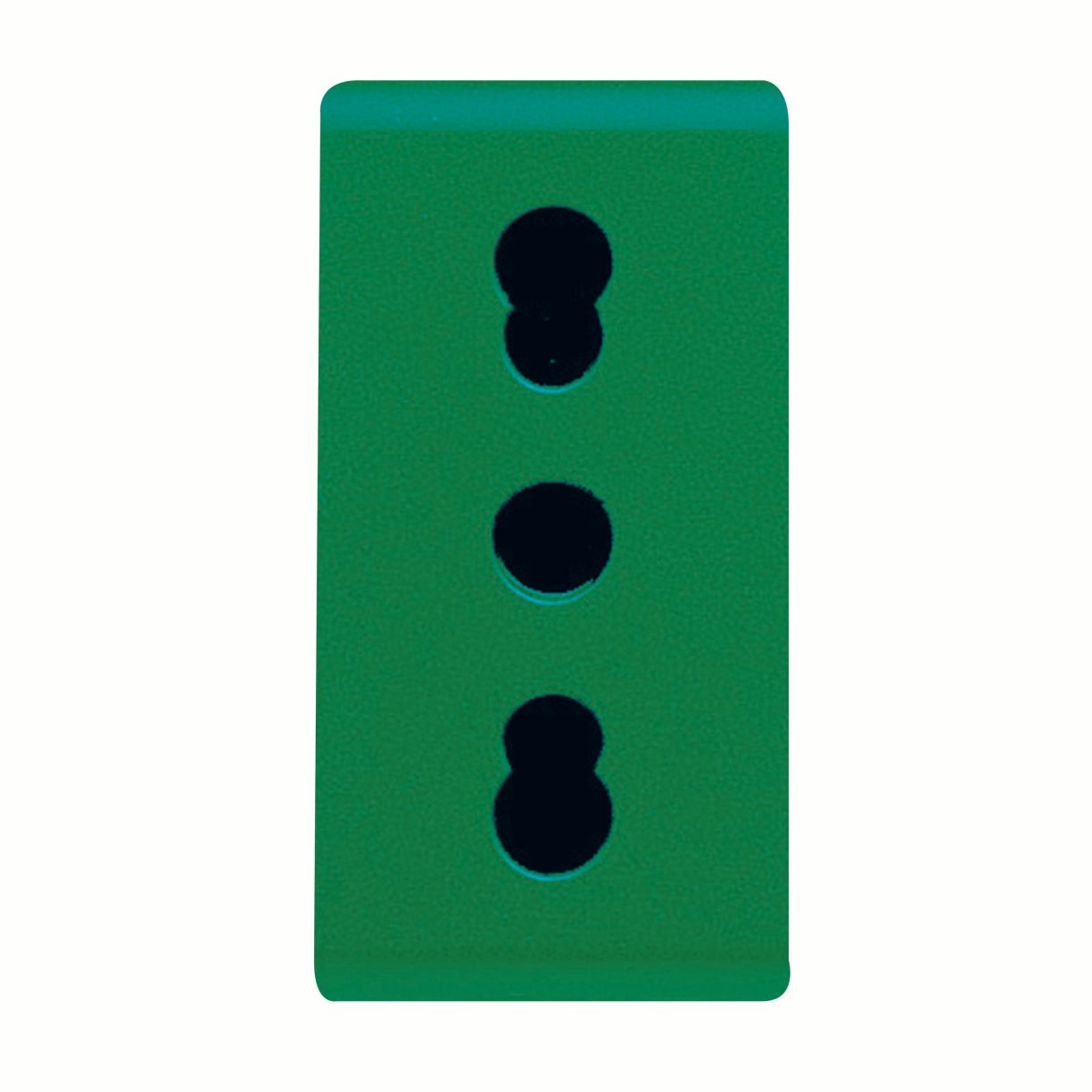

The Gewiss GW20281 is a green, 1-module technopolymer Italian standard socket-outlet rated for 250 V ac and 16 A dual amperage on dedicated lines. This P17-11 type features safety shields, screw wiring terminals accommodating solid or stranded cables, and conforms to CEI 23-50 standards for plug pins of Ø 4 or 5 mm. It withstands a test voltage of 2000 V at 50 Hz, insulation resistance over 5 MOhm, and 10,000 prolonged operation switch position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to receive a formal price quote.
View product details →
Gewiss

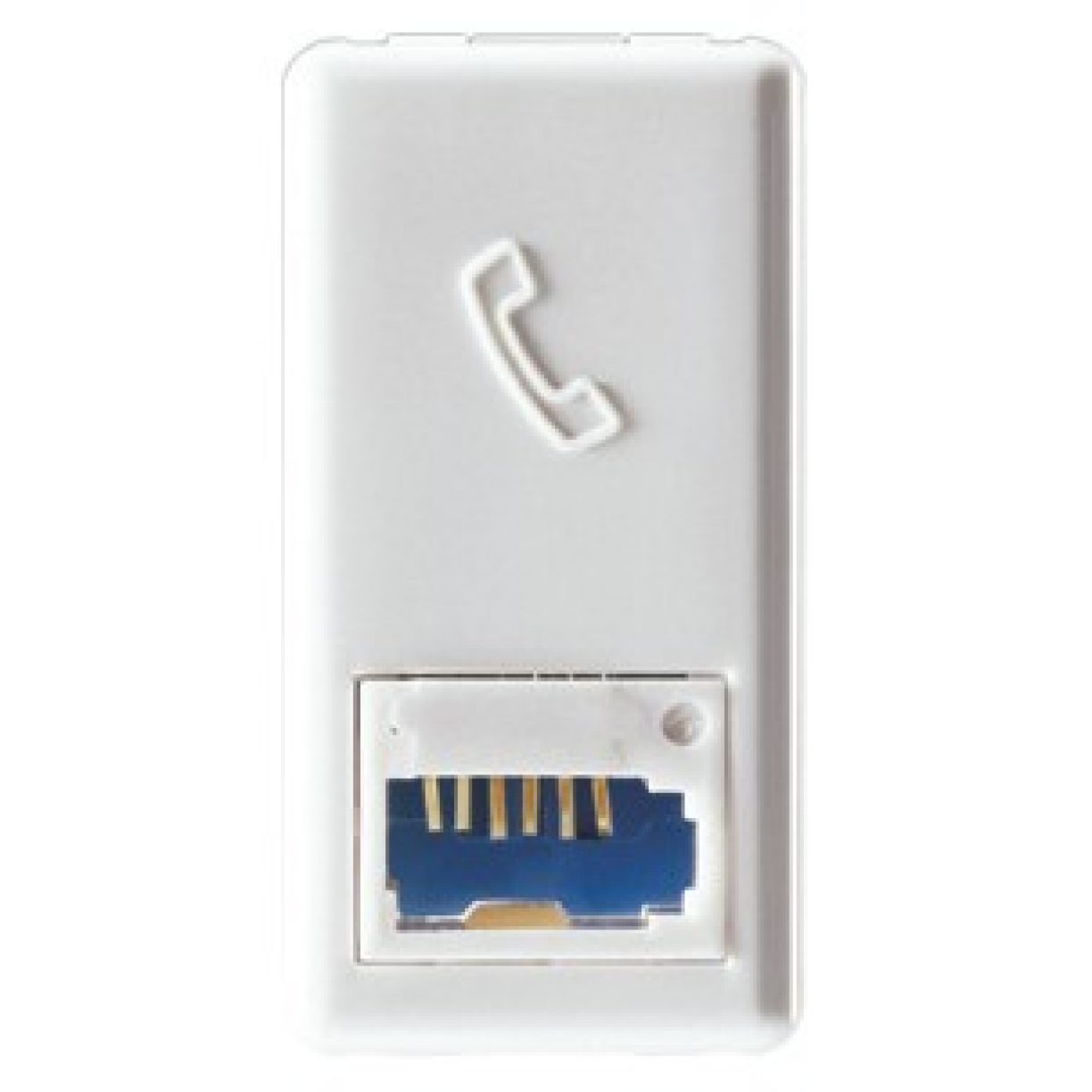

The Gewiss GW20272 is a white 1-module British Standard telephone socket featuring 6 contacts and screw-on terminals. Manufactured from technopolymer with electrocod 3721 and HS code 85366930, this component integrates directly into standard electrical systems. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

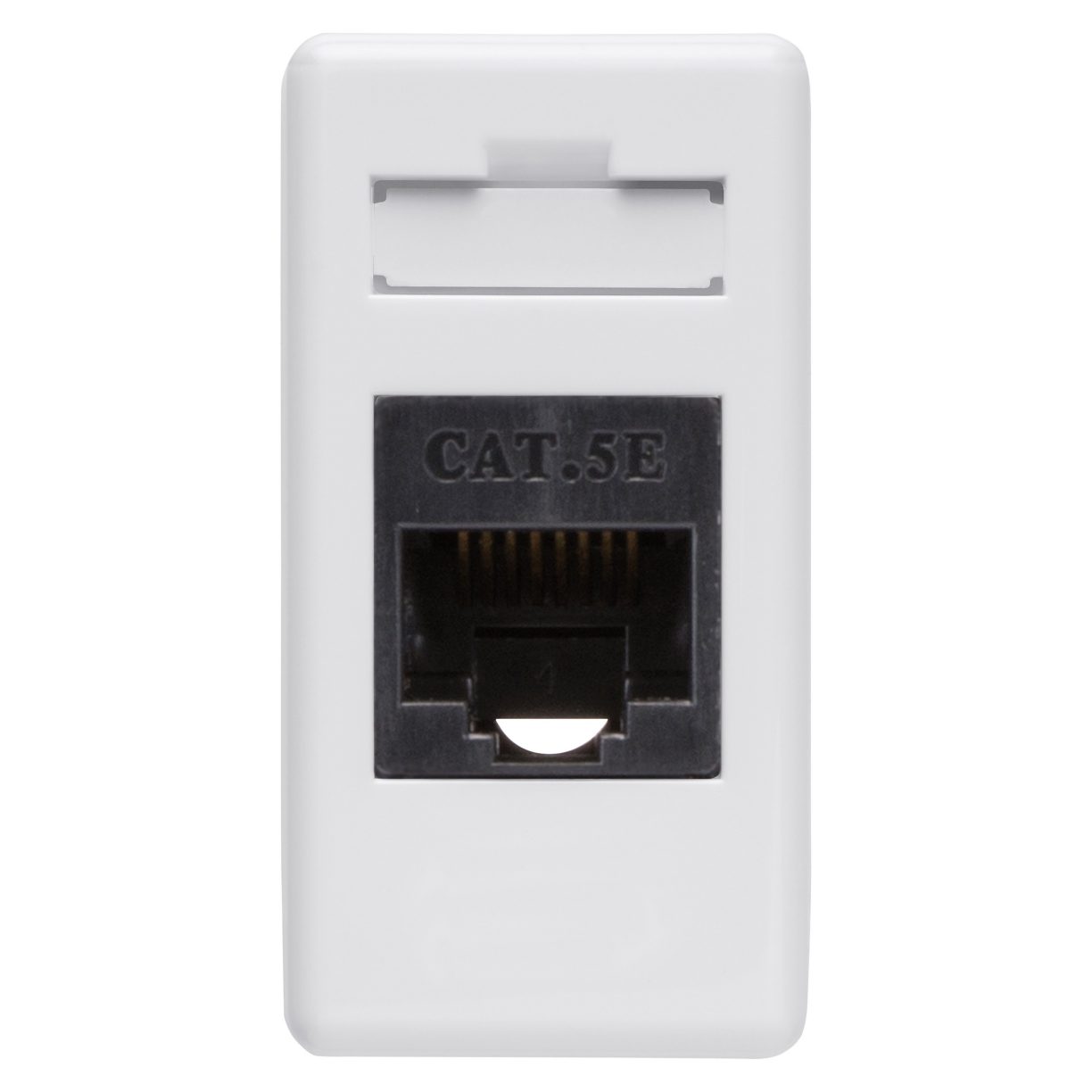

The Gewiss GW20271 is a toolless UTP RJ45 connector featuring 4 pairs and Cat 5e use category compliance within 1 SYSTEM module. This component corresponds to HS code 85366930. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

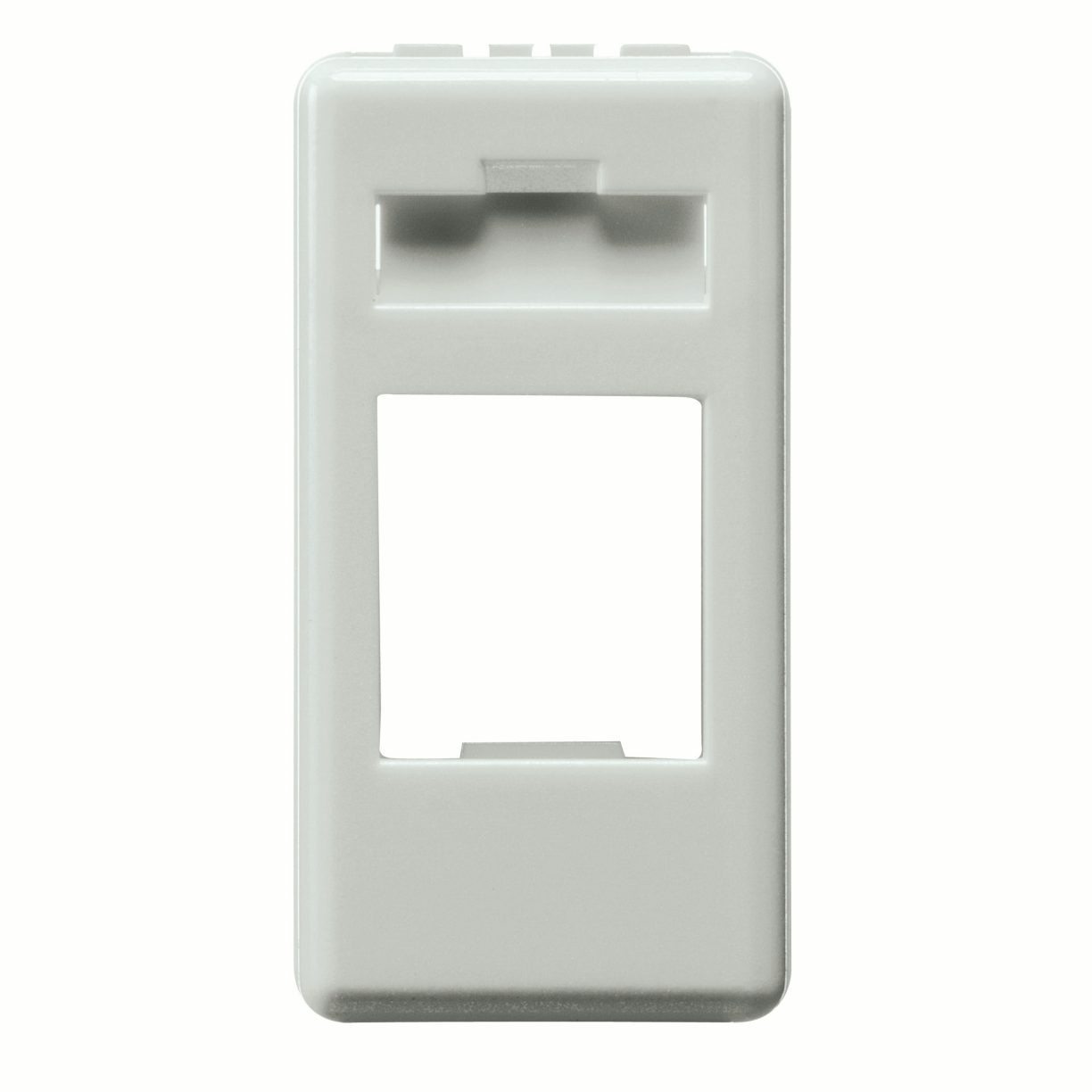

The Gewiss GW20270 is a housing data connector adapter designed for AMP and Keystone Jack compatibility. This component features 1 system module and corresponds to HS code 85389099. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Gewiss
The Gewiss GW20267 is a housing data connector adapter engineered for SYSTIMAX COMMSCOPE compatibility, featuring one system module and classified under HS code 85389099. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

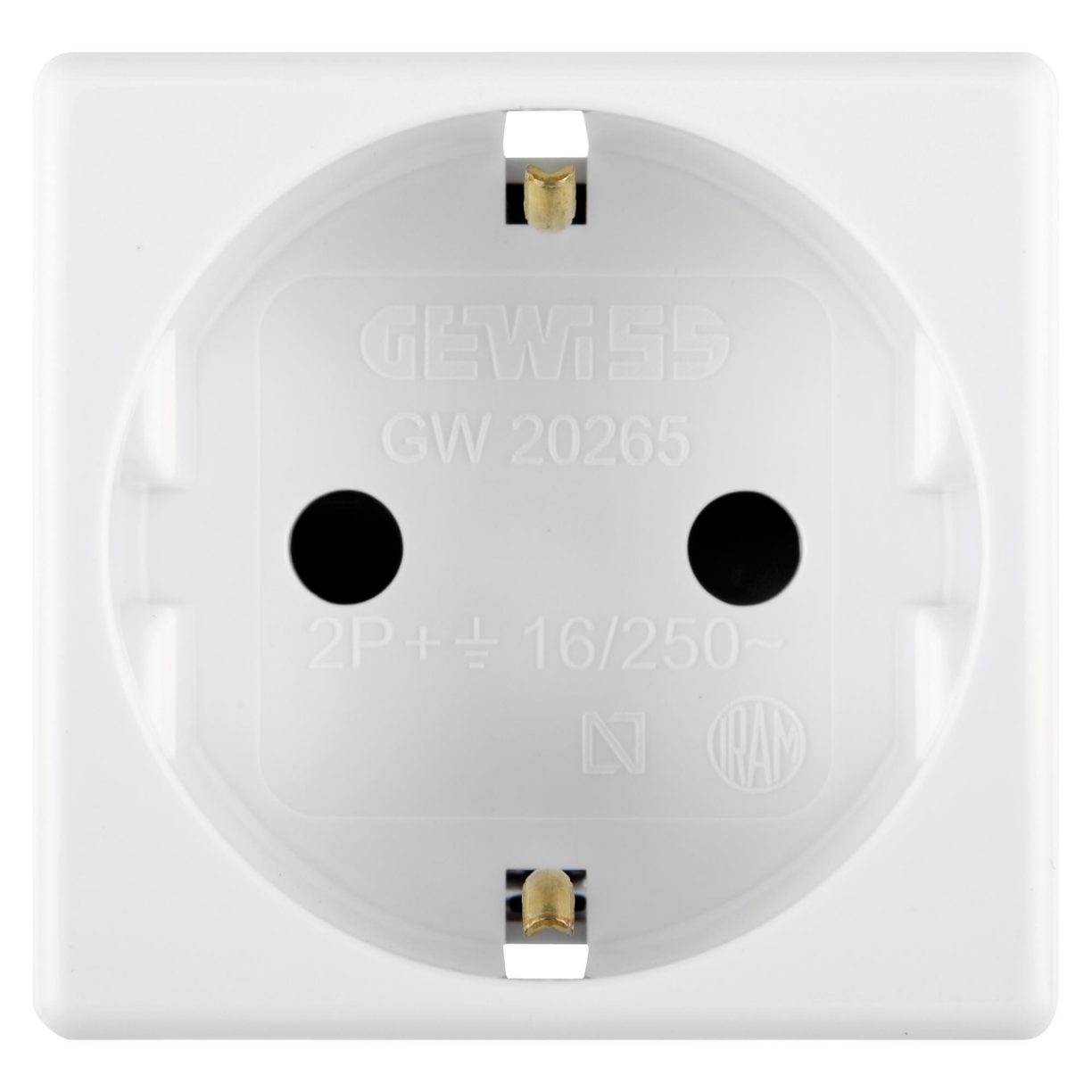

The Gewiss GW200265 is a white 2-module German standard socket-outlet rated for 250 V ac and 16 A with 2P+E configuration and safety shields. Manufactured from technopolymer, it features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², conforming to IEC 60884-1, UNE 20315-1-1, and UNE 20315-1-2 standards. This component withstands a test voltage of 2000 V at 50 Hz for 1 minute, a ball thermo-pressure of 125 °C, and a glow wire test of 850 °C with an electrocod of 0131. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

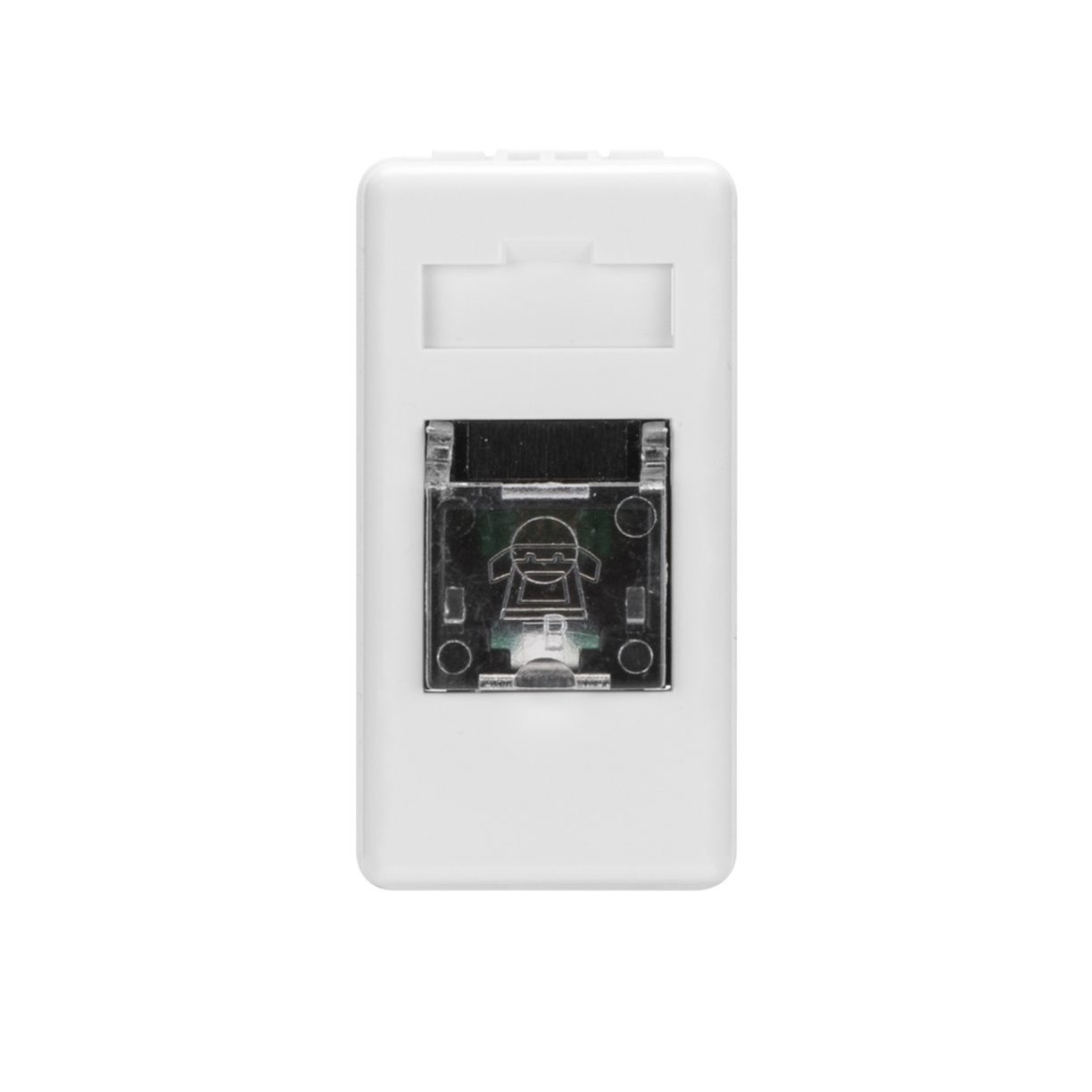

The Gewiss GW20251 is a 1-system-module RJ11 telephone socket designed for twisted pair cables utilizing screw-on terminal connections. Molded from white technopolymer, this 2-pair telecommunication component corresponds to electrocod 3721 and HS code 85366930. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss

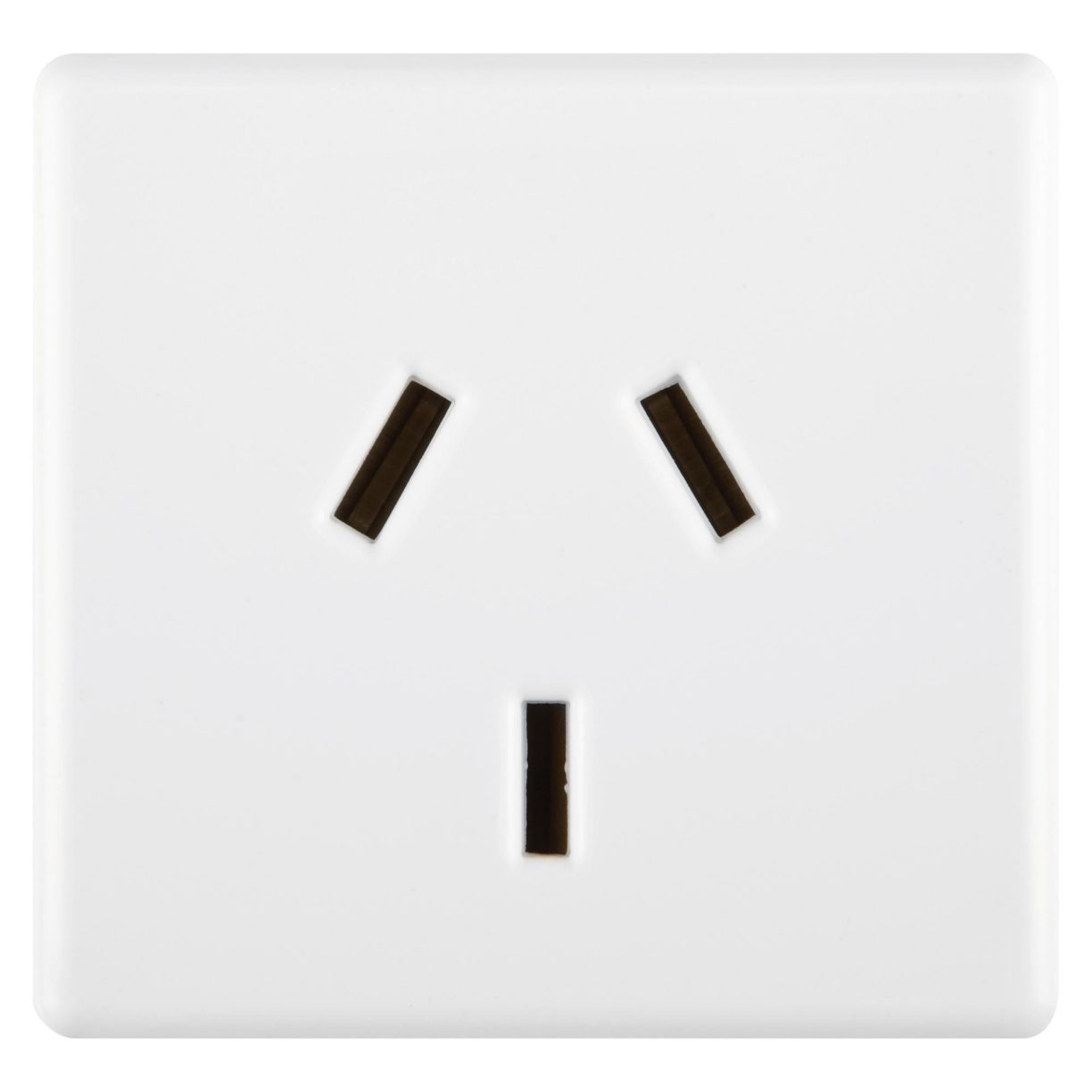

The Gewiss GW20248 is a white, 2-module technopolymer Argentinian standard socket-outlet rated for 250 V ac and 10 A with 2P+E configuration for flat plug pins. Built with screw wiring terminals supporting solid cables from 1.5 to 2x2.5 mm² and stranded cables from 1.5 to 2x4 mm², it withstands a test voltage of 2000 V at 50 Hz for 1 minute and endures 10,000 switching operations at In 250 V ac cosφ=0.8. The unit features a ball thermo-pressure rating of 125 °C, a Glow Wire Test rating of 850 °C, and a terminal cable traction grip greater than 50 N in accordance with IEC 60884-1. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss

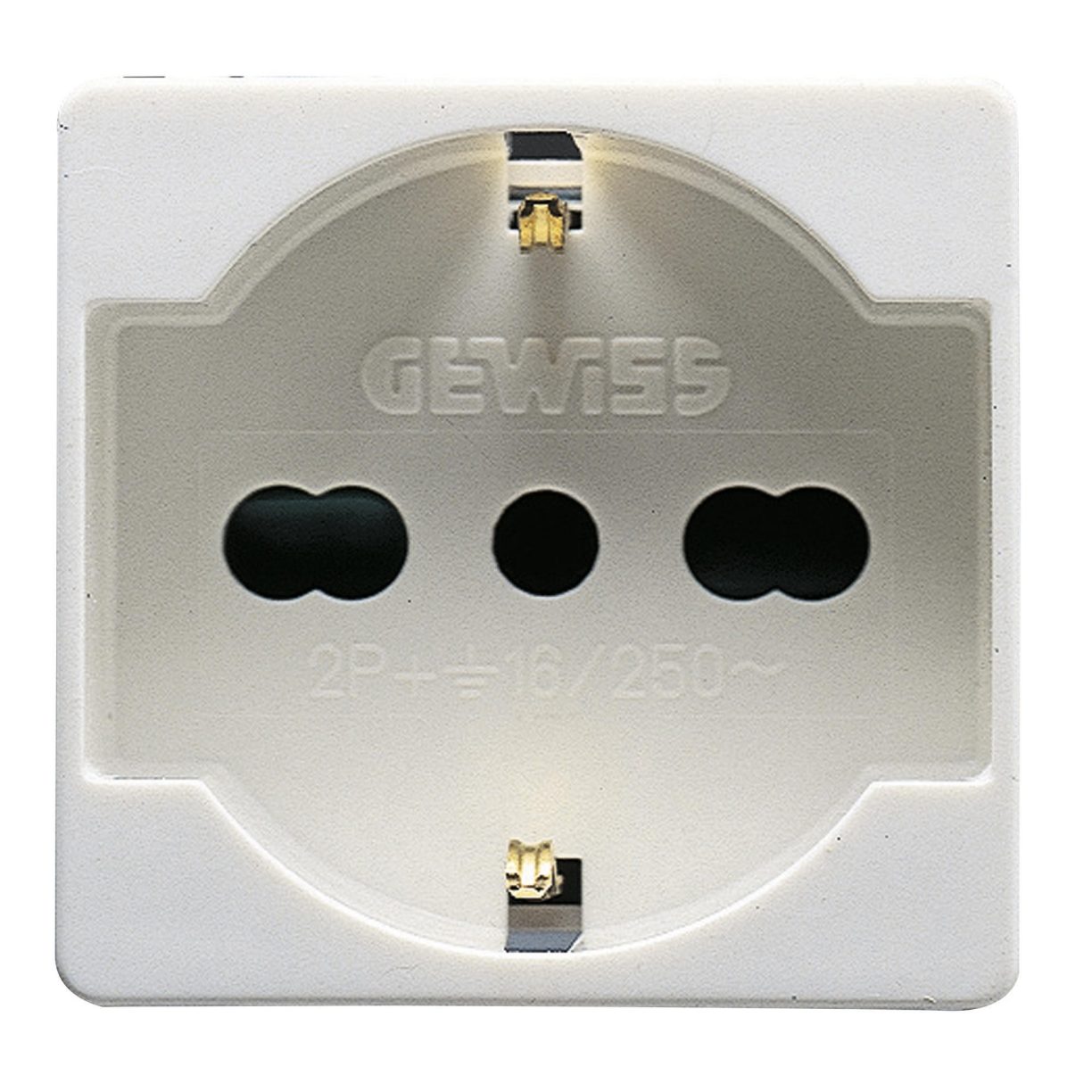

The Gewiss GW20246 is a 2P+E 16 A dual amperage Italian/German standard socket-outlet rated at 250 V ac in a white technopolymer finish. Complying with CEI 23-50 and IEC 60884-1 standards, this P40 type 2-module unit features safety shields, side and central earth pins, and screw wiring terminals accommodating solid and stranded cables. It withstands a test voltage of 2000 V at 50 Hz and is rated for 10,000 prolonged operation switch position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

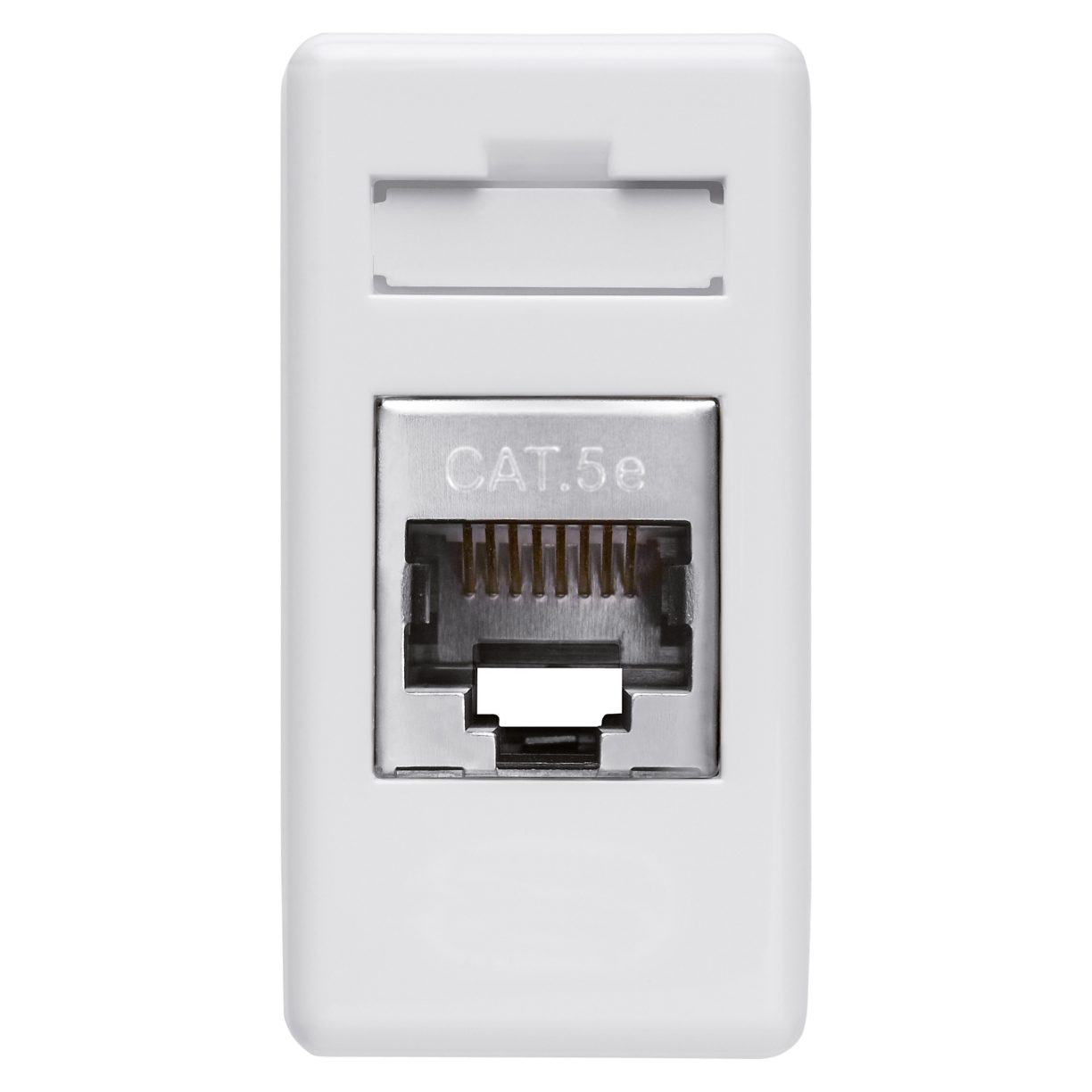

The Gewiss GW20243 is a toolless FTP Category 5e RJ45 connector featuring 4 pairs and occupying 1 system module, classified under HS code 85366930. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss

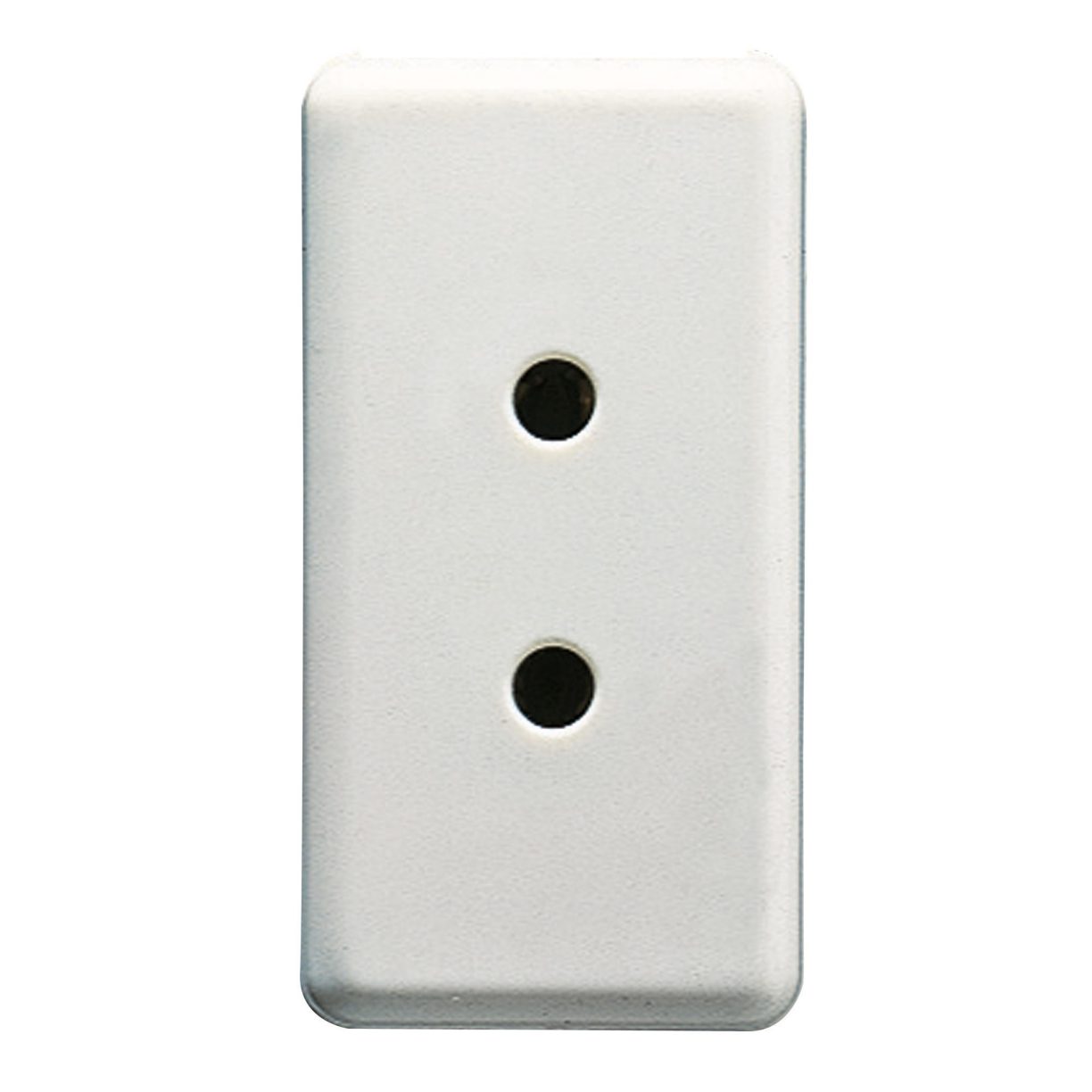

The Gewiss GW20239 is a 1-module system white SELV socket-outlet rated for 2P, 6A, and 24V, constructed from technopolymer with an electrocod of 0131 and HS code 85366990. It accommodates plug pins with a diameter of 3 mm at a 12.4 mm centre distance, features screw cable fixing, and exhibits a ball thermo-pressure rating of 125 °C. The terminal tightening capacity supports stranded cables from 0.75 mm² up to 2x4 mm² and solid cables from 0.5 mm² up to 2x2.5 mm² in a white finish. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Gewiss

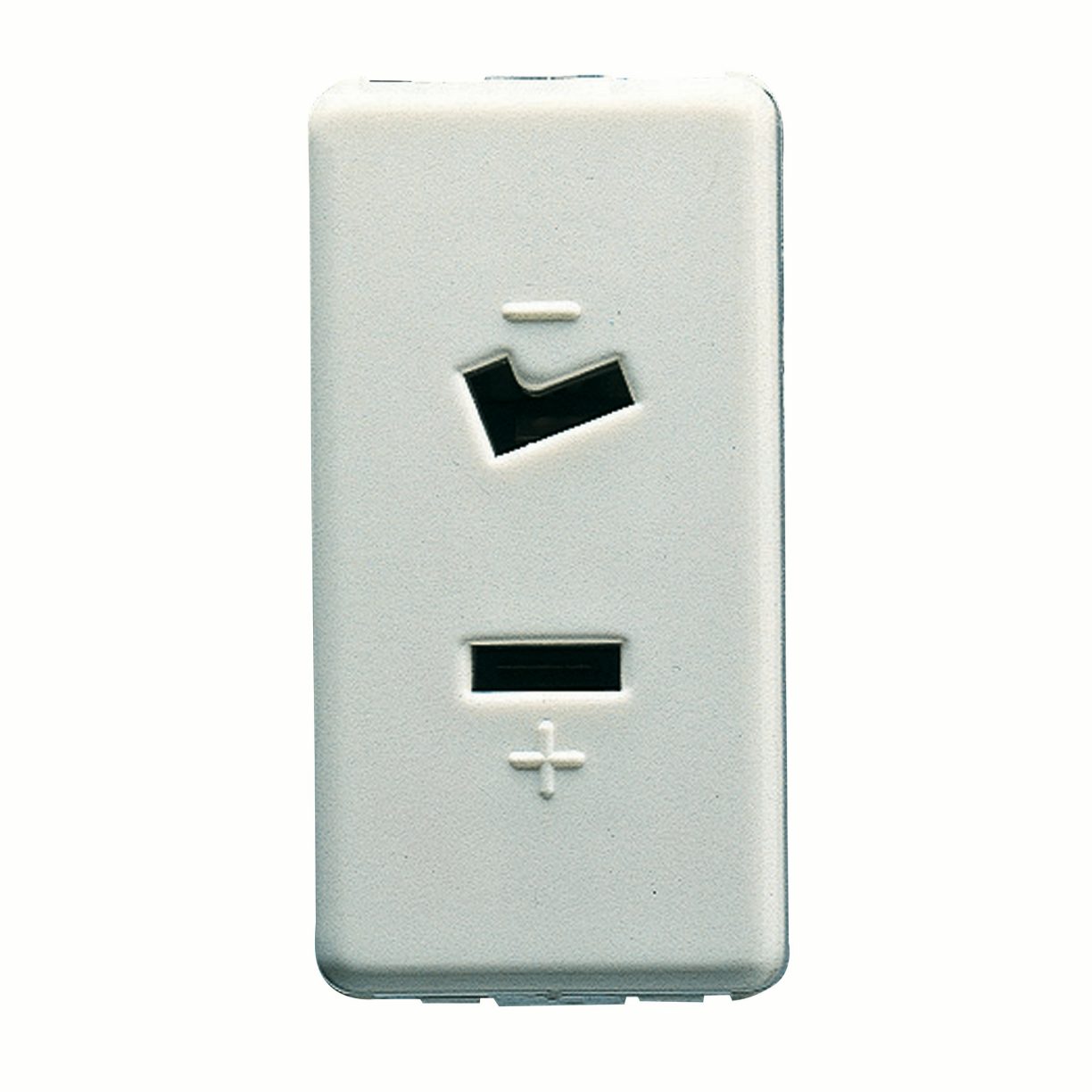

The Gewiss GW20234 is a 1-module, white technopolymer SELV socket-outlet featuring a 2P, 6 A, 24 V polarized configuration designed for flat plug pins with a 12.4 mm centre distance. This component utilizes screw-type cable fixing with terminal tightening capacities ranging from 0.75 mm² to 2x4 mm² for stranded cables and 0.5 mm² to 2x2.5 mm² for solid cables. It demonstrates a glow wire test rating of 850 °C and a thermo-pressure ball test rating of 125 °C, operating under Electrocod 0131 and HS code 85366990. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
