Gewiss

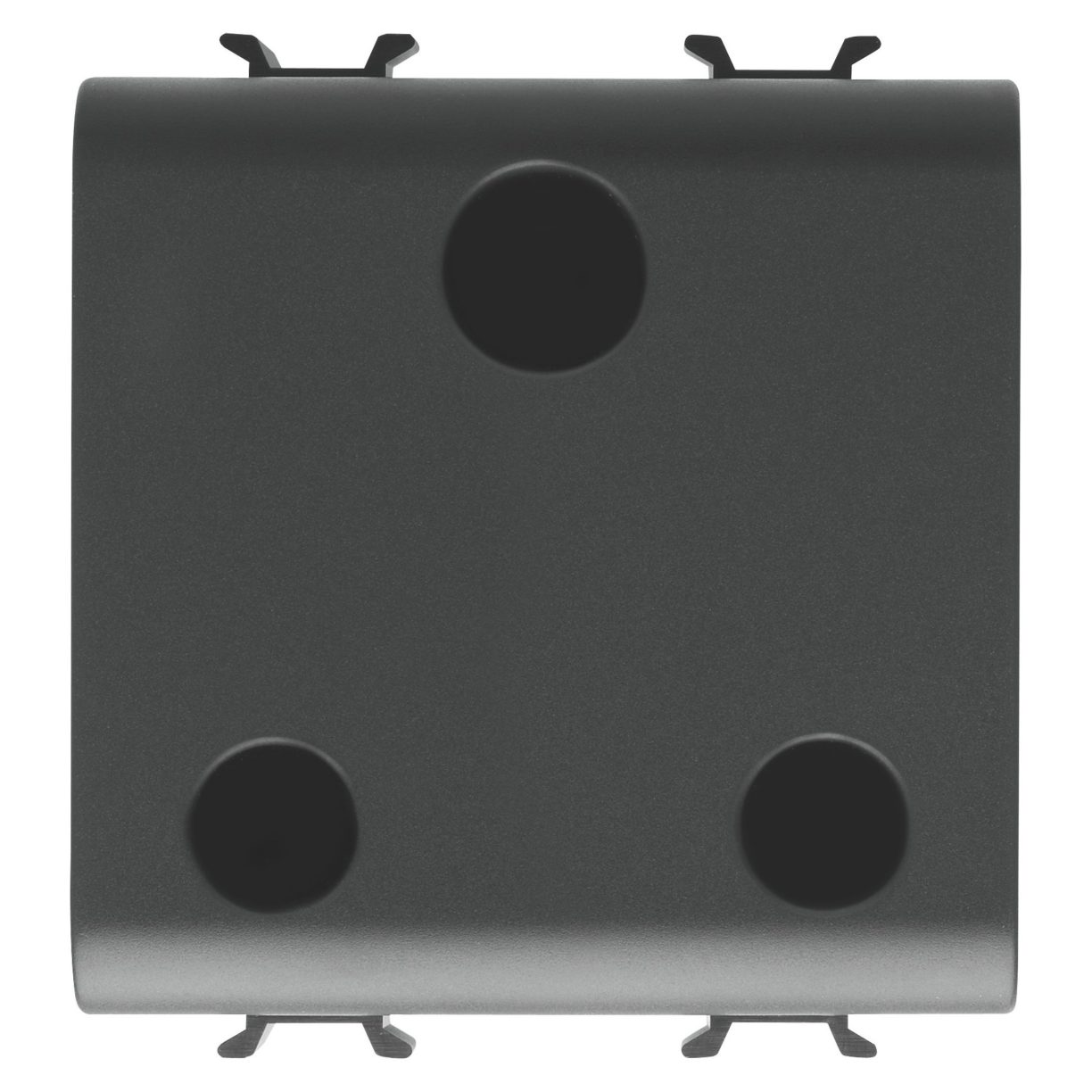

The Gewiss GW12298 is an Indian and South African standard socket-outlet rated for 250 V ac, featuring a 2P+E 16 A configuration in a satin black technopolymer finish. This 2-module device complies with IEC 60884-1 and incorporates safety shutters, screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², plus a 10,000-cycle operational rating at In 250 V ac cosφ=0.8. Additional verified parameters include an 850 °C Glow Wire Test rating, 125 °C ball thermo-pressure resistance, and a 2000 V test voltage resistance for 1 minute. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss
The Gewiss GW12297 is a 2-gang British Standard socket-outlet rated for 250 V ac and 15 A with a 2P+E configuration in satin black technopolymer. This 2-module component features integrated safety shutters, screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², and compatibility with 7 mm plug pins. Constructed to comply with IEC 60884-1, it withstands a test voltage of 2000 V at 50 Hz for 1 minute, an insulation resistance greater than 5 MOhm, and a ball pressure test of 125 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW12296 is a 2-gang, 2P+E 13A British Standard socket-outlet rated for 250 V ac, constructed from satin black technopolymer and occupying 2 modules. Built to IEC 60884-1 and BS 1363-2 standards, it features safety shutters, screw wiring terminals, flat plug pin compatibility, and is rated for 10,000 operation position changes at In 250 V ac cosφ=0.8. Terminal tightening capacities accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a terminal grip on cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →
Gewiss

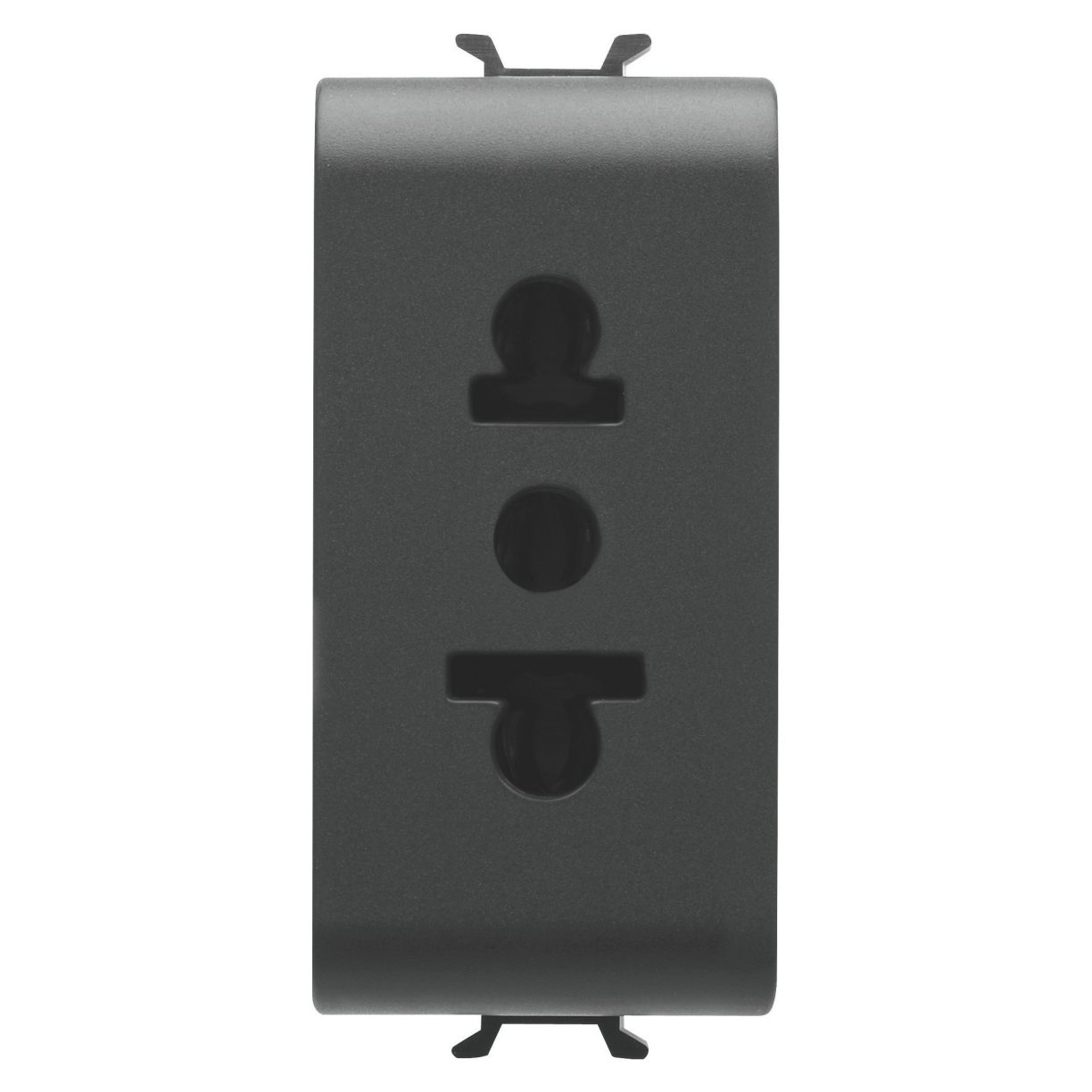

The Gewiss GW12288 is a satin black technopolymer Euro-American standard socket-outlet rated for 250/125 V AC and 15 A with a 2P+E configuration conforming to IEC 60884-1. Built with screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this 1-module component withstands 2000 V at 50 Hz for 1 minute and endures 10,000 position changes at In 250 V ac cosφ=0.8. Additional verified specifications include an insulation resistance greater than 5 MOhm, ball thermo-pressure testing at 125 °C, Glow Wire testing at 850 °C, and a terminal grip on cable traction exceeding 50 N. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

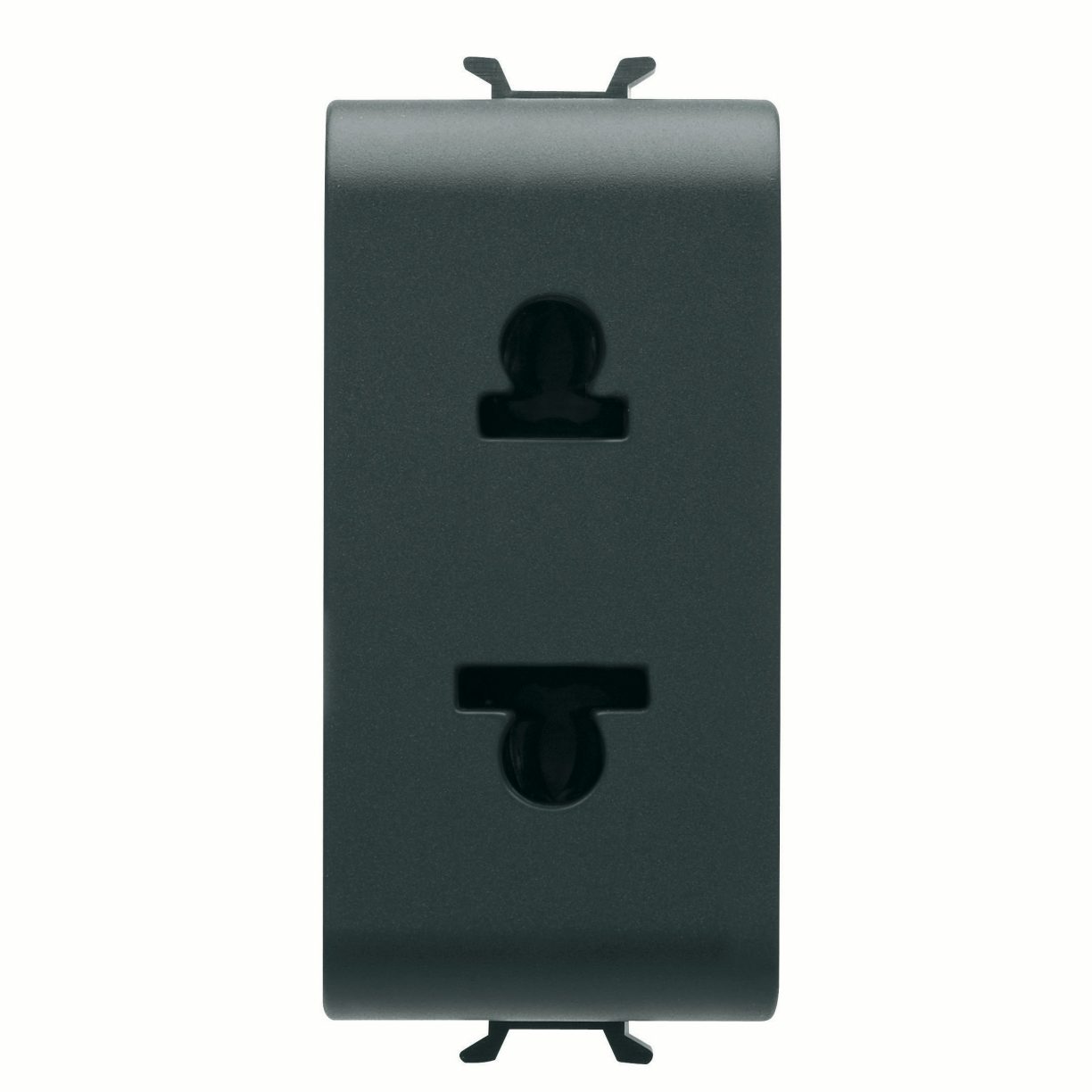

The Gewiss GW12287 is a 1-module, 2P 15A Euro-American standard socket-outlet in satin black technopolymer designed for 250/125 V AC operation with Ø 4 mm flat plug pins. Built in accordance with IEC 60884-1, this component features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a terminal grip on cable traction exceeding 50 N. It demonstrates an insulation resistance greater than 5 MOhm, withstands a test voltage of 2000 V at 50 Hz for 1 minute, and sustains 10,000 position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

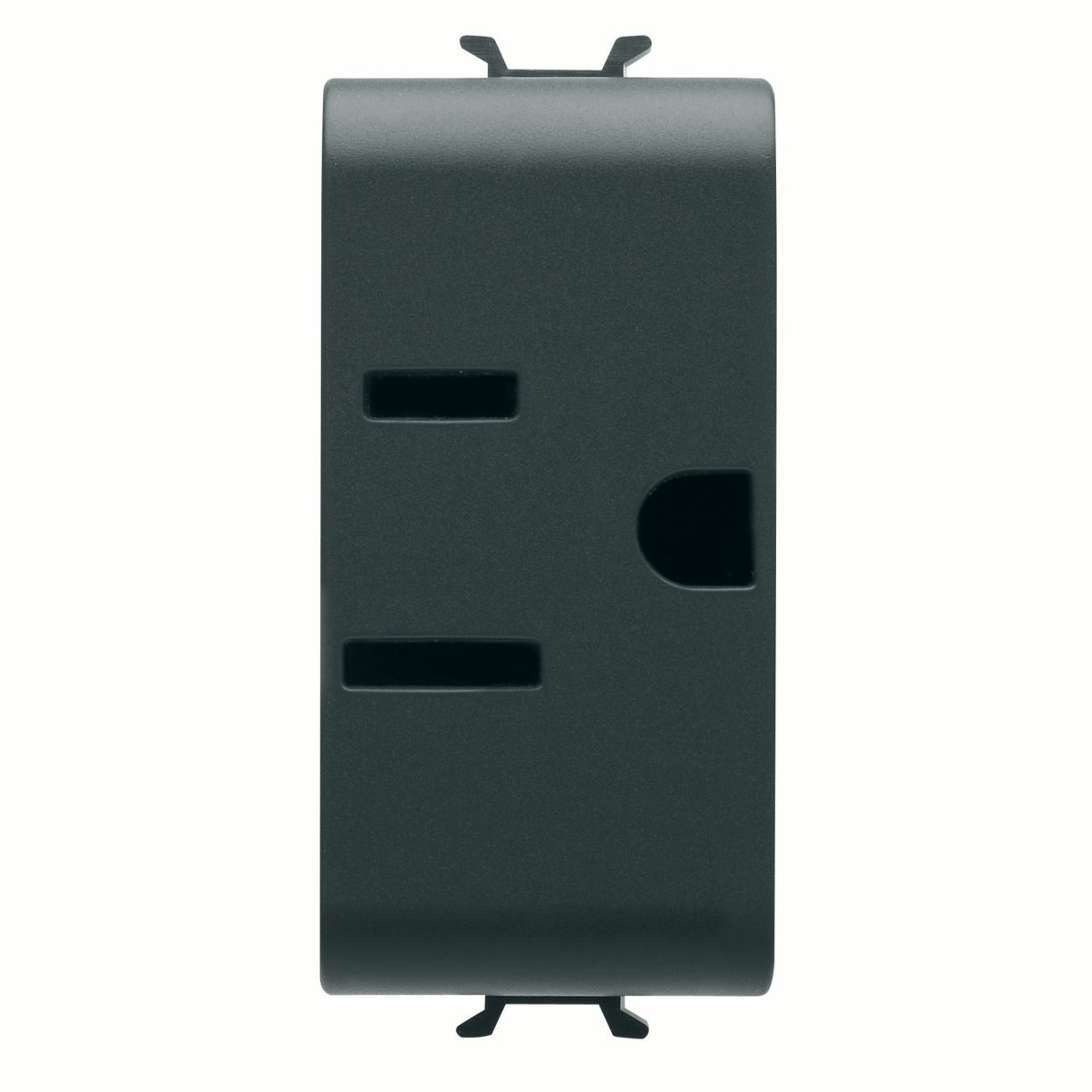

The Gewiss GW12286 is a 1-module USA standard socket-outlet rated for 250/125 V AC and 15 A with a 2P+E configuration for flat parallel horizontal plug pins. Manufactured from satin black technopolymer in compliance with IEC 60884-1, this component features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz for 1 minute, maintains an insulation resistance greater than 5 MOhm, and supports 10,000 operation cycles at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
View product details →
Gewiss

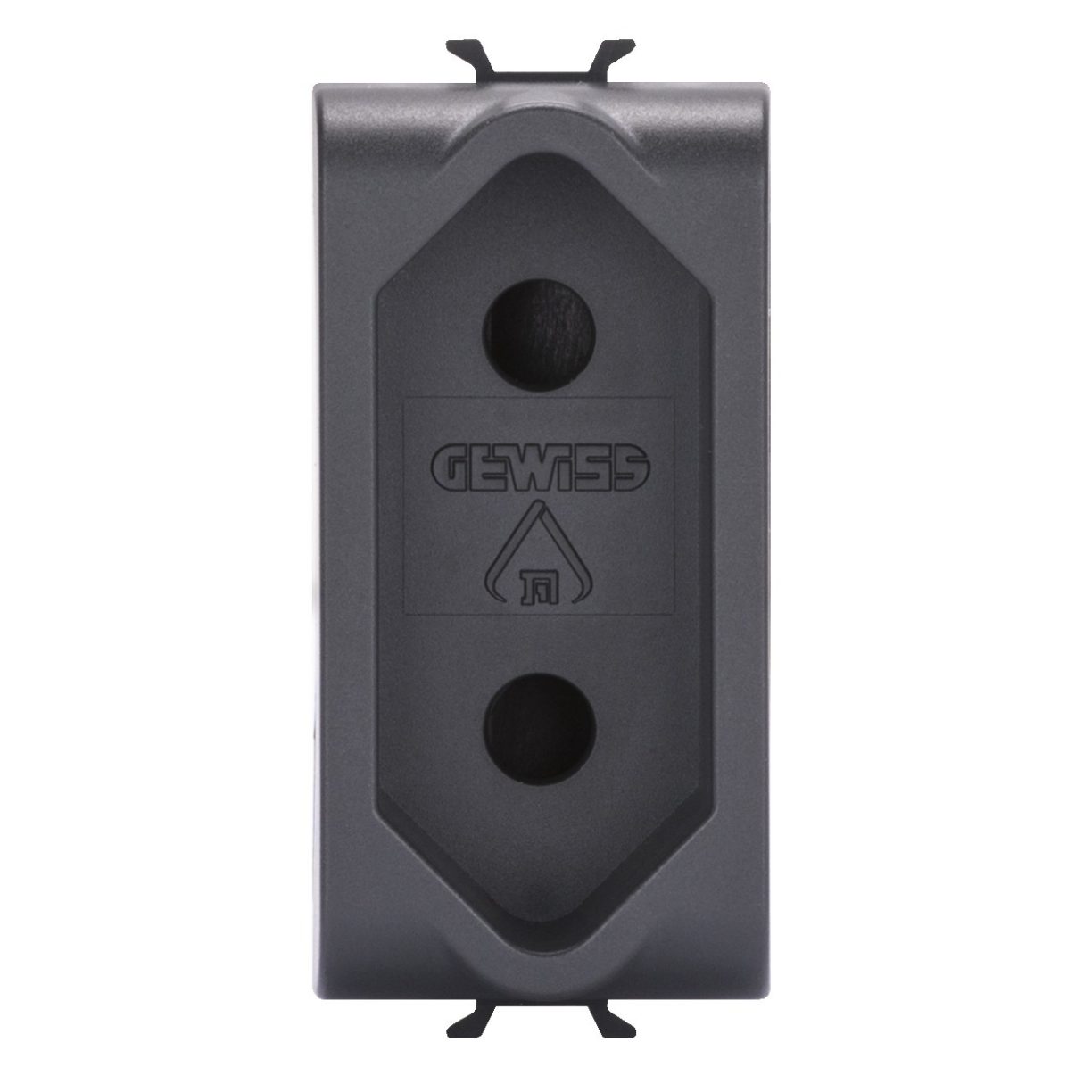

The Gewiss GW12282 is a 1-module, 250 V AC Israeli standard socket-outlet featuring a 2P 10 A rating and a satin black technopolymer construction. Designed for round 4 mm plug pins, this unit incorporates screw wiring terminals with a solid cable capacity of 0.5 to 2x2.5 mm² and stranded cable capacity of 0.75 to 2x4 mm², alongside integrated safety shutters. Built to IEC 60884-1 standards with an Electrocod of 0131, it withstands a test voltage of 2000 V at 50 Hz, insulation resistance exceeding 5 MOhm, and 10,000 operation cycles at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

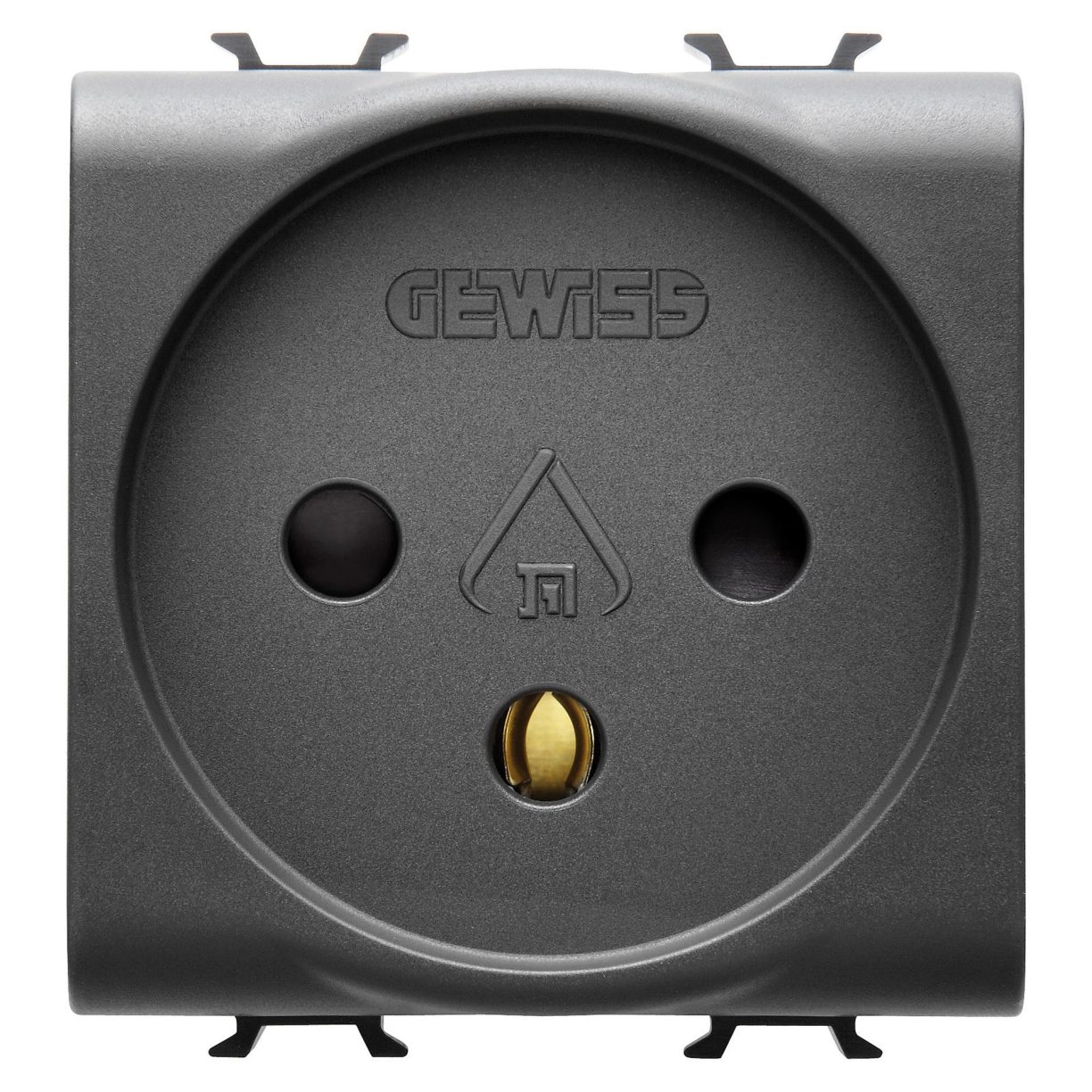

The Gewiss GW12281 is a satin black 2-module Israeli standard socket-outlet rated at 250 V ac and 16 A, featuring 2P+E configuration and safety shutters for round Ø 4 / 4.4 mm plug pins. Constructed from technopolymer, this unit complies with IEC 60884-1 and SI 32 part 1.1 standards, incorporating screw wiring terminals that accept solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and supports 10,000 operations at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Gewiss

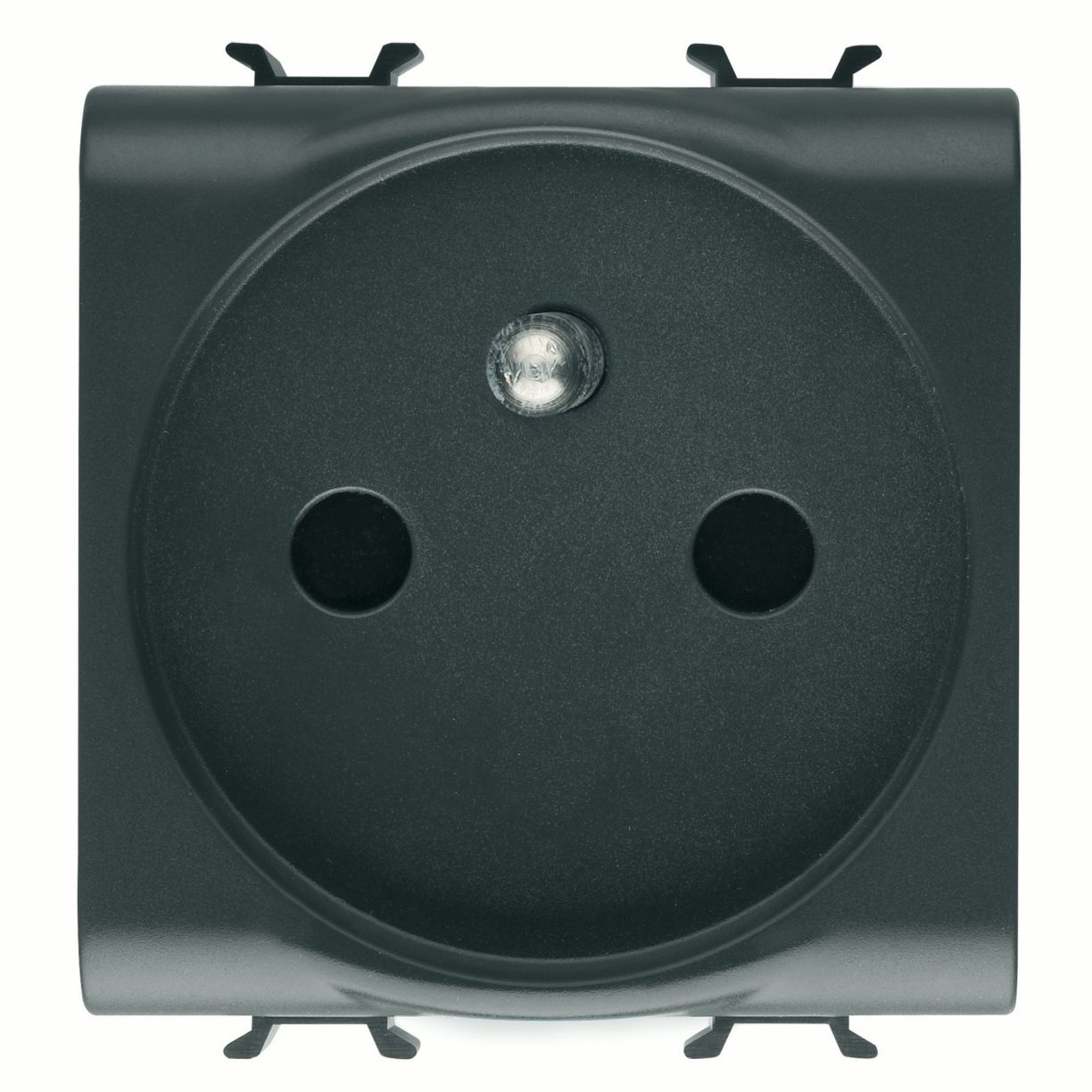

The Gewiss GW12248 is a 2P+E 16 A 250 V ac French standard socket-outlet in satin black technopolymer featuring integrated safety shutters and front tightening screw terminals. Compliant with IEC 60884-1 and NF C 61-314 standards, this 2-module device accommodates Ø 4 and 4.8 mm plug pins with solid cable capacities from 0.5 to 2x2.5 mm² and stranded cable capacities from 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz, delivers an insulation resistance exceeding 5 MOhm, and sustains 10,000 operation cycles at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW12247F is a 2P+E 16 A 250 V ac French standard socket-outlet in satin black, occupying 2 modules and constructed from technopolymer material. Featuring quick spring wiring terminals, safety shutters, and compatibility with Ø 4 / 4.8 mm plug pins, this device complies with IEC 60884-1 and NF C 61-314 standards. Technical performance metrics include a dielectric strength of 2000 V at 50 Hz for 1 minute, insulation resistance exceeding 5 MOhm, and an operational endurance rating of 10,000 cycles at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Gewiss
The Gewiss GW12247 is a 2-module French standard socket-outlet rated at 250 V ac and 16 A, featuring a 2P+E configuration in satin black technopolymer. Built with screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this unit incorporates safety shutters and accommodates Ø 4 / 4.8 mm plug pins. It complies with IEC 60884-1 and NF C 61-314 standards, sustaining 10,000 position changes at In 250 V ac cosφ=0.8, an 850 °C Glow Wire Test, and a 125 °C ball thermo-pressure test. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

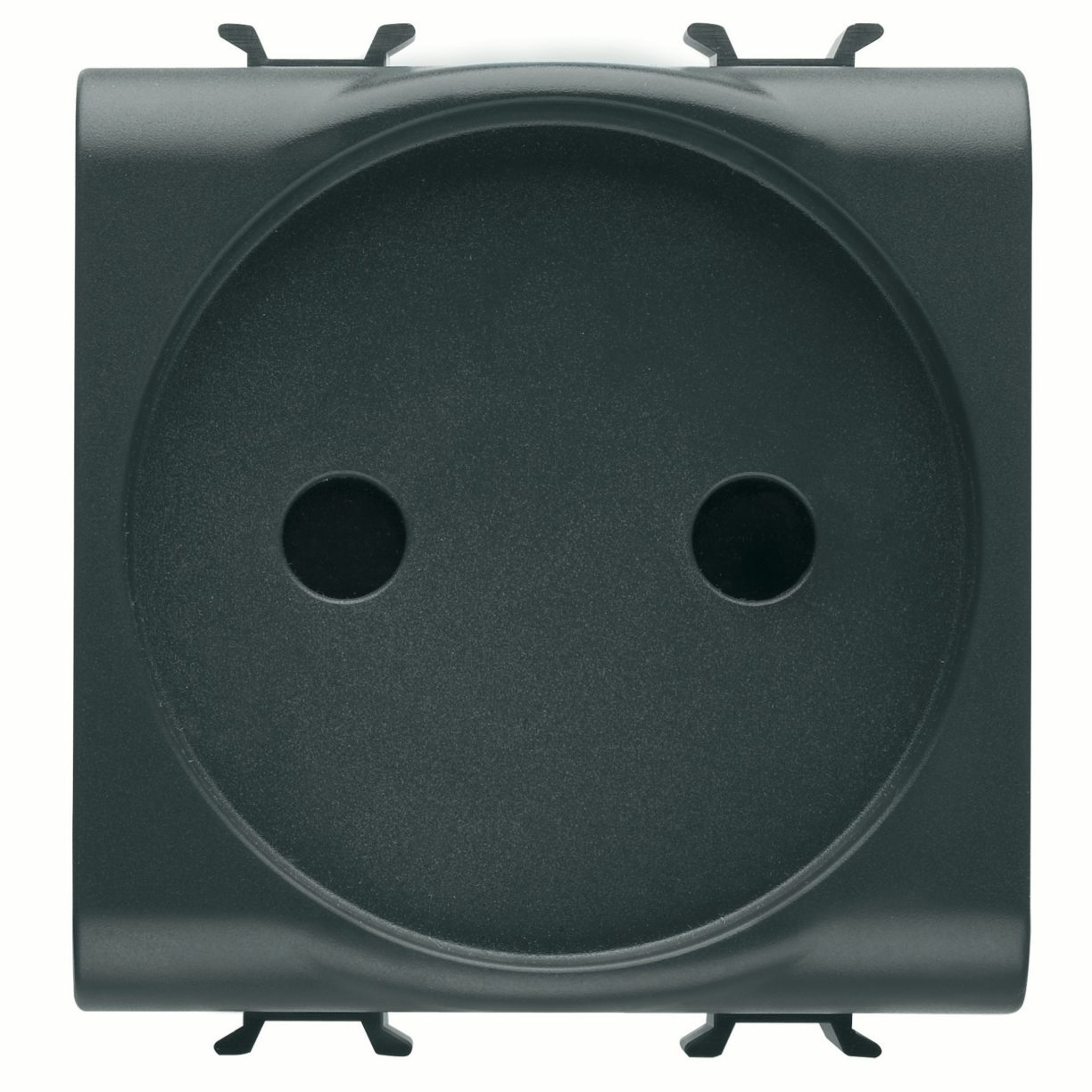

The Gewiss GW12246 is a 2-module French standard socket-outlet rated for 250 V ac and 16 A, featuring an integrated satin black technopolymer construction with safety shutters for Ø 4 and 4.8 mm plug pins. Built in compliance with IEC 60884-1 and NF C 61-314 standards, this 2P component incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz for 1 minute, maintains an insulation resistance greater than 5 MOhm, and delivers 10,000 operational position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

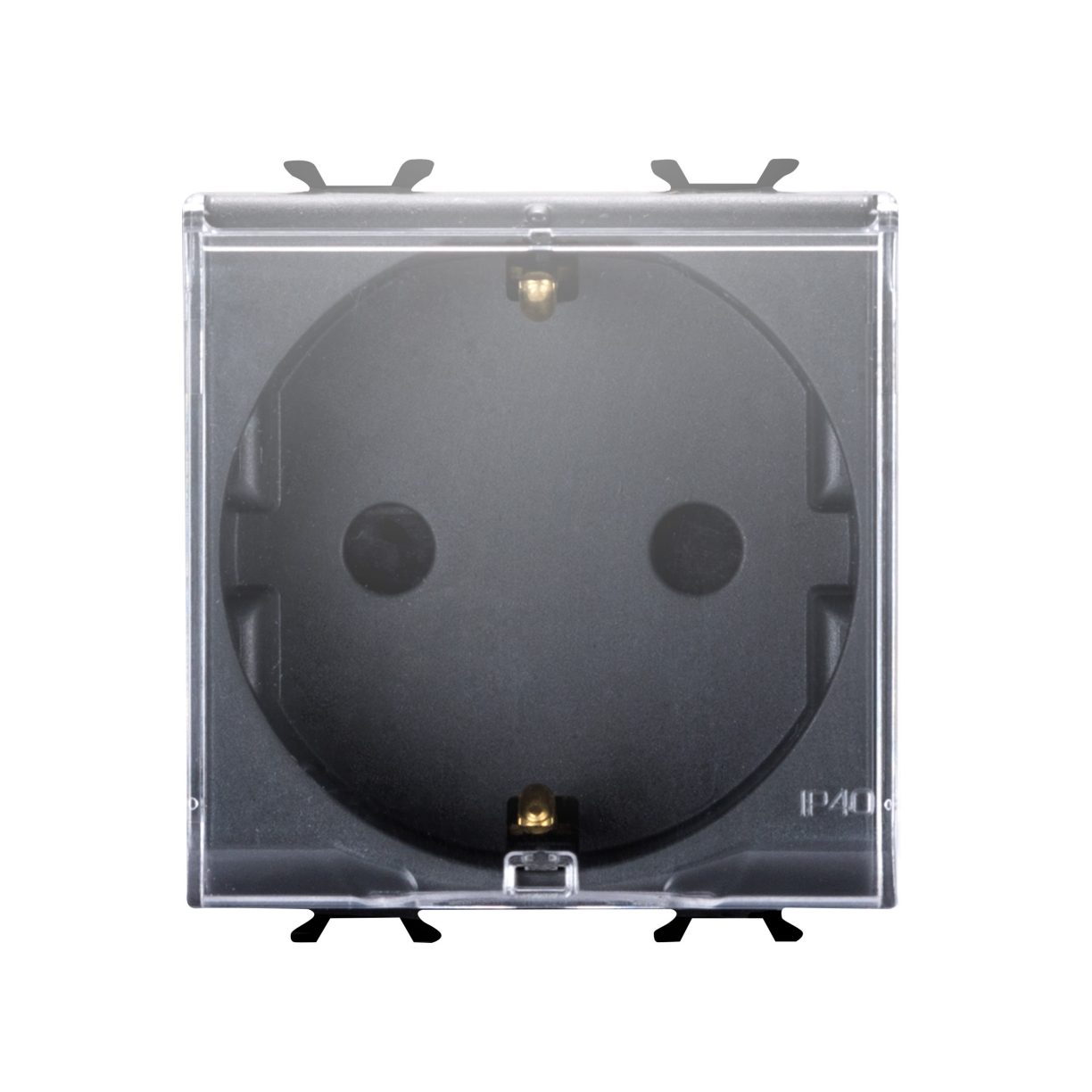

The Gewiss GW12242 is a 2-module German standard socket-outlet rated for 250 V ac and 16 A, featuring a 2P+E configuration with safety shutters for Ø 4.8 mm plug pins. Constructed from technopolymer in a satin black finish, this unit incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It complies with IEC 60884-1 and DIN VDE 0620-1 standards, offering an IP40 degree of protection and enduring 10,000 operation cycles at In 250 V ac. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss
The Gewiss GW12241F is a 2P+E 16 A 250 V ac German standard socket-outlet in satin black, occupying 2 modules and constructed from technopolymer with safety shutters for Ø 4.8 mm plug pins. Conforming to IEC 60884-1 and DIN VDE 0620-1, this device features quick spring-action wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Gewiss
The Gewiss GW12241 is a 2-module German standard socket-outlet rated for 250 V ac and 16 A with a 2P+E configuration in satin black technopolymer. Manufactured in compliance with IEC 60884-1, DIN VDE 0620-1, and UNE 20315-1-1 standards, this unit features safety shutters, screw wiring terminals, and accommodates Ø 4.8 mm plug pins. It withstands a test voltage of 2000 V at 50 Hz for 1 minute, provides an insulation resistance greater than 5 MOhm, and is endurance-tested for 10,000 position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Gewiss

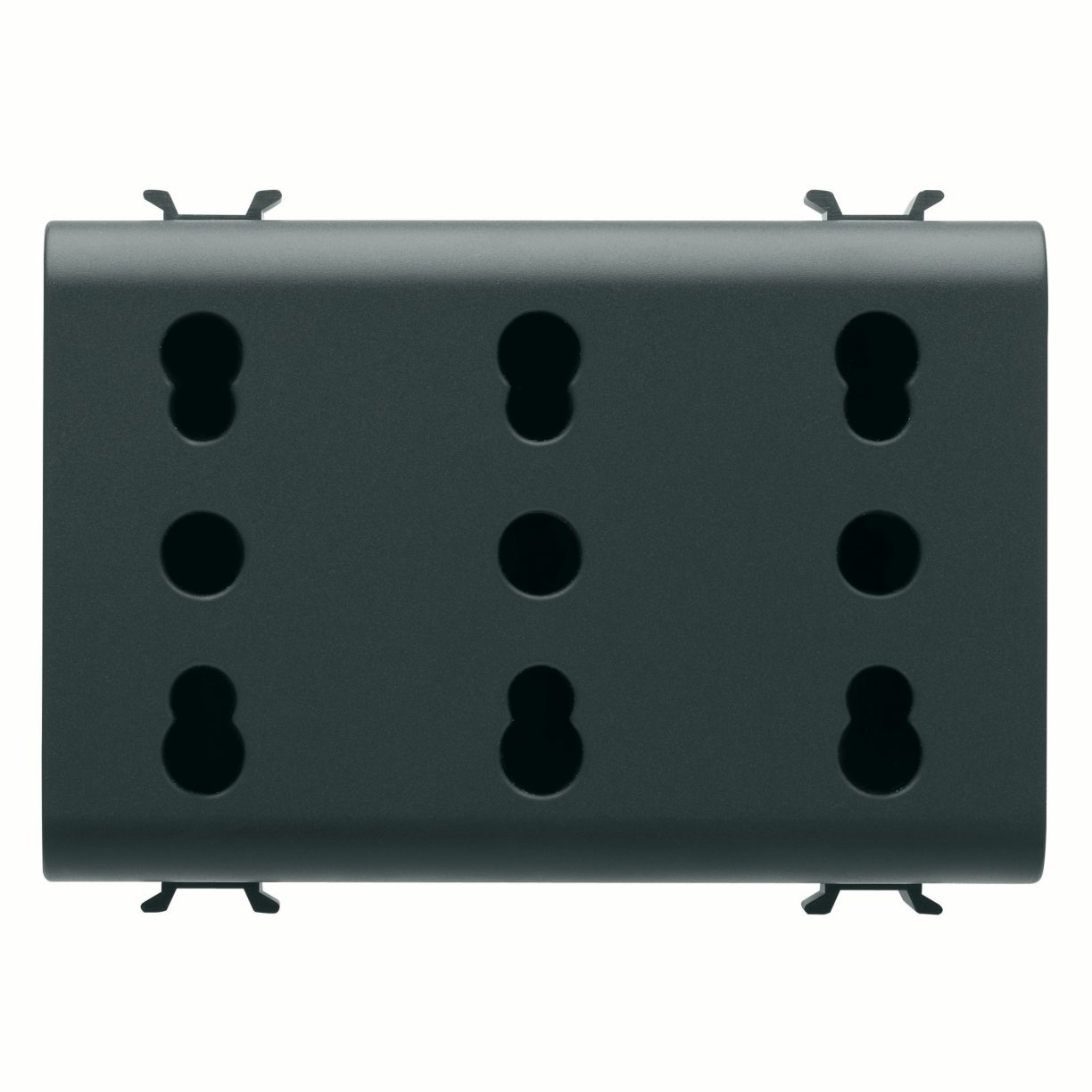

The Gewiss GW12209 is a satin black technopolymer Italian standard triple socket-outlet featuring a 3-module width, 3x2P+E 16A dual amperage configuration, and integrated safety shutters complying with CEI 23-50. Built for 250 V ac applications, this P11-P17 socket type accommodates Ø 4 / 5 mm plug pins and incorporates screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It demonstrates a test voltage resistance of 2000 V at 50 Hz, insulation resistance exceeding 5 MOhm, ball thermo-pressure resistance at 125 °C, and a Glow Wire Test rating of 850 °C with an Electrocod of 0131. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

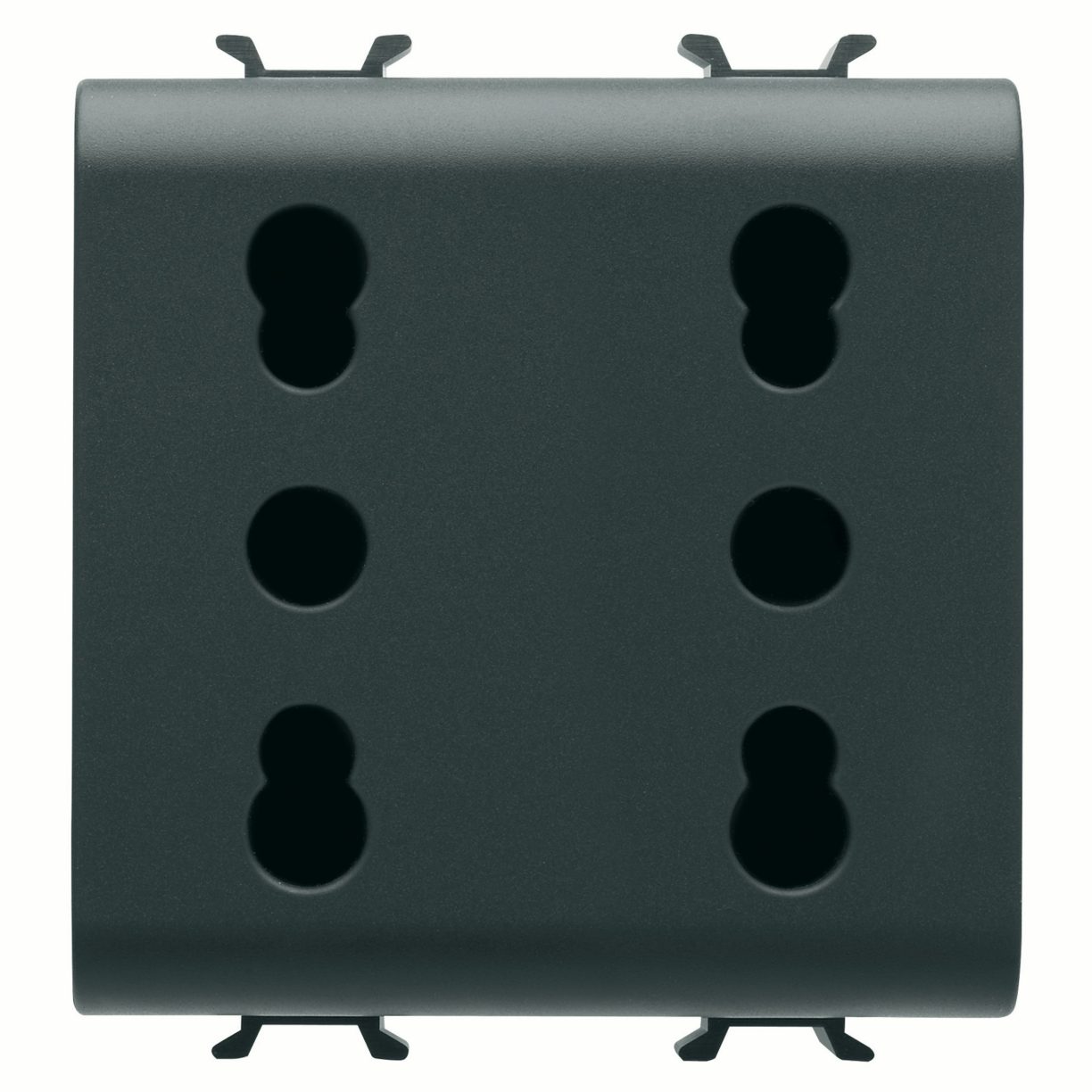

The Gewiss GW12208 is a 2-module Italian standard double socket-outlet in satin black featuring a 2x2P+E 16A dual amperage configuration and integrated safety shutters for Ø 4 and 5 mm plug pins. Constructed from technopolymer, this CEI 23-50 compliant device operates at 250 V ac and incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². It withstands a test voltage of 2000 V at 50 Hz for one minute, provides an insulation resistance greater than 5 MOhm, and delivers a rated operational durability of 10,000 position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Gewiss

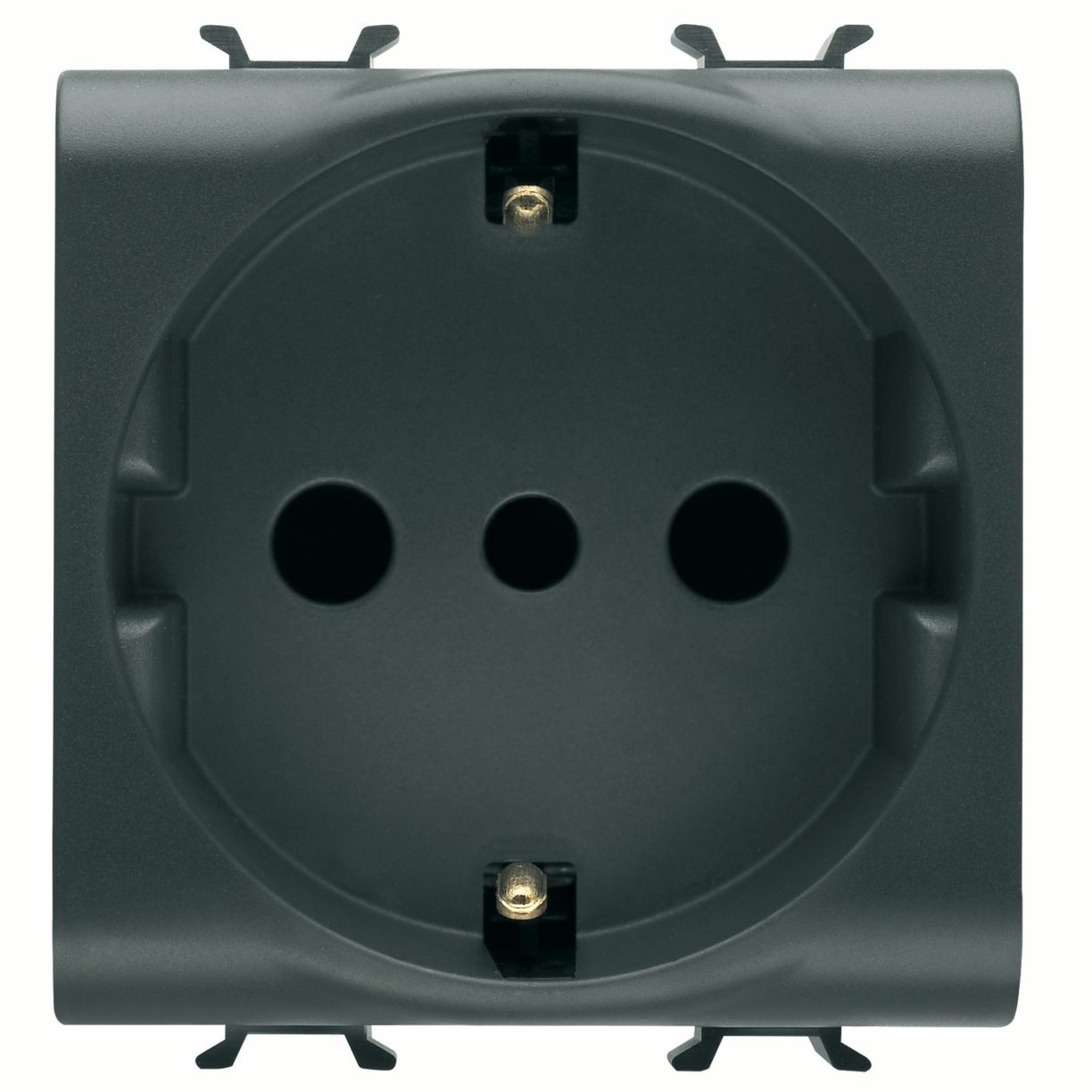

The Gewiss GW12205 is a 2-module technopolymer socket-outlet in satin black, rated for 250 V ac and 16 A with a 2P+E configuration. It features side and central earth pins, safety shutters, and screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Built to CEI 23-50 and IEC 60884-1 standards, the unit is rated for 10,000 operations at In 250 V ac cosφ=0.8, withstands a 2000 V test voltage at 50 Hz for 1 minute, and undergoes a Glow Wire Test at 850 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

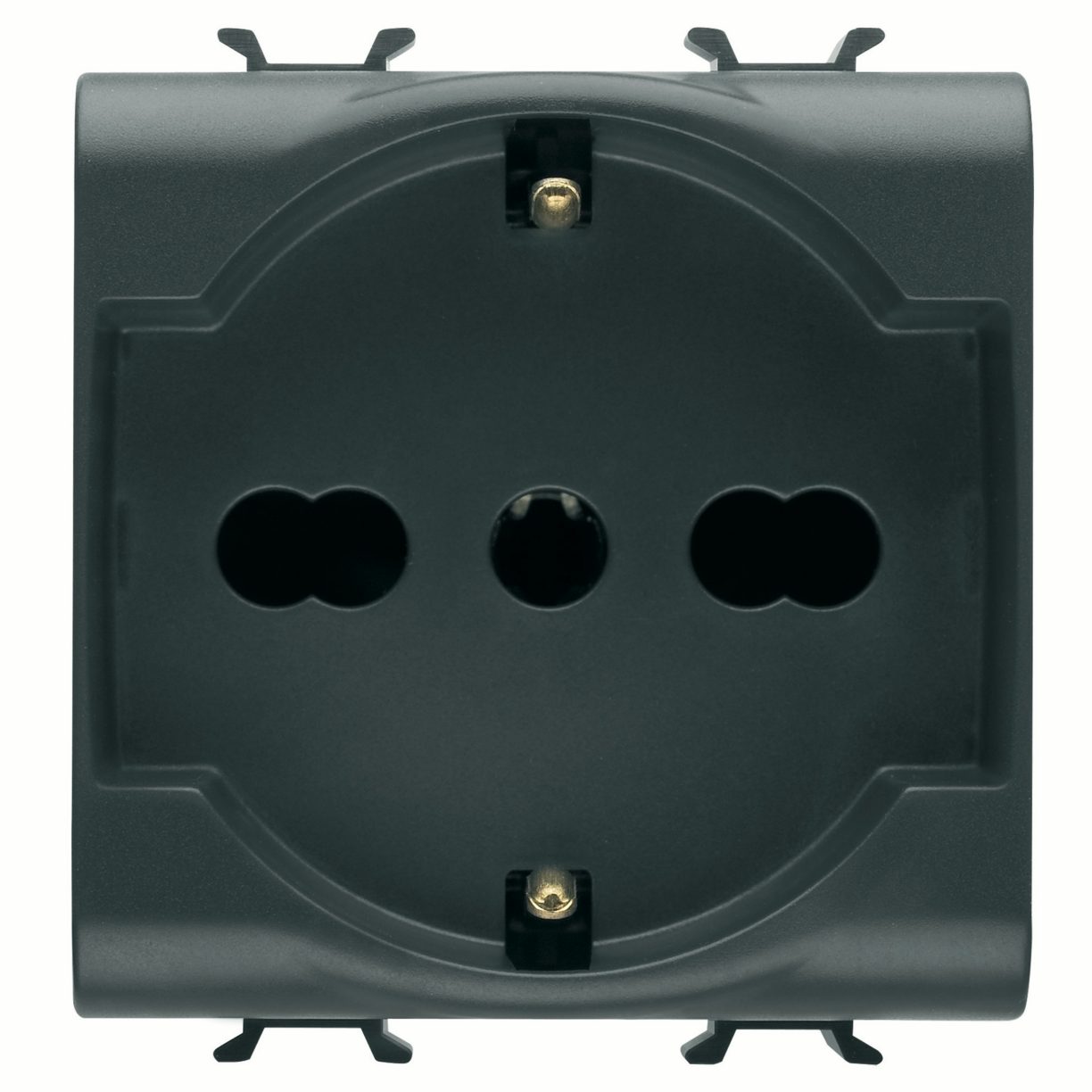

The Gewiss GW12204 is a 2P+E 16 A dual amperage Italian/German standard socket-outlet in satin black, occupying 2 modules and constructed from technopolymer with an Electrocod of 0131. Operating at 250 V ac, this P40 socket features side and central earth pits, safety shutters, screw wiring terminals, and compatibility with Ø 4, 4.8, and 5 mm plug pins while complying with CEI 23-50 and IEC 60884-1 standards. Technical performance metrics include 2000 V at 50 Hz test voltage resistance for 1 minute, insulation resistance greater than 5 MOhm, 10,000 prolonged operation position changes at In 250 V ac cosφ=0.8, ball thermo-pressure at 125 °C, Glow Wire Test at 850 °C, and cable traction terminal grip exceeding 50 N. Terminal tightening capacities accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Gewiss

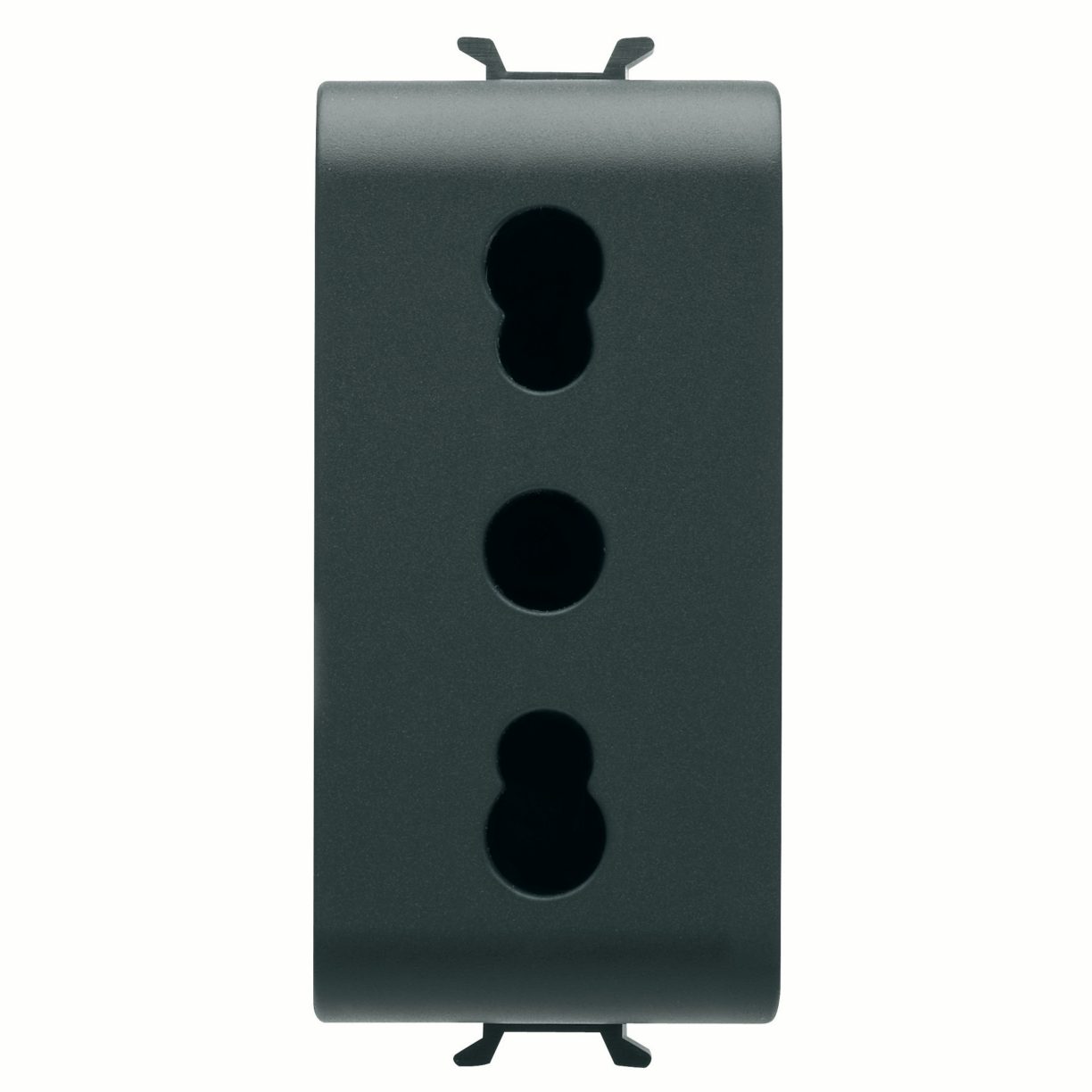

The Gewiss GW12203 is a satin black 2P+E 16A dual amperage Italian standard socket-outlet operating at 250V ac in accordance with CEI 23-50. This 1-module technopolymer device features P11-P17 socket-out types with safety shutters, screw wiring terminals, and accommodates solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Certified with an electrocod of 0131, it withstands a test voltage of 2000V at 50 Hz for 1 minute, an insulation resistance greater than 5 MOhm, ball thermo-pressure at 125 °C, and a glow wire test of 850 °C. Submit the exact part number, quantity, and application requirements to request a quote.
