Gewiss
The Gewiss GW12103F is a 2-module intermediate switch rated for 1P 250 V ac at 16 AX, featuring a satin black finish and a button key with a replaceable neutral lens. Constructed from technopolymer and compliant with EN 60669-1, this illuminable switch incorporates quick spring wiring terminals accommodating solid or stranded cables from 0.5 to 2.5 mm², withstands a 2000 V test voltage at 50 Hz for 1 minute, and supports a rated power of 230V LED lamps up to 200 W. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Gewiss
The Gewiss GW12103 is a 1-pole, 16 AX illuminable reversing switch rated at 250 V ac, constructed from technopolymer in a satin black finish and occupying 2 modules. This component features a replaceable neutral lens, screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², and a rated power of 230V LED lamps up to 200 W. Built in accordance with EN 60669-1, it withstands a test voltage of 2000 V at 50 Hz for 1 minute, provides an insulation resistance greater than 5 MOhm, and endures 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss
The Gewiss GW12102F is a 2-module intermediate switch 1P 250 V ac rated at 16 AX featuring a satin black finish and a button key with a diffuser. Built from technopolymer in accordance with EN 60669-1, this illuminable component incorporates quick spring wiring terminals with a solid cable capacity of 0.5 to 2x2.5 mm² and a stranded cable capacity of 0.75 to 2x2.5 mm². The unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, features an insulation resistance greater than 5 MOhm, and supports a rated power of 230V LED lamps up to 200 W. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Gewiss
The Gewiss GW12102 is a 1-pole, 16 AX illuminable reversing switch rated at 250 V ac featuring a satin black technopolymer construction with a diffuser and occupying 2 modules. Built in accordance with EN 60669-1 standards, this component withstands a test voltage of 2000 V at 50 Hz for 1 minute, exhibits an insulation resistance greater than 5 MOhm, and supports a rated power of 230V LED lamps up to 200 W. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², delivering a terminal grip on cable traction exceeding 50 N alongside a prolonged operation rating of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss
The Gewiss GW12101F is a 1P 16 AX intermediate switch operating at 250 V ac, constructed with a neutral button key in satin black technopolymer spanning 2 modules. Built to EN 60669-1 standards, it features quick spring wiring terminals accommodating solid or stranded cables from 0.5 mm² to 2x2.5 mm² and withstands a rated power of 200 W for 230V LED lamps. Additional technical parameters include 40,000 position changes at In 250 V ac cosφ=0.6, a Glow Wire Test rating of 850 °C, and an Electrocod of 0130. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW12101 is a 1-pole, 16 AX reversing switch rated at 250 V ac, featuring a neutral button key in a satin black technopolymer finish spanning 2 modules. Built in accordance with EN 60669-1, this component delivers a rated power of 200 W for 230V LED lamps, withstands 40,000 position changes at In 250 V ac cosφ=0.6, and utilizes screw wiring terminals with a solid cable capacity of 0.5 to 2x2.5 mm² and stranded cable capacity of 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements to receive a formal quotation for this hardware.
View product details →
Gewiss
The Gewiss GW12093 is a 1-pole, 16 AX illuminable reversing switch rated at 250 V ac, housed in a 1-module satin black technopolymer body with a replaceable neutral lens. Built to EN 60669-1 standards, it features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a prolonged operation rating of 40,000 position changes at In 250 V ac cosφ=0.6. Additional technical parameters include an 850 °C Glow Wire Test rating, 125 °C ball thermo-pressure resistance, 2000 V test voltage resistance for 1 minute, insulation resistance exceeding 5 MOhm, and a rated power capacity of 200 W for 230V LED lamps. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Gewiss
The Gewiss GW12092 is a 1-pole, 16 AX illuminable reversing switch rated for 250 V ac, constructed from satin black technopolymer with a built-in diffuser and occupying a single module space. Built in accordance with EN 60669-1, this component features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a rated power capacity of 200 W for 230V LED lamps. It withstands a test voltage of 2000 V at 50 Hz for 1 minute, maintains an insulation resistance greater than 5 MOhm, and delivers an operational lifespan of 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Gewiss
The Gewiss GW12091 is a 1-module, 1-pole reversing switch rated for 250 V ac and 16 AX featuring a neutral button key in satin black. Built from technopolymer with screw wiring terminals and an Electrocod of 0130, this component complies with EN 60669-1 and supports a rated power of 230V LED lamps up to 200 W. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

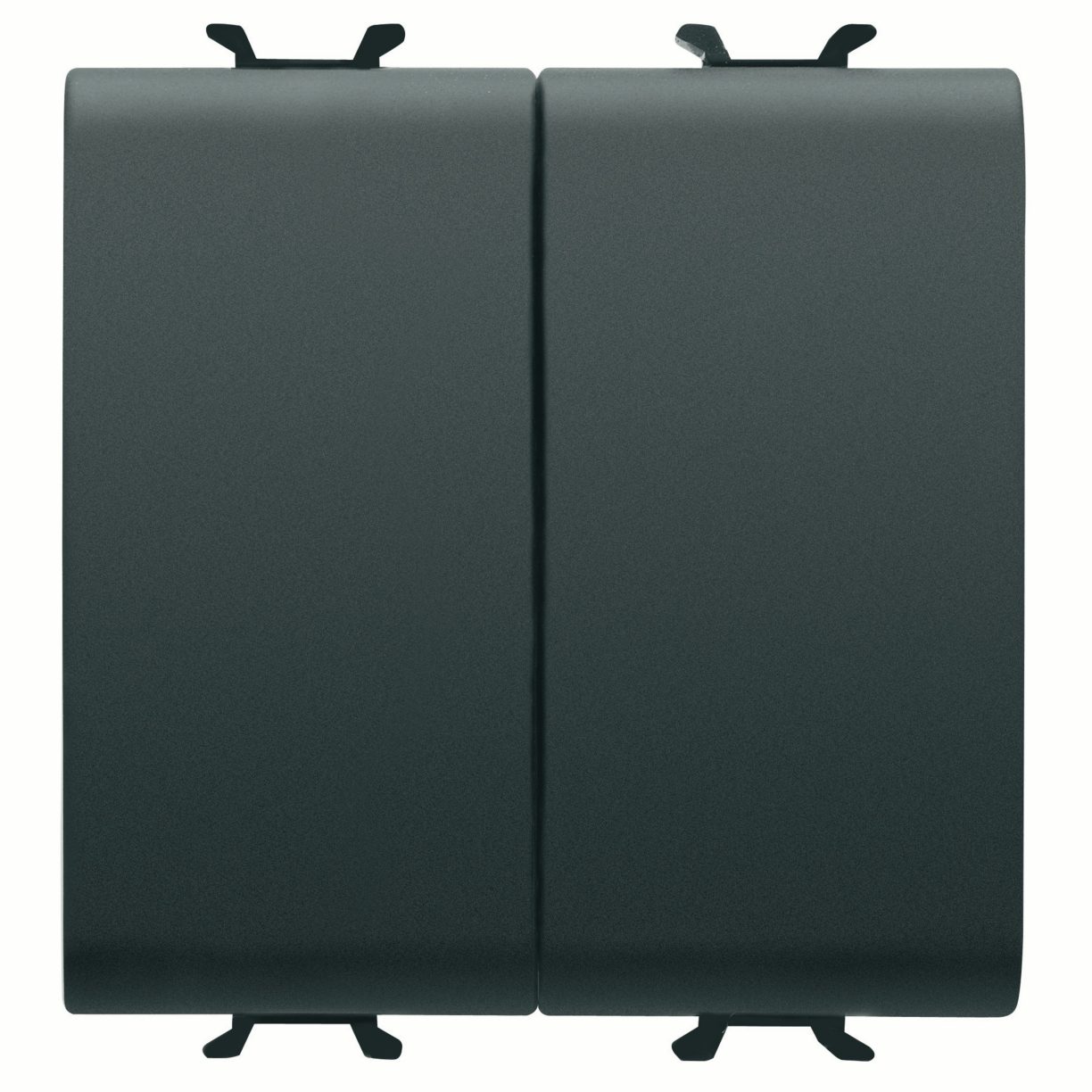

The Gewiss GW12078F is a twin two-way switch 1P 16 AX rated for 250 V ac, featuring a neutral button key with a satin black technopolymer finish occupying two modules. It complies with EN 60669-1, offering quick spring wiring terminals with a solid cable capacity from 0.5 to 2x2.5 mm² and a stranded cable capacity from 0.75 to 2x2.5 mm². The unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, supports a rated power of 230V LED lamps up to 200 W, and provides 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Gewiss
The Gewiss GW12073F is a 2-module, 1-pole illuminable two-way switch rated for 250 V ac and 16 AX, featuring a satin black technopolymer construction with a replaceable neutral lens. Built to EN 60669-1 standards, this component integrates quick spring wiring terminals accommodating solid or stranded cables from 0.5 mm² to 2x2.5 mm² and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Additional technical parameters include a 200 W rated power for 230V LED lamps, an 850 °C Glow Wire Test rating, and a 125 °C ball thermo-pressure threshold. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Gewiss
The Gewiss GW12073 is a 1P 16AX illuminable two-way switch rated for 250 V ac, constructed from technopolymer in satin black with a replaceable neutral lens button key. Built to EN 60669-1 standards, this two-module component features screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², alongside a rated power capacity of 200 W for 230V LED lamps. It withstands a test voltage of 2000 V at 50 Hz for 1 minute, maintains an insulation resistance greater than 5 MOhm, and delivers 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Gewiss
The Gewiss GW12072F is a 2-pole module two-way switch rated at 1P 250 V ac and 16 AX with an illuminable satin black diffuser button. Constructed from technopolymer and compliant with EN 60669-1, it features quick spring wiring terminals accommodating solid and stranded cables from 0.5 mm² to 2x2.5 mm². This component supports a 200 W rated power for 230V LED lamps and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Gewiss
The Gewiss GW12072 is a two-way 1P 16AX illuminable switch featuring a satin black technopolymer body with a diffuser, occupying 2 modules. Built to EN 60669-1 standards, it operates at 250 V ac, supports a rated LED lamp power of 230V up to 200 W, and withstands 40,000 position changes at In 250 V ac cosφ=0.6. The unit incorporates screw wiring terminals accommodating stranded cables from 0.75 to 2x4 mm² and solid cables from 0.5 to 2x2.5 mm², with a terminal grip exceeding 50 N. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Gewiss
The Gewiss GW12071F is a satin black two-way switch occupying 2 modules, featuring a neutral button key and quick spring wiring terminals. Built from technopolymer in accordance with EN 60669-1, this 1P 250 V ac 16AX component supports a rated power of 200 W for 230V LED lamps and withstands 40,000 position changes at In 250 V ac cosφ=0.6. Terminal capacities accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x2.5 mm², with a cable traction grip exceeding 50 N. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Gewiss
The Gewiss GW12071 is a 1P 16 AX two-way switch rated at 250 V ac, featuring a neutral button key and a satin black technopolymer finish spanning two modules. Manufactured to EN 60669-1 standards, it incorporates screw wiring terminals that accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a rated power of 230V LED lamps up to 200 W. This unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and delivers 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss
The Gewiss GW12061 is a 1P 10 AX two-way switch rated at 250 V ac featuring a neutral neutral button key and a satin black technopolymer construction occupying 1/2 module. Built with screw wiring terminals supporting solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this component complies with EN 60669-1 and delivers a rated power of 230V LED lamps of 100 W. It withstands a test voltage resistance of 2000 V at 50 Hz for 1 minute, an insulation resistance greater than 5 MOhm, and 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Gewiss

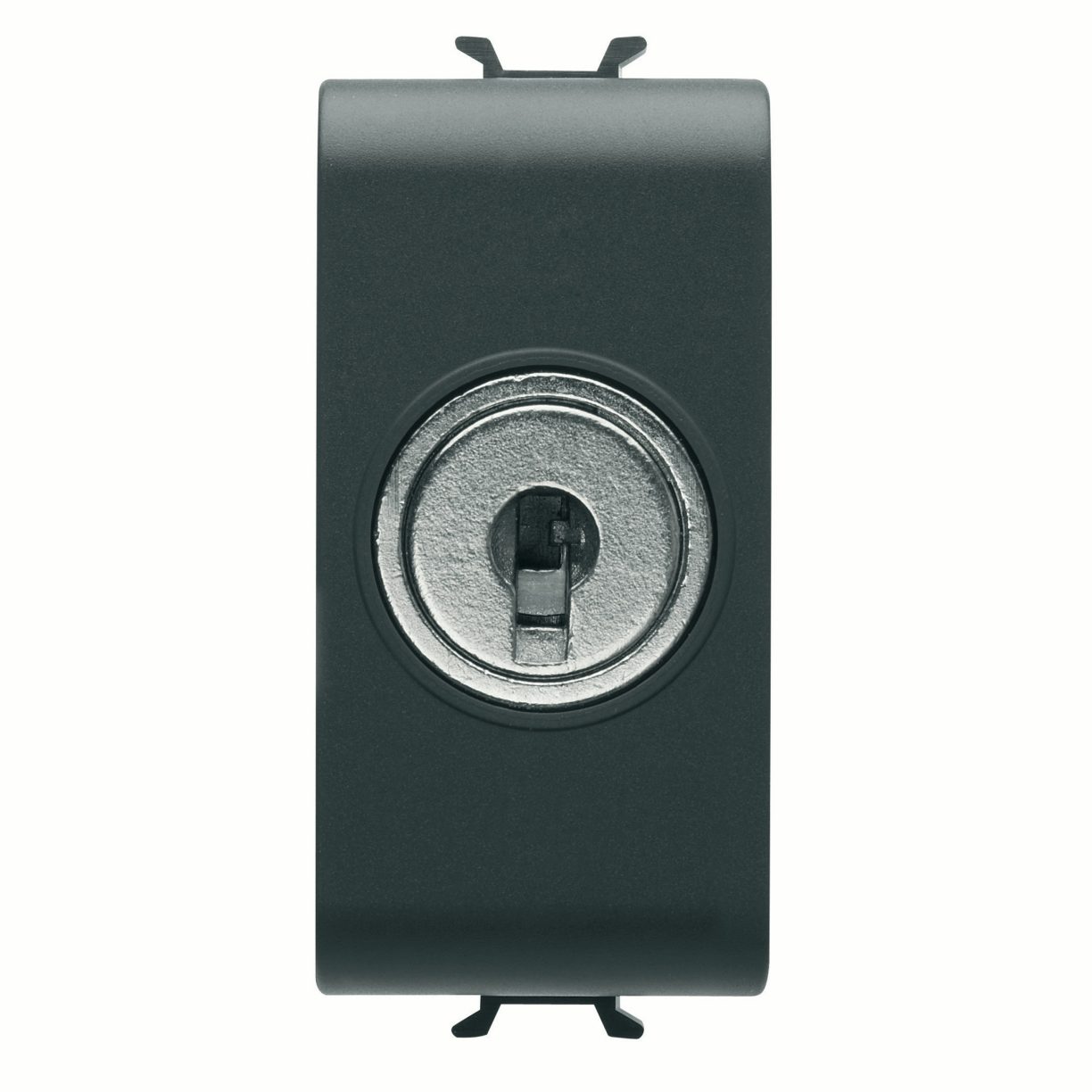

The Gewiss GW12054 is a 1-module, 1P 10AX two-way switch rated for 250 V ac, featuring a key-operated satin black technopolymer actuator and screw wiring terminals. Built to EN 60669-1 standards, it withstands a 2000 V test voltage at 50 Hz for one minute, provides an insulation resistance greater than 5 MOhm, and delivers a rated power of 100 W for 230V LED lamps. The component accommodates solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², offering a terminal grip on cable traction exceeding 50 N alongside a 40,000 position change operational lifespan at In 250 V ac cosφ=0.6. Submit the exact part number, quantity, and application requirements to receive an official quote for this component.
View product details →Gewiss
The Gewiss GW12053 is a 1-module, single-pole 16 AX illuminable two-way switch rated at 250 V ac featuring a replaceable neutral lens in satin black technopolymer. Built to EN 60669-1 standards, this component withstands a test voltage of 2000 V at 50 Hz for one minute, offers insulation resistance greater than 5 MOhm, and delivers 40,000 prolonged operation position changes at In 250 V ac cosφ=0.6. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², while supporting a rated LED lamp power of 200 W at 230V. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Gewiss
The Gewiss GW12052 is a 1-module, single-pole two-way switch rated at 16 AX and 250 V ac, featuring an illuminable design with a diffuser and a satin black technopolymer construction. Built in accordance with EN 60669-1, this component accommodates solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm² via screw wiring terminals. It withstands a test voltage of 2000 V at 50 Hz for 1 minute, exhibits an insulation resistance greater than 5 MOhm, and delivers a rated power of 200 W for 230V LED lamps. Submit the exact part number, quantity, and application requirements to request a quote.
