Gewiss

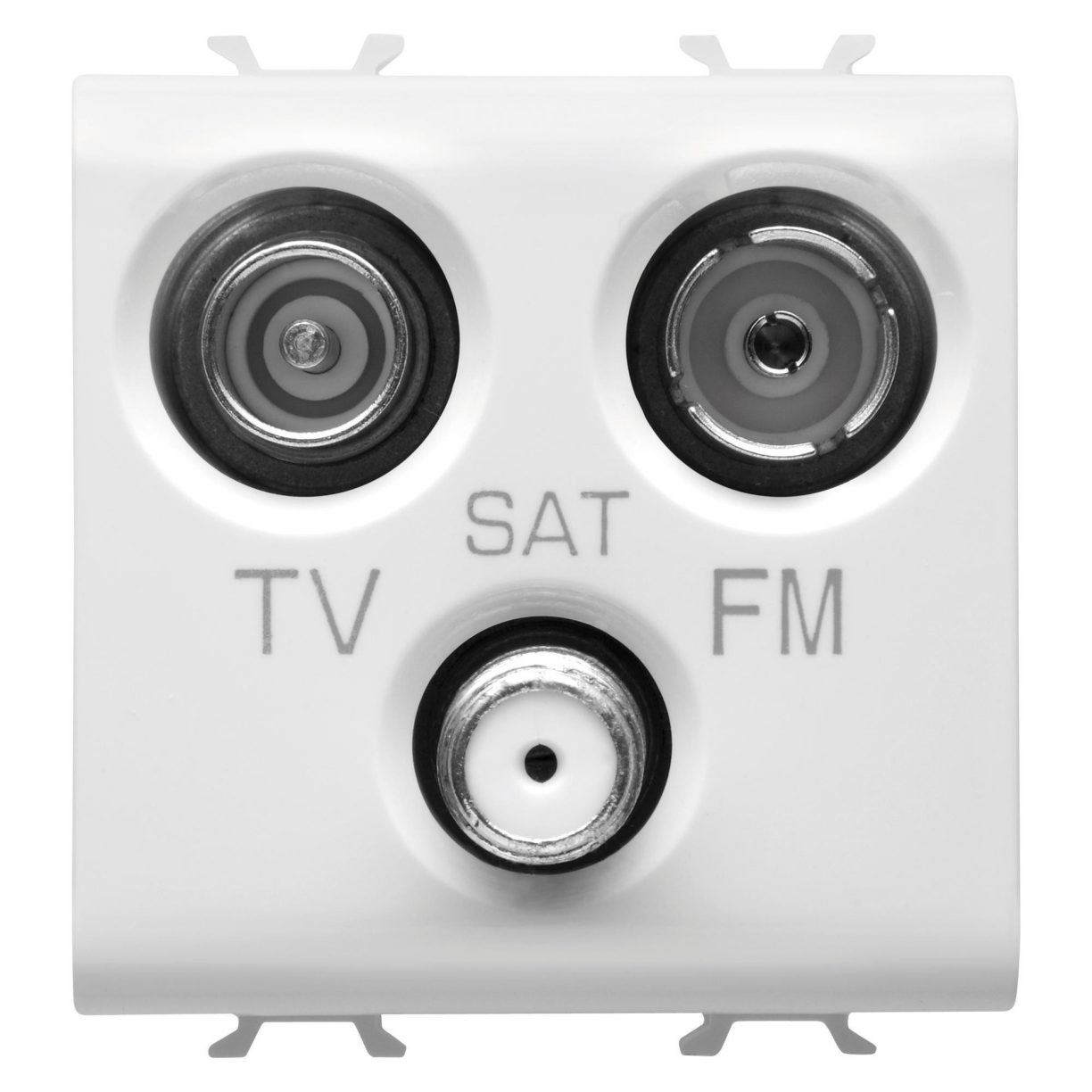

The Gewiss GW10382 is a 2-module direct TV-FM-SAT socket-outlet featuring a glossy white technopolymer finish and a pressure casting zamak metal body case. This component utilizes screw-type cable fixing, provides 0 dB attenuation, and conforms to EN 60728-4, IEC 61169-2, and IEC 61169-24 standards with the Electrocod 0131 designation and HS code 85366910. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

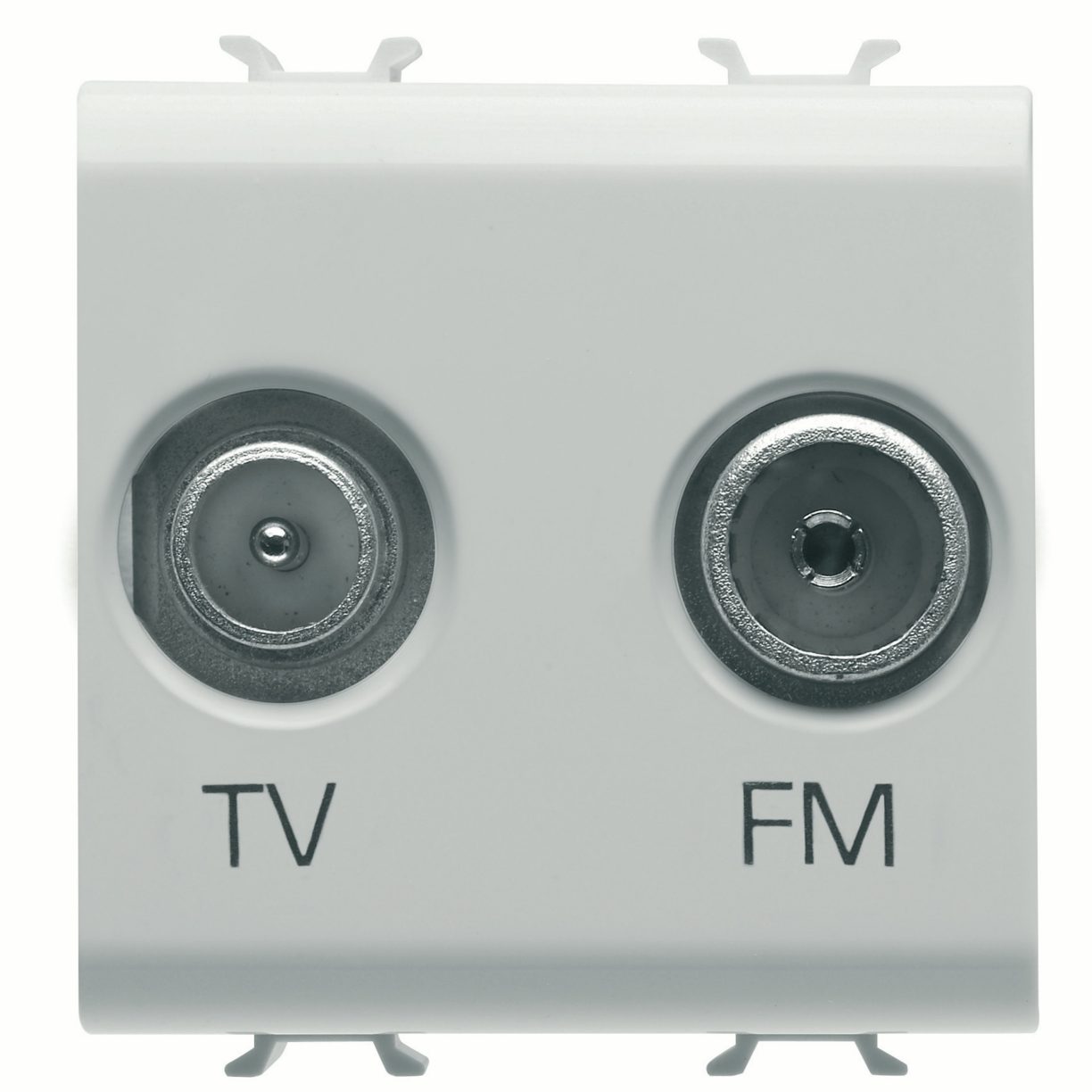

The Gewiss GW10381 is a 2-module TV-FM direct socket-outlet featuring a glossy white technopolymer finish and an Electrocod 0131 rating. Built with a pressure-casting zamak metal body, it incorporates screw cable fixing, 0 dB attenuation, and complies with EN 60728-4 and IEC 61169-2 standards under HS code 85366910. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Gewiss

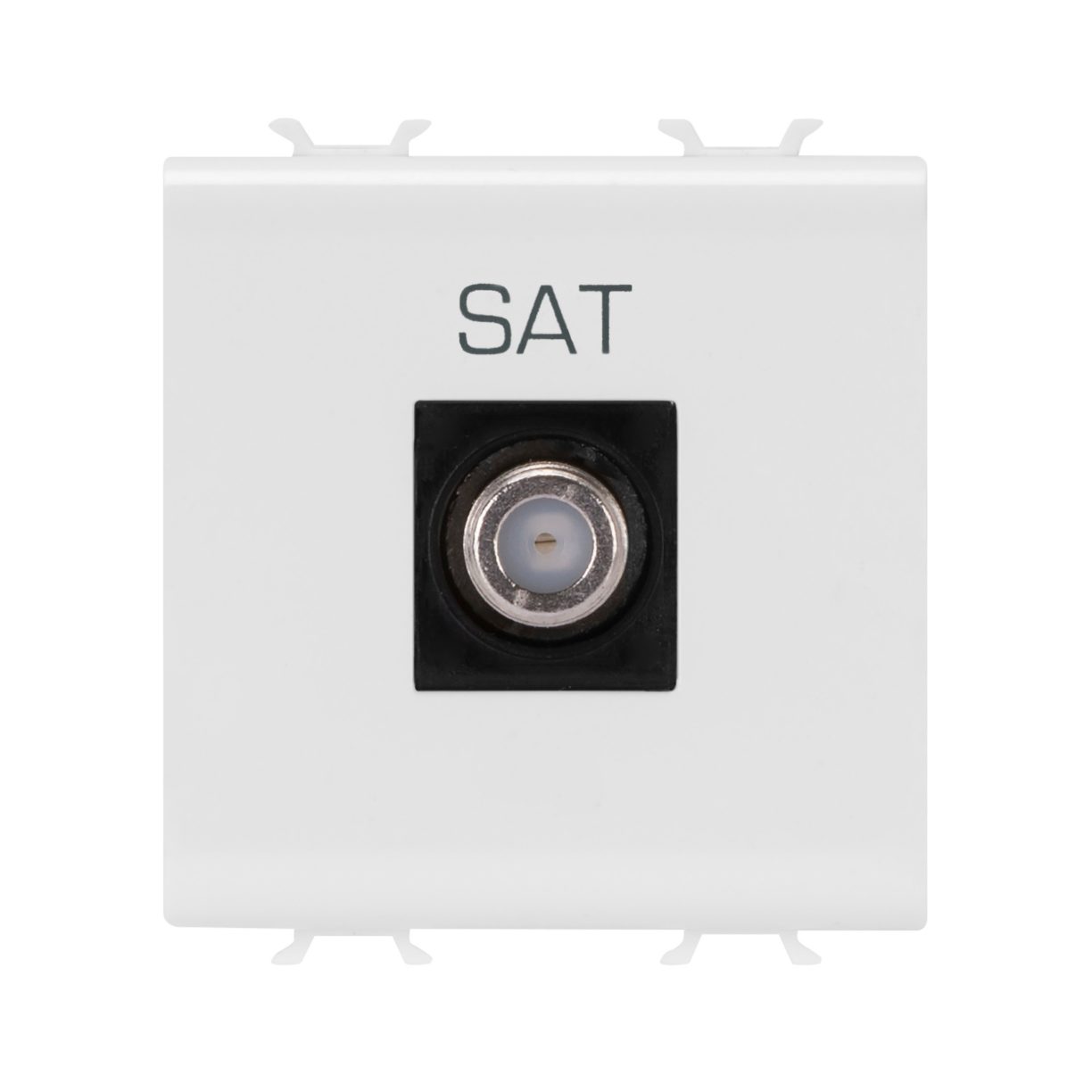

The Gewiss GW10377 is a direct coaxial TV socket-outlet featuring a glossy white technopolymer plastic body occupying 2 modules. This Class A shielded component operates across a 5-2400 MHz frequency range with 0 dB attenuation for an F-Female connector type, conforming to standard IEC 61169-24 with pressure-operated cable fixing and electrocod 0131. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Gewiss

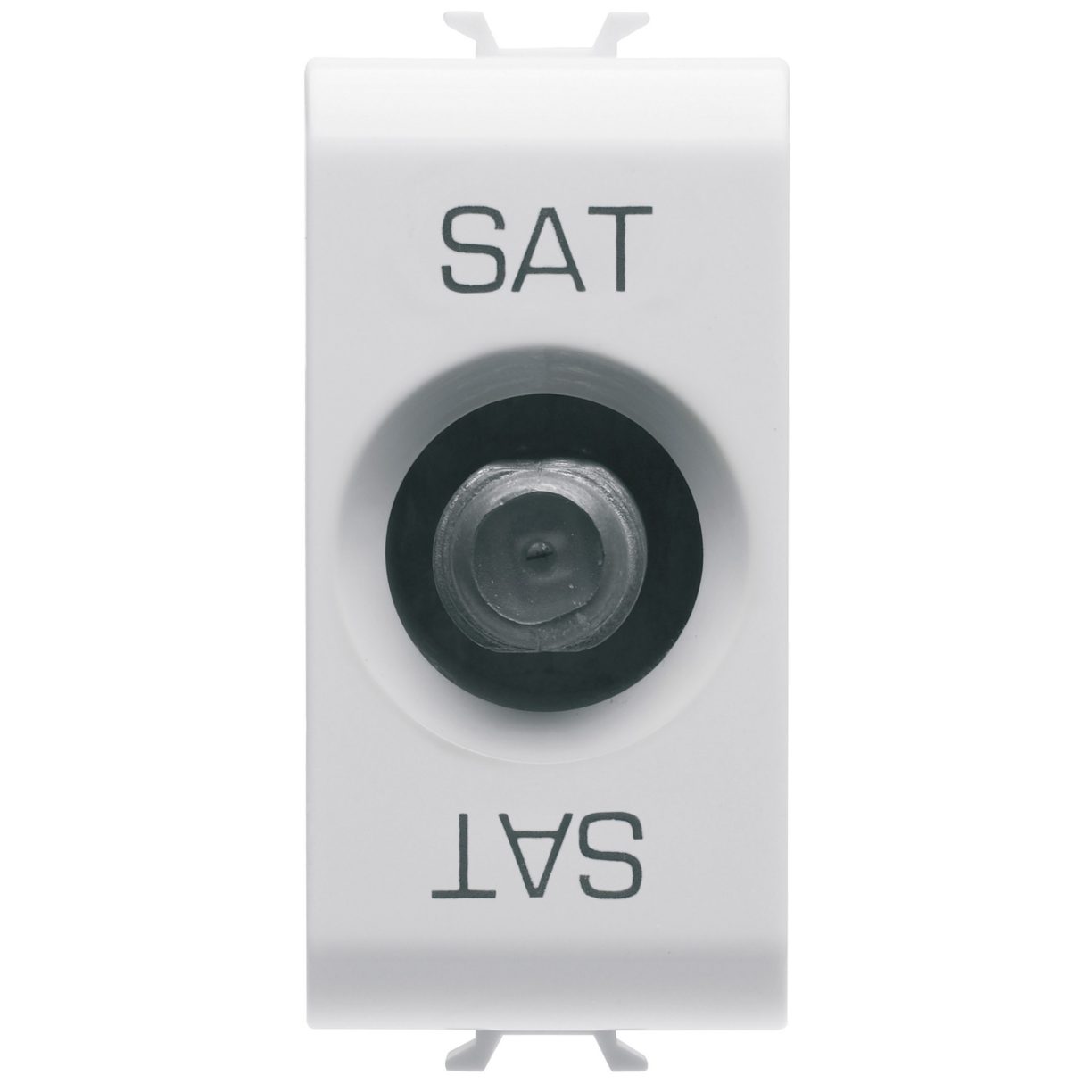

The Gewiss GW10373 is a 1-module glossy white coaxial TV/SAT socket-outlet featuring through wiring and an F-female connector type. Built with a technopolymer material and a pressure casting zamak metal body, this Class A shielded component delivers a 10 dB attenuation across a 5 to 2400 MHz frequency range with screw cable fixing and electrocod 0131, compliant with EN 60728-4 and IEC 61169-24 standards. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Gewiss
The Gewiss GW10372 is a 1-module glossy white coaxial TV/SAT socket-outlet featuring through wiring and an F-female connector type. Constructed with a technopolymer material and a pressure casting zamak metal body, this component operates across a 5-2400 MHz frequency with a 5 dB attenuation and Class A shielding. Cable fixing is executed via screw termination, adhering to EN 60728-4 and IEC 61169-24 standards with electrocod 0131 and HS code 85366910. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Gewiss
The Gewiss GW10371 is a 1-module glossy white coaxial TV/SAT socket-outlet featuring a direct 0 dB attenuation and a 5-2400 MHz frequency range. Constructed with a pressure casting zamak metal body case, technopolymer material, and screw cable fixing, this Class A shielded component utilizes an F-Female connector type in compliance with EN 60728-4 and IEC 61169-24 standards. The unit holds HS code 85366910 and electrocod 0131. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Gewiss

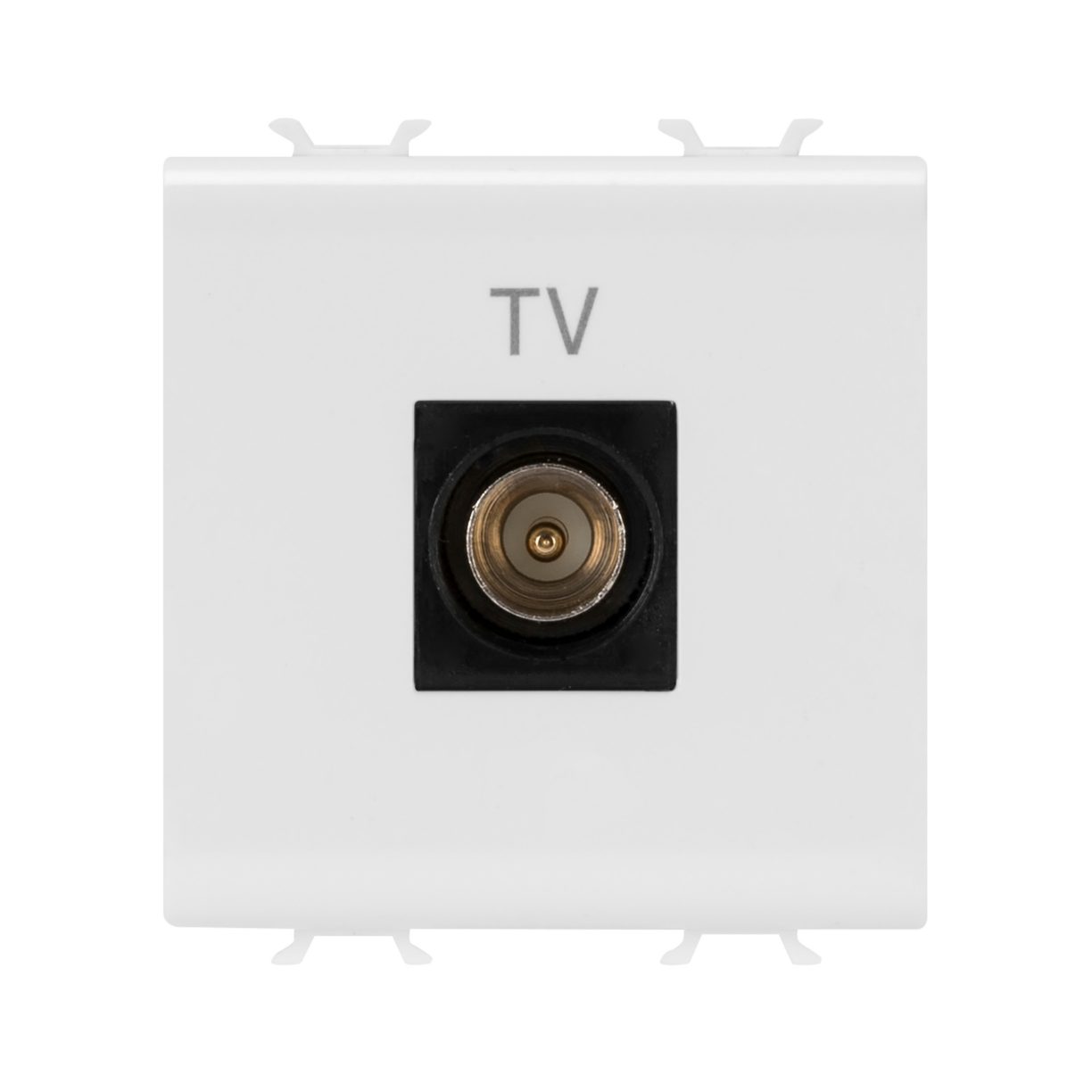

The Gewiss GW10367 is a direct coaxial TV socket-outlet featuring a glossy white technopolymer plastic body occupying 2 modules. This Class A shielded component operates across a frequency range of 5 to 2400 MHz with 0 dB attenuation and utilizes an IEC-Male connector type conforming to IEC 61169-2, with pressure-operated cable fixing and Electrocod 0131. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Gewiss

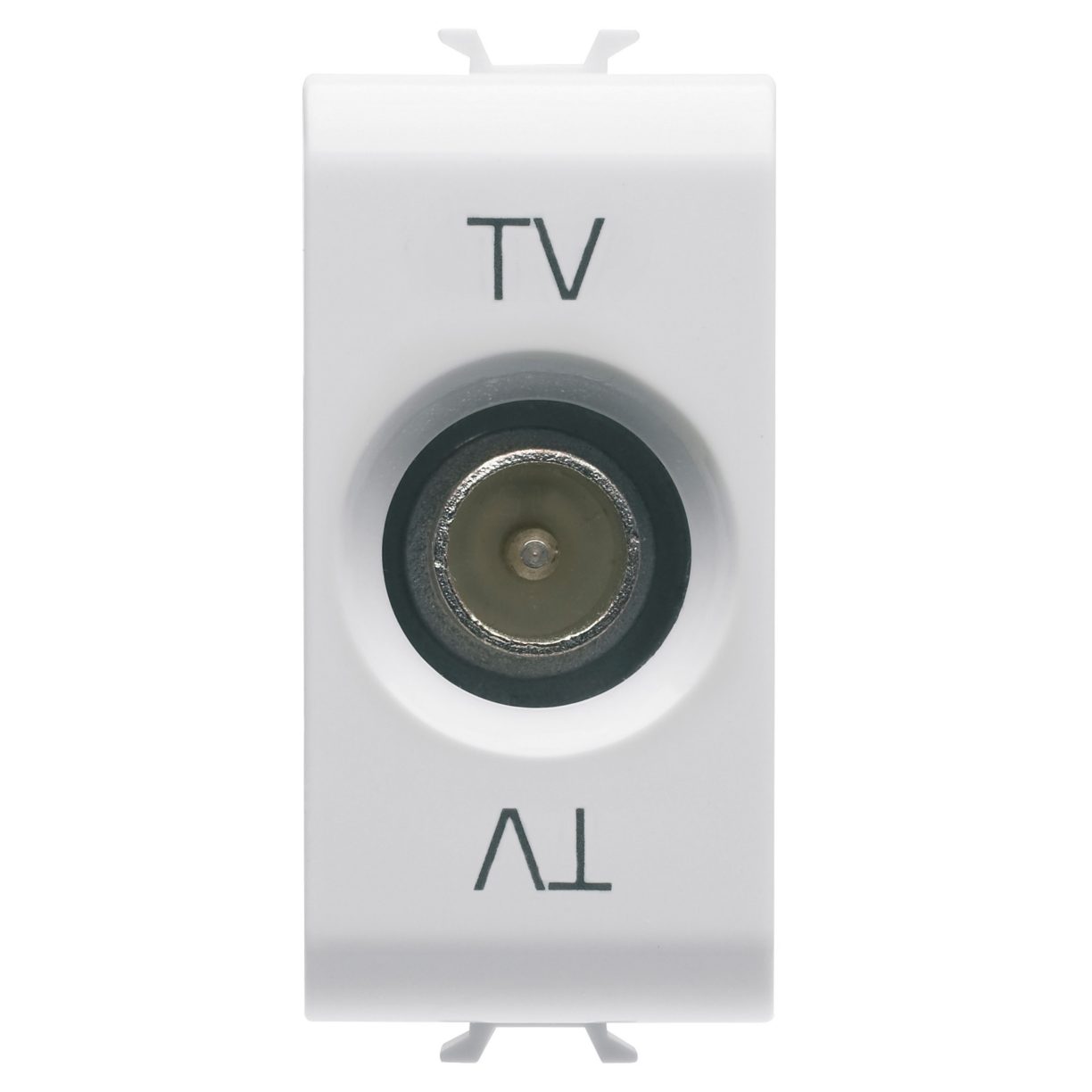

The Gewiss GW10363 is a 1-module glossy white coaxial TV socket-outlet featuring through wiring and a 10 dB attenuation across a 5-2400 MHz frequency range. Built with a technopolymer material and a pressure casting zamak metal body case, this Class A shielded component includes screw cable fixing for IEC-Male connectors and complies with EN 60728-4 and IEC 61169-2 standards under electrocod 0131. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Gewiss
The Gewiss GW10362 is a 1-module glossy white coaxial TV socket-outlet featuring a through wiring design and screw cable fixing. Constructed with a technopolymer and a pressure casting zamak metal body, it provides Class A shielding, a 5 dB attenuation, and a 5-2400 MHz frequency range for IEC-Male connectors complying with EN 60728-4 and IEC 61169-2 standards. This unit carries the electrocod 0131 and HS code 85366910. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Gewiss
The Gewiss GW10361 is a 1-module glossy white coaxial TV socket-outlet featuring a direct description, 0 dB attenuation, and a 5-2400 MHz frequency range with Class A shielding. Constructed from a technopolymer material paired with a pressure casting zamak metal body, this component utilizes screw cable fixing and an IEC-Male connector type conforming to EN 60728-4 and IEC 61169-2 standards. It carries the Electrocod 0131 and Ware Number 85366910 designations. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss
The Gewiss GW10351 is a 2-module technopolymer German standard socket-outlet rated for 250 V ac and 16 A with a 2P+E configuration in red. It features safety shutters, front tightening screw wiring terminals accommodating solid cables from 0.5 to 2.5 mm² and stranded cables from 0.75 to 2x4 mm², and is compliant with IEC 60884-1, DIN VDE 0620-1, and UNE 20315-1-1 standards. The unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, exhibits an insulation resistance greater than 5 MOhm, and is rated for 10,000 prolonged operation position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Gewiss

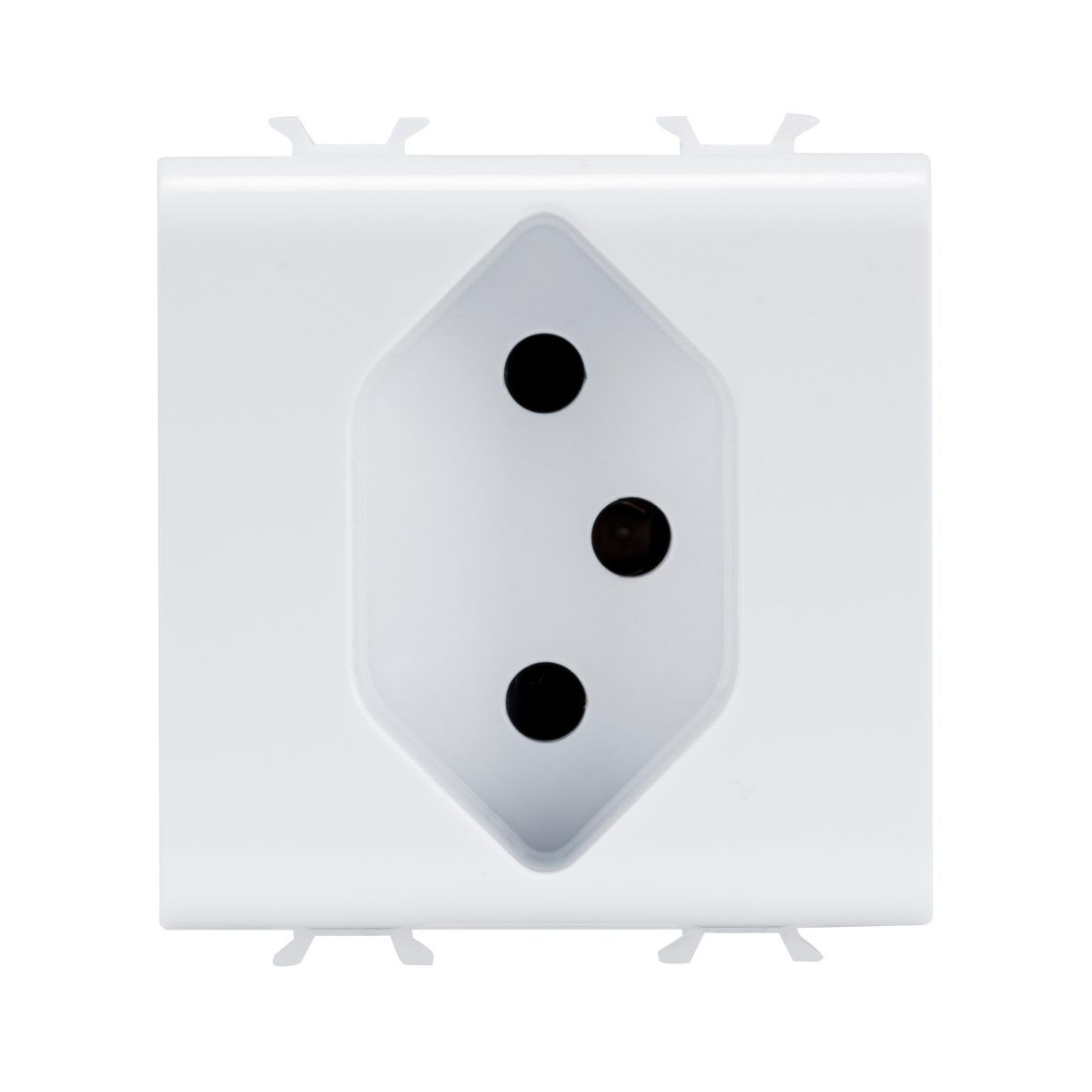

The Gewiss GW10346 is a 2P+E 10A Type 13 Swiss standard socket-outlet in glossy white, rated for 250 V ac and manufactured from technopolymer spanning 2 modules. This IEC 60884-1 compliant device features integrated safety shields, screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², and is rated for 10,000 operations at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →
Gewiss
The Gewiss GW10341 is a 2P+E 16 A, 250 V ac German standard socket-outlet in glossy white technopolymer, occupying 2 modules and featuring safety shutters for Ø 4.8 mm plug pins. Constructed to IEC 60884-1, DIN VDE 0620-1, and UNE 20315-1-1 standards, it utilizes screws with front tightening terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². The component withstands a test voltage of 2000 V at 50 Hz for 1 minute, exhibits an insulation resistance greater than 5 MOhm, and delivers an operational lifespan of 10,000 position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

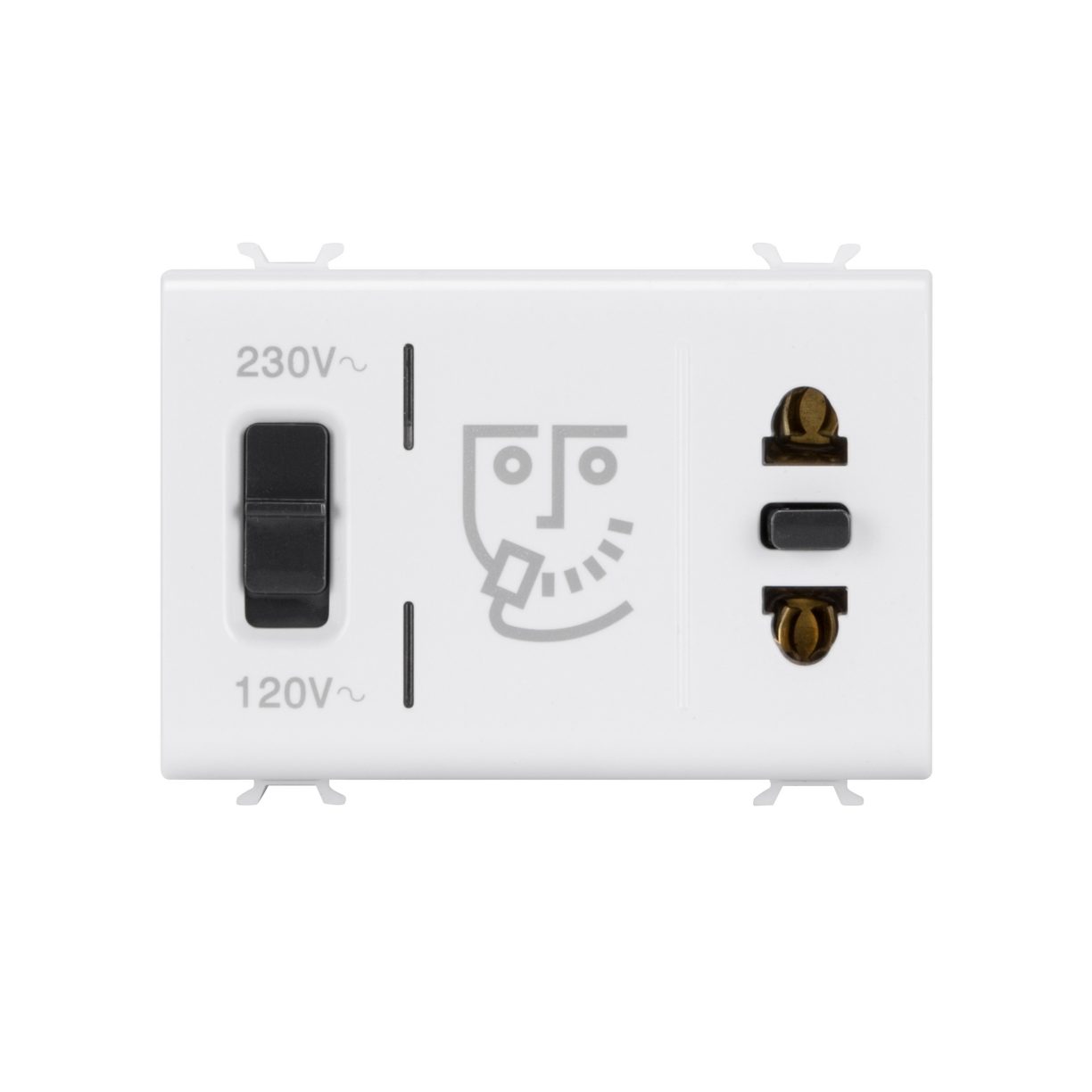

The Gewiss GW10331 is a 3-module Euro-American standard shaver socket-outlet in glossy white technopolymer, featuring a built-in isolation transformer and a P11-USA socket-outlet type. Operating at a 230 V ac 50/60 Hz supply voltage with a selectable 120-230 V ac output voltage and 20 VA maximum power, this unit conforms to IEC 60884-1 and EN 61558-2-5 standards. It incorporates screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², with a glow wire test rating of 850 °C and ball thermo-pressure testing at 125 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

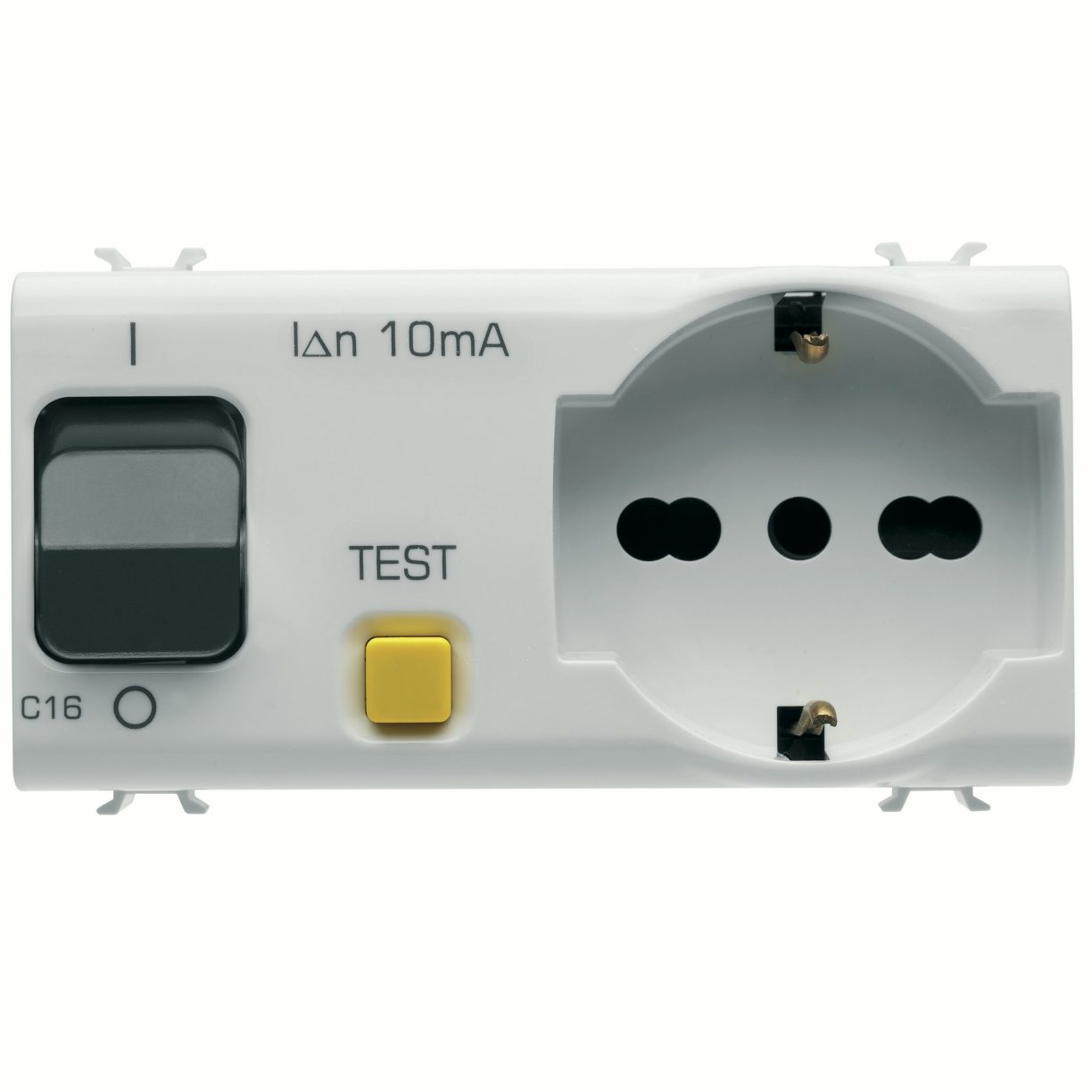

The Gewiss GW10322 is a glossy white, 4-module interlocked switched socket-outlet rated for 2P+E 16 A at 230 V ac, incorporating a P40 socket-outlet type alongside a 1P+N 16 A miniature circuit breaker with a 3 kA breaking capacity and 10 mA Idn. Designed with screw wiring terminals accommodating solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm², this unit complies with IEC 60884-1, EN 61009-1, and EN 61008-1 standards, featuring a ball thermo-pressure rating of 125 °C and an 850 °C glow wire test rating. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Gewiss

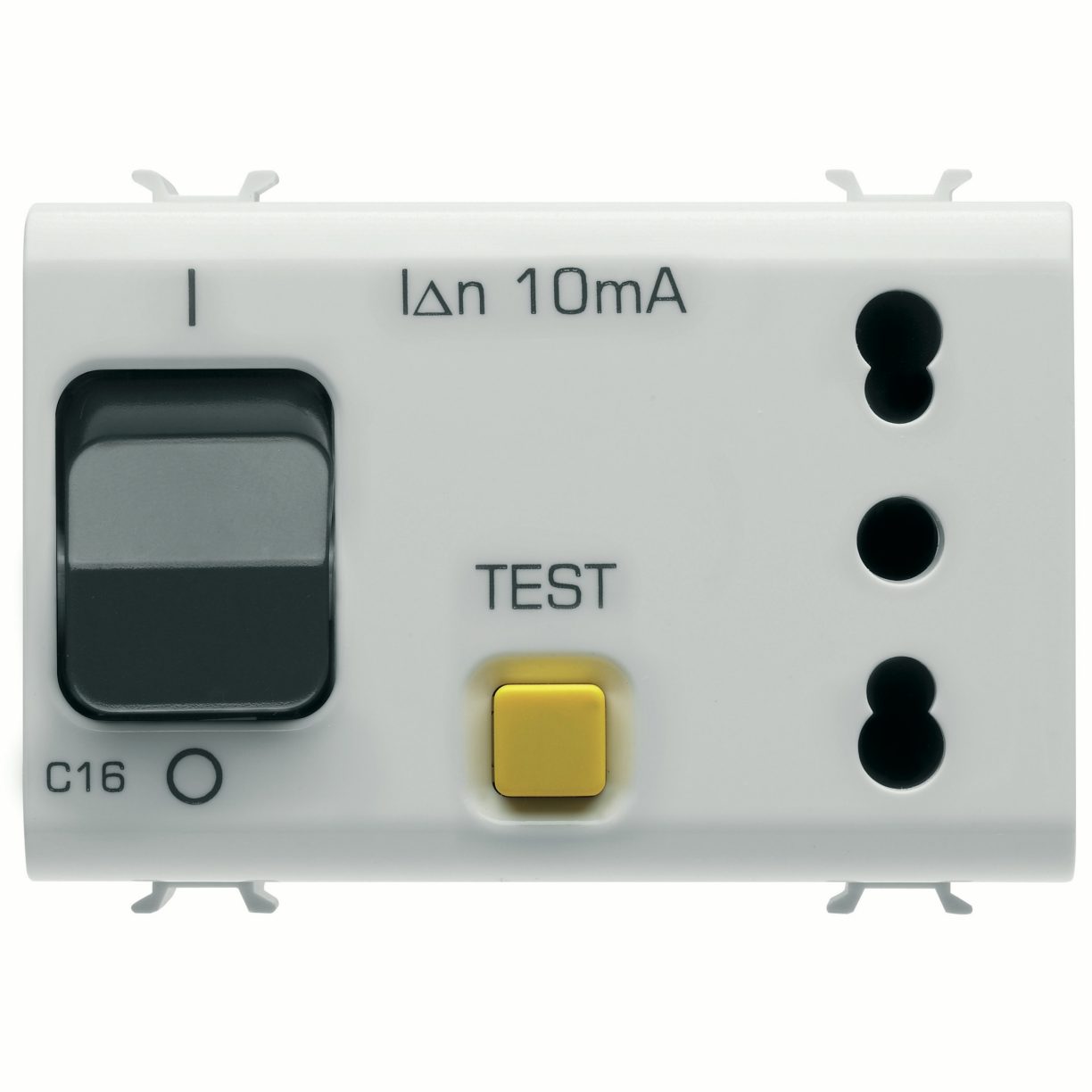

The Gewiss GW10321 is a 2P+E 16 A interlocked switched socket-outlet in glossy white featuring P17-P11 socket-out types and a 3-module design rated for 230 V ac. It integrates a 1P+N 16 A miniature circuit breaker with magnetotermico and differenziale protection, offering a 3 kA breaking capacity and a 10 mA Idn. Screw wiring terminals accommodate solid cables from 0.5 to 2x2.5 mm² and stranded cables from 0.75 to 2x4 mm². Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Gewiss

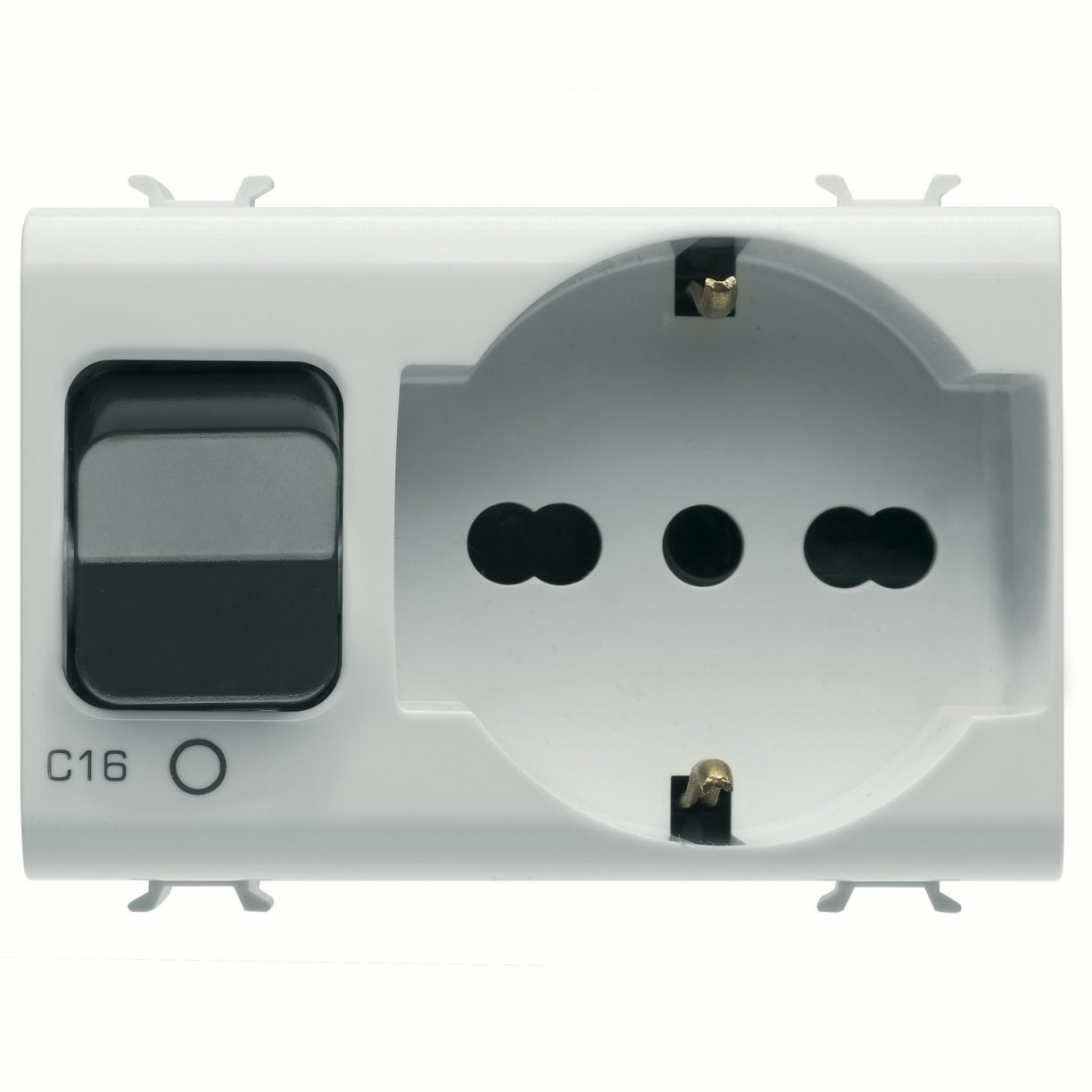

The Gewiss GW10312 is a glossy white, 3-module interlocked switched socket-outlet featuring a 2P+E 16A P40 configuration designed for 230 V ac operation. Integrated with a 1P+N 16 A miniature circuit breaker offering a 3 kA breaking capacity, this unit complies with IEC 60884-1 and EN 60898-1 standards using secure screw wiring terminals. Built for durability, it withstands 10,000 position changes at In 250 V ac, a ball thermo-pressure test of 125 °C, and a glow wire test of 850 °C. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →
Gewiss

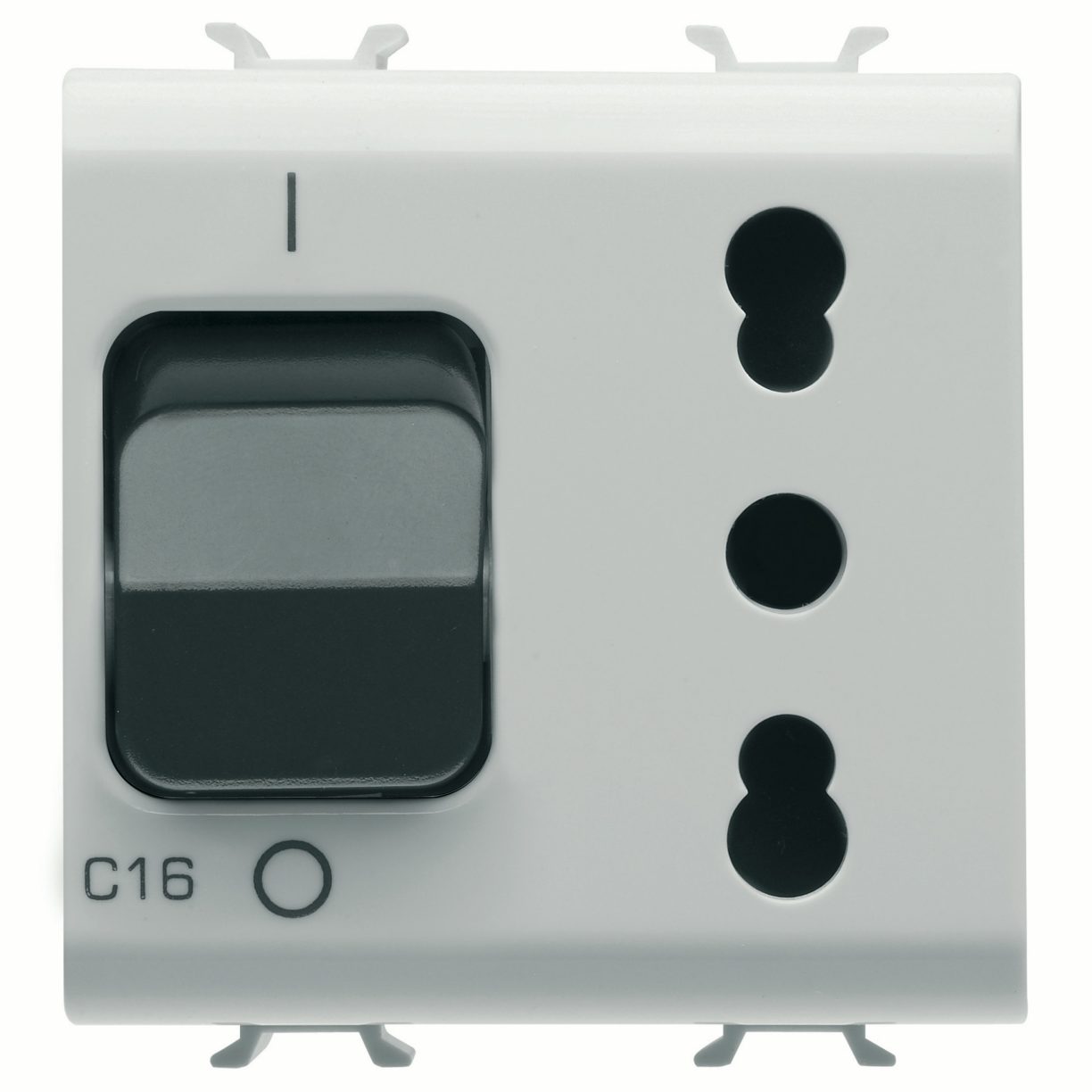

The Gewiss GW10311 is a glossy white, 2-module interlocked switched socket-outlet featuring a 2P+E configuration, 16 A rating, and 230 V ac voltage. Conforming to IEC 60884-1 and EN 60898-1 standards, this unit incorporates an integrated 1P+N 16 A miniature circuit breaker with a 3 kA breaking capacity and screw wiring terminals. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

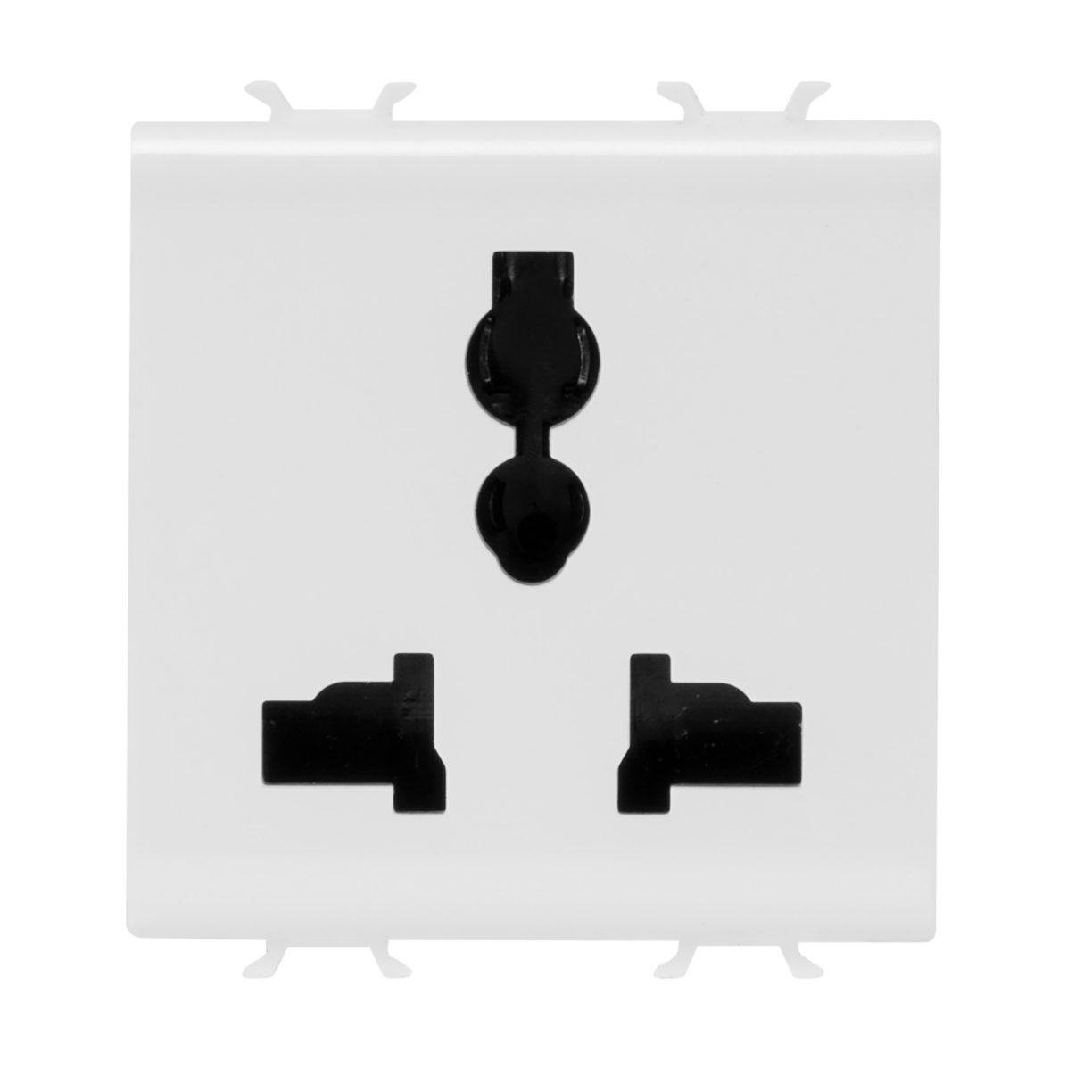

The Gewiss GW10310 is a glossy white technopolymer multistandard socket-outlet featuring a 2P+E configuration rated for 13 A at 250 V ac and 15 A at 127 V ac. Built to IEC 60884-1 standards across 2 modules, this component incorporates safety shutters and screw wiring terminals accommodating solid or stranded cables from 1.5 mm² to 2x2.5 mm². The unit withstands a test voltage of 2000 V at 50 Hz for 1 minute, demonstrates an insulation resistance greater than 5 MOhm, and sustains 10,000 position changes at In 250 V ac cosφ=0.8. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Gewiss

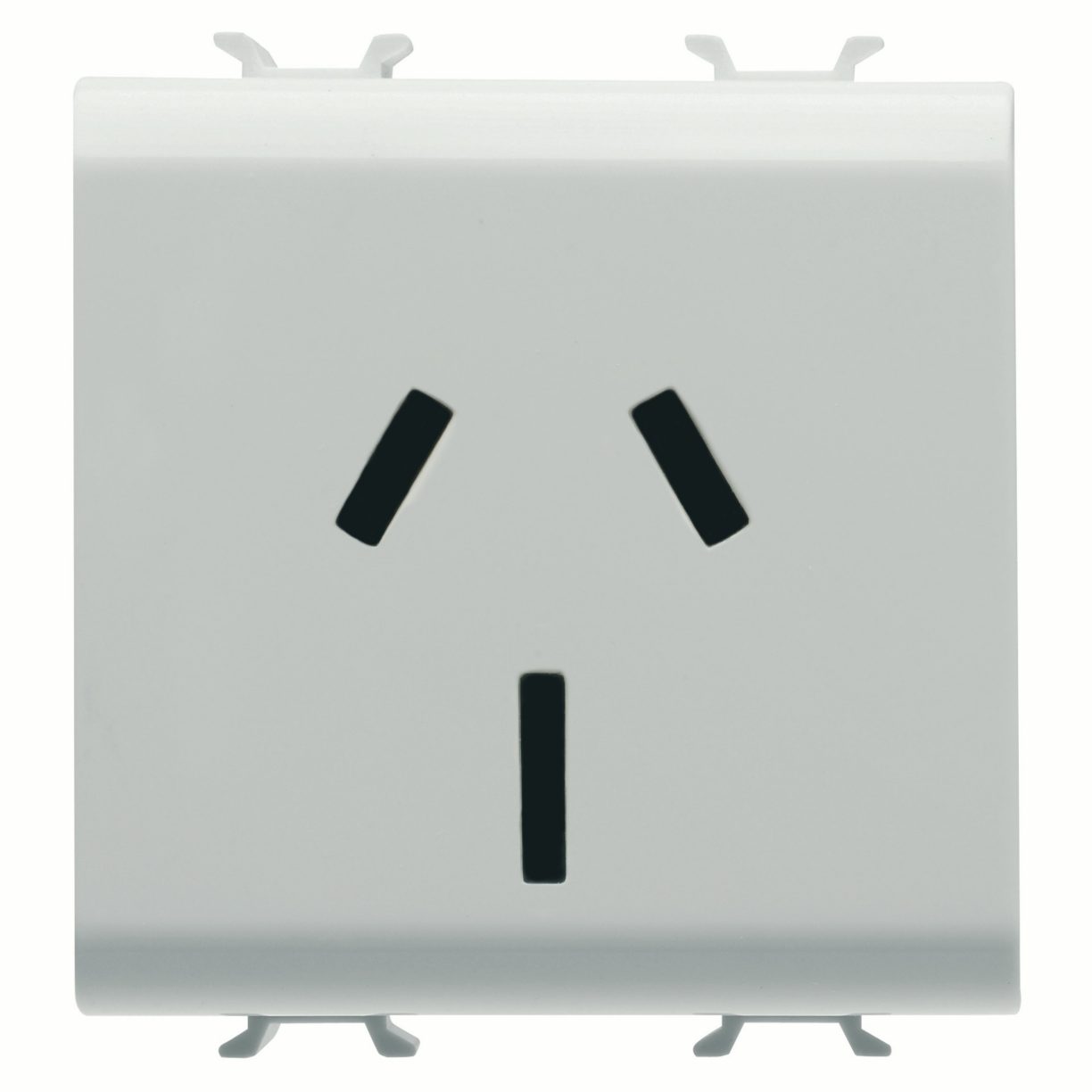

The Gewiss GW10307 is a 2-module, 2P+E Australian standard socket-outlet rated for 250 V ac and 15 A with flat plug pins and screw wiring terminals in a glossy white technopolymer finish. Built to IEC 60884-1 and AS/NZS 3112 standards, it features insulation resistance greater than 5 MOhm, a test voltage resistance of 2000 V at 50 Hz for 1 minute, and a prolonged operation durability of 10,000 position changes at In 250 V ac cosφ=0.8. Terminal capacity accommodates stranded cables from 0.75 to 2x4 mm² and solid cables from 0.5 to 2x2.5 mm², with a cable traction grip exceeding 50 N, a ball thermo-pressure rating of 125 °C, and an 850 °C glow wire test rating under HS code 85366990 and electrocod 0131. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
