Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

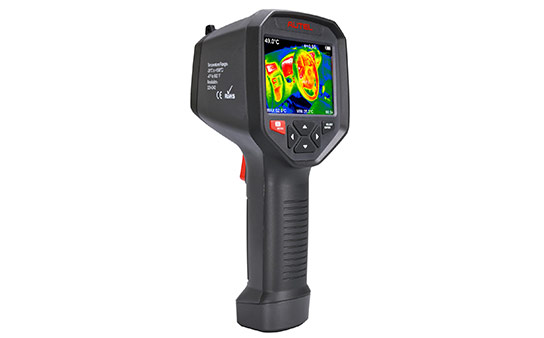

Reference imageConfirm configuration by manufacturer part number.
Autel
IR100
Autel IR100 — MaxiIRT IR100
Autel IR100 is an exact professional diagnostic equipment model. The MaxiIRT IR100 Thermal Imaging Camera measures from -20° C to 450° C (-4° F to 842° F), making heat fluctuation, loss, or buildup visible to the human eye. The dual camera overlay feature allows you to view thermal images over standard images, creating easily identifiable images. The IR100 combines high resolution, auto-focus, a 0.98 second refresh rate, and Wi-Fi image transfer to your PC or mobile device, including your MaxiSYS tablet, for a swift and accurate diagnosis. Adjustable emissivity settings and a choice of five color pallets helps customize the user experience. Troubleshoot brakes, exhaust, heated seats, HVAC and more in seconds. The IR100 includes a 1-Year Warranty. Technical specifications are normalized from Autel's official English catalog. Submit the exact model, quantity, application, destination, and required date with your RFQ.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Autel
- Part number
- IR100
- Product series
- MaxiIRT IR100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to IR100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationAvailable technical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Manufacturer
- Autel
- Manufacturer Part Number
- IR100
- Official Catalog
- Autel
- Catalog Language
- English
- Display screen
- 3.5 inch full view TFT display
- Infrared image resolution
- 320×240
- Visible image resolution
- 300,000 pixel
- LCD resolution
- 640×480
- Field angle
- 56°×42°
- Thermal sensitivity
- 0.07°C
- Frame rate of thermal images
- 9Hz
- Focus mode
- Fixed
- Wave length coverage
- 8-14um
- Emissivity
- Adjustable from 0.01 to 1.00
- Color palette
- rainbow, iron oxide red, cold color, white hot, black hot
- Temperature measurement range
- -20 °C to 450 °C
- Storage capacity
- Built in 8G
- File format
- JPEG
- USB
- Micro USB 2.0
- Power supply
- Built in chargeable 26650 battery Detachable
- Working time
- 3-4 hours
- Language
- English, Chinese , German, Italian
- Automatic power off time
- Selectable: 5 minutes, 20 minutes, not power off automatically
- Product size
- 256mm×97.2mm×128.9mm
- Product weight
- 588g
- Working temperature
- 0 °C to 45 °C
- Storage temperature
- -20 °C to 60 °C
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Autel IR100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
