Autel
MP408

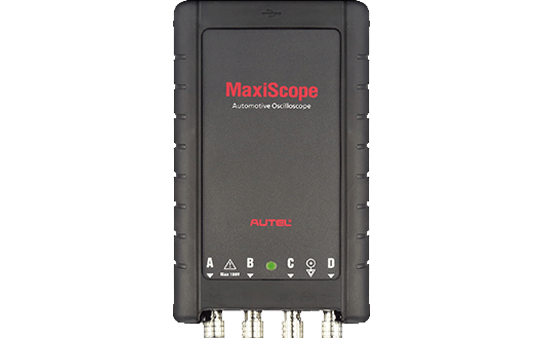

Autel MP408 — MaxiScope MP408 (Discontinued)
Autel MP408 is an exact professional diagnostic equipment model. 4-Channel Automotive Oscilloscope The MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet (906BT - MSElite. Excluding the MS909, MS919, and MSUltra), which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use. Technical specifications are normalized from Autel's official English catalog. Submit the exact model, quantity, application, destination, and required date with your RFQ.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Autel
- Part number
- MP408
- Product series
- MaxiScope MP408 (Discontinued)
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to MP408.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationAvailable technical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Manufacturer
- Autel
- Manufacturer Part Number
- MP408
- Official Catalog
- Autel
- Catalog Language
- English
- Vertical resolution
- 12 bits
- Channels
- 4
- Bandwidth
- 20MHz
- Accuracy
- 1%
- Sensitivity
- 10mV/div to 20V/div
- PC Interface
- USB 2.0 – Cable supplied
- Power Requirements
- Powered from USB port
- Input Ranges (full scale)
- ±v50mV to ±100V in 11 ranges
- Input Impedance
- 1MΩ in parallel with 22pF
- Input Type
- Single-ended, BNC connector
- Input Coupling
- Software selectable AC/DC
- Overload Protection
- ±200V on single input
- Buffer Memory
- 32M samples shared among active channels
- Waveform Buffer
- Up to 1000 waveforms
- Timebase Ranges
- 100ns/div to 1000s/div
- Operating Temperature Range
- 0°C to 50°C (15°C to 40°C for quoted accuracy)
- Storage Temperature Range
- -20°C to +60°C
- Storage Humidity Range
- 5% to 95%RH, Non-condensing
- Dimensions
- 190X115X38mm
- Weight
- < 0.5kg
- 1 or 2 channels in use
- 80MS/s
- 3 or 4 channels in use
- 20MS/s
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Autel MP408. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
