Omron
7212-1081-0002

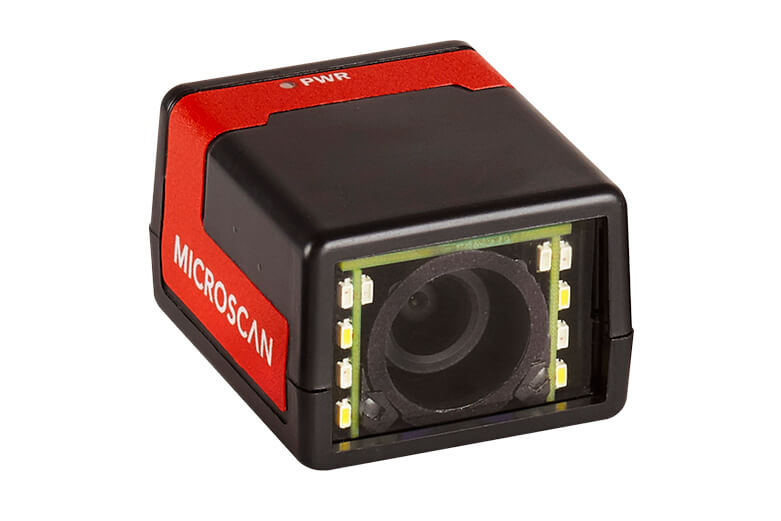

Omron 7212-1081-0002 MICROHAWK-ID-20
The Omron MICROHAWK-ID-20 is a monochrome 1.2 MP reader featuring an image width of 1280 pixels, an image height of 960 pixels, and a 3.75 µm pixel size with a global shutter. Equipped with a USB communication port, standard-density optics, and inner LEDs only, this unit delivers a 42 fps frame rate at a fixed 81-81 mm focus distance without autofocus. It utilizes a standard-speed decoder capable of processing both 1D and 2D symbologies. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- 7212-1081-0002
- Product series
- MICROHAWK-ID-20
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 7212-1081-0002.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- MICROHAWK-ID-20
- Communication port(s)
- USB
- Number of pixels
- 1.2 MP
- Focus distance
- 81-81 mm
- Autofocus
- No
- Camera type
- Monochrome
- Decoder speed
- Standard speed
- Decoder type
- 1D, 2D
- Frame rate
- 42 fps
- Illumination
- Inner LEDs only
- Image width
- 1280 pixels
- Image height
- 960 pixels
- Optics class
- Standard Density
- Pixel size
- 3.75 µm
- Shutter type
- Global
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron 7212-1081-0002. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
