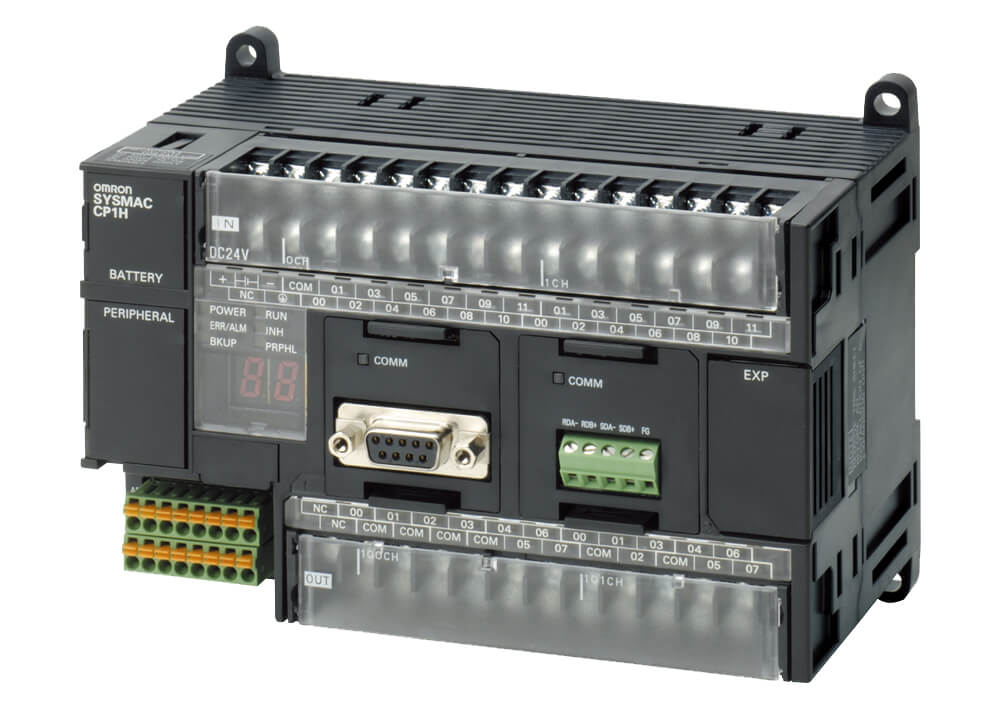

Reference imageConfirm configuration by manufacturer part number.
Omron
CP1H-XA40DR-A
Omron CP1H-XA40DR-A CP1H
The Omron CP1H-XA40DR-A is a CP1H programmable controller featuring 40 built-in digital I/Os with relay outputs and an AC supply voltage type. This unit includes 4 analog inputs, 2 analog outputs, 4 encoder input channels, and a USB communication port, with support for expansion units up to a maximum of 7 modules and 320 local I/O points. Communication options comprise CAN, CompoNet Master, DeviceNet Master and Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master and Slave, PROFIBUS DP Master and Slave, PROFINET Master, and Serial RS-232C, RS-422, and RS-485 interfaces. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- CP1H-XA40DR-A
- Product series
- CP1H
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to CP1H-XA40DR-A.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- CP1H
- Number of built-in digital I/Os
- 40
- Output type
- Relay
- Number of Ethernet ports
- 0
- Supply voltage type
- AC
- Number of encoder input channels
- 4
- Max. number of PTP axes
- 0
- Number of analog inputs
- 4
- Number of analog outputs
- 2
- Max. number of local I/O points
- 320
- Max. number of expansion units
- 7
- Communication port(s)
- USB
- Communication option(s)
- CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron CP1H-XA40DR-A. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
