Omron
D40ML-M1-U-5M
Omron D40ML-M1-U-5M D40ML

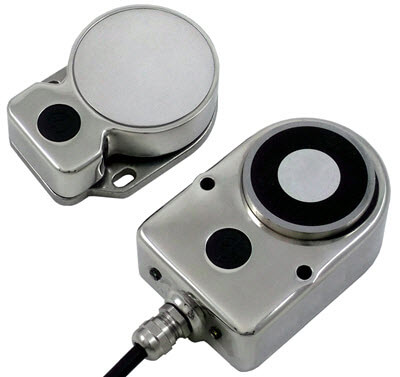

The Omron D40ML-M1-U-5M is a diecast metal RFID magnetic door switch with guard-lock functionality, operating via power to lock solenoid logic at 24 V. This unique-coded unit features a 1500 N holding force, an integrated LED indicator, two NC door contacts, one NO lock monitor contact, and a 5 m cable connection with an IP67 degree of protection across an operating ambient temperature range of -25 to 40 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- D40ML-M1-U-5M
- Product series
- D40ML
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to D40ML-M1-U-5M.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- D40ML
- Door switch type
- RFID magnetic
- Guard-lock
- Yes
- Coding
- Unique
- Material housing
- Diecast metal
- Ambient temperature (operating)
- -25-40 °C
- Holding force
- 1500 N
- Door contacts NC
- 2
- Door contacts NO
- 0
- Lock monitor contacts NC
- 0
- Lock monitor contacts NO
- 1
- Lock/Release key type
- Not Applicable
- Solenoid voltage
- 24 V
- LED indicator
- Yes
- Connection method
- Cable
- Cable length
- 5 m
- Degree of protection (IP)
- IP67
- Switch without actuator
- No
- Lock/Release logic
- Power to lock (Solenoid lock)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron D40ML-M1-U-5M. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
