D41D-2CD-025N2

Name: Omron D41D-2CD-025N2 D41D
Brand: Omron

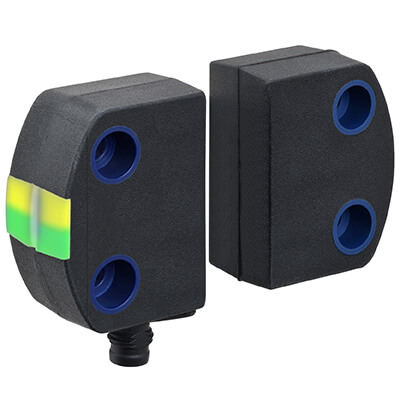

Omron D41D-2CD-025N2 D41D

The Omron D41D-2CD-025N2 is a non-contact RFID-coded door switch featuring high coding level and unique coding housed in PBT with a bottom cable exit via an M12 pigtail connector. This unit incorporates two NC door contacts, one NO door contact, one auxiliary PNP short-circuit-proof monitoring output, diagnostic LEDs, and output test pulses while supporting up to 30 connectable switches over a maximum wiring length of 100 m. Operational parameters include a 10 mm minimum operating distance OFF to ON, an 18 mm maximum operating distance ON to OFF, a 20 % maximum differential travel, and an IP65/IP67 degree of protection without guard-lock functionality. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.

Manufacturer: Omron
Part number: D41D-2CD-025N2
Product series: D41D
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to D41D-2CD-025N2.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Product Family: D41D
Coding: Unique
Connection method: M12 pigtail connector
Degree of protection (IP): IP65/IP67
Diagnostic LED: Yes
Door contacts NC: 2
Door contacts NO: 1
Door switch type: Non-contact, RFID coded
Guard-lock: No
High coding level: Yes
Material housing: PBT
Number of auxiliary outputs: 1
Auxiliary monitoring output: PNP type, short-circuit proof
Cable exit direction: Bottom
Make before break: No
Max. differential travel: 20 %
Max. operating distance ON to OFF: 18 mm
Min. operating distance OFF to ON: 10 mm
Number of connectable switches: 30 max. (wiring length: 100 m max.)
Output test pulses: Yes
Output type: PNP
Teaching limitation: No
Vibration resistance: 10 to 55 Hz, amplitude 1.0 mm
