Omron
E2A-S08LS02-M3-B3
Omron E2A-S08LS02-M3-B3 E2A-S

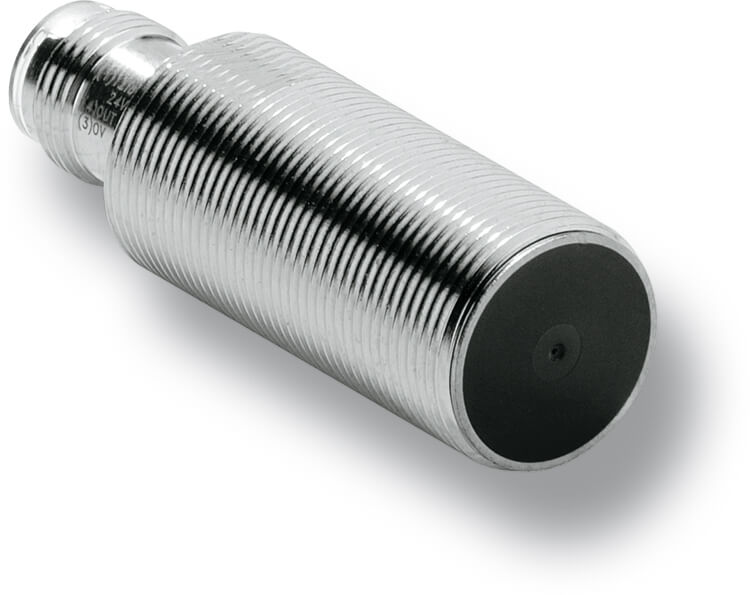

The Omron E2A-S08LS02-M3-B3 is an M8 flush-mounting inductive proximity sensor from the E2A-S product family featuring a stainless steel housing and an overall length of 61 mm with a 49 mm thread length. This component provides a 2 mm sensing distance, a PNP output type with NO + NC operation mode, and an M8 4-pin connector connection method, while achieving an IP67/IP69K degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- E2A-S08LS02-M3-B3
- Product series
- E2A-S
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to E2A-S08LS02-M3-B3.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- E2A-S
- Size
- M8
- Mounting type
- Flush
- Sensing distance
- 2 mm
- Output type
- PNP
- Operation mode
- NO + NC
- Connection method
- Connector M8 - 4 pin
- Material housing
- Stainless steel
- Cable specifications
- -
- Overall length of sensor
- 61 mm
- Thread length
- 49 mm
- Degree of protection (IP)
- IP67/IP69K
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron E2A-S08LS02-M3-B3. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
