Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

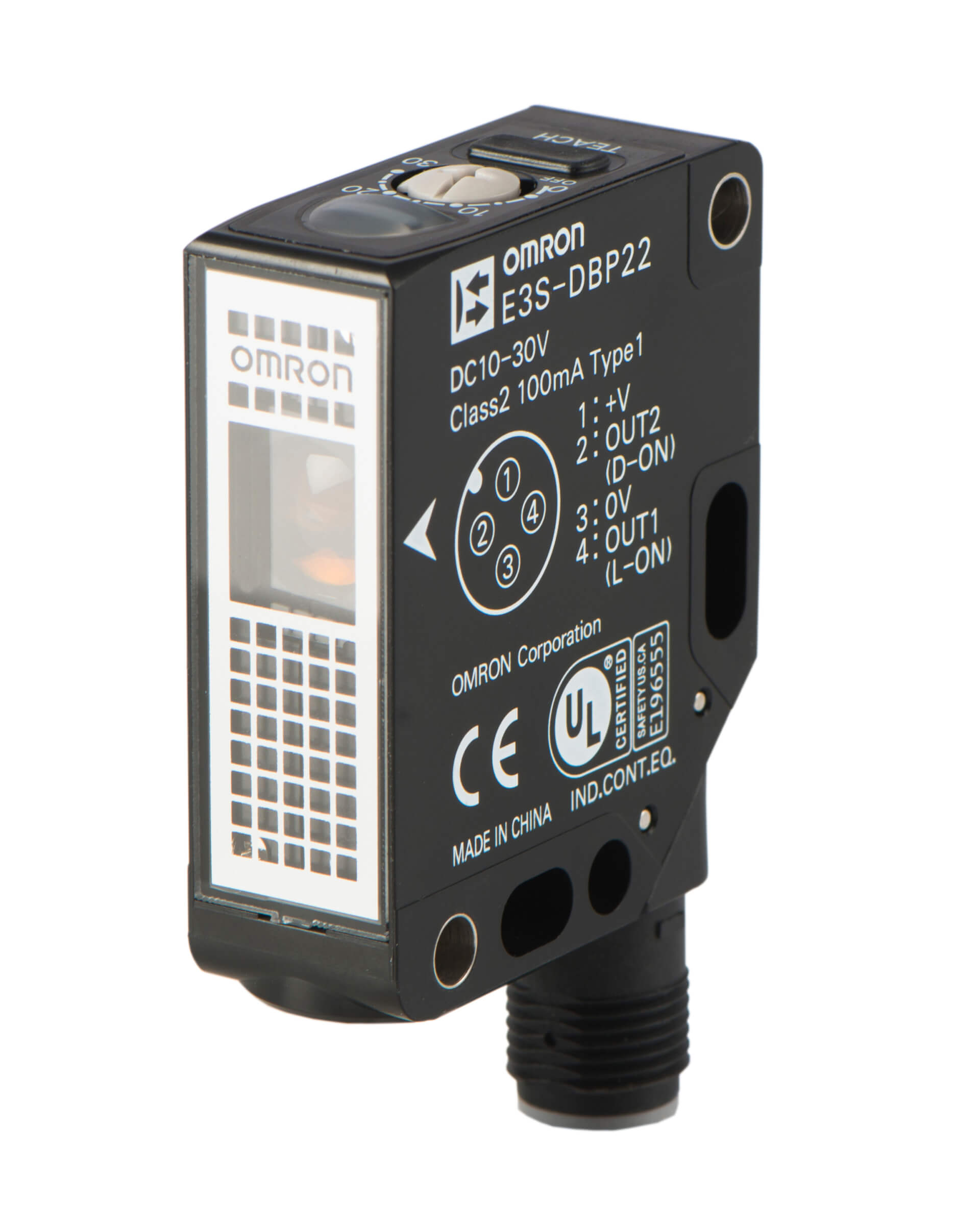

Reference imageConfirm configuration by manufacturer part number.
Omron
E3S-DBP21
Omron E3S-DBP21 E3S-DB
The Omron E3S-DBP21 is a cuboid retro-reflective sensor from the E3S-DB product family featuring a sensing distance of 0 to 3500 mm via polarized red light. Equipped with M.S.R., smart teach, and transparent detection capabilities, this unit utilizes a Teach-In setting method, PNP output type, and selectable Dark-ON or Light-ON operation modes with a 0.5 ms response time. Housed in ABS with an M12 connector, it operates on a 10 to 30 V power supply voltage and maintains IP67 and IP69K degrees of protection. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Omron references — within one business day.
- Manufacturer
- Omron
- Part number
- E3S-DBP21
- Product series
- E3S-DB
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to E3S-DBP21.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Family
- E3S-DB
- Shape
- Cuboid
- Sensing method
- Retro-reflective
- Sensing distance
- 3500 mm
- Sensing distance (min.)
- 0 mm
- Setting method
- Teach-In
- Connection method
- Connector M12
- Output type
- PNP
- Operation mode
- Dark-ON, Light-ON
- Response time
- 0.5 ms
- Material housing
- ABS
- Thread size
- Other
- Type of light
- Polarized red light
- Power supply voltage
- 10-30 V
- Features
- M.S.R., Smart teach, Transparent detection
- Degree of protection (IP)
- IP67/IP69K
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Omron E3S-DBP21. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
